StarTech.com USB-C / USB-A Docking Station - Triple 4K 60Hz
Customize

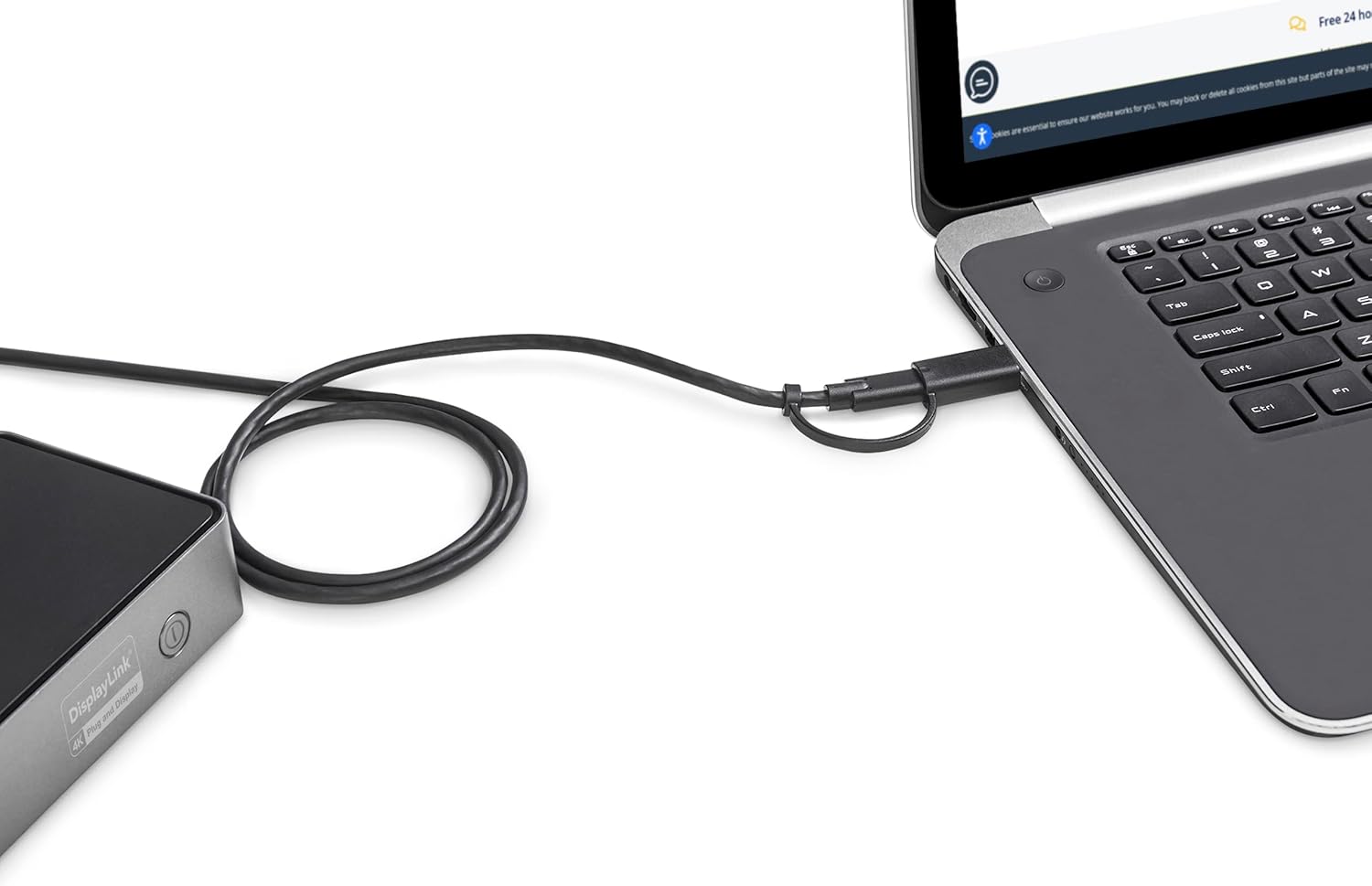

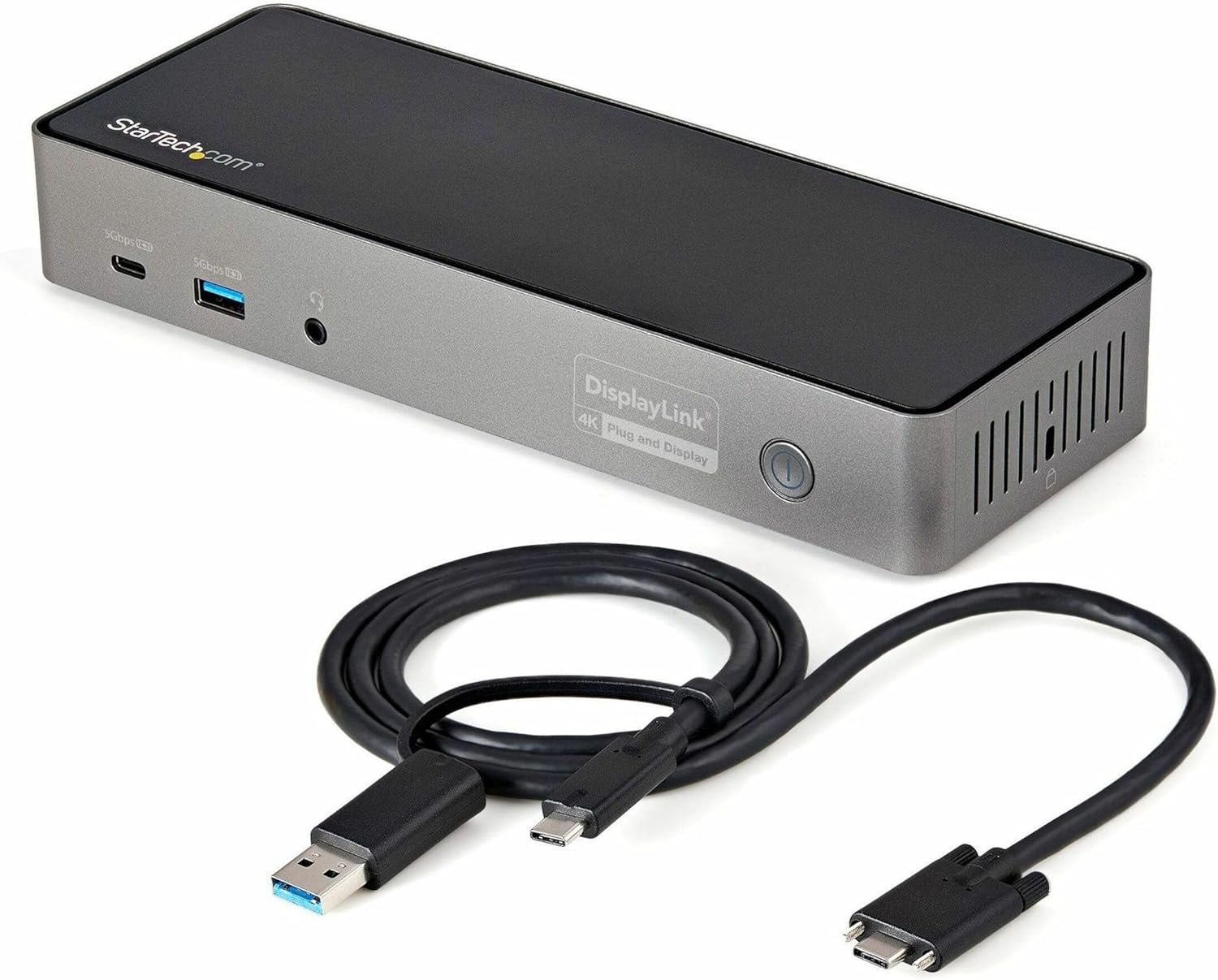

This StarTech.com USB-C/USB-A docking station converts compatible USB-C or Thunderbolt laptops into a full workstation with triple 4K 60Hz video output using DP 1.4 and HDMI 2.0 interfaces. The dock offers USB 3.2 Gen 2 (10Gbps) connectivity along with a total of six downstream USB ports to connect peripherals, plus gigabit Ethernet with PXE Boot for reliable wired networking. Additional common features include TRRS stereo headset/microphone audio, a Kensington-style security slot, Power Delivery charging support, and compatibility with Windows, macOS and Chromebook systems. The dock is designed for multi-monitor productivity, peripheral expansion, and enterprise-friendly network transparency using the StarTech.com MAC Address Changer utility.

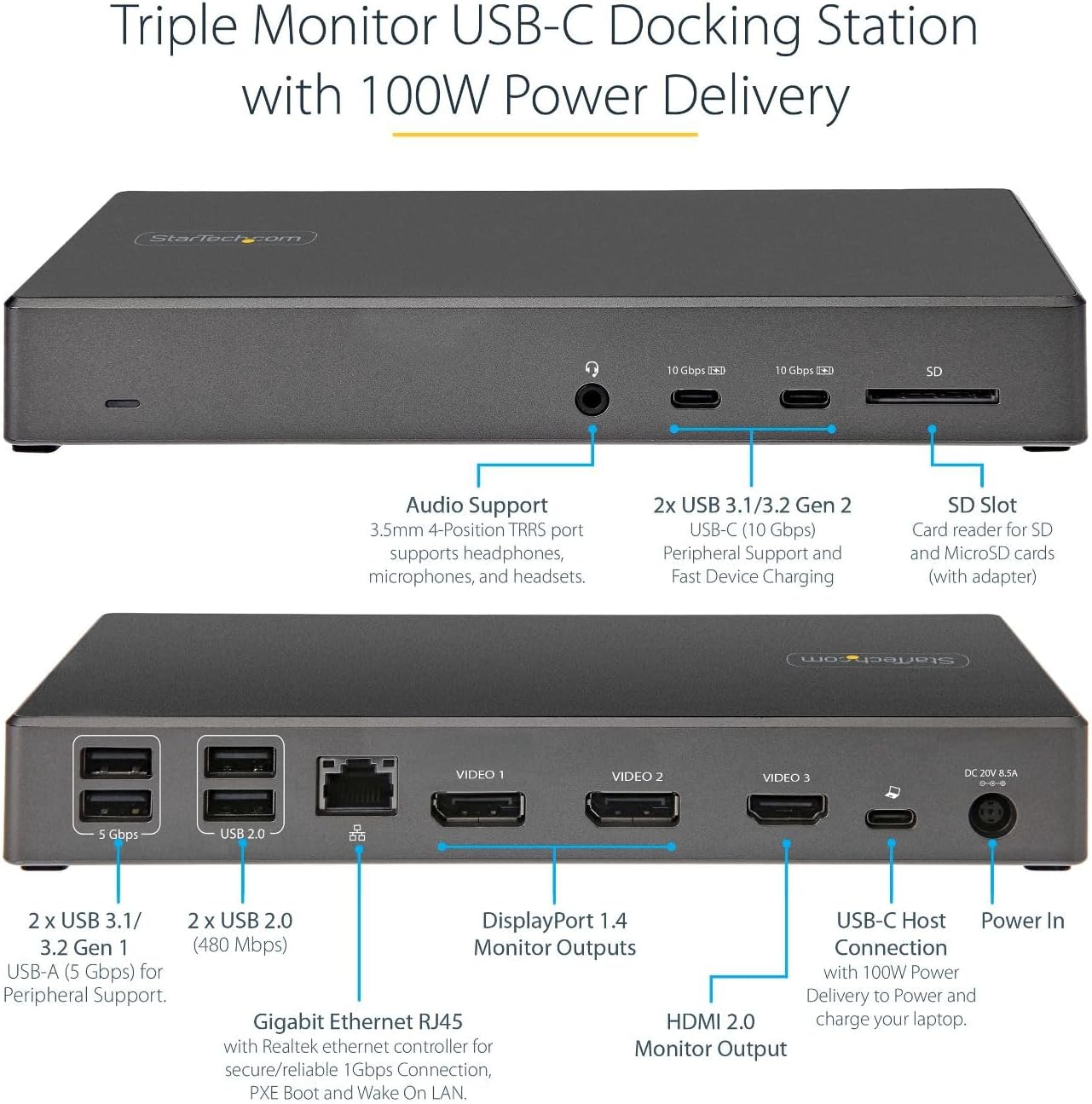

- HIGH PERFORMANCE USB-C DOCK: USB-C docking station for Windows/Chrome OS, featuring up to three 4K video outputs (2x DisplayPort 1.4 & 1x HDMI 2.0), 100W PD, 6 port USB Hub (10Gbps), SD 3.0 UHS-I Card Reader, Gigabit Ethernet, and headset port

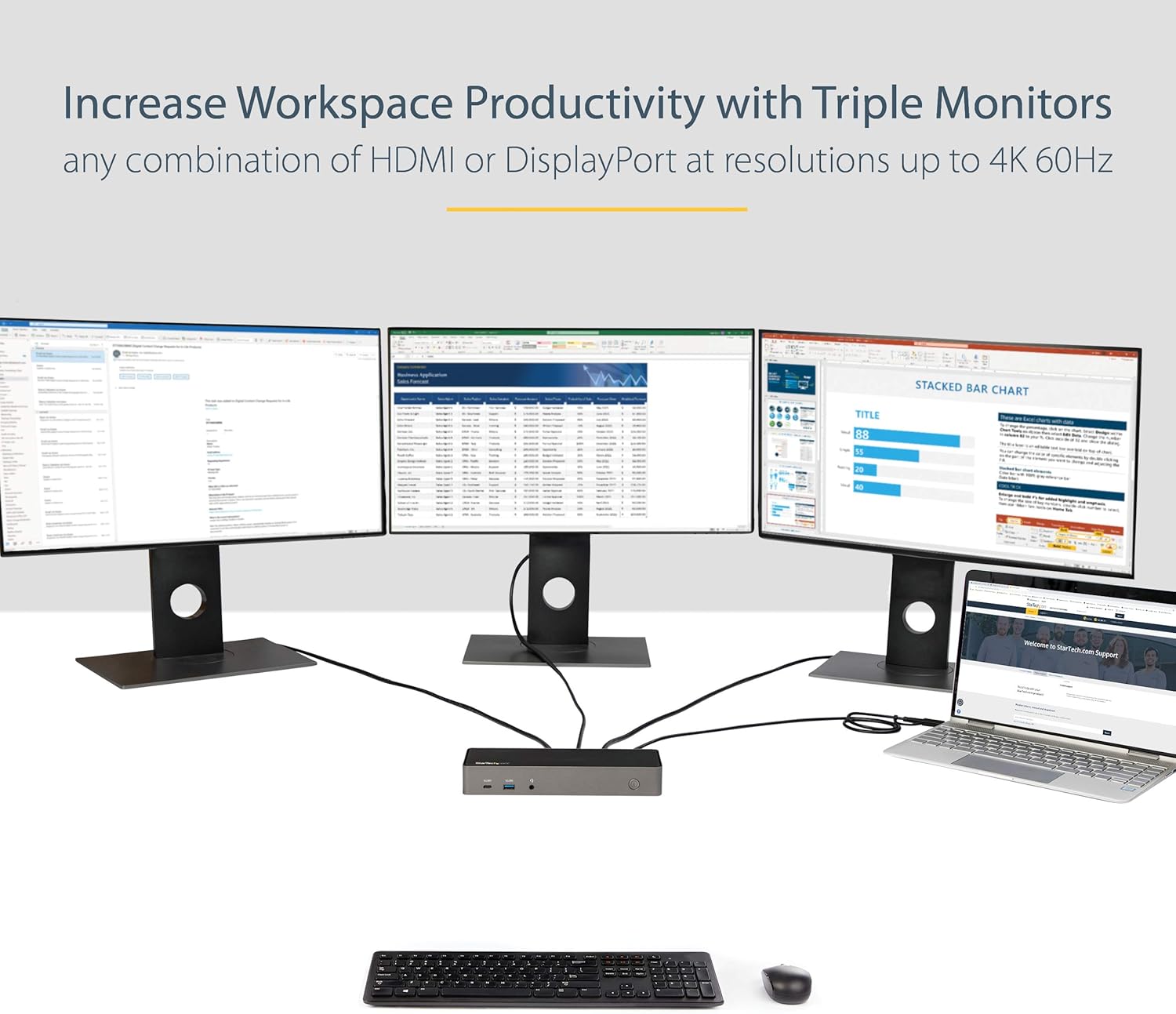

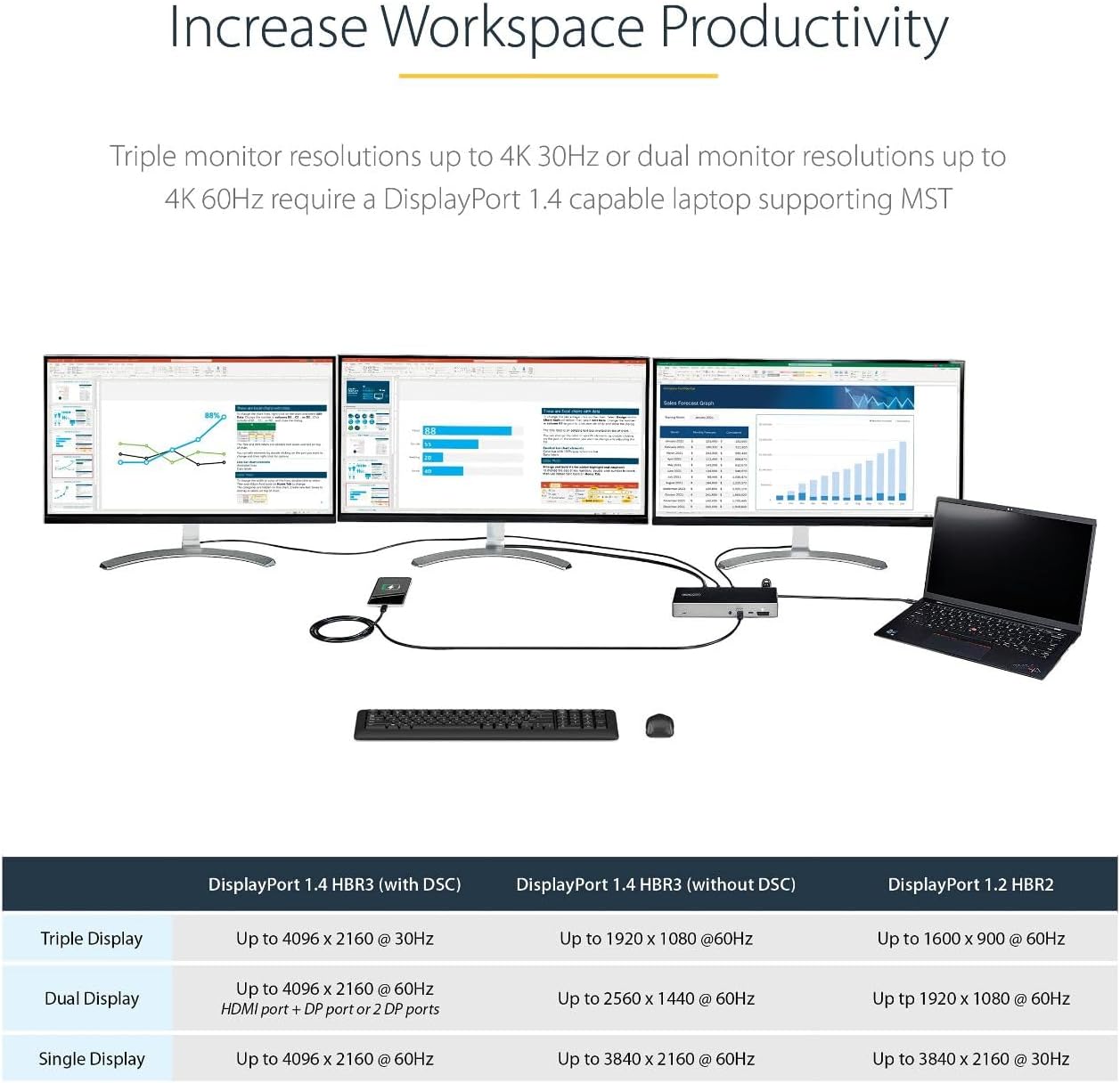

- DISPLAYPORT 1.4 WITH DSC: Triple monitor USB-C docking station (MST) supports dual 4K 60Hz or triple 4K 30Hz on DP 1.4 Alt-Mode HBR3 w/ DSC enabled laptop (min. Intel 11th Gen); works with DP 1.2 supporting dual monitor 1080p @ 60Hz (see image gallery)

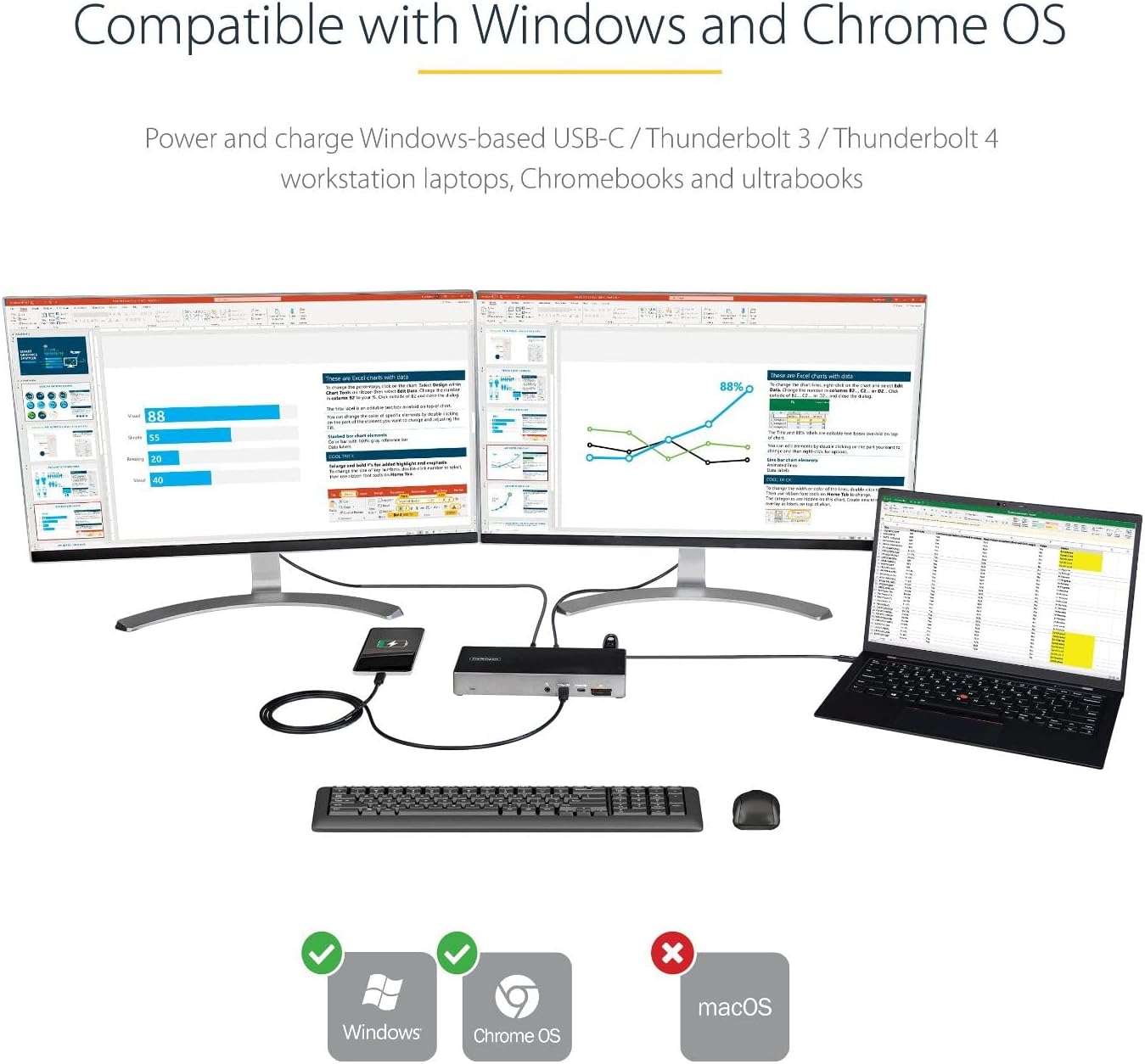

- 100W POWER DELIVERY CHARGING: Power & charge Windows-based USB-C/Thunderbolt 3 workstation laptops, Chromebooks, ultrabooks including Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, and ZBook

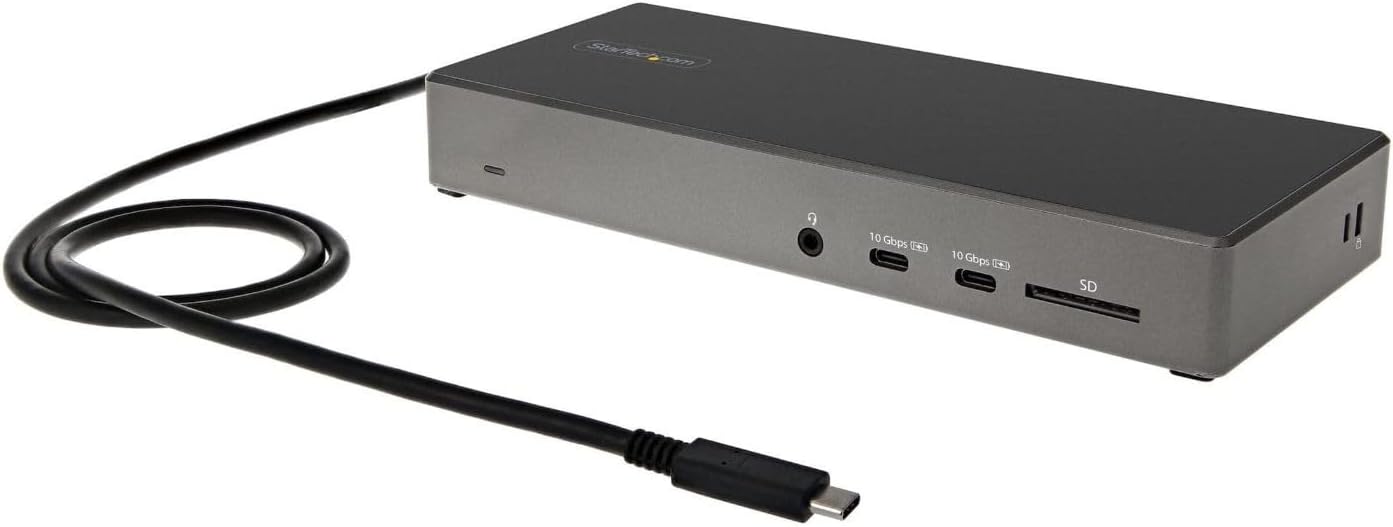

- 6-PORT USB HUB: 2x 10Gbps USB-C (USB 3.2/3.1 Gen 2), both BC 1.2 fast charge always-on ports), 2x USB 3.0 5Gbps, and 2x USB 2.0; a variety of USB ports to connect many peripherals incl. two 10Gbps high speed USB-C ports for external drives

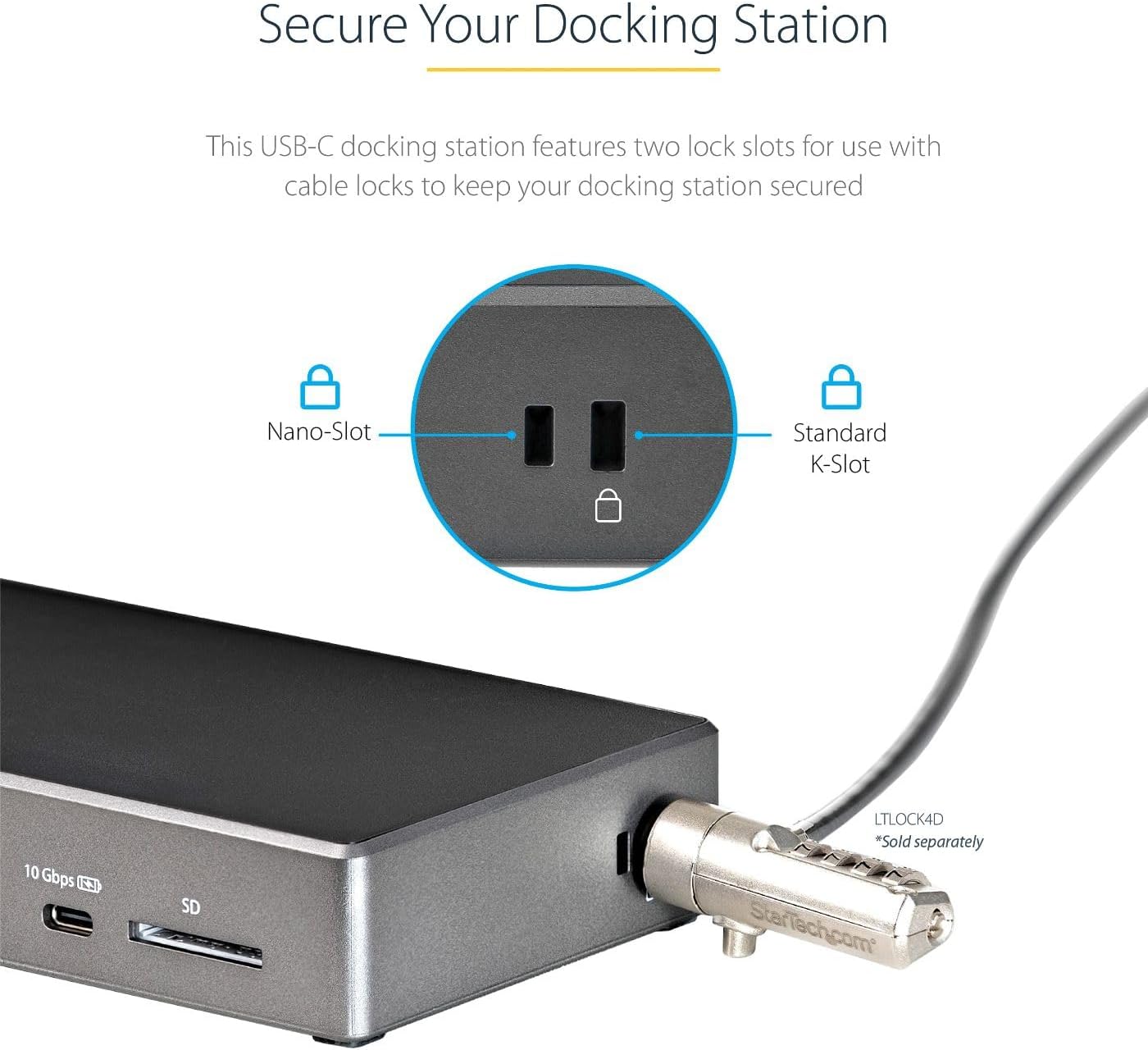

- DEPLOYMENT READY: Universal multi monitor USB Type-C docking station with no driver setup, features 2x security lock k-slots, On/Off button, 3.3ft (1m) USB-C host cable; Windows/Chrome OS support
Specifications:
| Product Details | |
| Memory Card Reader | Yes |
| Number Of Displayports | 2 |
| Number Of Hdmi Ports | 1 |
| Number Of Rj-45 Ports | 1 |
| Number Of Usb 3.1 Type-C Ports | 1 |
| Operating System Supported | Windows 10; Windows 11; Windows 8.1; ChromeOS 78.x |
| Ports | RJ-45; HDMI |
| Screen Mode Supported | 4K |
| Supported Resolutions | 4096.000216; 3840.000216; 2560.000144; 1920.000108; 1600.00009 |
| Usb Type-C Detail | 2 X Usb Type-C (Fast-Charge, 24 Pin) Usb 3.0, 1 X Usb 3.1 Usb Type C (10 Pin, Gen 2, 10 Gbps) |
| Sizing & Dimensions | |
| Height | 1.2 inches |
| Length | 8.3 inches |

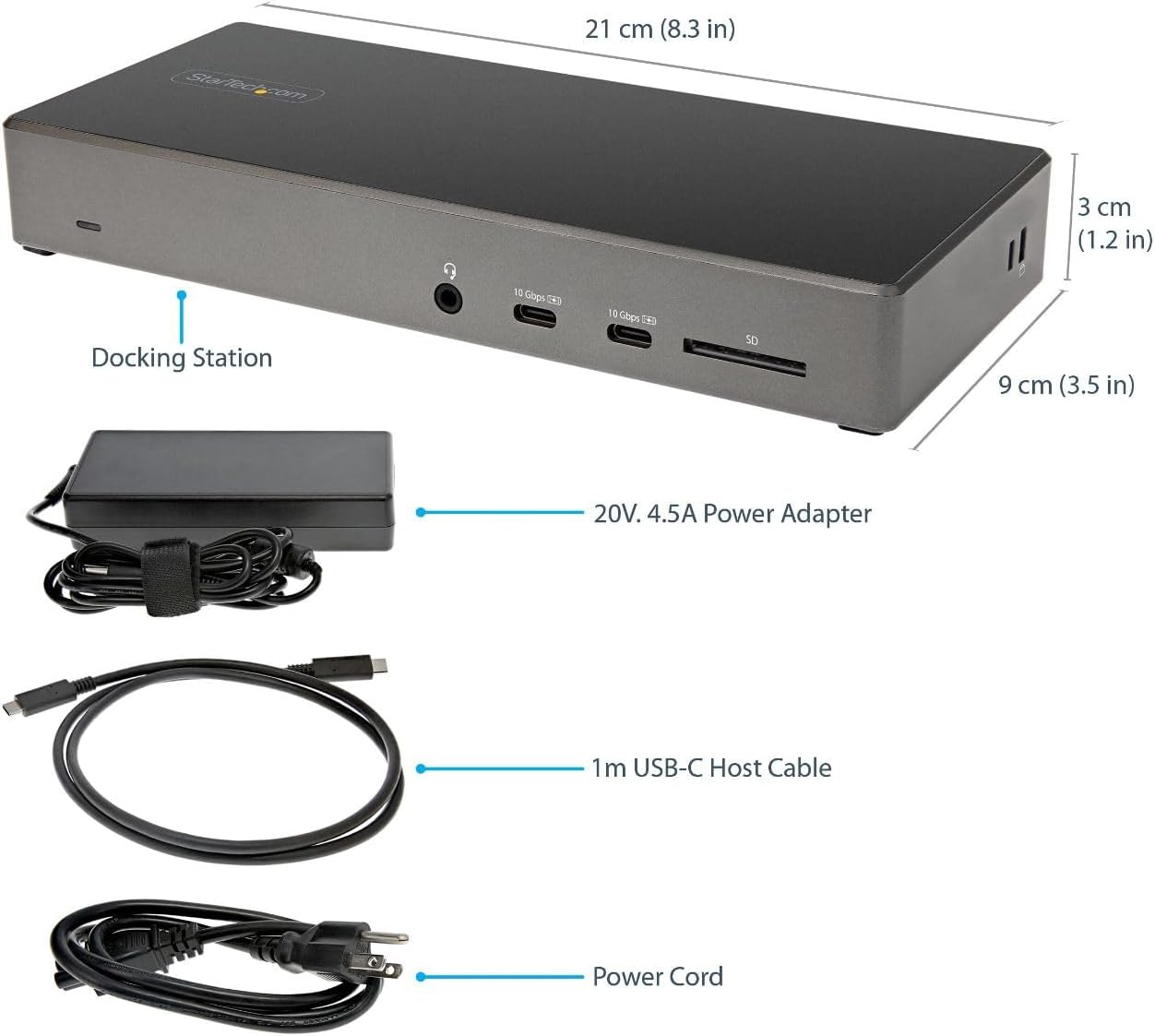

| Product Dimensions | 8.3"L x 3.5"W x 1.2"H |
| Weight | 10.56 ounces |
| Width | 3.5 inches |
| Technical Specifications | |
| Wattage | 100 |
