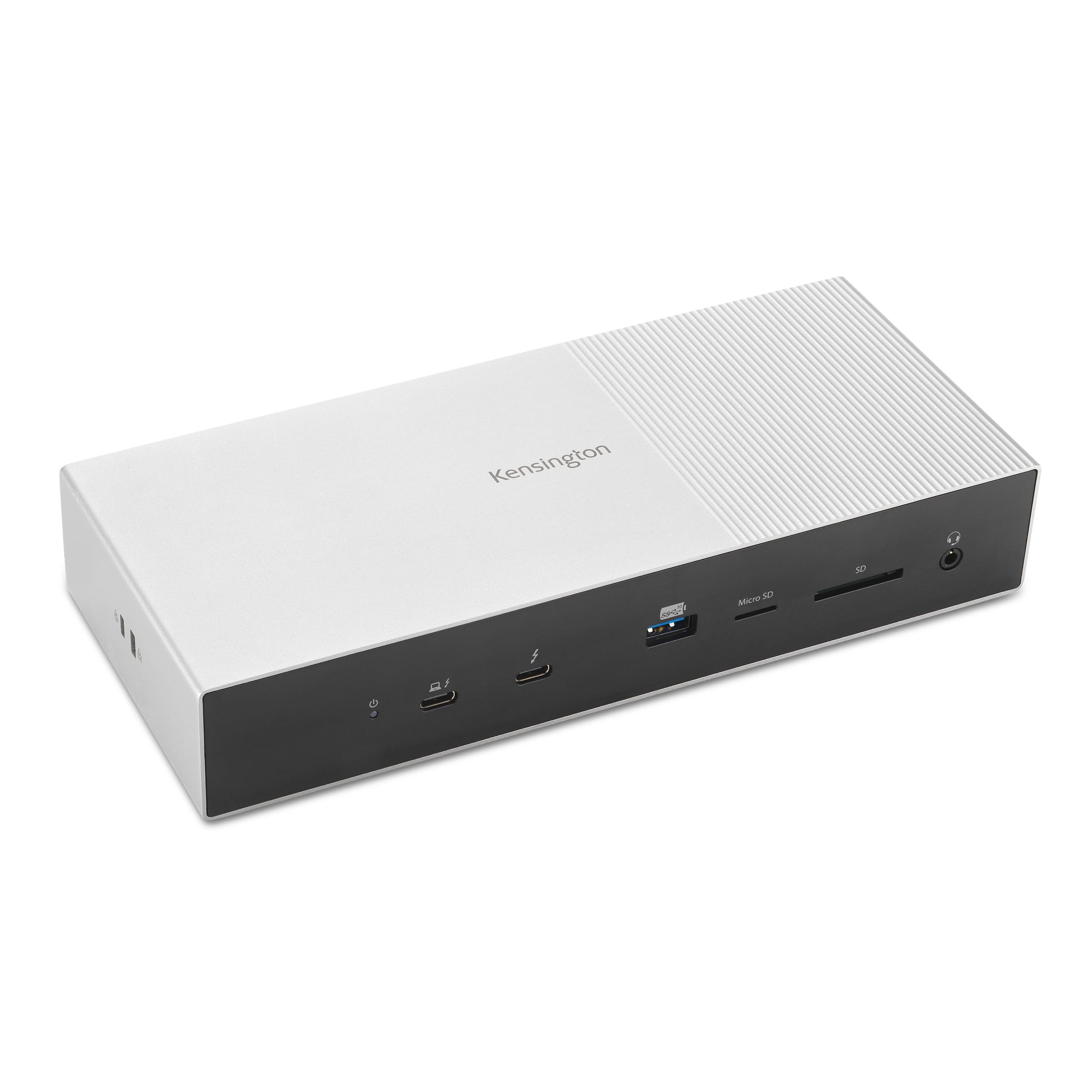

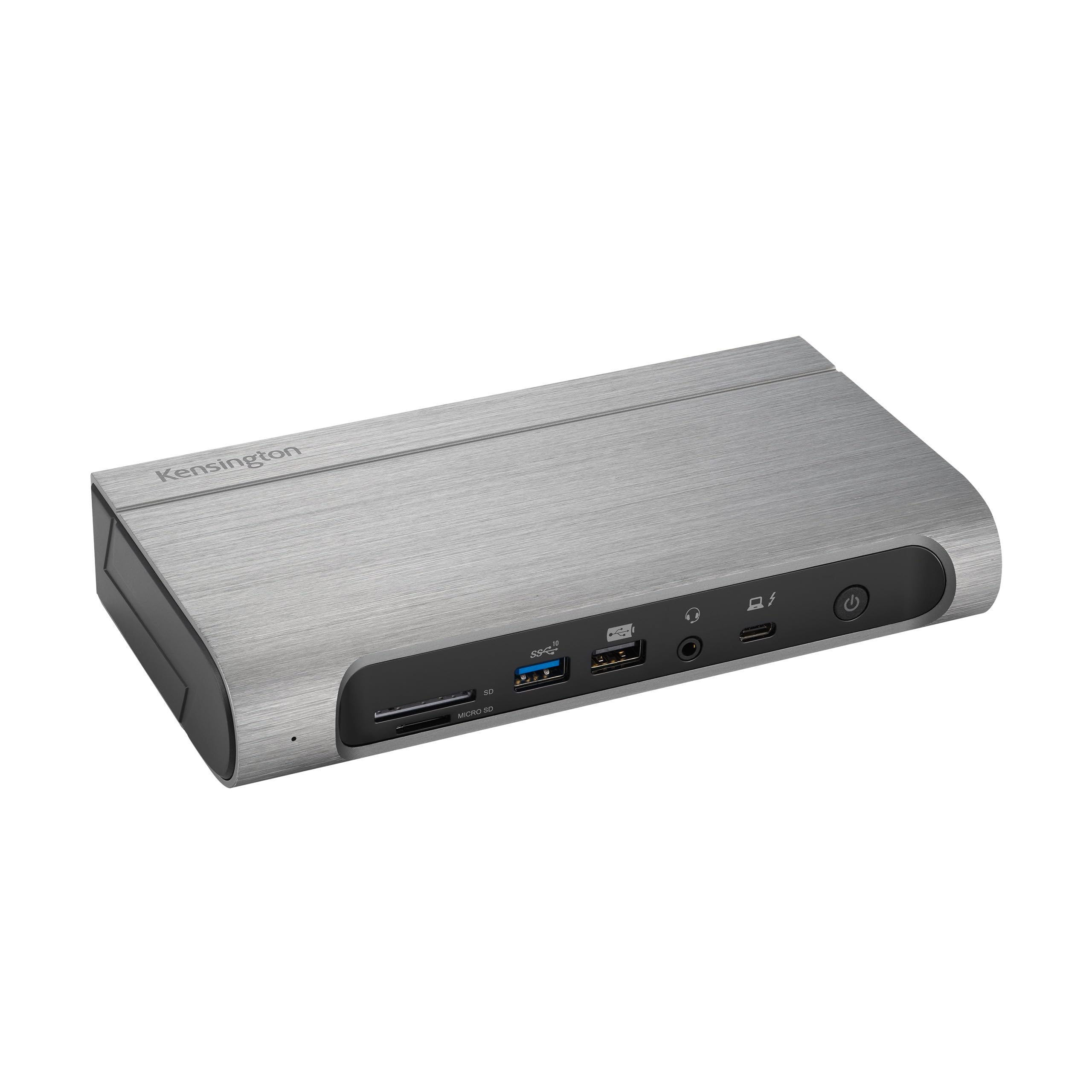

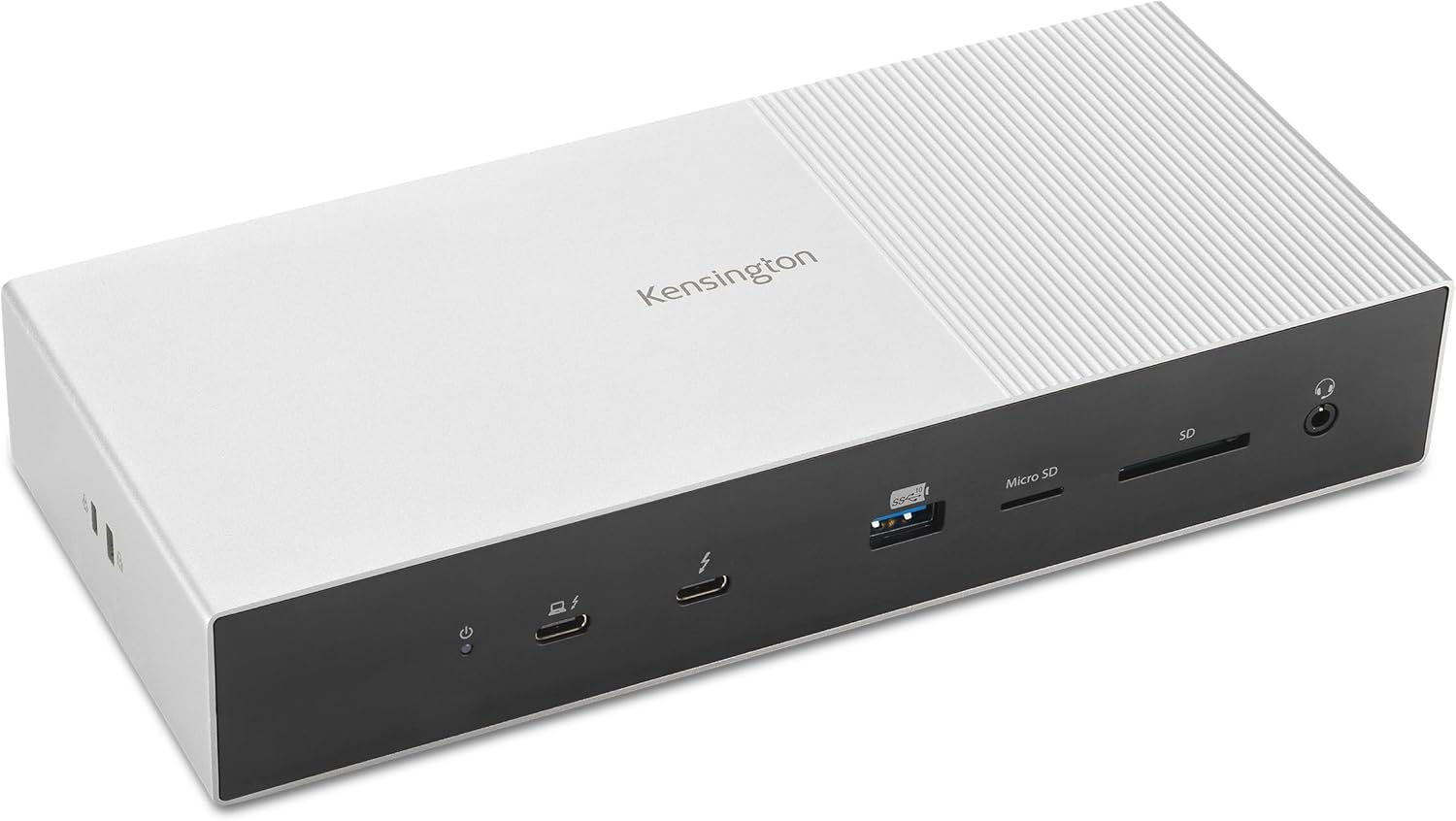

KENSINGTON Thunderbolt Docking Station for Multiple Displays
Customize
KENSINGTON Thunderbolt docking stations are designed to unlock the potential of premium laptops by delivering more screens, more speed and more ports in a single-cable solution. Intended for professionals and creatives who work with large files and multi-display setups, these docks support multiple high-resolution displays and high-speed Thunderbolt/USB4 connectivity while providing amplified Power Delivery for laptop charging. The port layouts include Thunderbolt downstream and host connectivity, USB-A and USB-C ports, HDMI and DisplayPort options, SD/microSD card readers, audio, and 2.5GbE Ethernet for fast networking. Each dock offers a robust, plug-and-play experience with zero-footprint mounting options and security lock slots to suit shared or fixed workspaces. Broad compatibility with Thunderbolt and USB-C systems ensures these docks integrate into diverse Windows and Mac workflows.

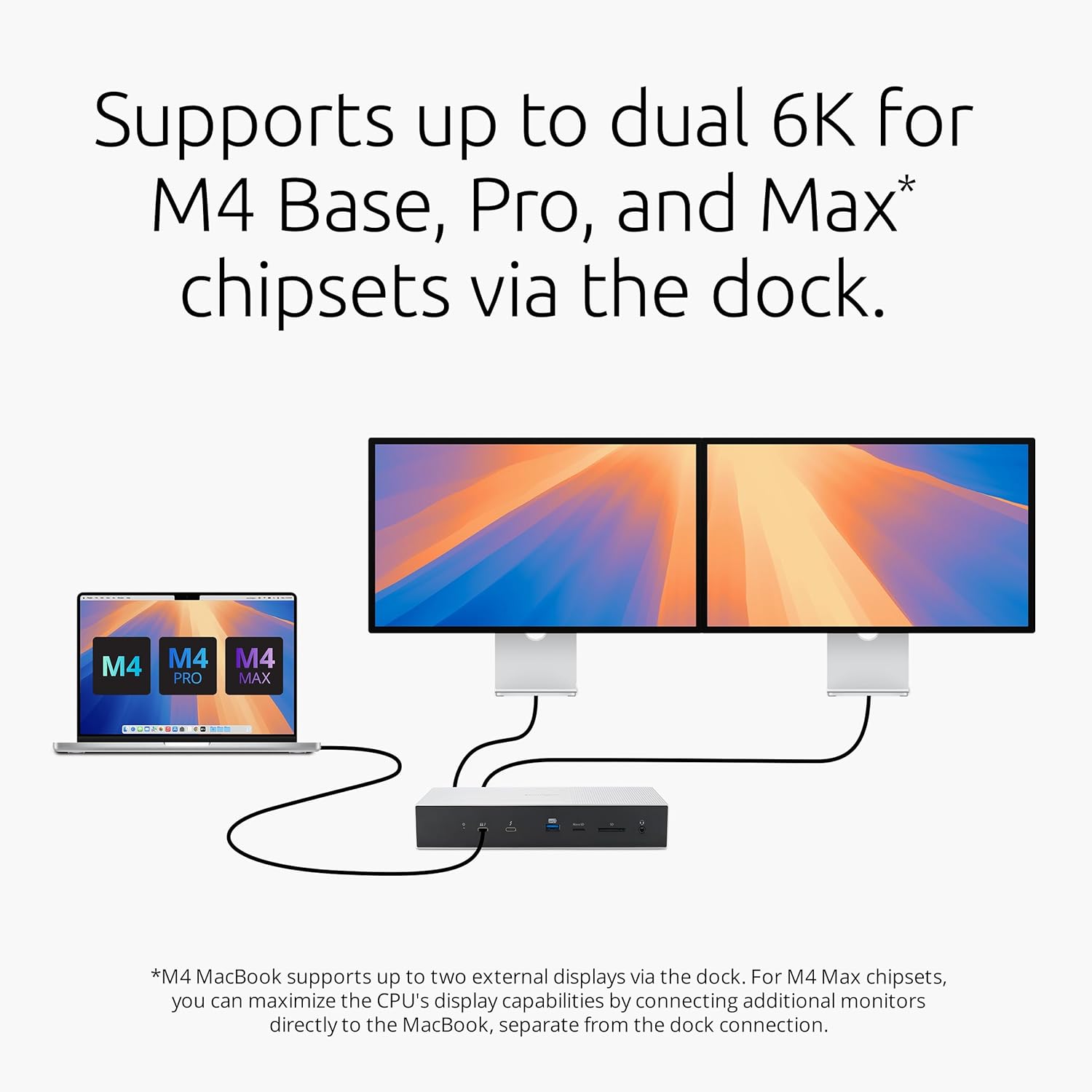

- For MacBook, the number of displays that can be connected through the dock is up to two external displays based on our current testing. With chipsets like M4 Max, you can maximize the display support offered by the CPU by connecting additional monitors directly to the MacBook
- Composed of 100% post-consumer recycled (PCR) aluminum*– and delivered in Forest Stewardship Council (FSC) certified packaging. *The outer casing of the docking station is made of aluminum
- 3-Year manufacturers warranty and lifetime technical support
- Zero-Footprint Mounting Option and Security Cable Lock Slots - Maximize desktop space by mounting your docking station out of the way; mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock K60603WW, sold separately

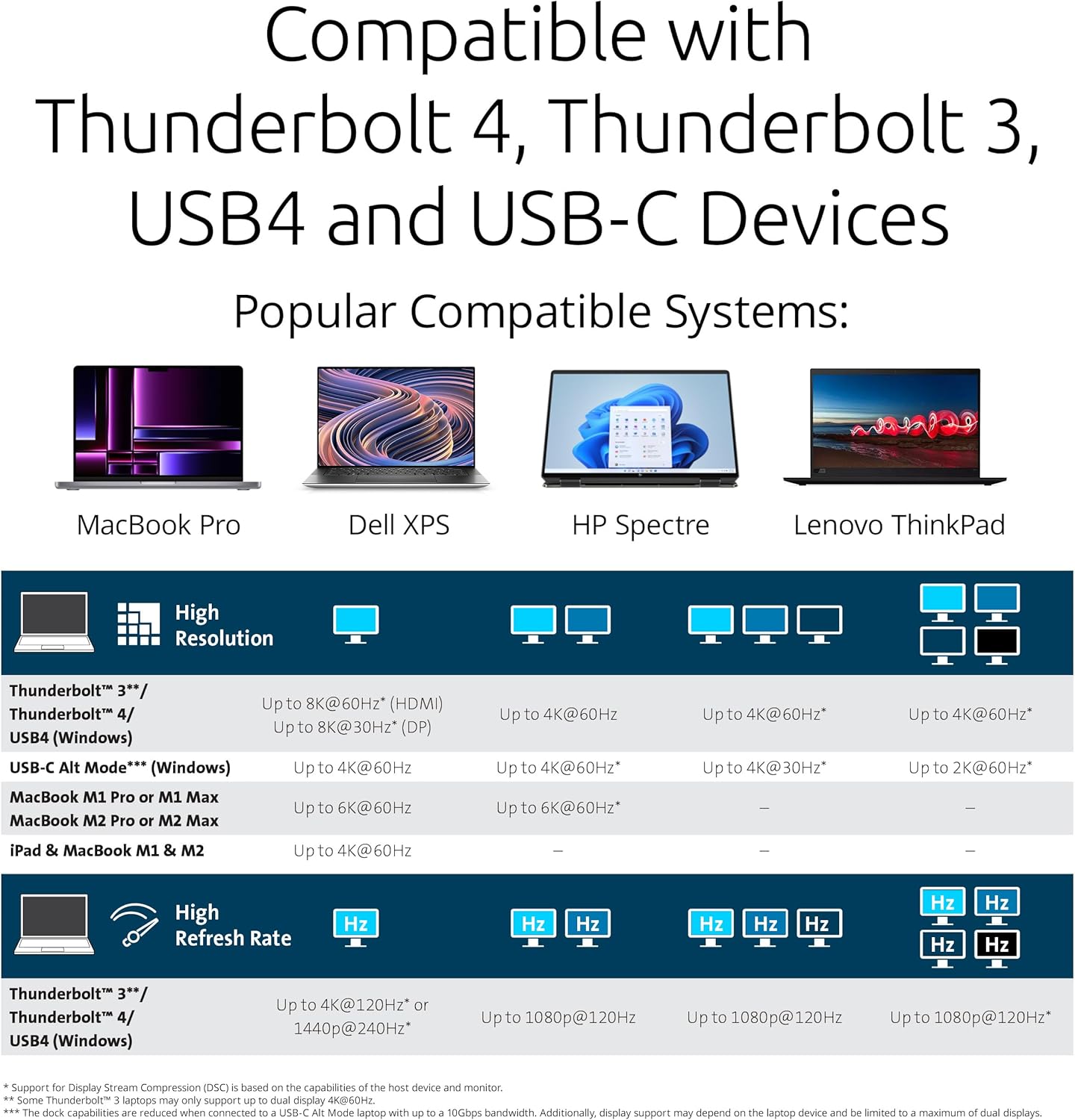

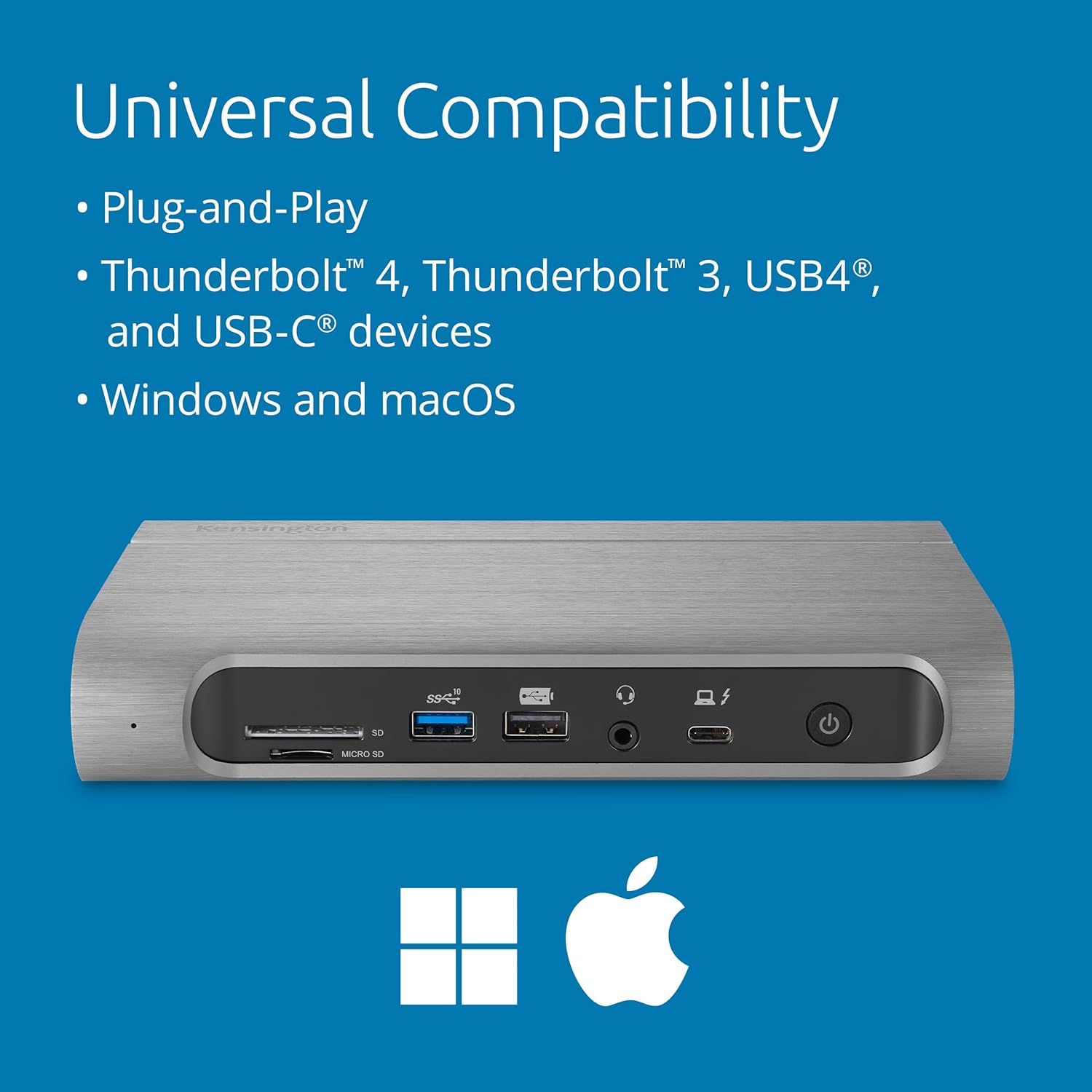

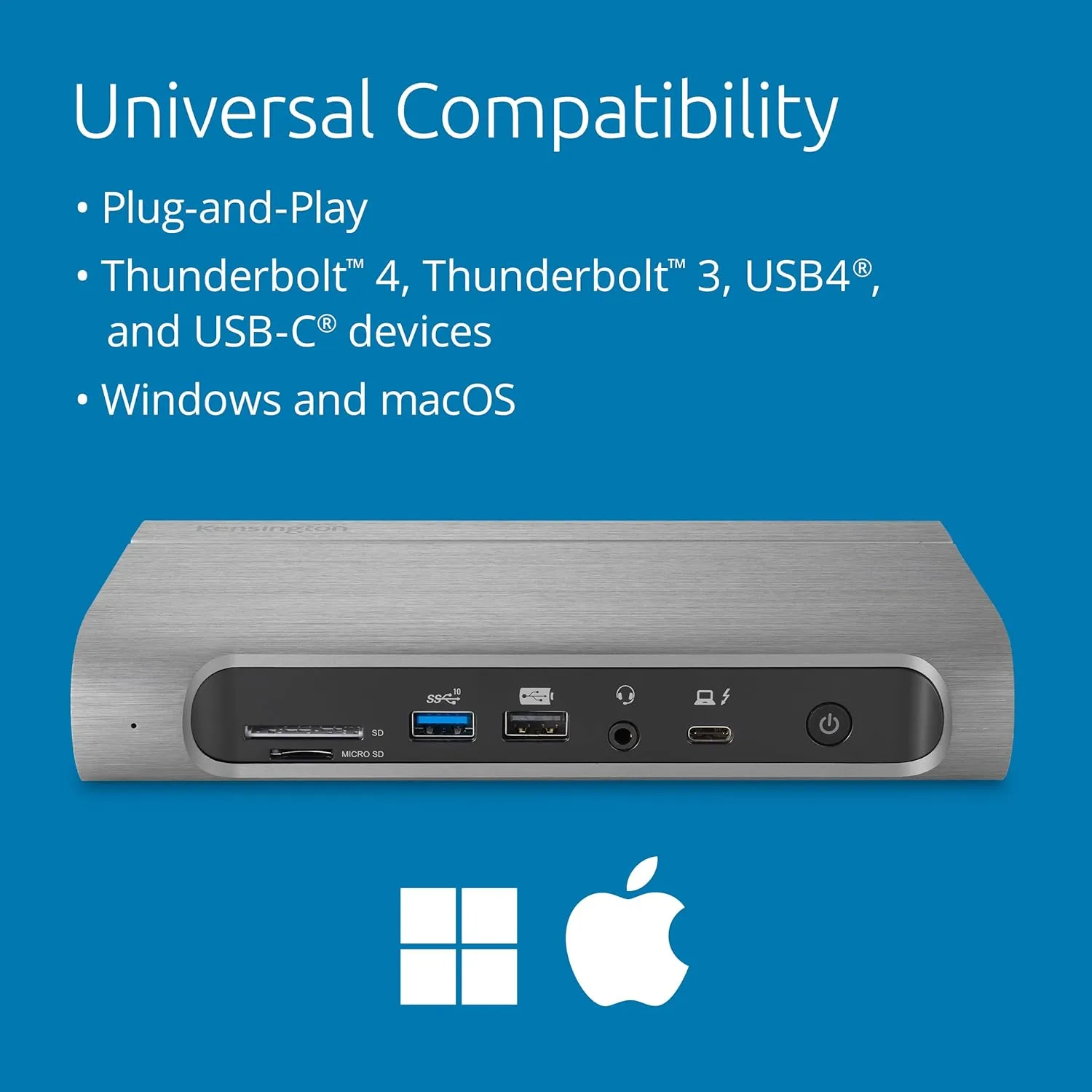

- Plug-and-play solution for Thunderbolt 5, Thunderbolt 4, USB4, and USB-C devices running Windows 11 (23H2 or later) or macOS (14.5 or later)
- UHS-II SD and Micro SD card readers

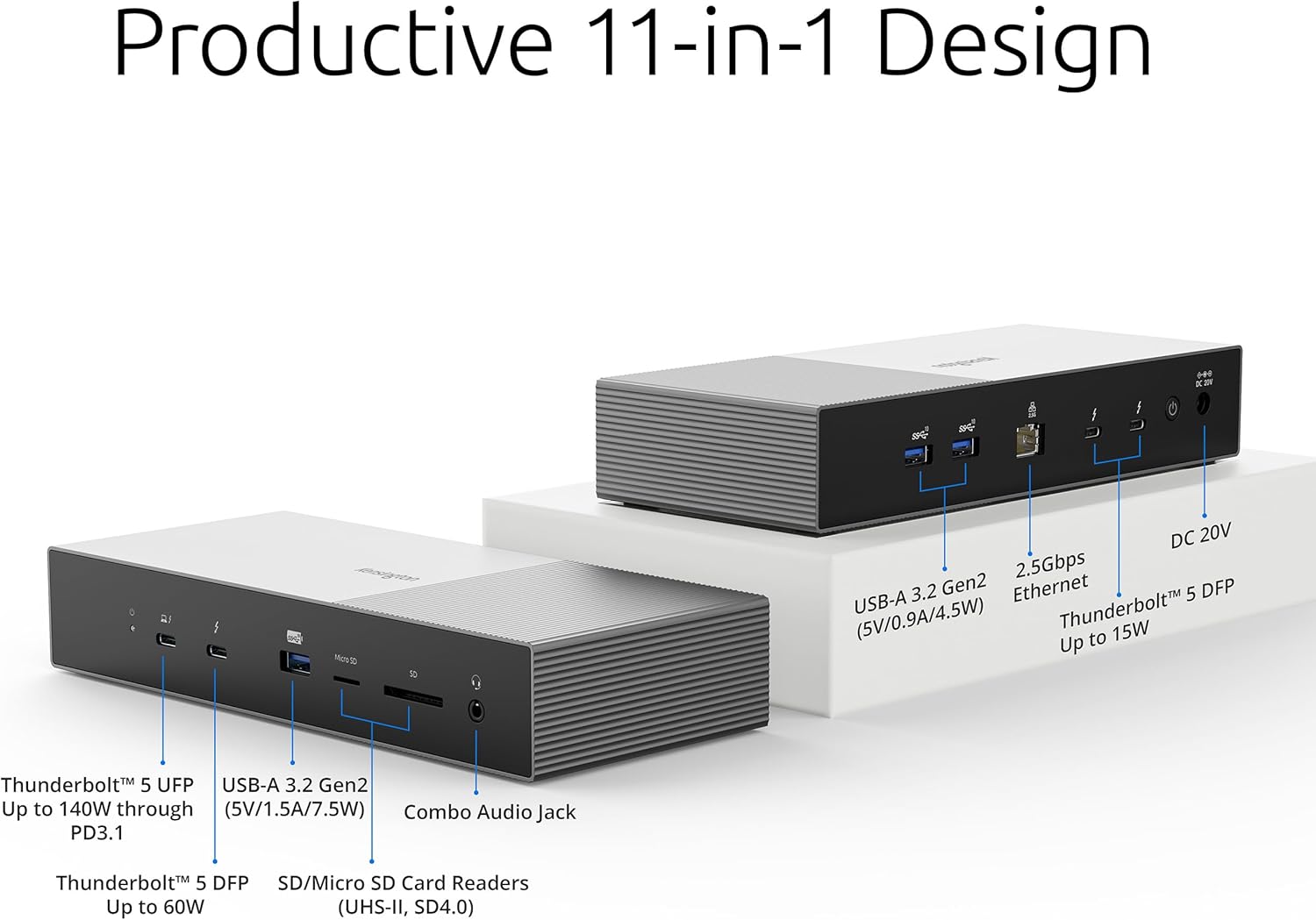

- 3 x Thunderbolt 5 downstream ports, 1 x Thunderbolt 5 host, 3 x USB-A 3.2 Gen2 10Gbps ports, a combo audio jack, dual SD/Micro Card readers, and 2.5Gbps ethernet
- Up to 140W Power Delivery ensures seamless power and connectivity

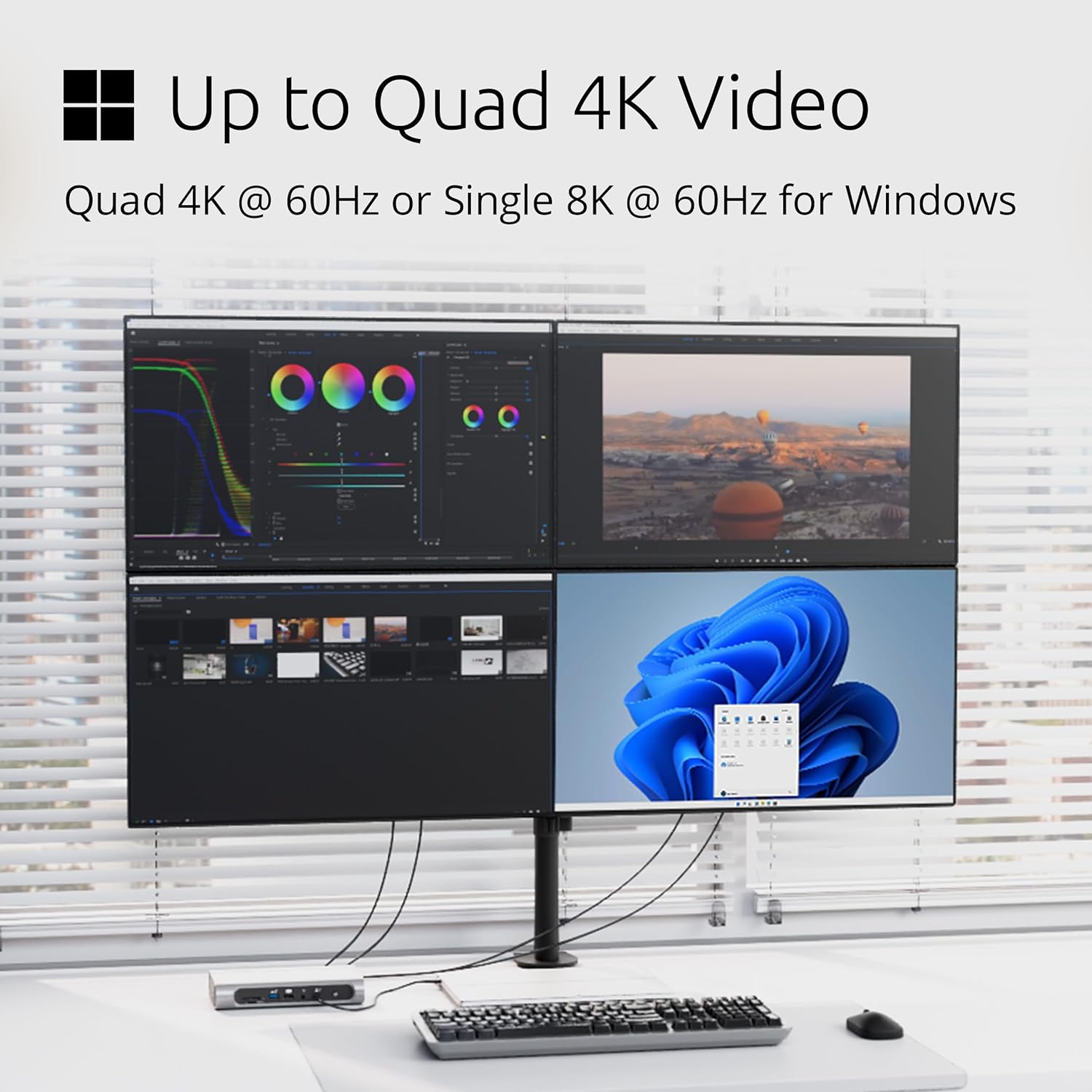

- Dual 6K @ 60Hz for MacBooks with M4 Base, M1/M2/M3/M4 Pro, and M1/M2/M3/M4 Max chipsets; Single 8K @ 60Hz for M4 Base; Single 6K @ 60Hz for M1/M2/M3 Base chipsets; Dual 4K @ 60Hz for Windows Thunderbolt 4; and Triple 4K @ 144Hz or Dual 8K @ 60Hz for Windows Thunderbolt 5 laptops
- Thunderbolt 5 dock offers lightning-fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage
Specifications:
| Materials & Construction | |
| Outer Material | 100% Post-Consumer Recycled Aluminum |
| Product Details | |
| Country of Origin | Taiwan |
| Item model number | SD5000T5 |
| Number of Ports | 11 |
| Total USB Ports | 3 |
| UPC | 085896352013 |
| Wattage | 180 |
| Sizing & Dimensions | |
| Height | 1.57 inches |
| Length | 8.89 inches |
| Product Dimensions | 8.89 x 3.82 x 1.57 inches |
| Weight | 2.15 pounds |
| Width | 3.82 inches |
| Technical Specifications | |
| Warranty | 3-Year manufacturers warranty |
