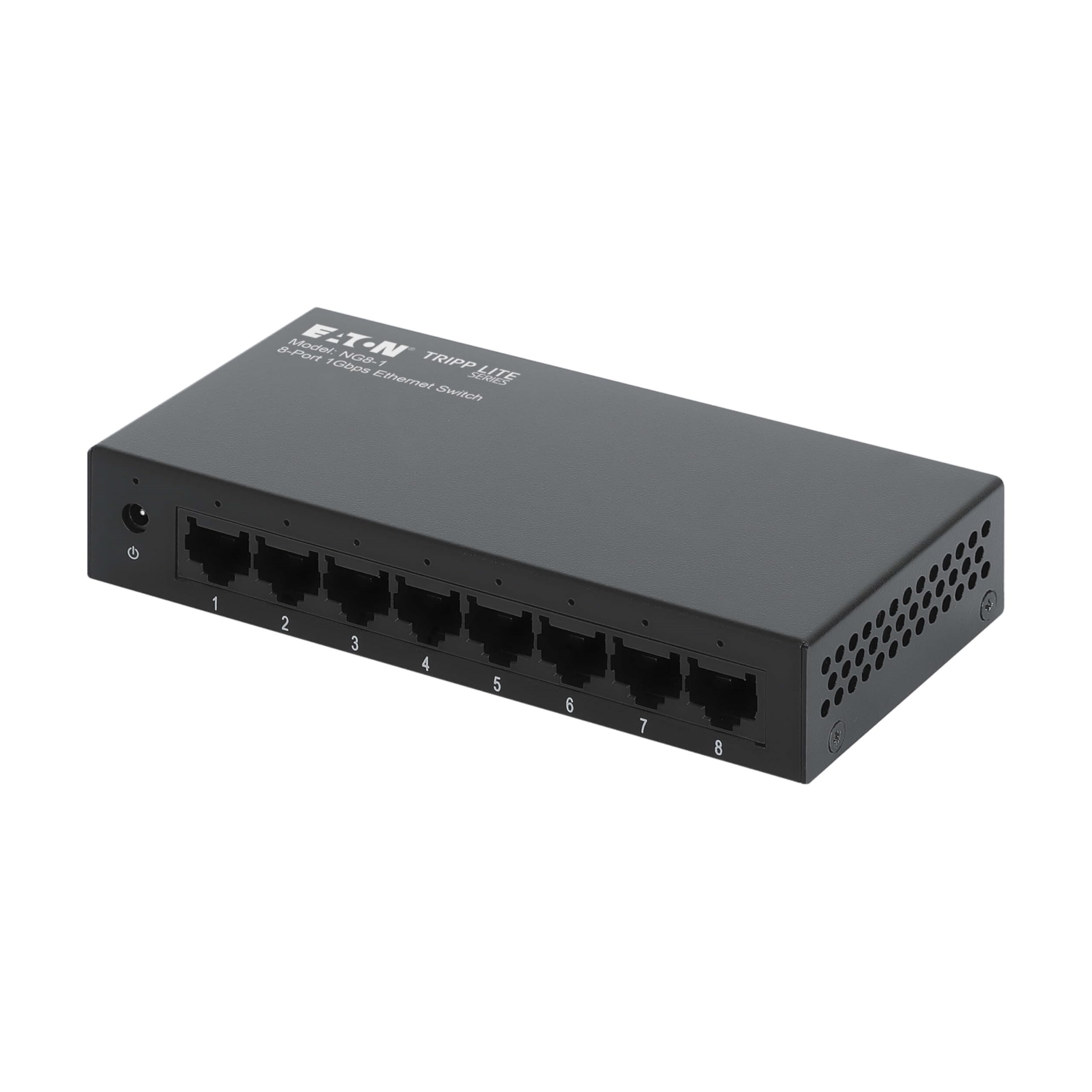

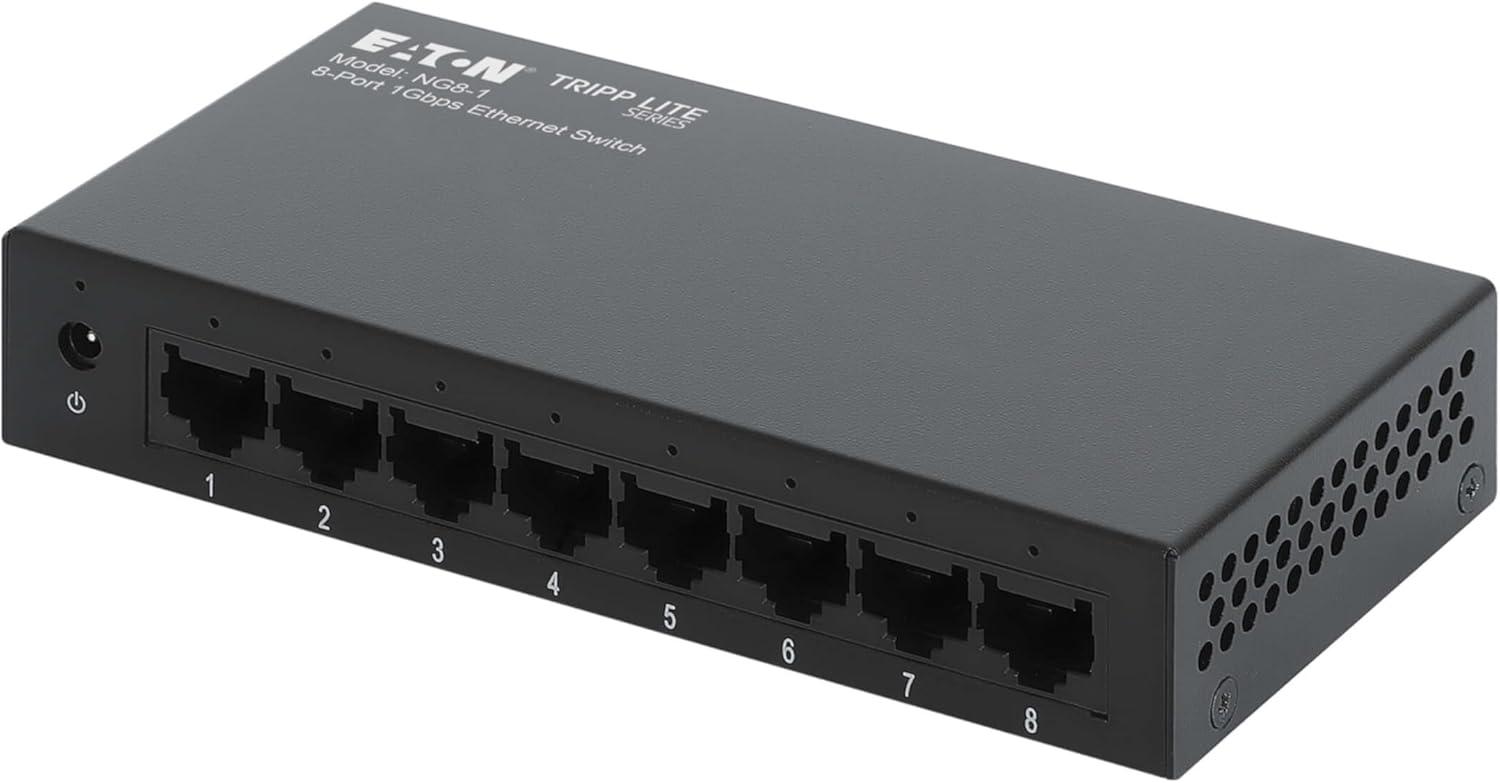

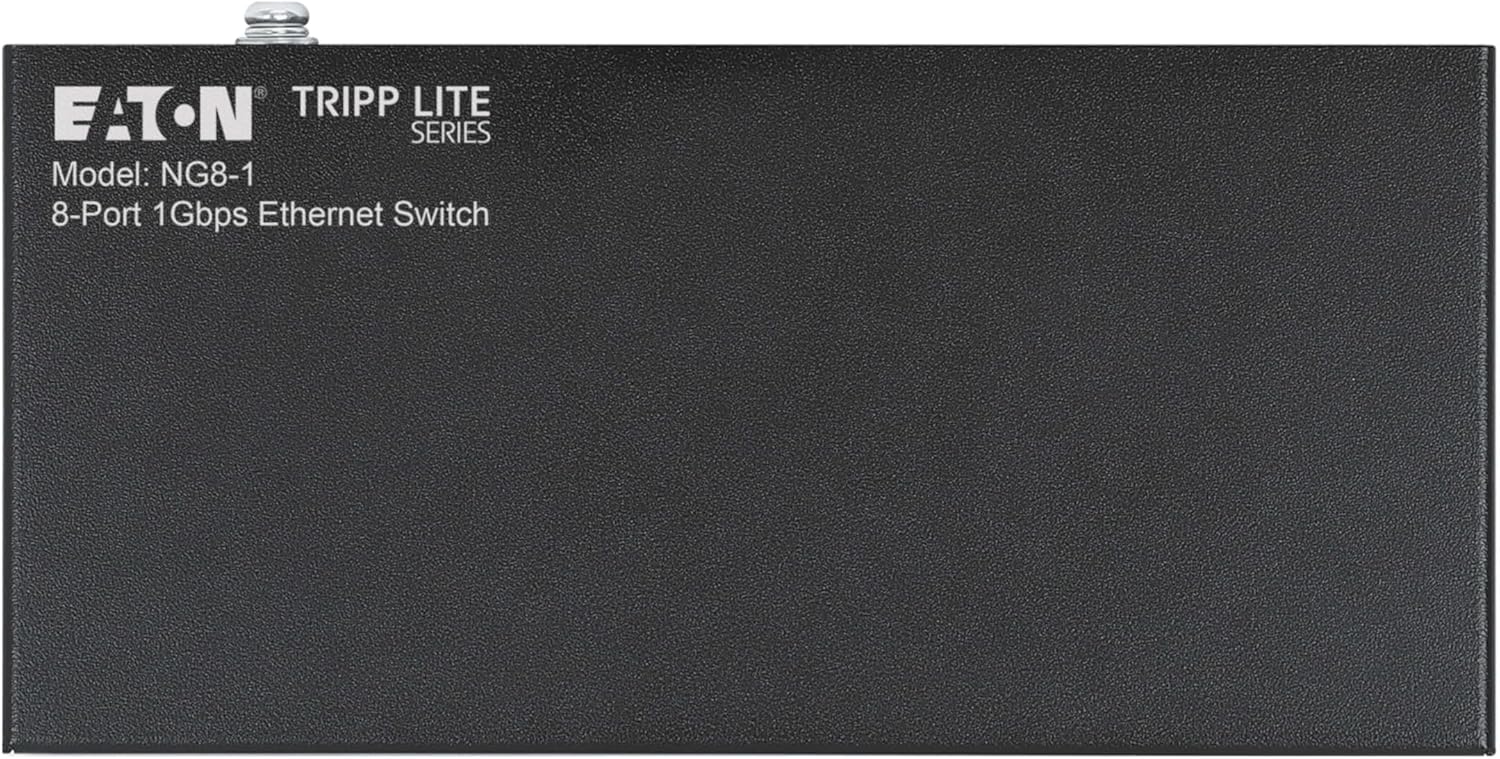

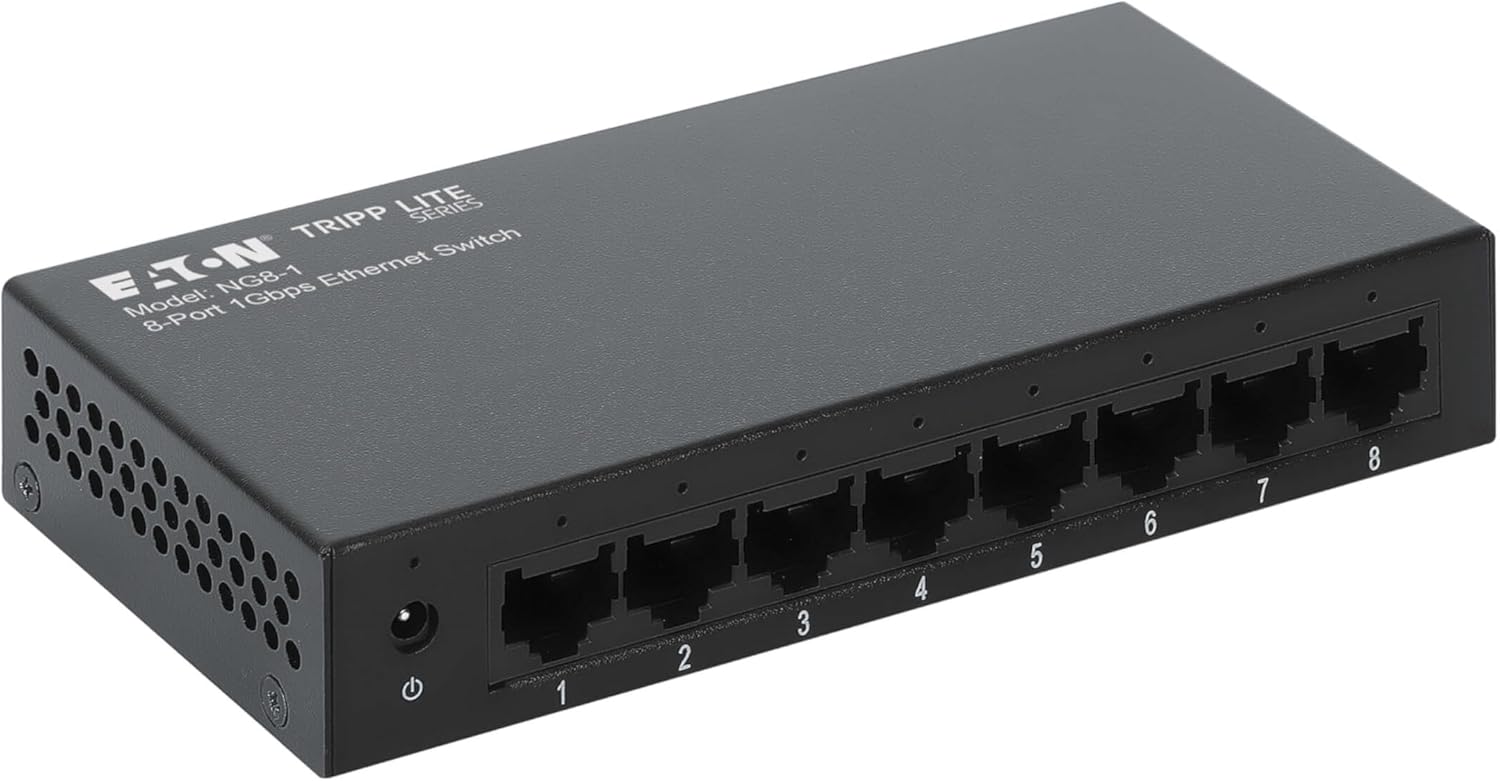

TRIPP LITE 8-Port Desktop Unmanaged Ethernet Network Switch, Metal Enclosure, Plug-and-Play, Wall Mount, 3-Year Warranty
Customize

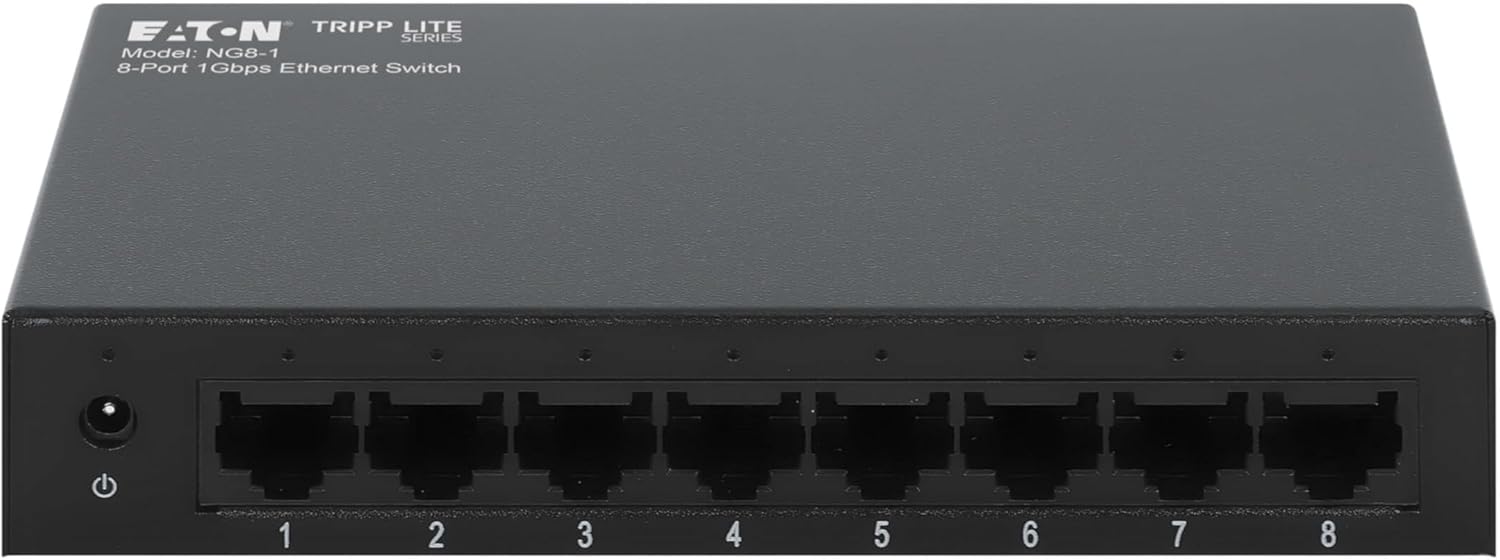

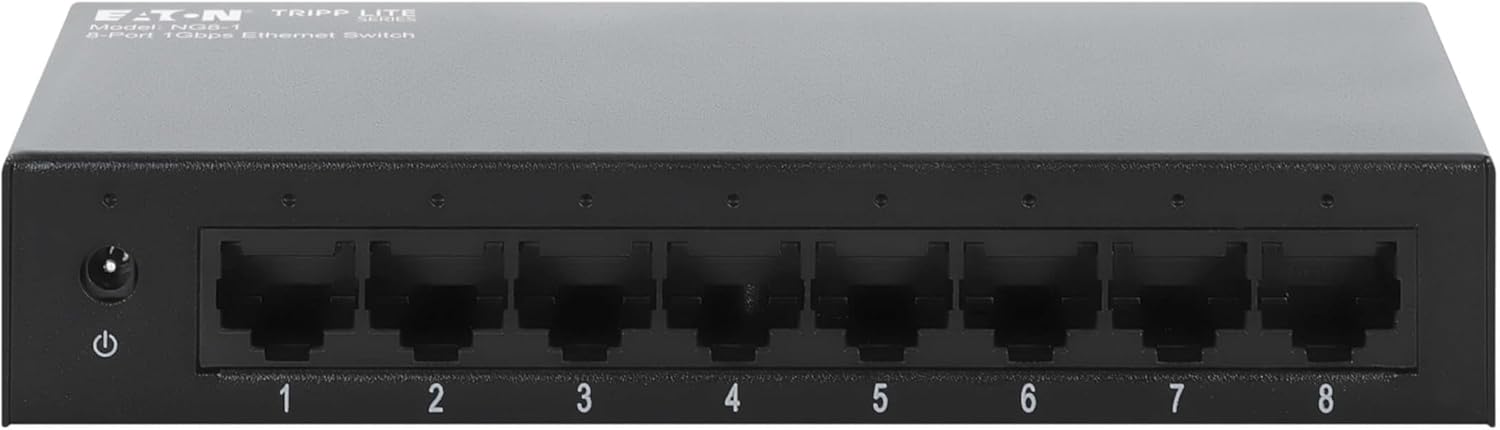

The TRIPP LITE 8-port desktop unmanaged Ethernet switch provides a simple, reliable way to connect computers, routers, printers and servers for small offices, home networks, workgroups and creative production environments. Eight twisted-pair RJ45 ports support auto-negotiation and auto MDI/MDIX to eliminate crossover cables and simplify setup; no configuration is required. The switch supports IEEE 802.3x flow control (full duplex) and back pressure (half duplex), plus MAC address auto-learning/auto-aging for efficient traffic handling. Complies with Energy Efficient Ethernet (IEEE 802.3az) and related IEEE standards to reduce power draw. The heavy-duty fanless metal enclosure offers silent operation and includes keyhole tabs for optional wall mounting. Product is backed by a 3-year limited warranty and Eaton technical support.
- RELIABLE PRODUCT FULLY BACKED AND SUPPORTED: This product is covered by a manufacturer's 3-Year Limited Warranty and is supported by Eaton's expert technical support team over phone and email.
- COMPLIES WITH IEEE ENERGY EFFICIENT ETHERNET STANDARDS: Supports IEEE 802.3az standards by shifting unused ports into a low-power state, just 1 watt, without interrupting network connections. Also meets IEEE 802.3ab, 802.3i, and 802.3u standards.

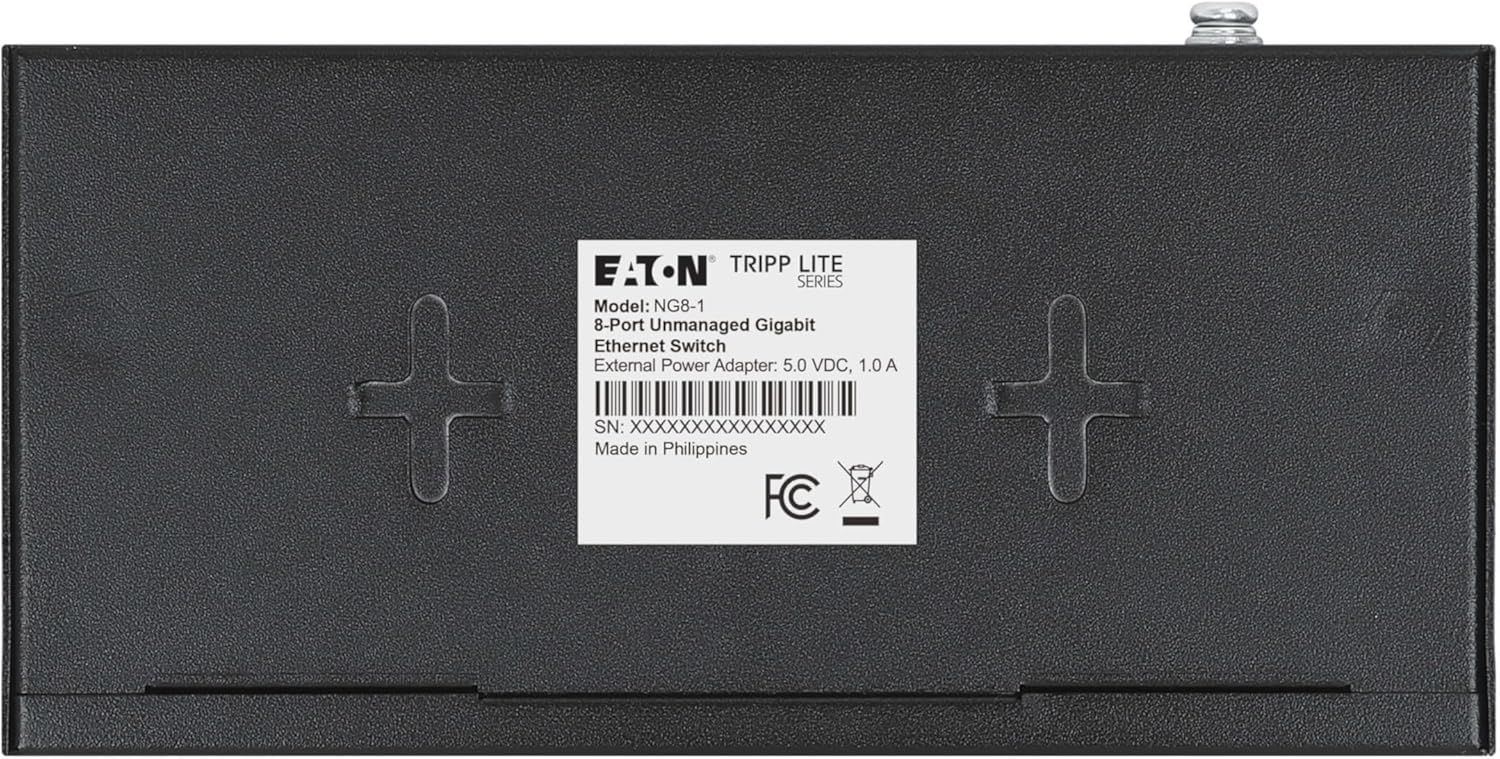

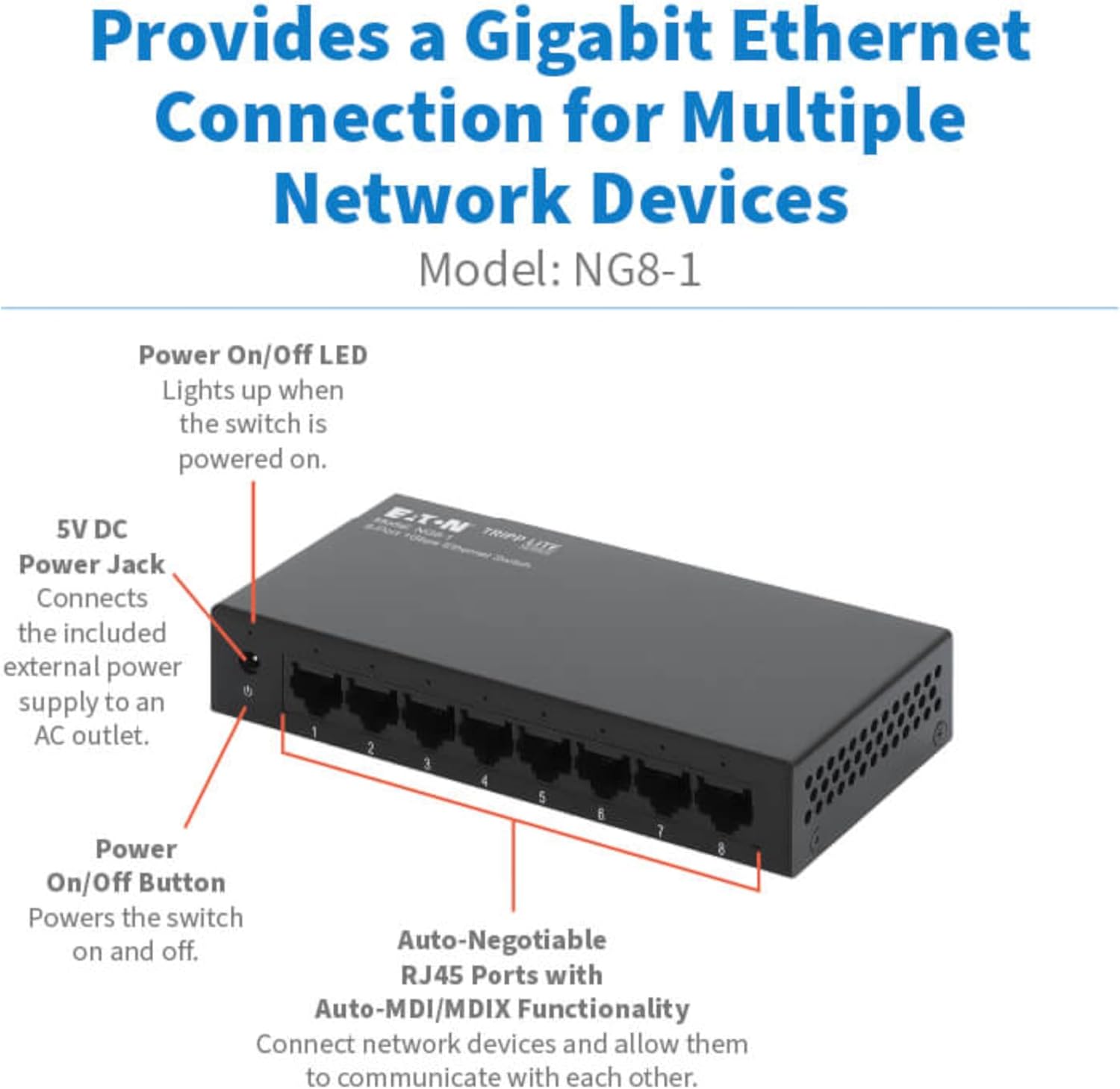

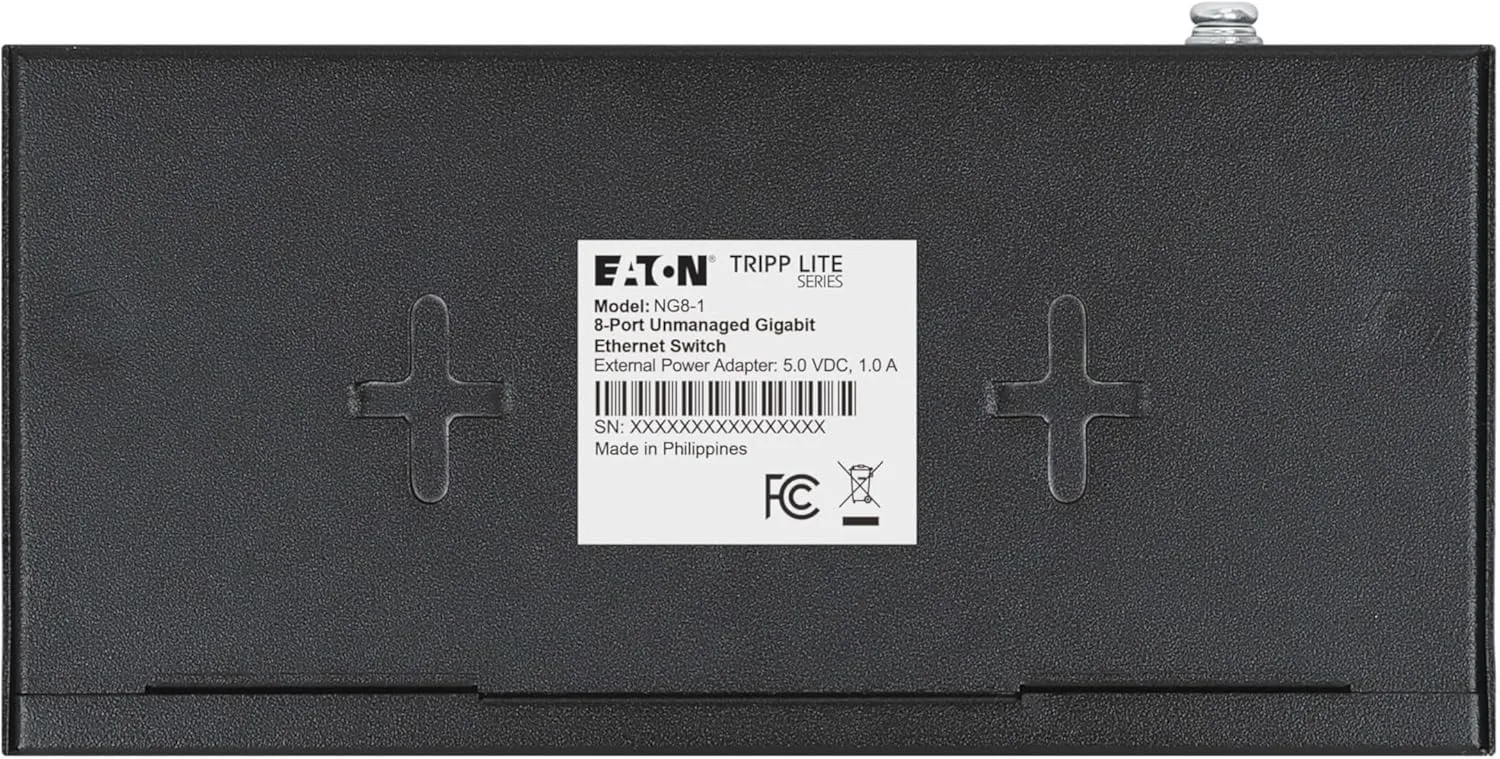

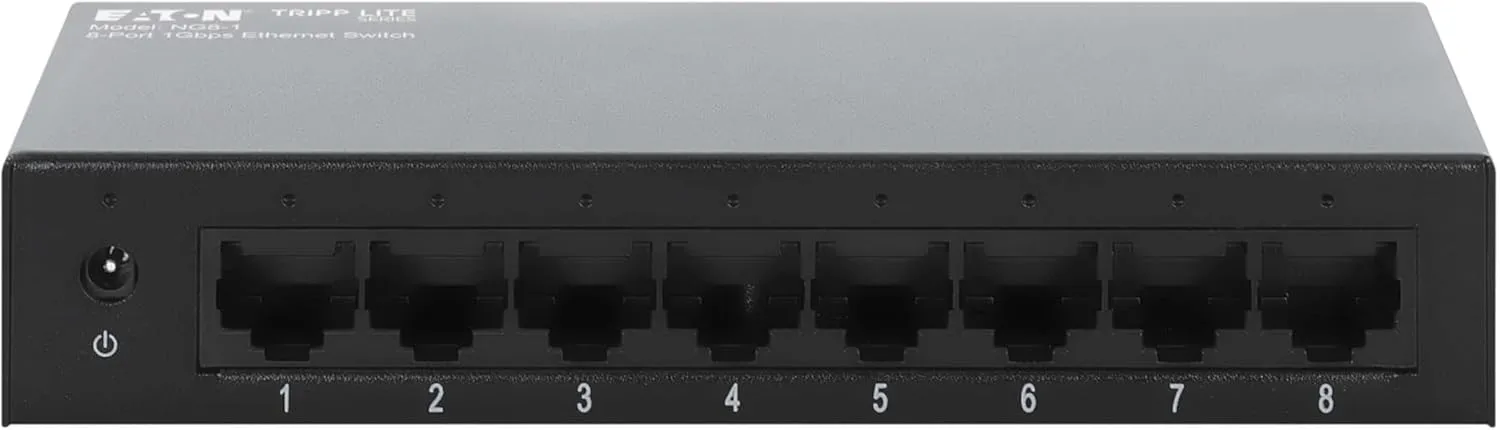

- EASY TO USE: No configuration required for setup. Easy-to-read LEDs indicate connection and activity status. Supports MAC address auto-learning and auto-aging for efficient routing. Features additional bottom keyhole tabs for wall mounting.
- MAXIMUM NETWORK FUNCTIONALITY: No configuration required for immediate setup. Gigabit Ethernet ports supports auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX functionality. IEEE 802.3x flow control enables smooth transmission of large files.
- DESKTOP NETWORK SWITCH: Connects up to eight devices to a Gigabit Ethernet network. Features heavy-duty metal enclosure with versatile installation options. Ideal for home networks, small offices, workgroups, and creative production environments.
Specifications:
| Product Details | |
| Country of Origin | Philippines |
| Sizing & Dimensions | |
| Height | 2.5000 inches |
| Length | 5.1000 inches |
| Product Dimensions | 2.5 x 3.6 x 5.1 inches |
| Size | 2.5 x 3.6 x 5.1 inches |
| Weight | 12 ounces |
| Width | 3.6000 inches |
| Technical Specifications | |
| Auto MDI/MDIX | Yes |
| Power Consumption | 2.75W |
