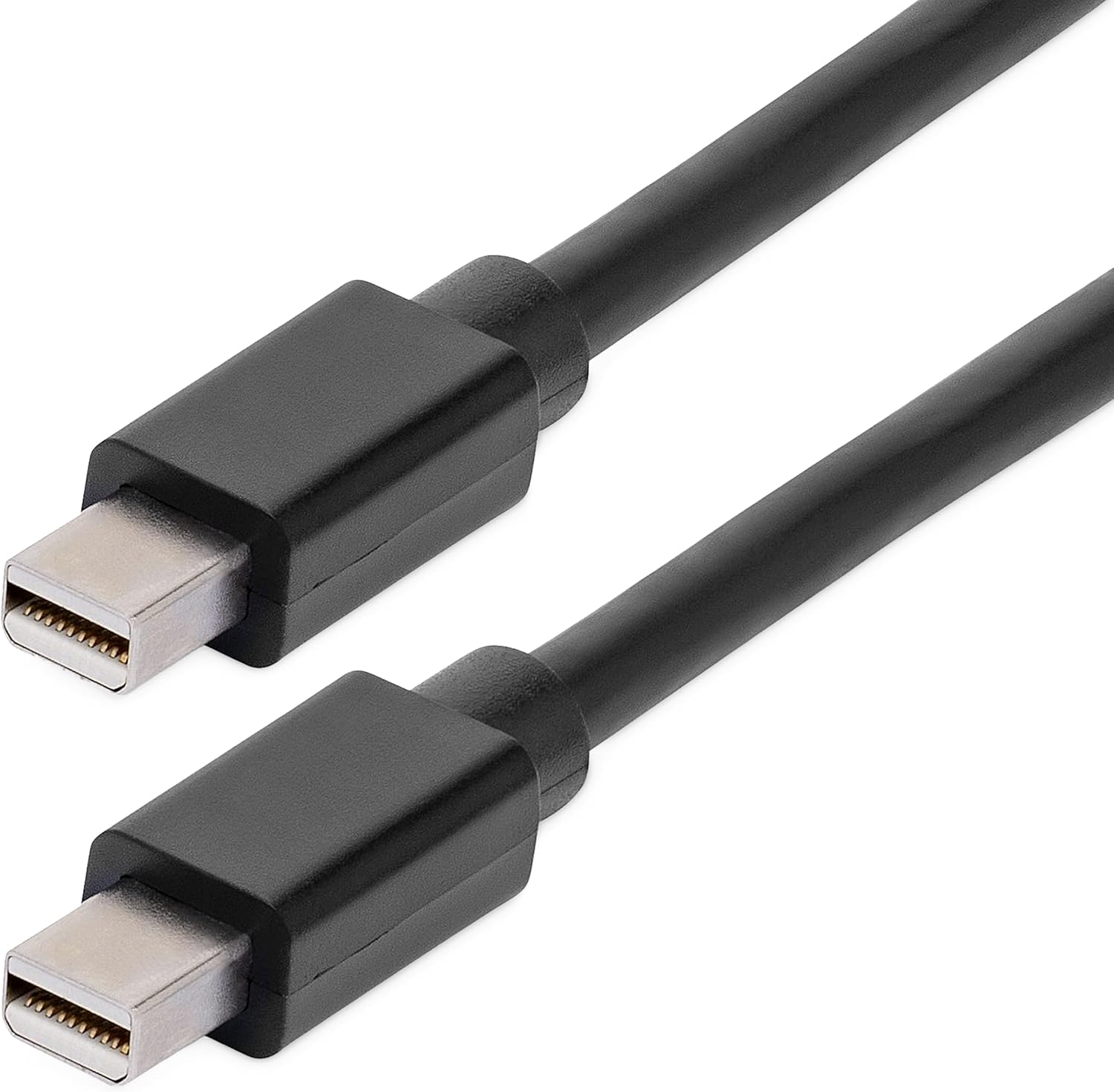

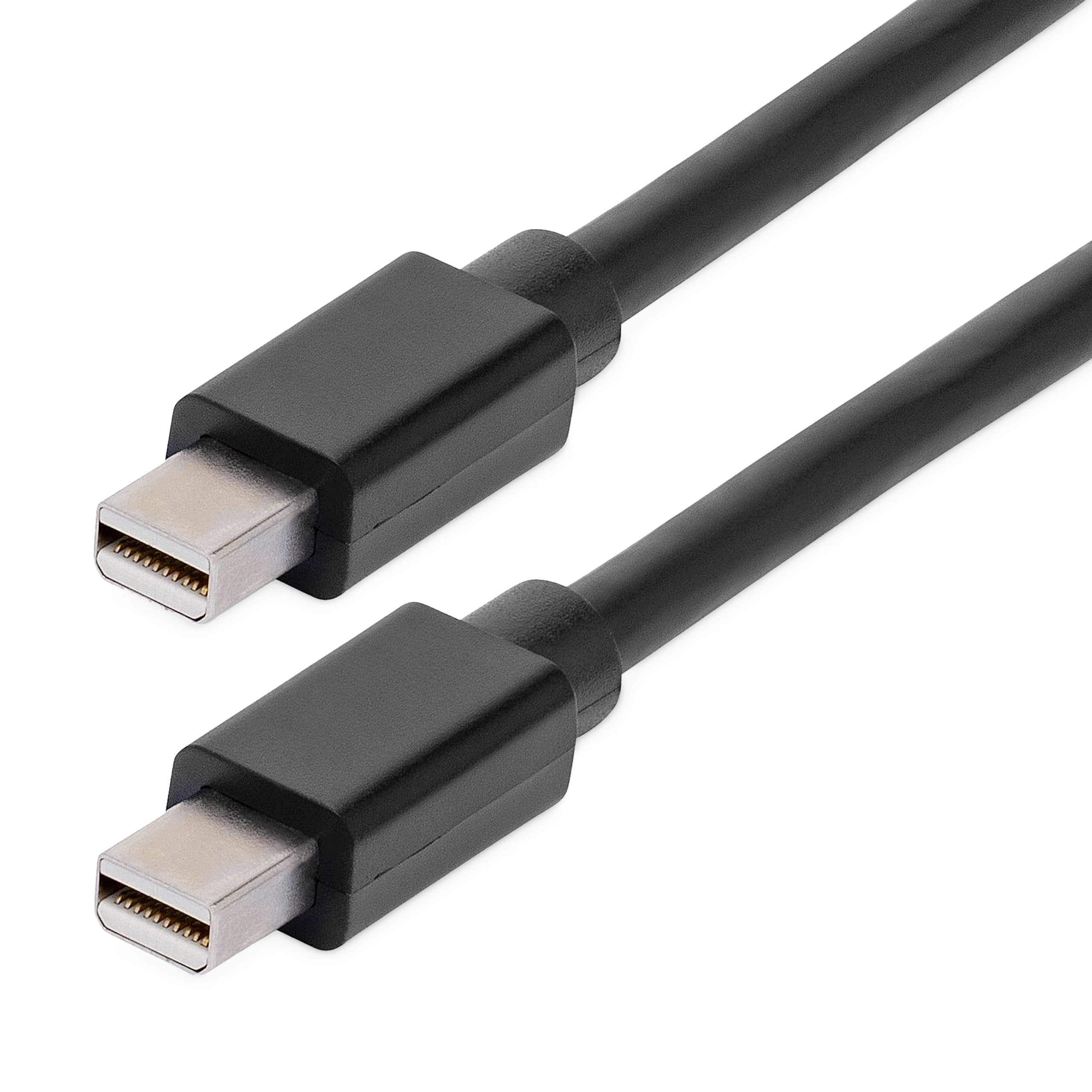

StarTech.com Mini DisplayPort 1.2 Cable M/M, 4K UHD (Not Thunderbolt)
Customize
The StarTech.com Mini DisplayPort 1.2 cable provides a dependable M/M connection between Mini DisplayPort-enabled laptops and Mini DisplayPort-equipped monitors. It supports high resolutions up to 4K UHD (3840x2160) @60Hz with HBR2 bandwidth (21.6 Gbps), Multi-Stream Transport (MST) for daisy-chaining multiple monitors, and optional 8-channel audio with GTC timing support. Constructed with quality shielding (Al-Mylar foil with braid), gold-plated connectors, ABS connector shells and a durable PVC jacket/strain relief for improved signal integrity and durability. The cable is backward compatible with DisplayPort 1.1, supports HDCP/DPCP for protected content, and is backed by StarTech.com lifetime support/warranty. Important: this is a Mini DisplayPort cable (not a Thunderbolt cable) — it can connect Thunderbolt 2 ports to Mini DisplayPort displays but is not compatible with Thunderbolt peripherals that require the Thunderbolt protocol.
- SPECS: 6 feet (1.8 meter); Black Mini DP Cable; DisplayPort v1.2; mDP Male to mDP Male Cord; 32 AWG; PVC cable jacket, ABS connector shell; Shield: Al-Mylar foil with Braid; Protocols: HBR2, MST, GTC; Backed for Life

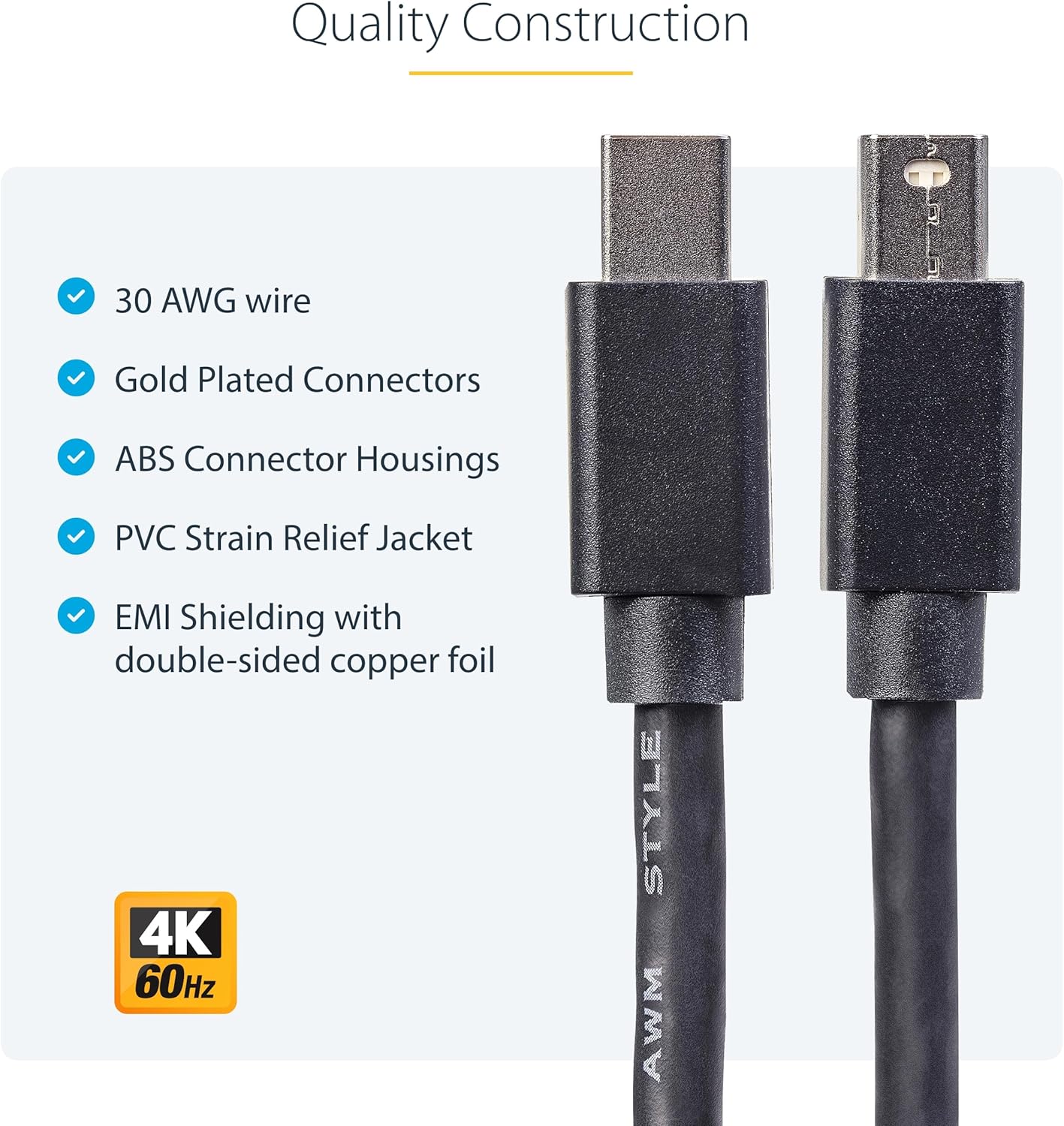

- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.1
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding

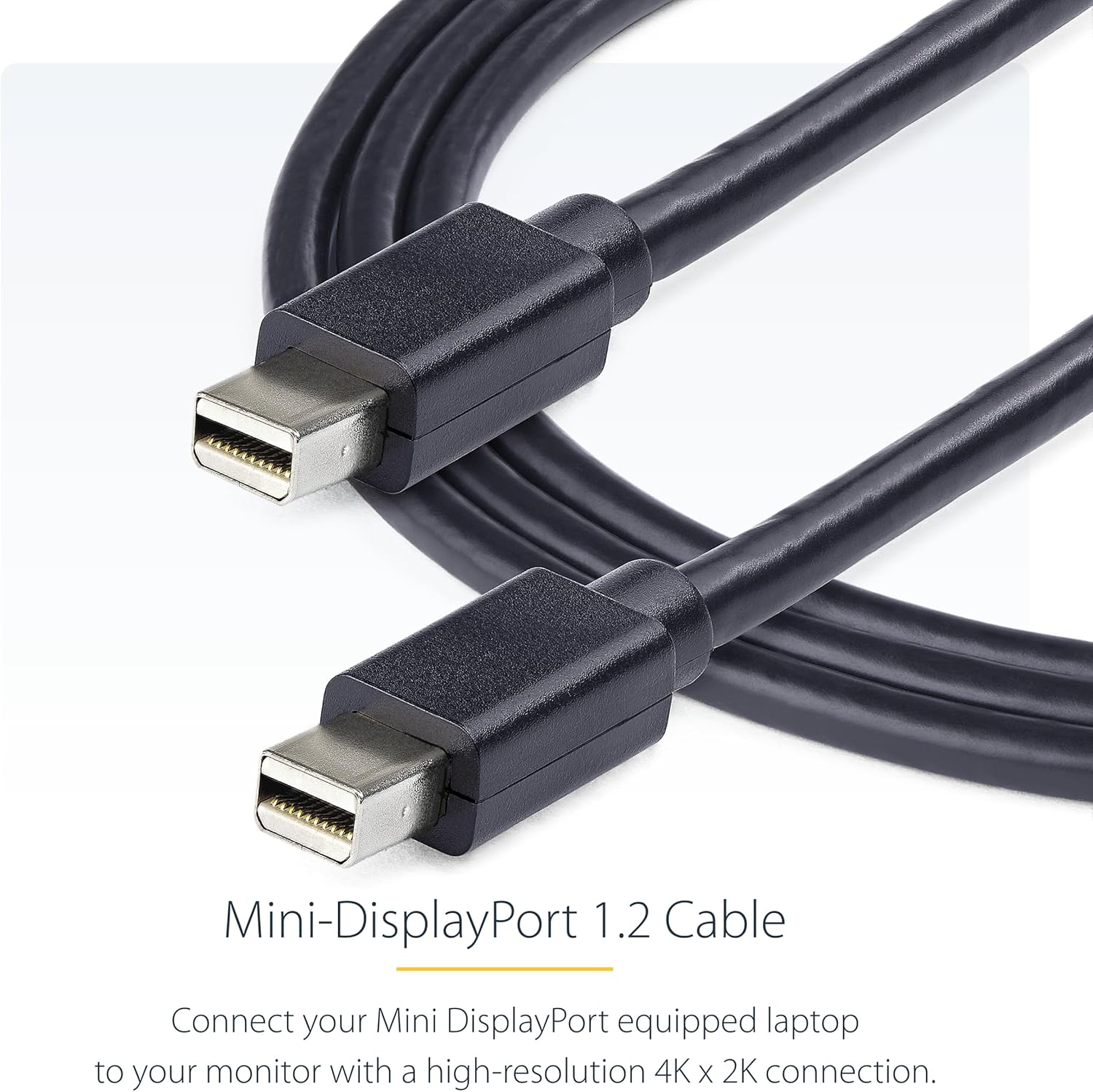

- MINI DISPLAYPORT 1.2 CABLE: This 6ft (1.8m) Mini DisplayPort v1.2 cable supports 4K x 2K video (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)

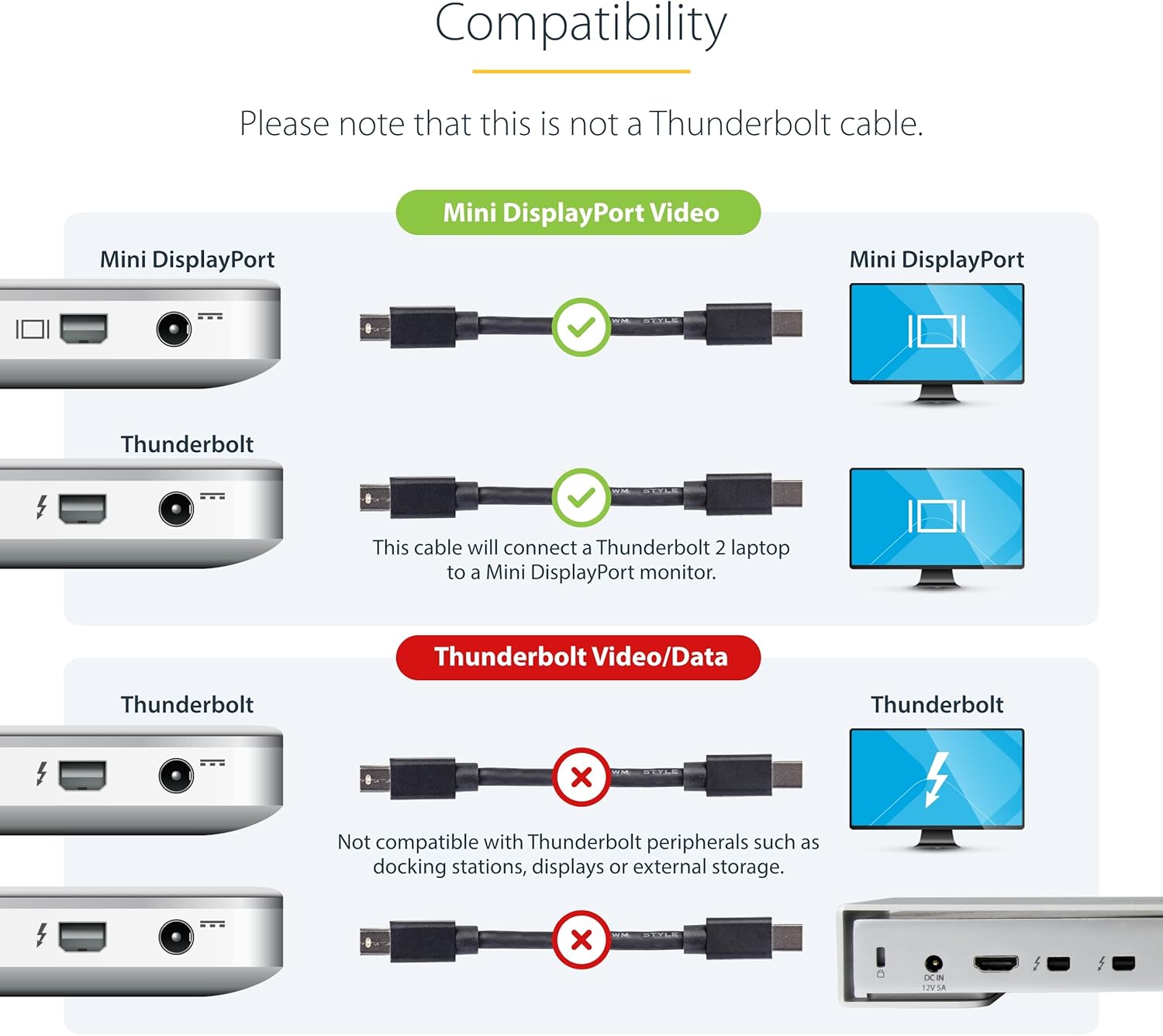

- COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
Specifications:
| Materials & Construction | |
| Outer Material | Polyvinyl Chloride (PVC) |
| Product Details | |
| Cable Type | Mini DisplayPort |
| Compatible Devices | Laptop, Monitor |
| Connector Gender | Male-to-Male |
| Connector Type | DisplayPort |
| Customer Package Type | rigid box |
| Data Transfer Rate | 21.6 Gigabits Per Second |
| Frequency | 6E+1 Hz |
| Gauge | 30.0 |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Number of Items | 1 |
| Number of Pins | 20 |
| Recommended Uses For Product | transferring data |
| Shape | Round |
| Special Feature | High Speed |
| Specification Met | No |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Weight | 2.4 ounces |
| Technical Specifications | |
| Data Transfer Rate | 21.6 Gigabits Per Second |
| Voltage | 240 Volts |
