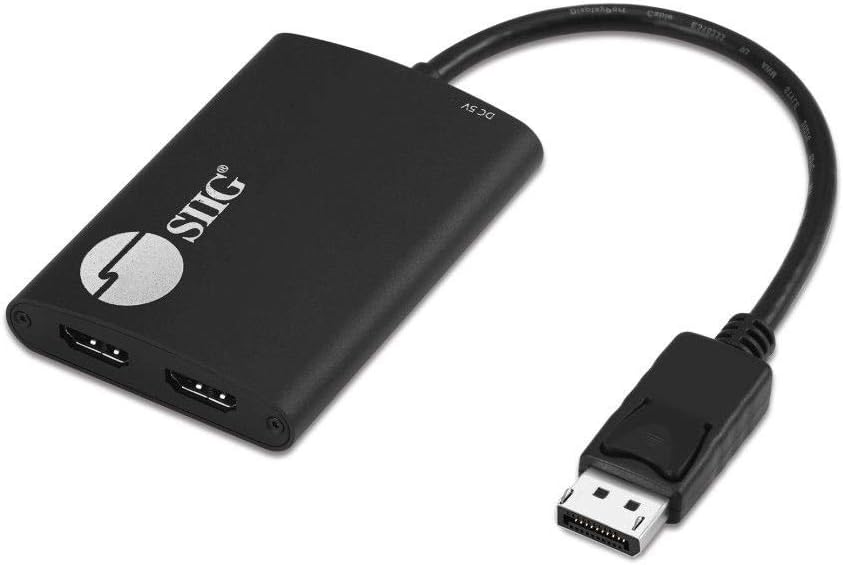

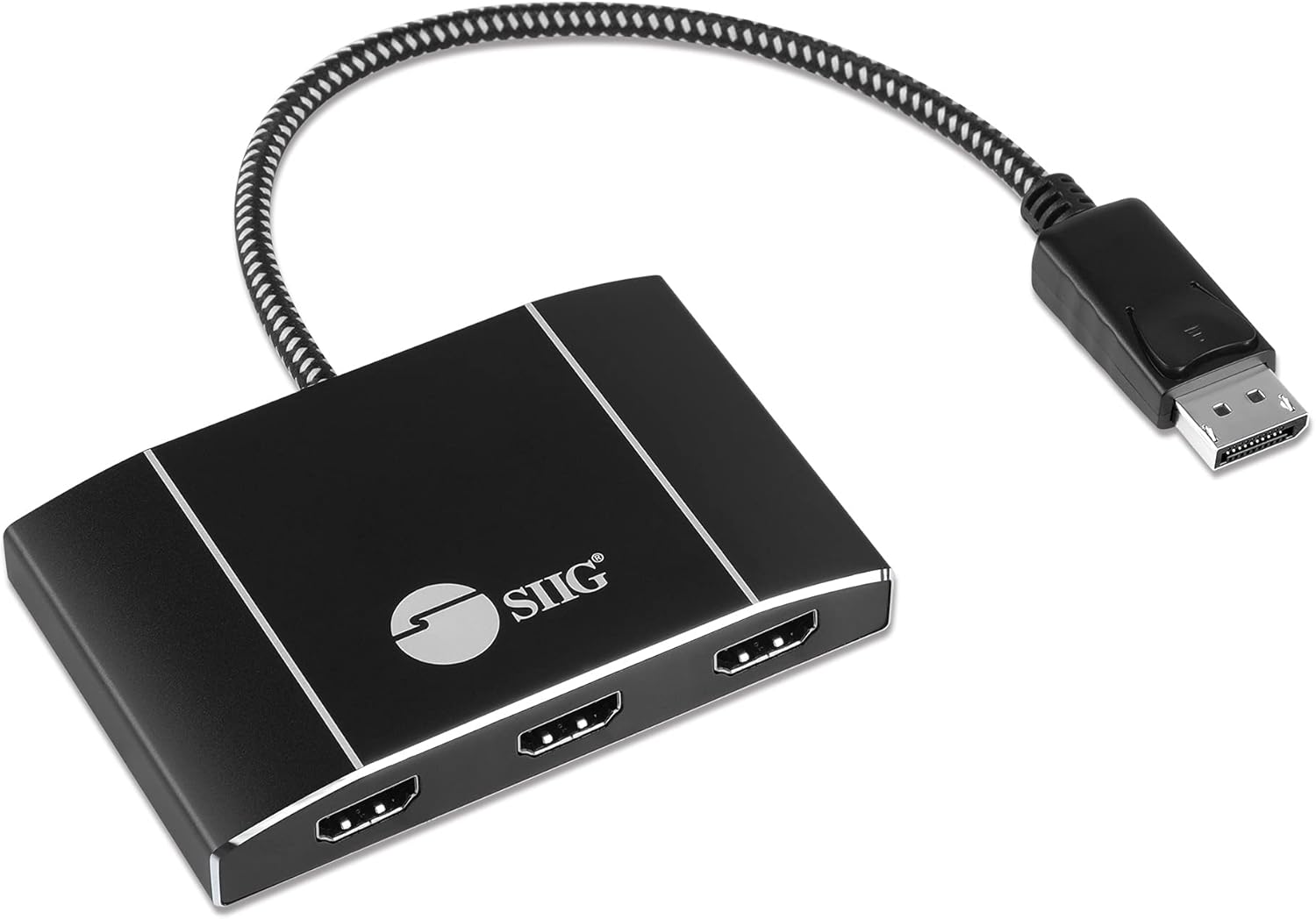

SIIG DisplayPort MST Hub Splitter (Multi-Stream Transport)

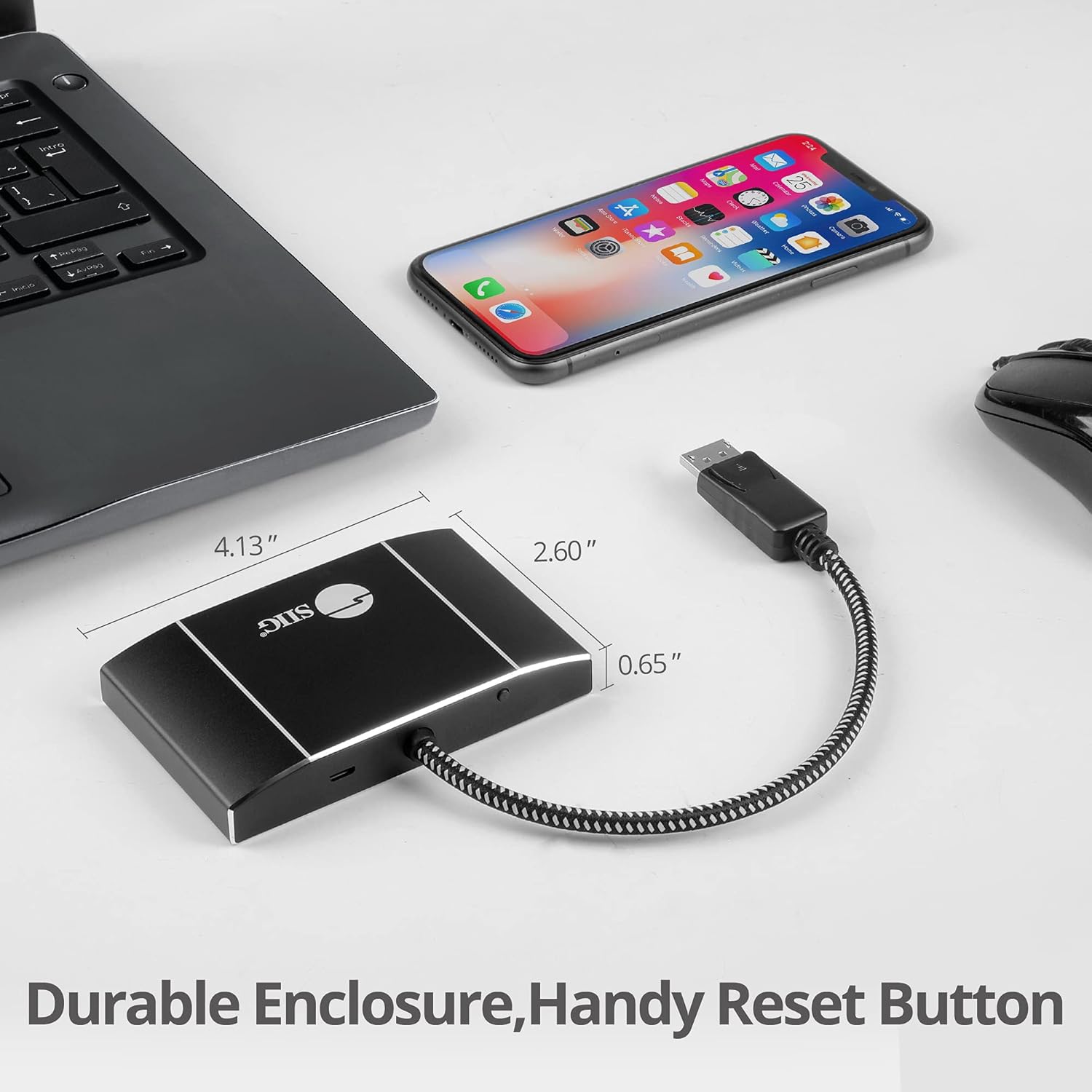

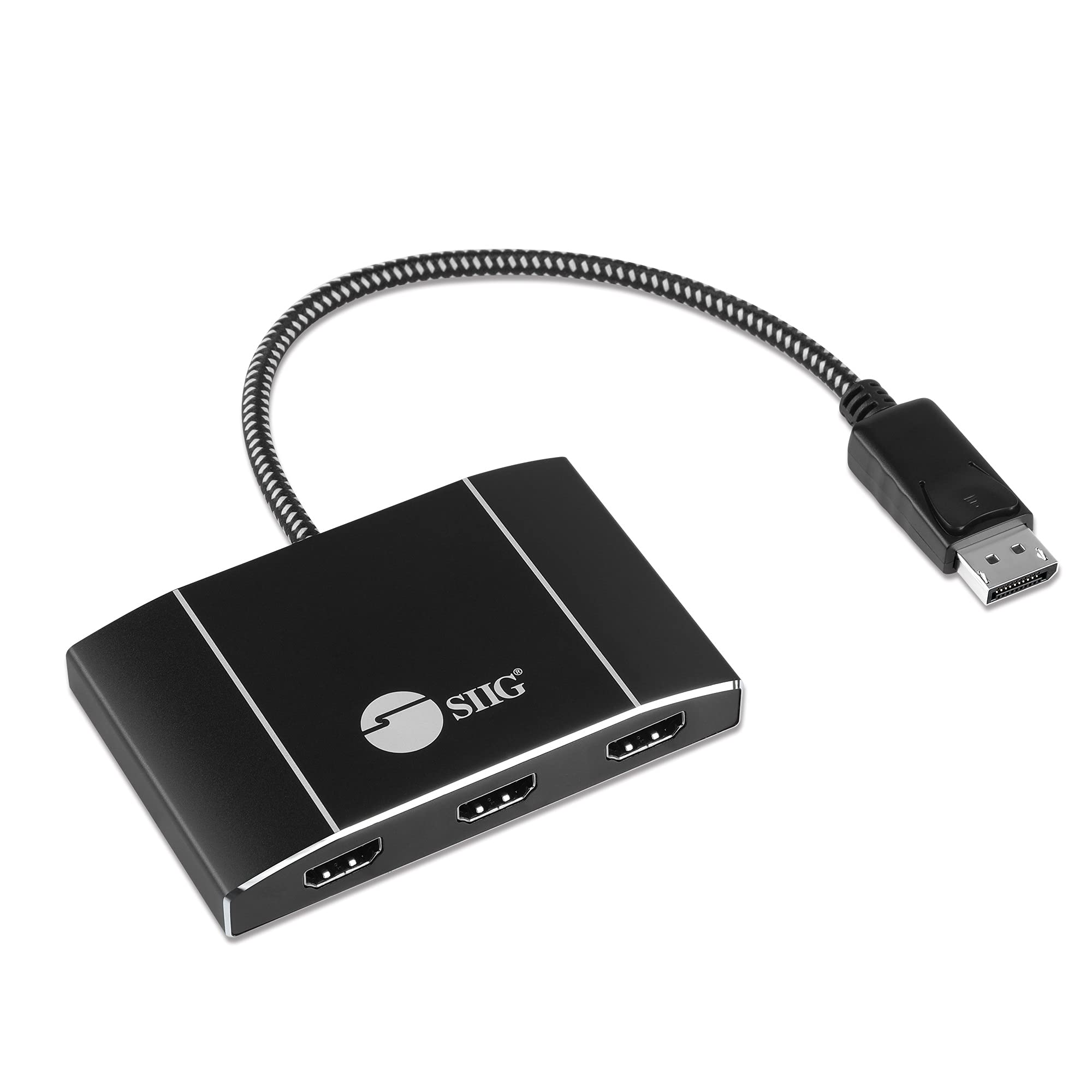

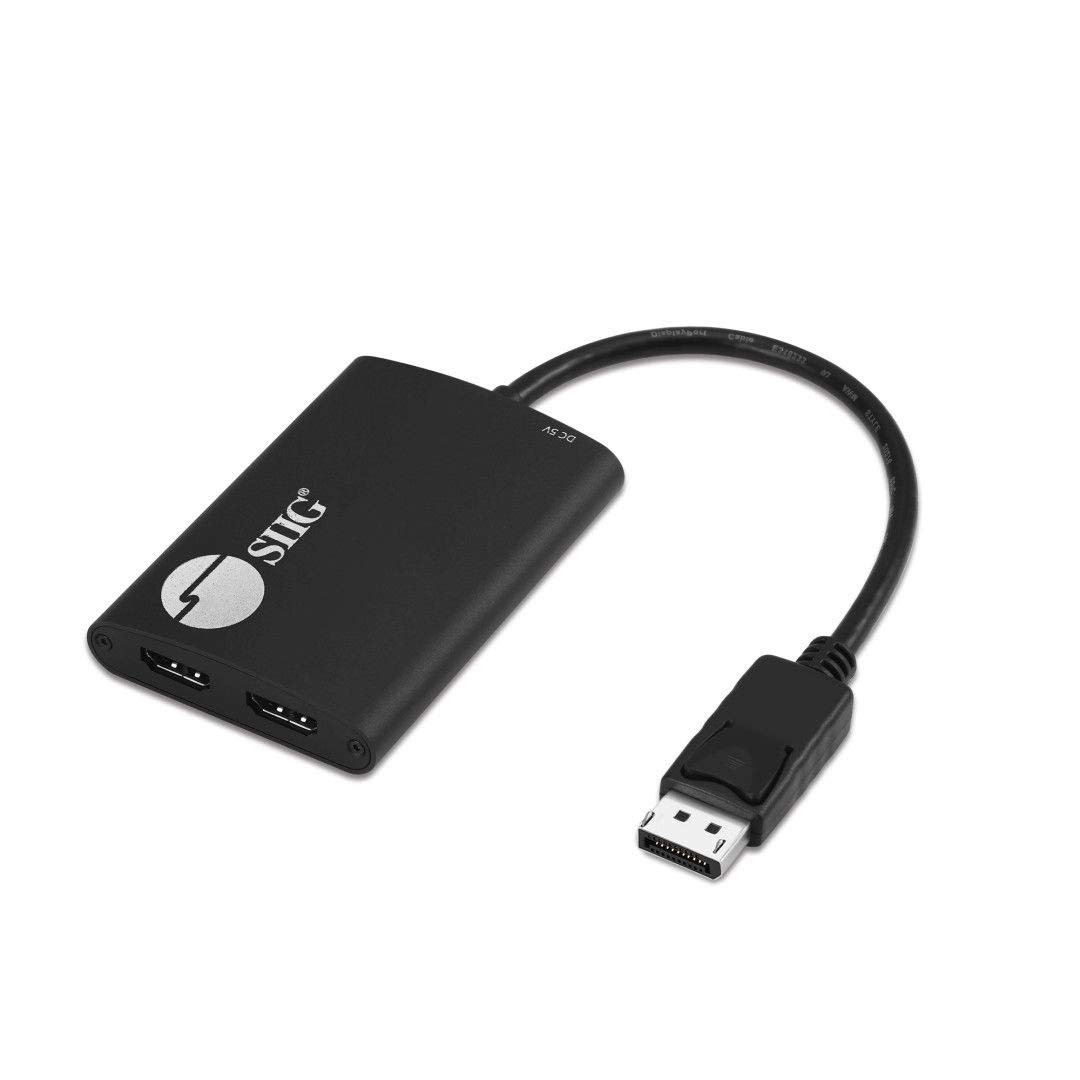

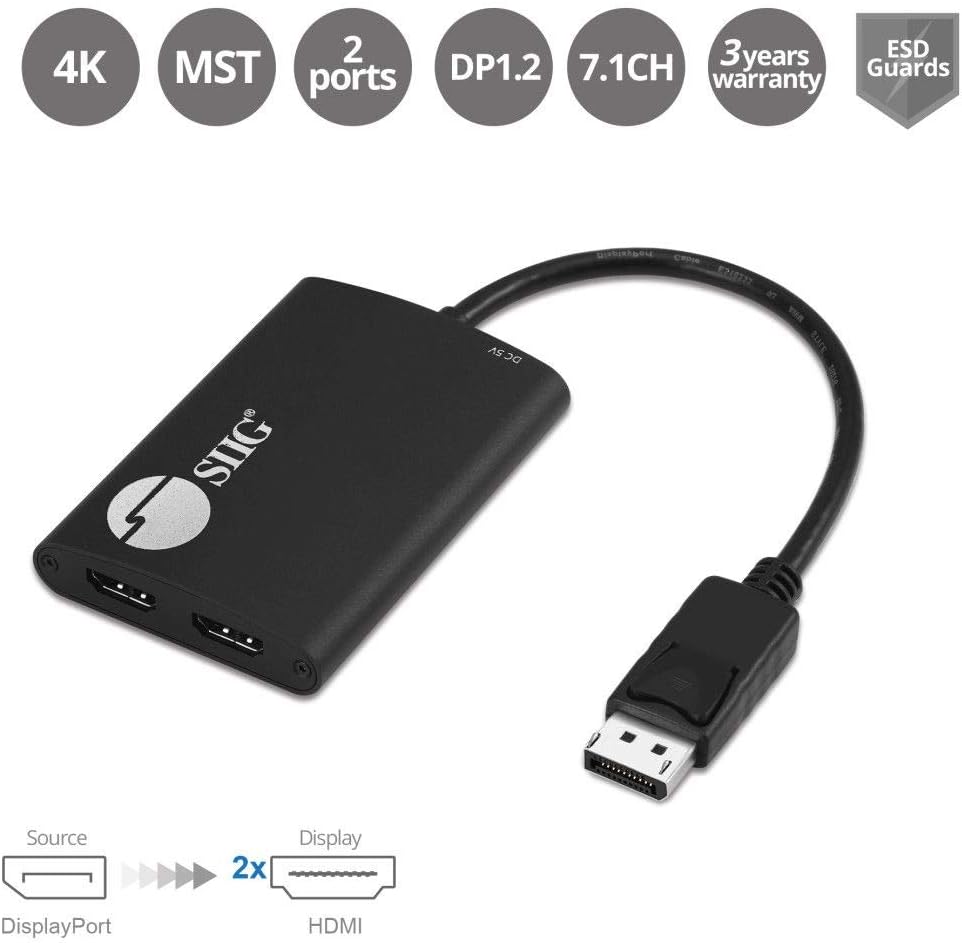

The SIIG DisplayPort MST Hub Splitter family uses Multi-Stream Transport (MST) to convert a single DisplayPort output into multiple display outputs (HDMI or DisplayPort) for multi-monitor setups. Models are available for DisplayPort 1.4 and DisplayPort 1.2 configurations to support high-resolution setups, 4K and HDR displays, and HDCP 2.2 where applicable. Common features across the family include Mirror, Extend and Panoramic Video Wall modes for productivity and video wall applications, USB-powered operation (USB 3.0 bus power recommended), and plug-and-play operation on Windows. Some models include micro USB power input or a reset button to re-detect displays. Note that macOS support is limited on these MST hubs (mirror only on some models or not supported on others).

• WARRANTY & CUSTOMER SERVICE: Manufacturer warranty and technical support located in the silicon Valley. We understand that setting up an MST hub can be complicated so please contact us with any questions or concerns
• COMPATIBILITY: Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology

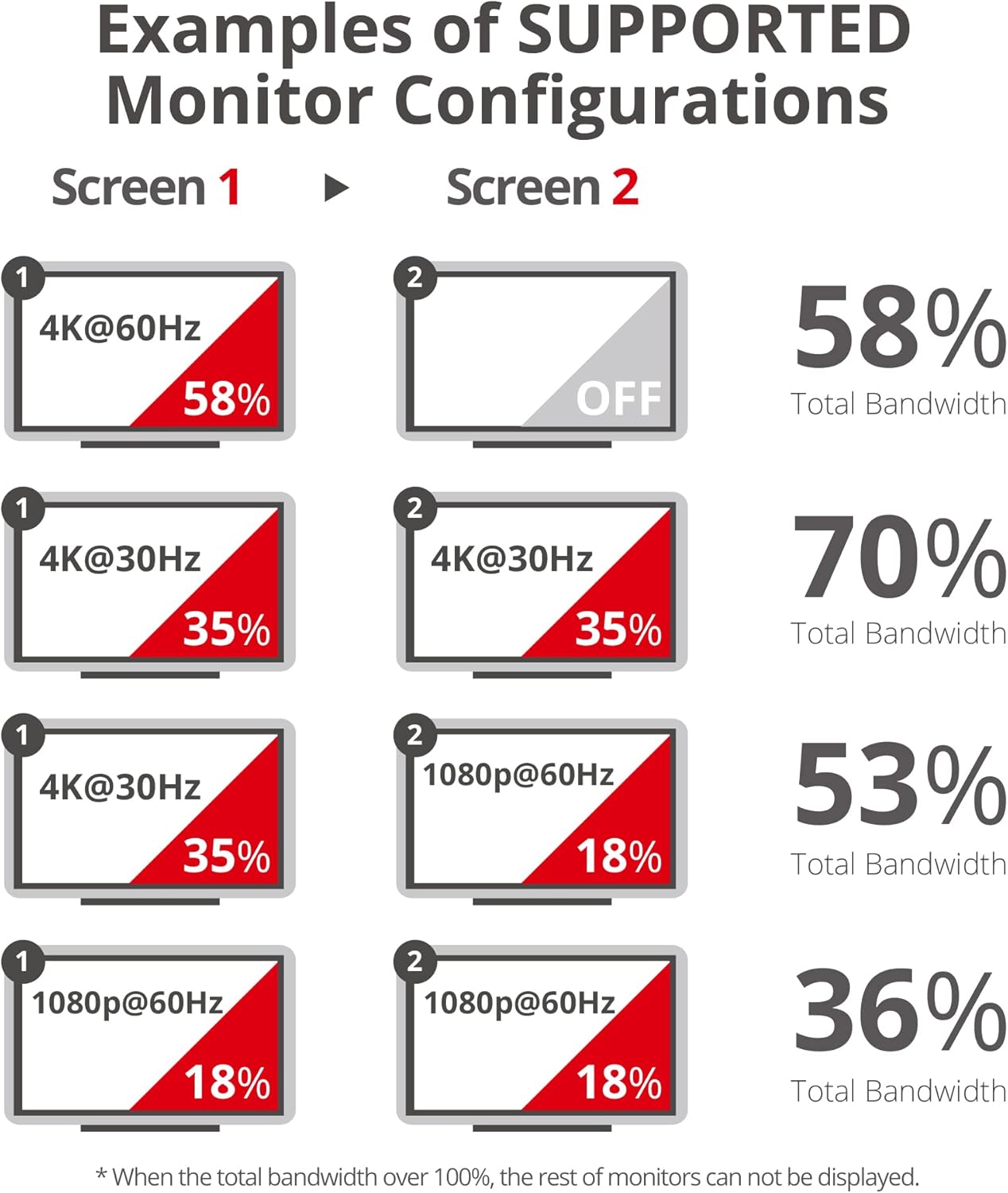

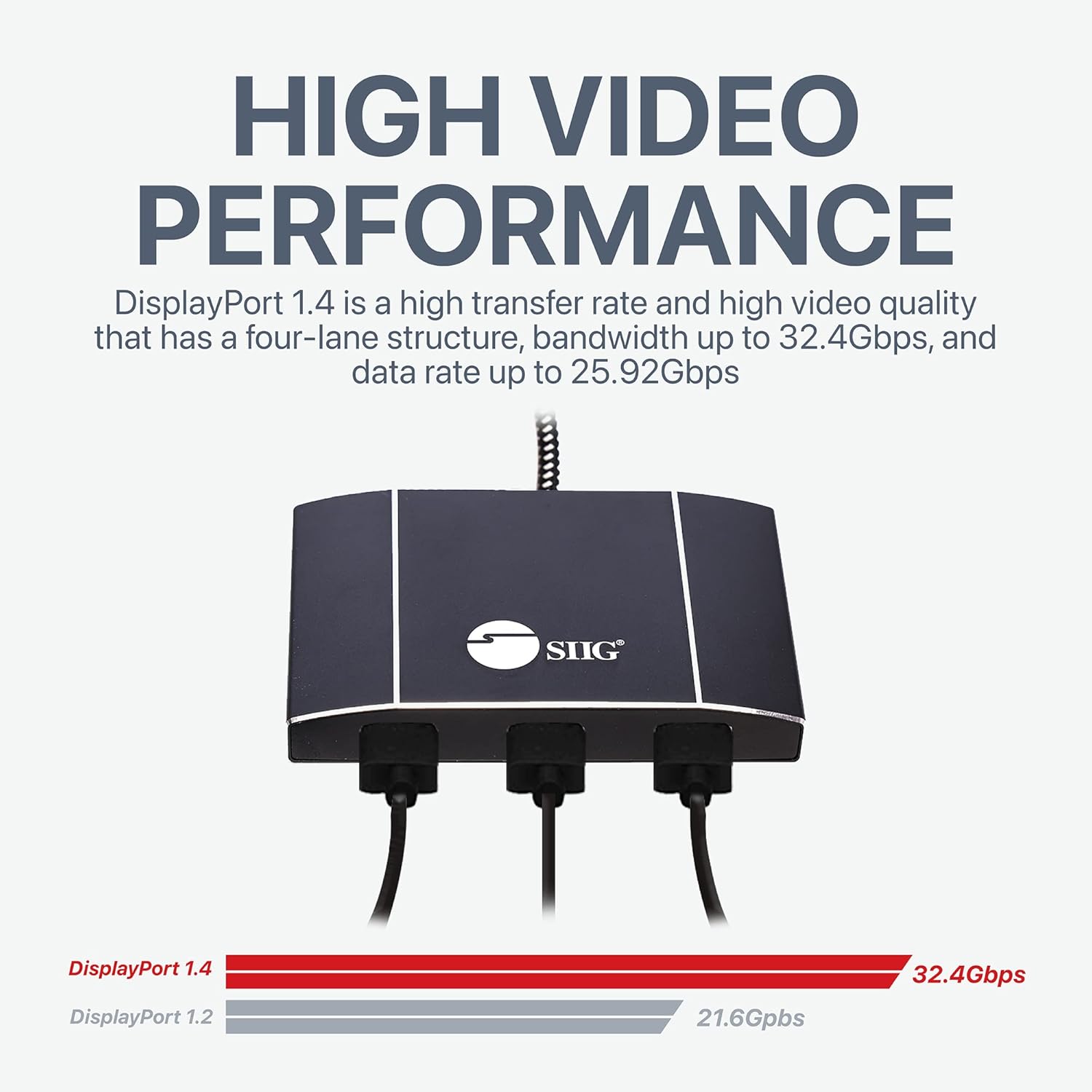

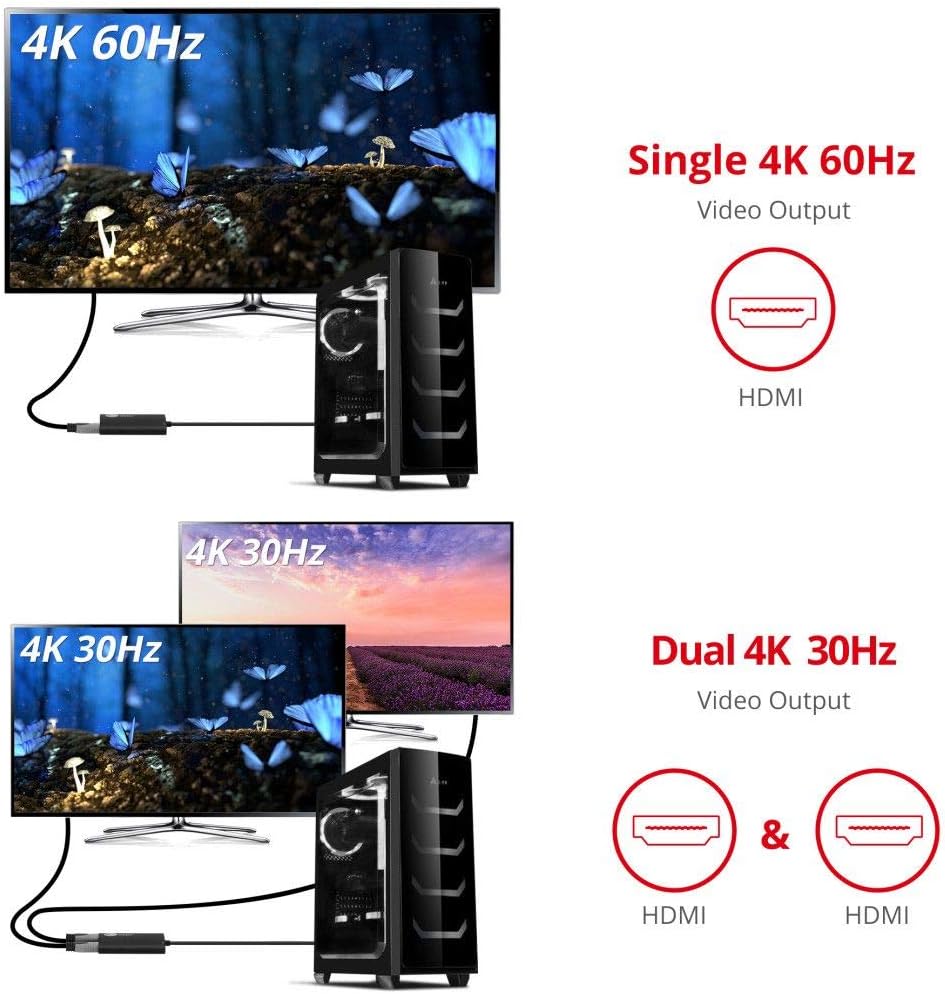

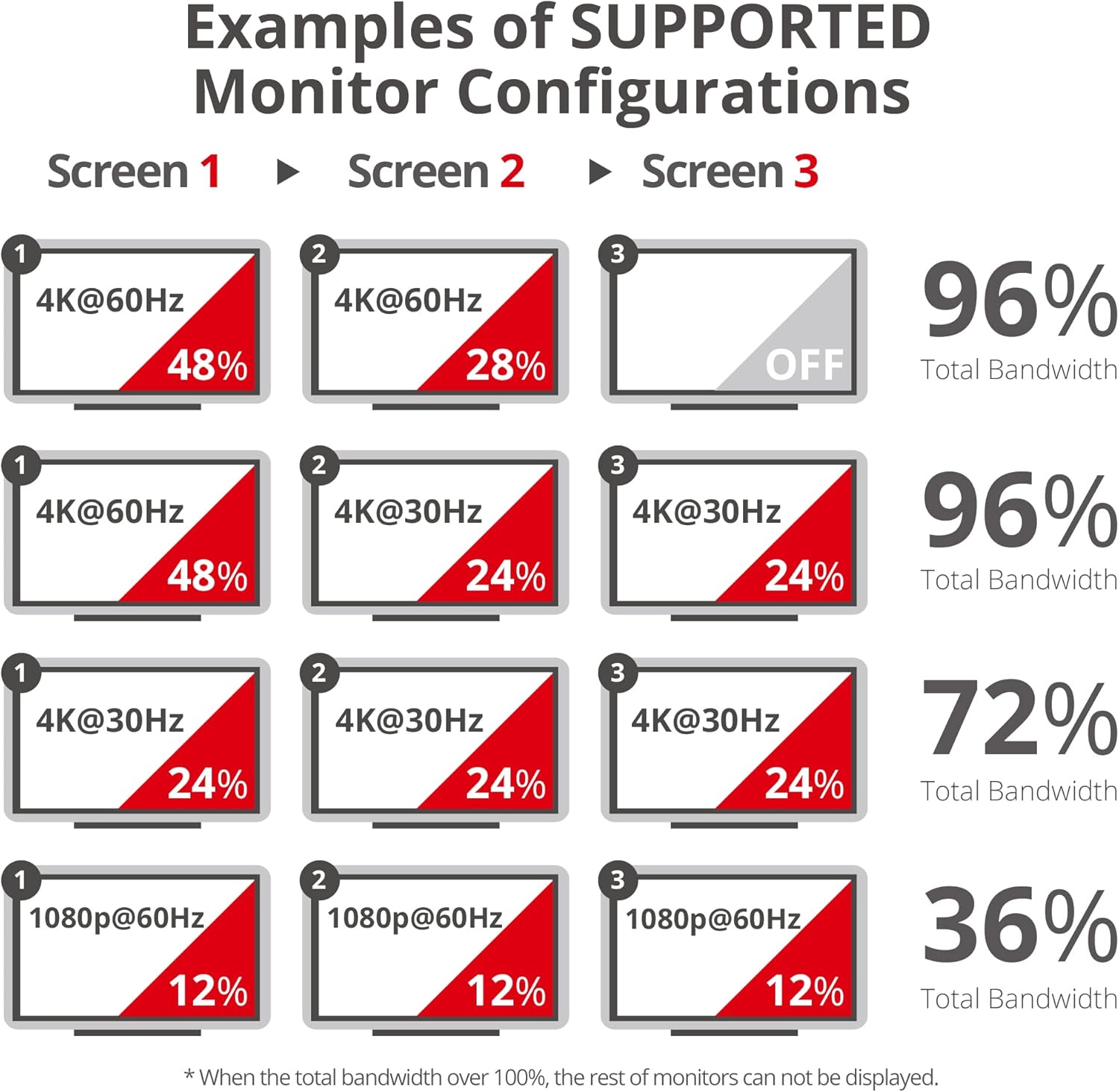

• HIGH PERFORMANCE: Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, three 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to 4K@30Hz will work also. Note: The total combined bandwidth among all connected displays must NOT exceed the total maximum bandwidth of 32.4Gbps

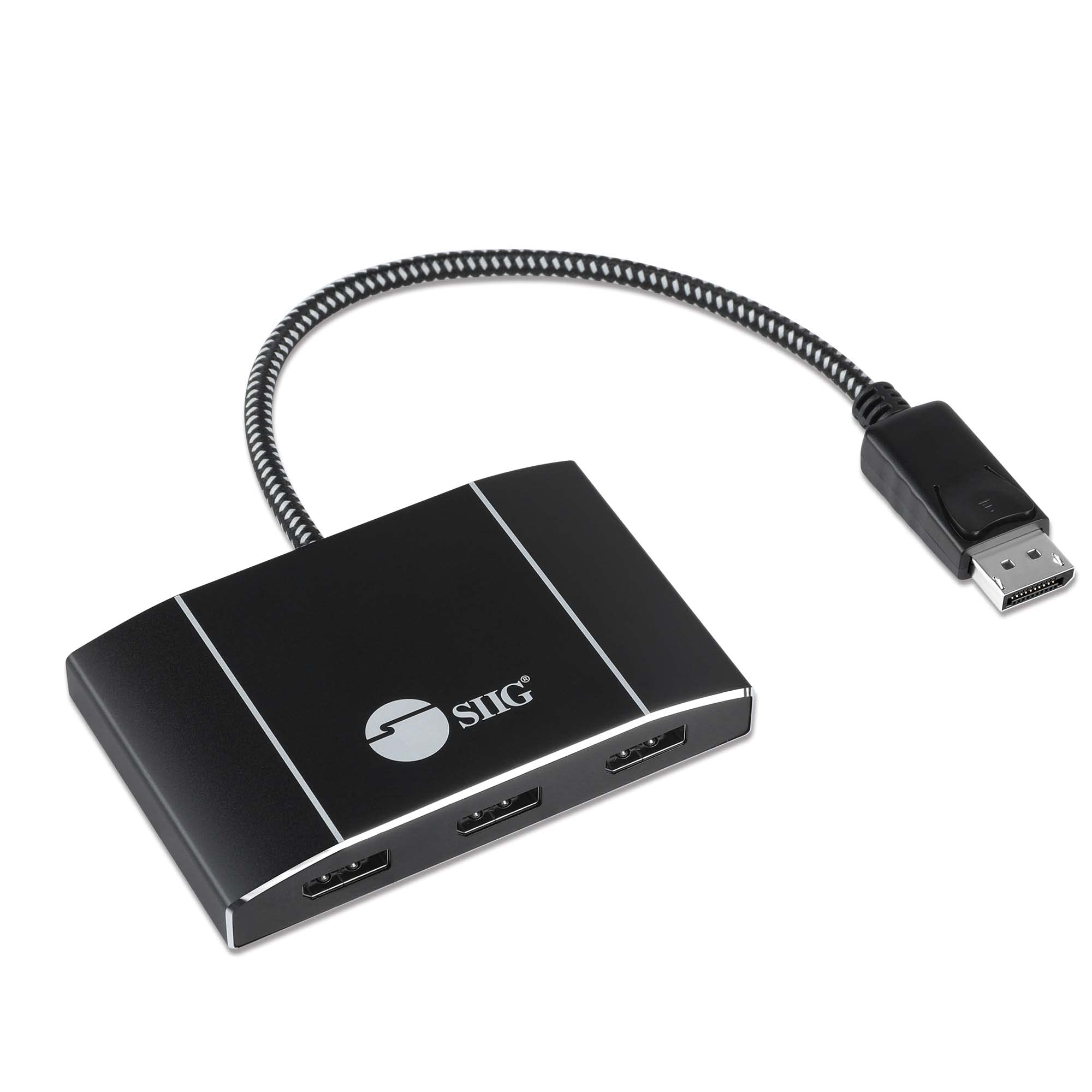

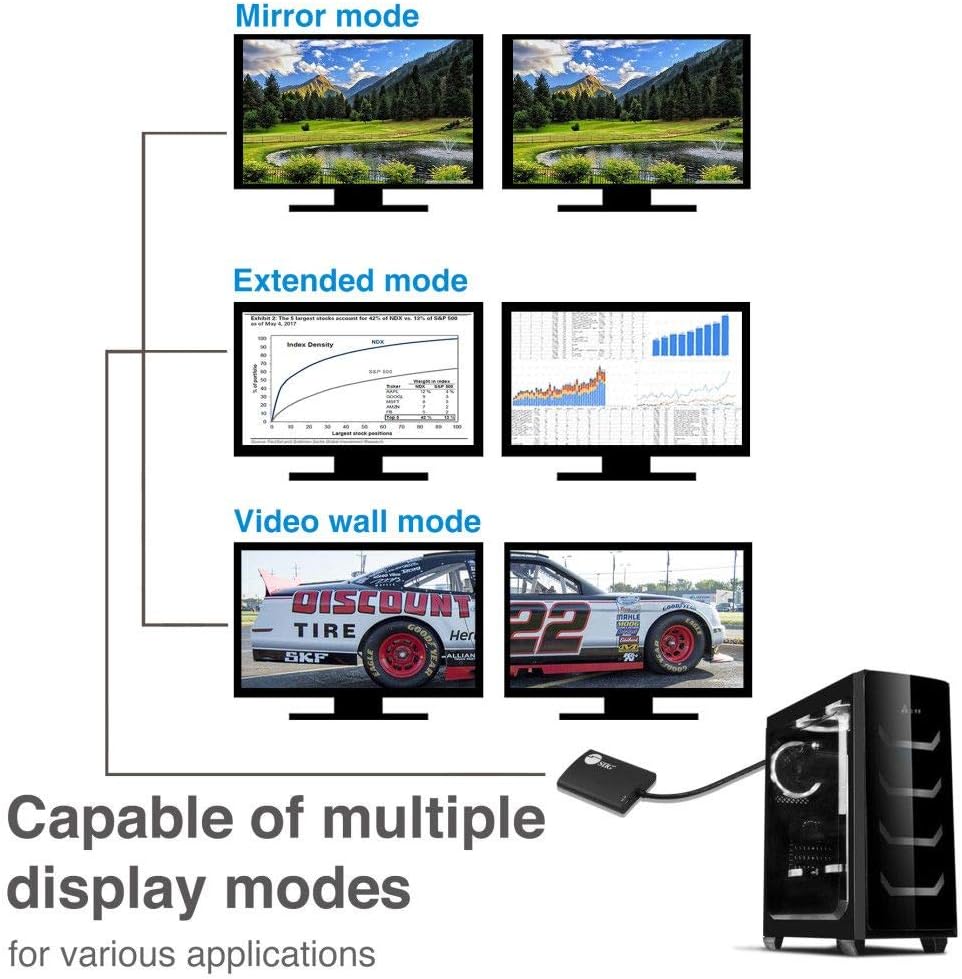

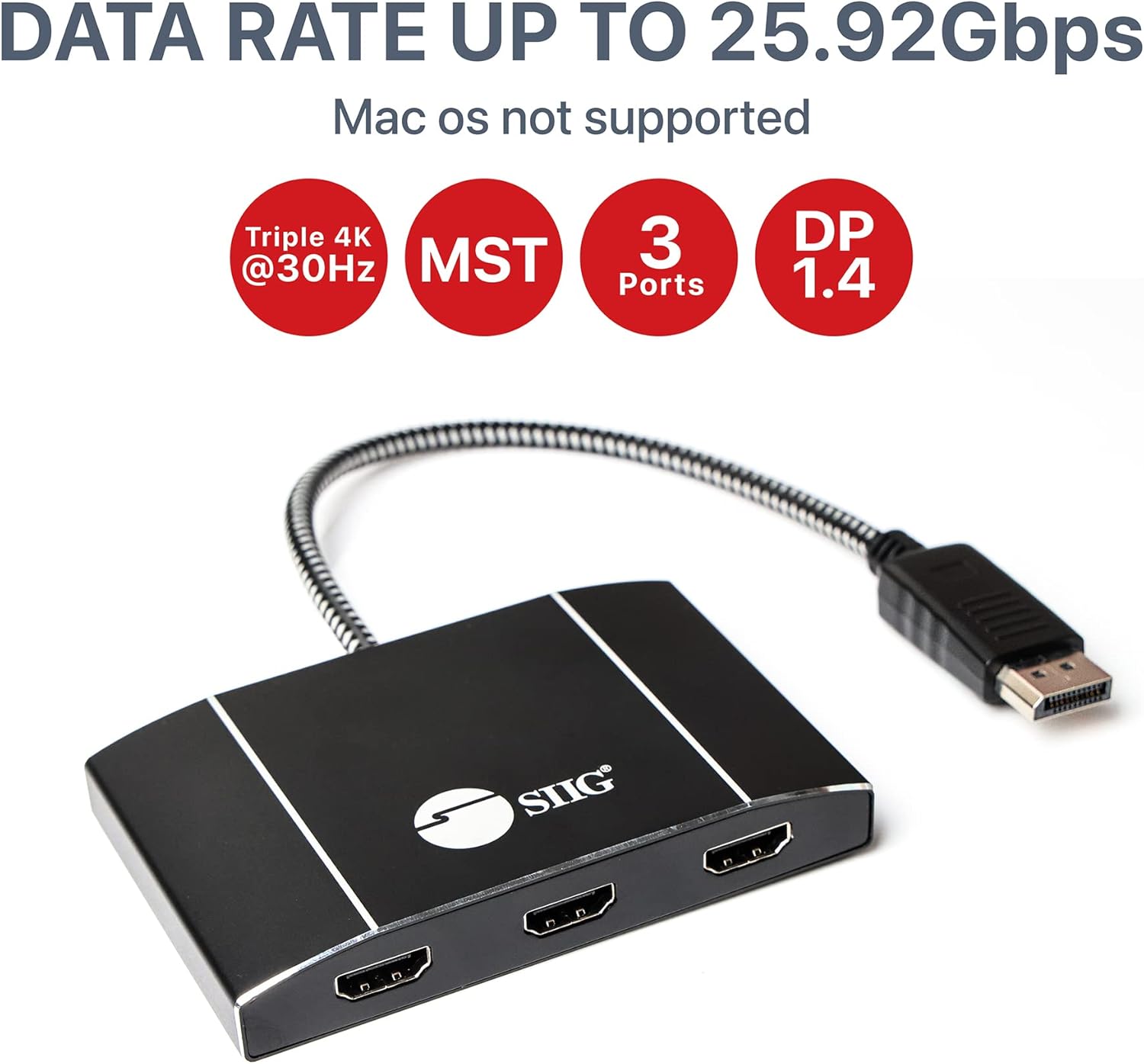

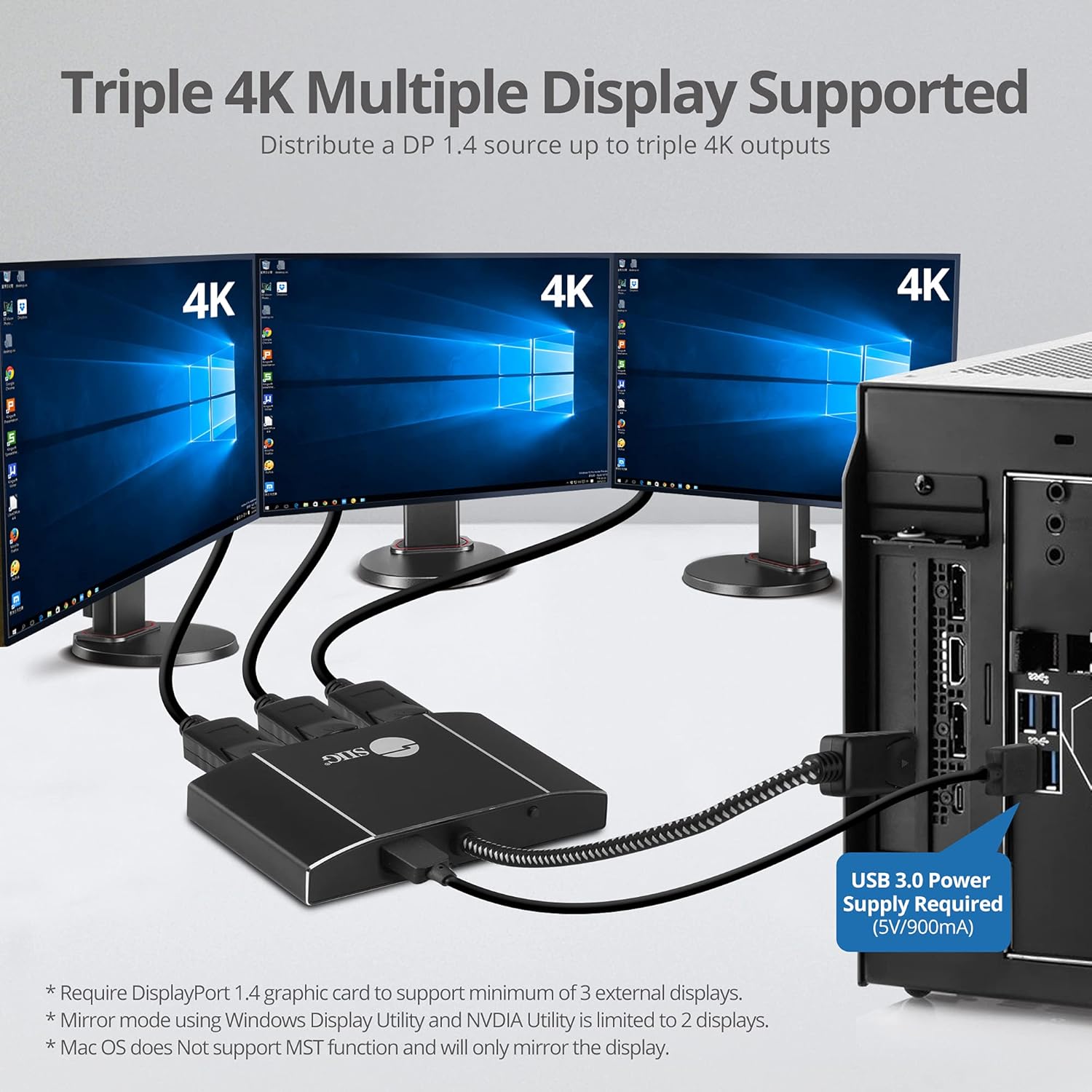

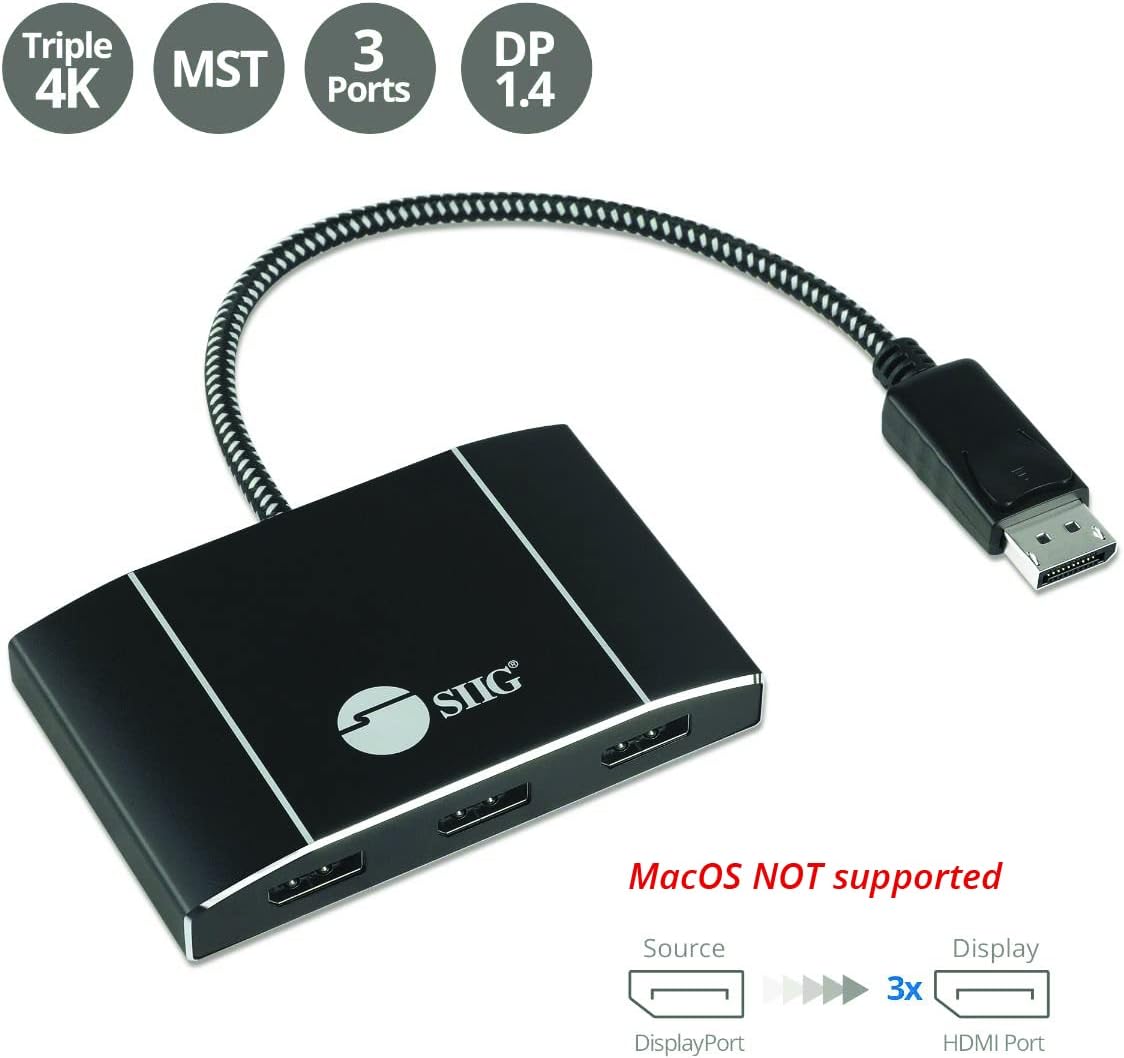

• 3 PORT DISPLAYPORT TO DisplayPort SPLITTER MST HUB - Connect 3 DisplayPort screes to your system through a single DisplayPort 1.4 output on your computer. Provides multiple display modes for various applications such as Mirror mode* Extended mode with individual content on each screen, and Panoramic Video Wall mode which combines multiple monitors to use as one large screen. ** **Requires USB bus power from a USB 3.0 port. USB 2.0 or earlier doesn’t output enough power to drive this adapter

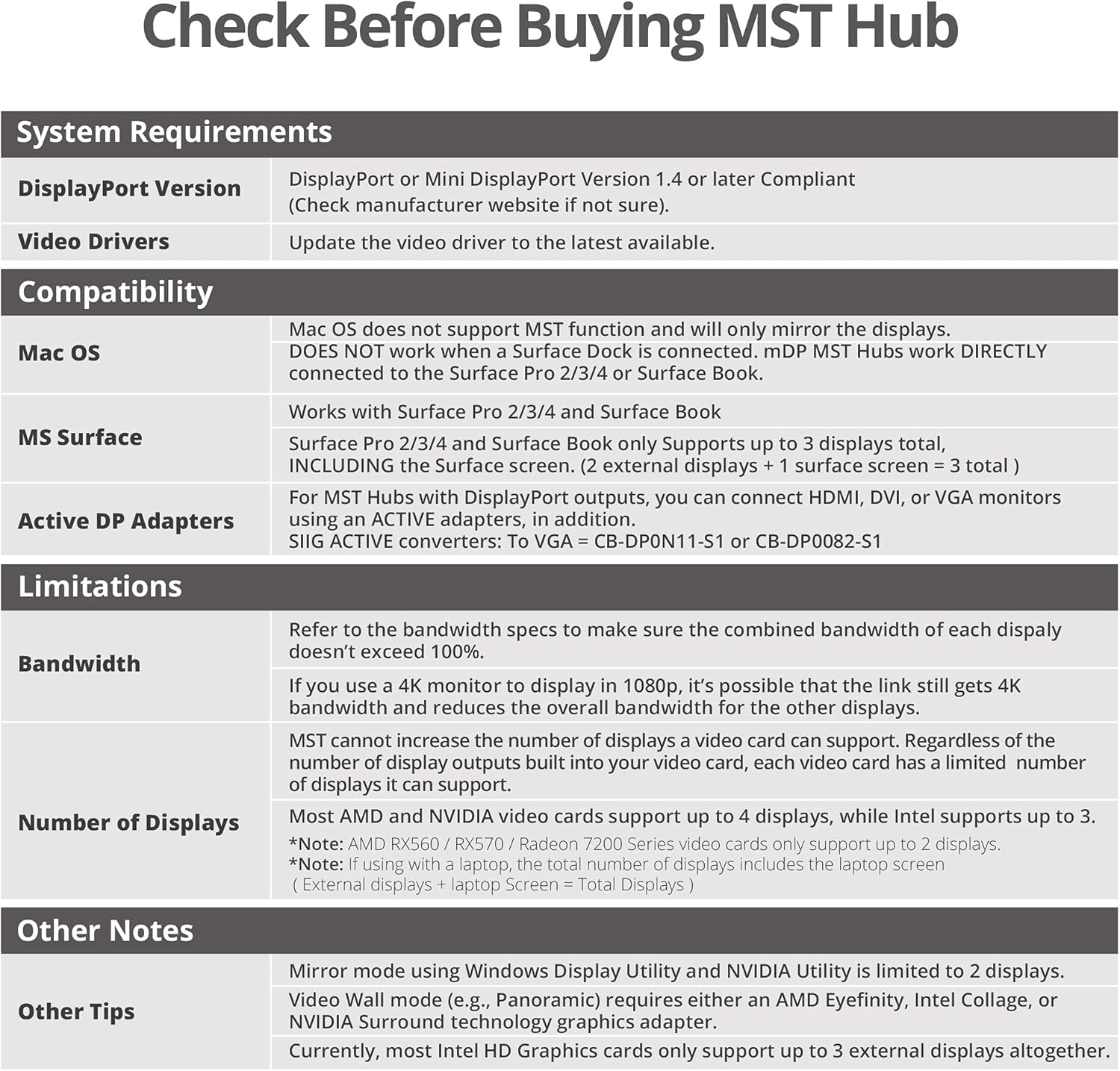

• IMPORTANT NOTES - !!!No Support for MacOS!!!-!!! DisplayPort 1.4 GPU/ Graphics Card required. Requires GPU/Graphics card supporting more than 3 external screens. Intel HD Graphics are limited to 3 external screens altogether. See Product Description for more important information. Contact us before purchasing if you are not sure about compatibility. Boost your productivity by connecting three DisplayPort screens to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology
