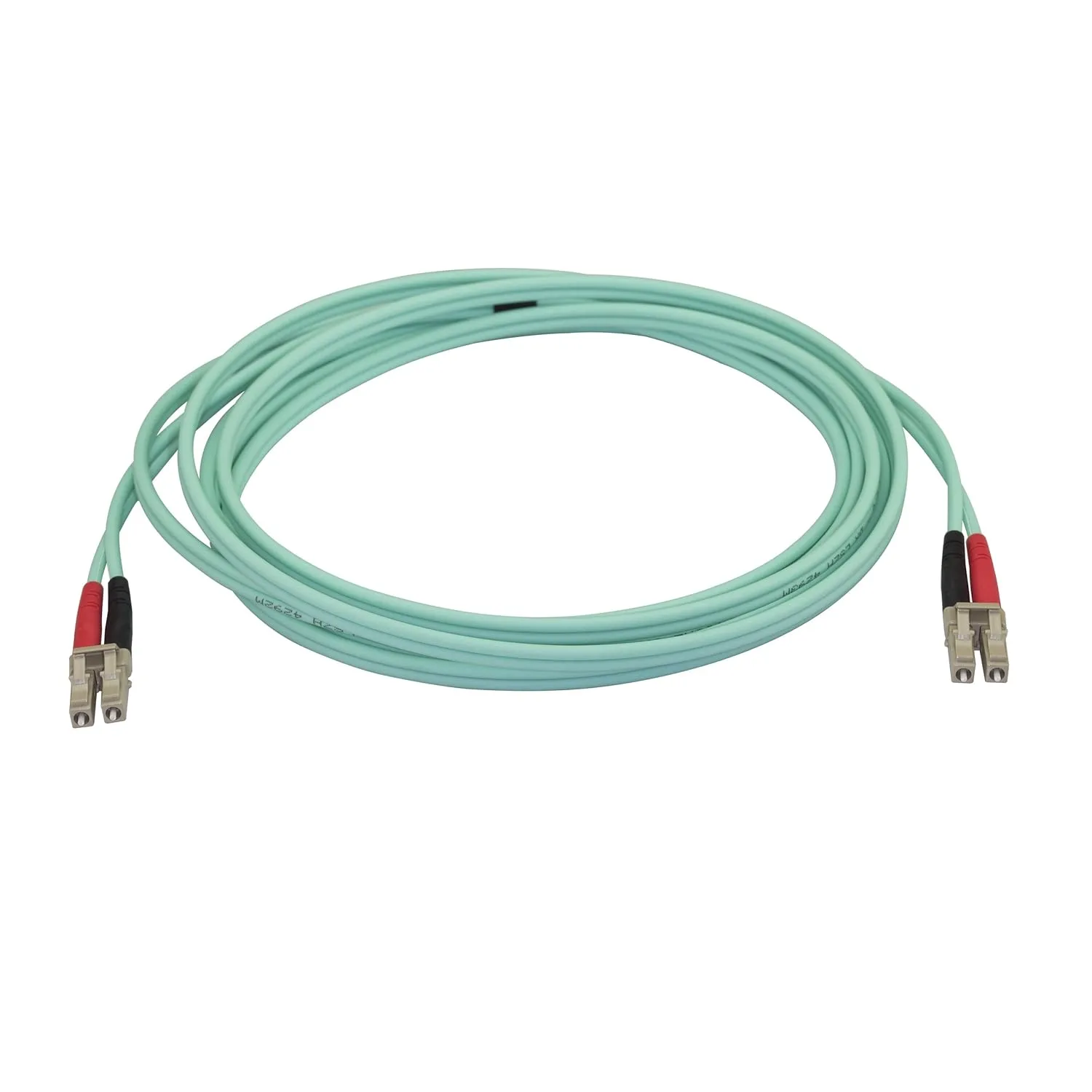

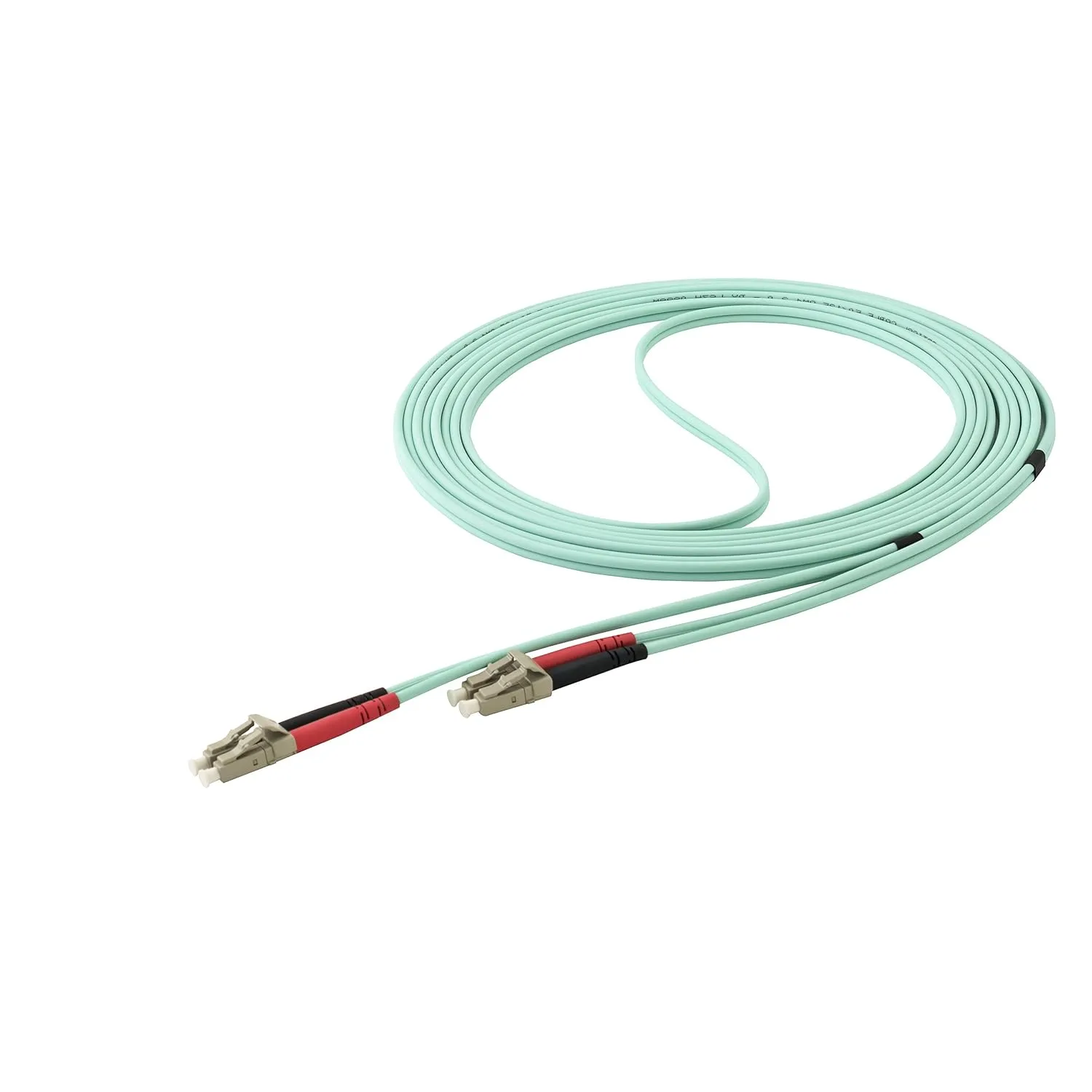

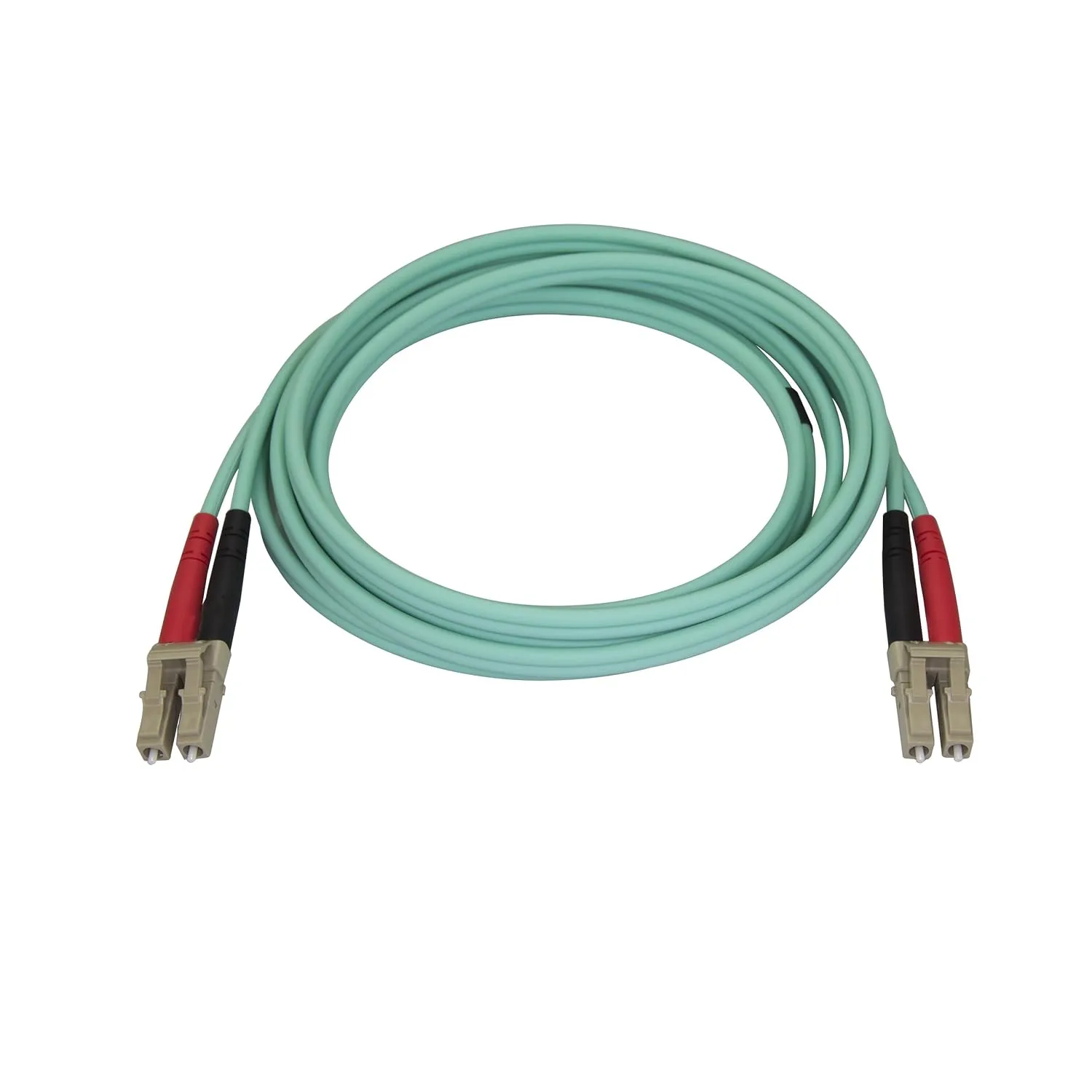

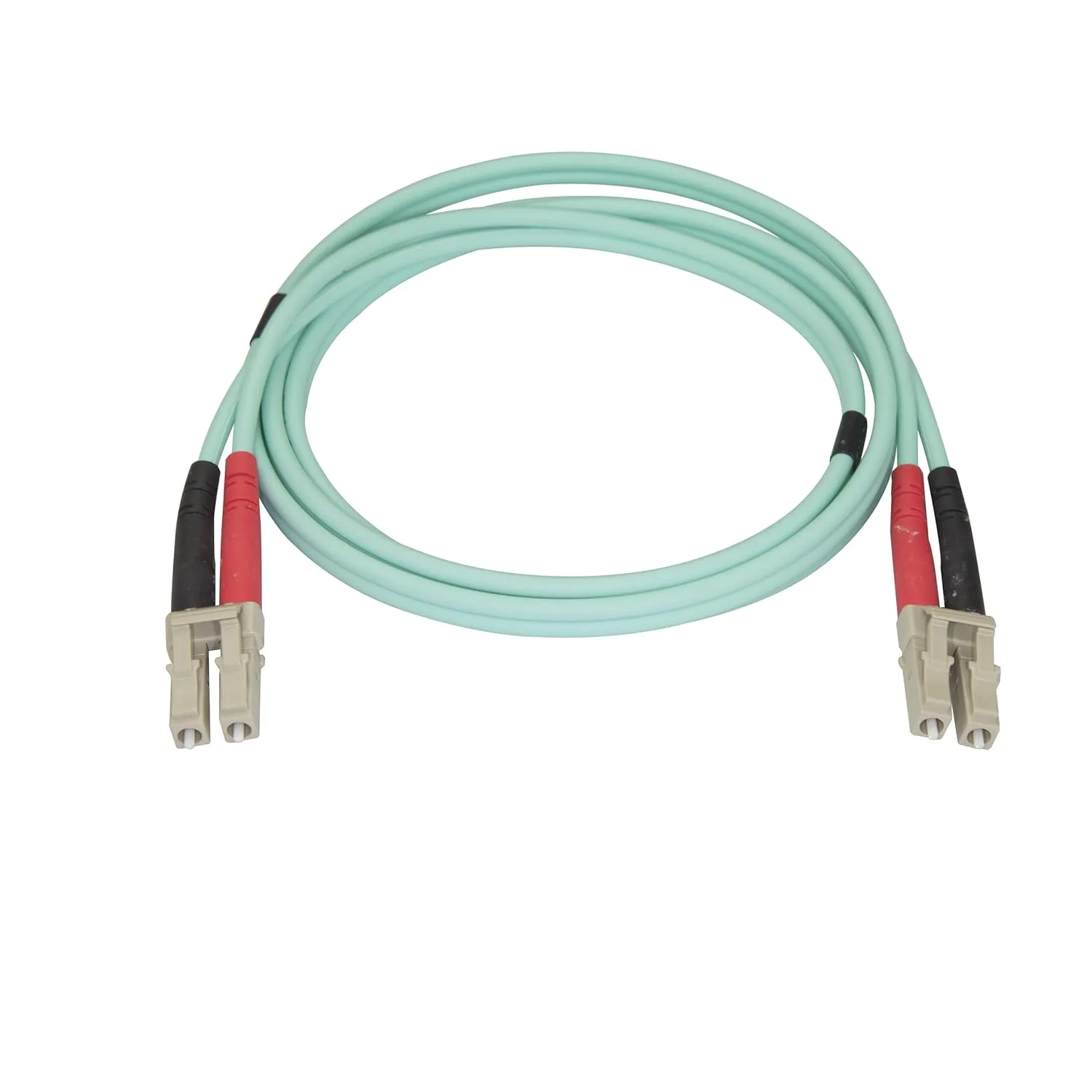

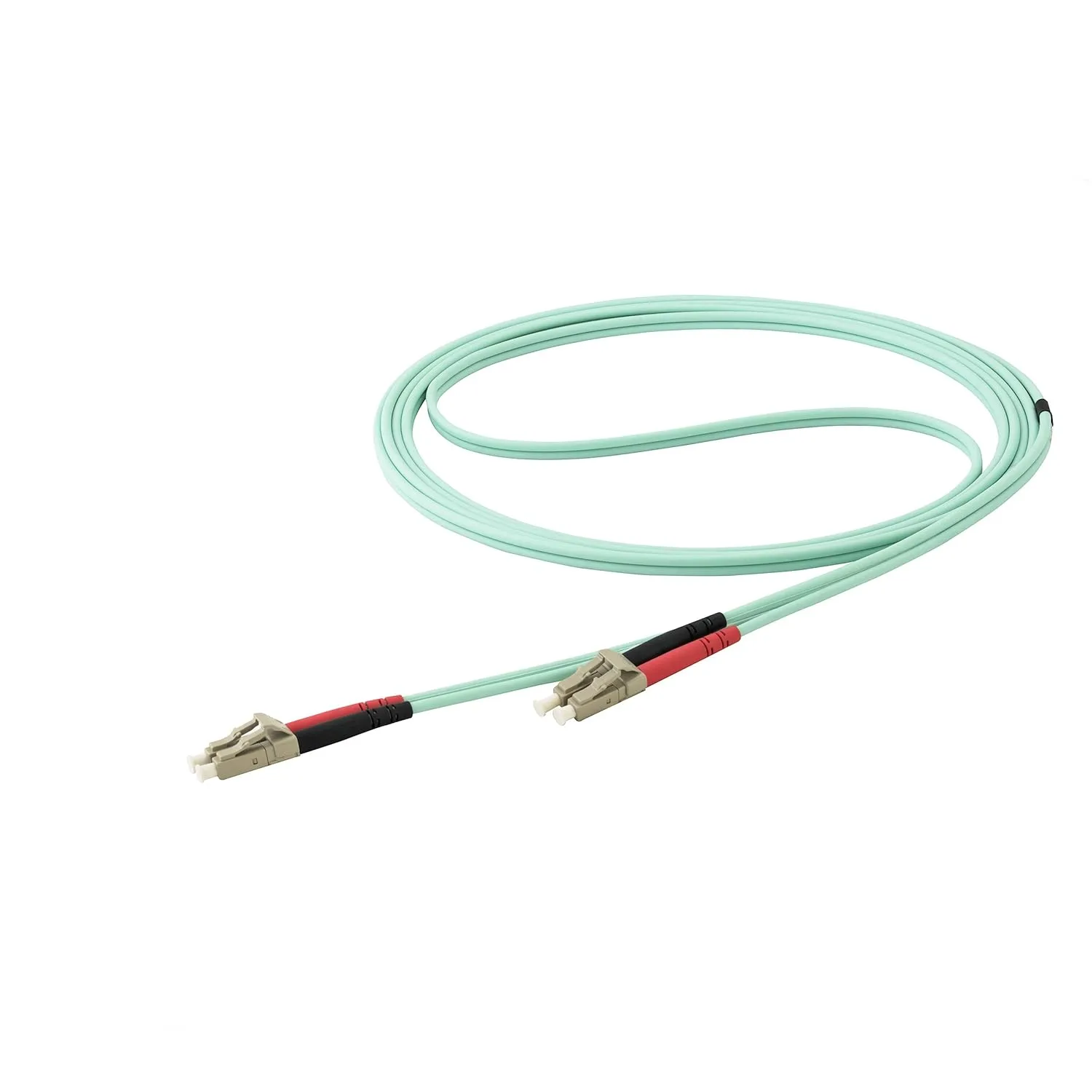

StarTech.com OM4 LC/UPC Duplex Multimode Fiber Optic Cable (50/125, LSZH)

StarTech.com OM4 LC/UPC duplex multimode fiber optic cable provides a high-bandwidth, low-insertion-loss solution for data centers, SANs and high-density networking. The laser-optimized OM4 (50/125 µm) fiber supports 850 nm and 1300 nm LED/VCSEL sources and is backward compatible with 50/125 equipment. LC/LC UPC polished ceramic ferrules and individually tested performance deliver insertion loss below 0.3 dB and attenuation under 2.3 dB/km. The cable features an LSZH (Low-Smoke, Zero-Halogen) jacket, aramid strength members for improved tensile strength and crush resistance, a 2.9mm cable OD, and defined bend radii (static 1.2 in / 3 cm, dynamic 2.4 in / 6 cm). Compatible with 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, 100GBASE-SR10 and common SFP+/QSFP+ transceivers. Color: Aqua (OM4). Backed by a lifetime warranty.

• SPECS: 10m (33ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
• COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10
• RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards

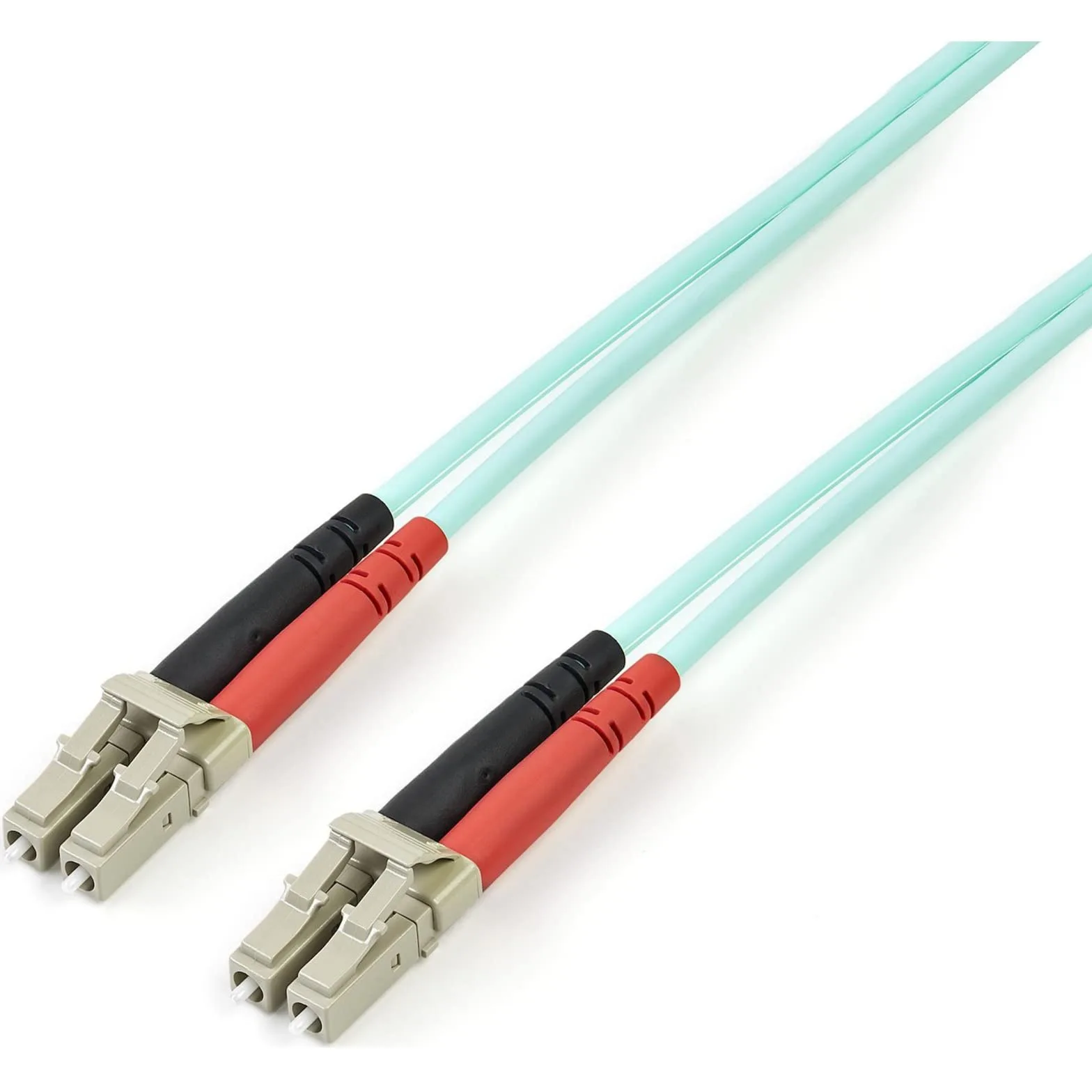

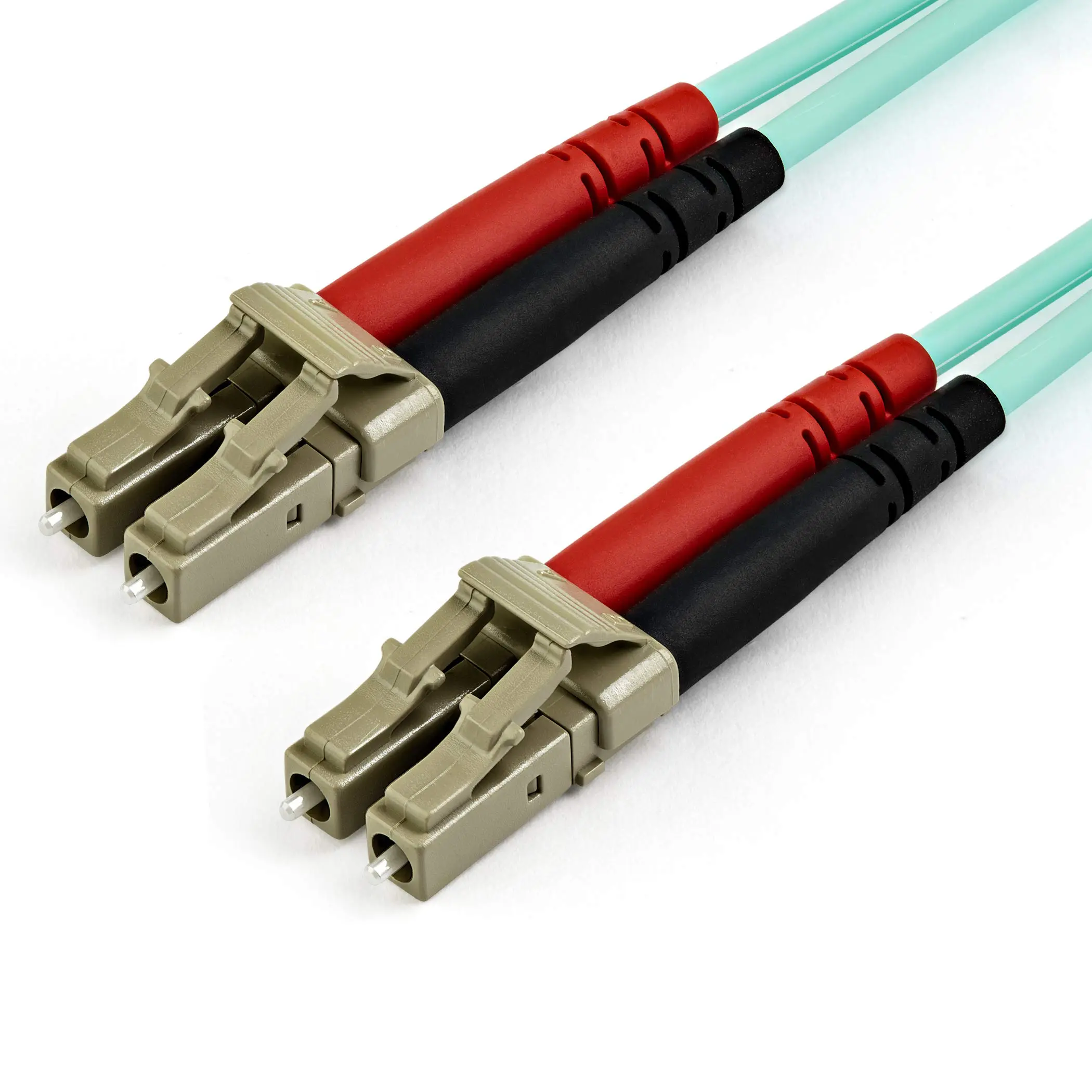

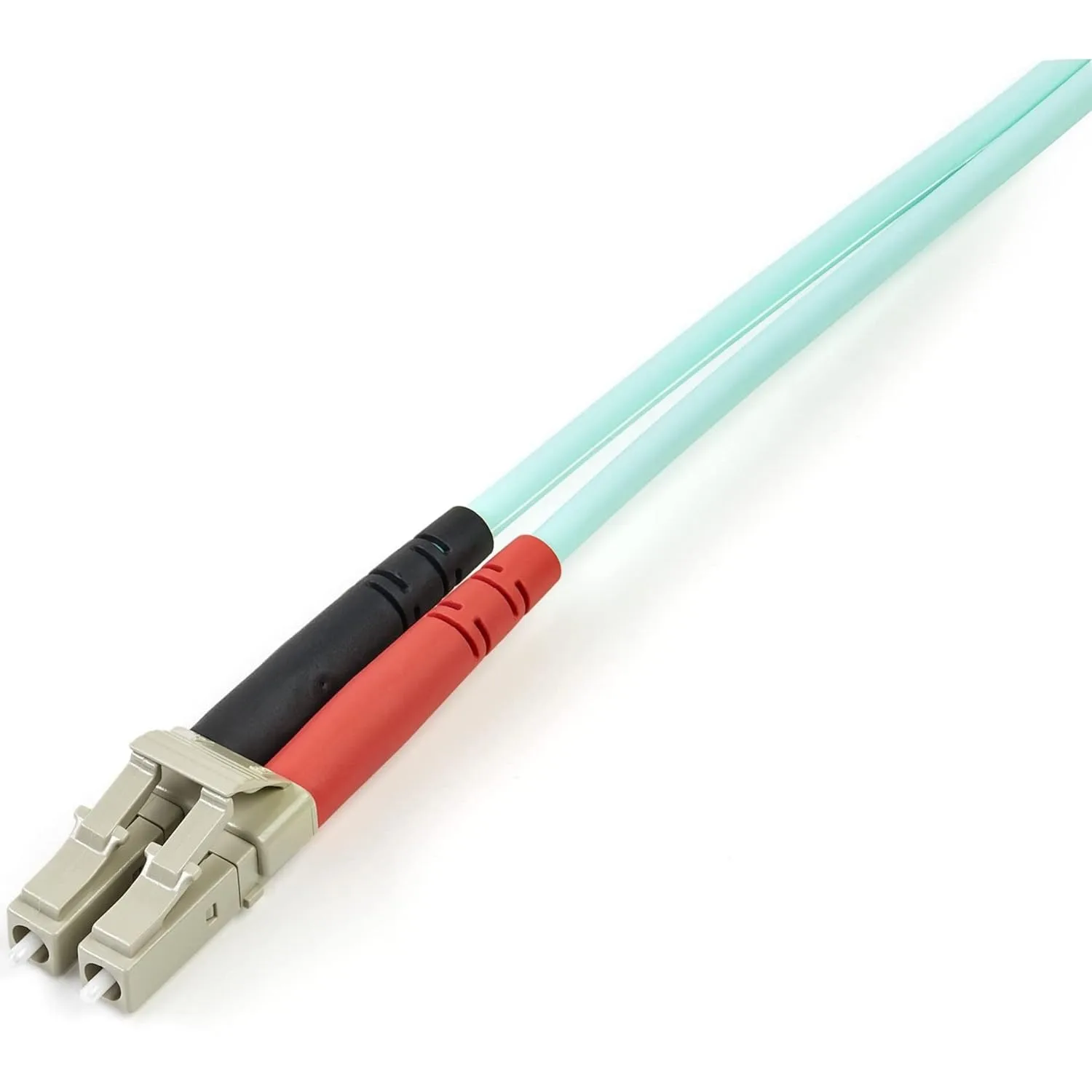

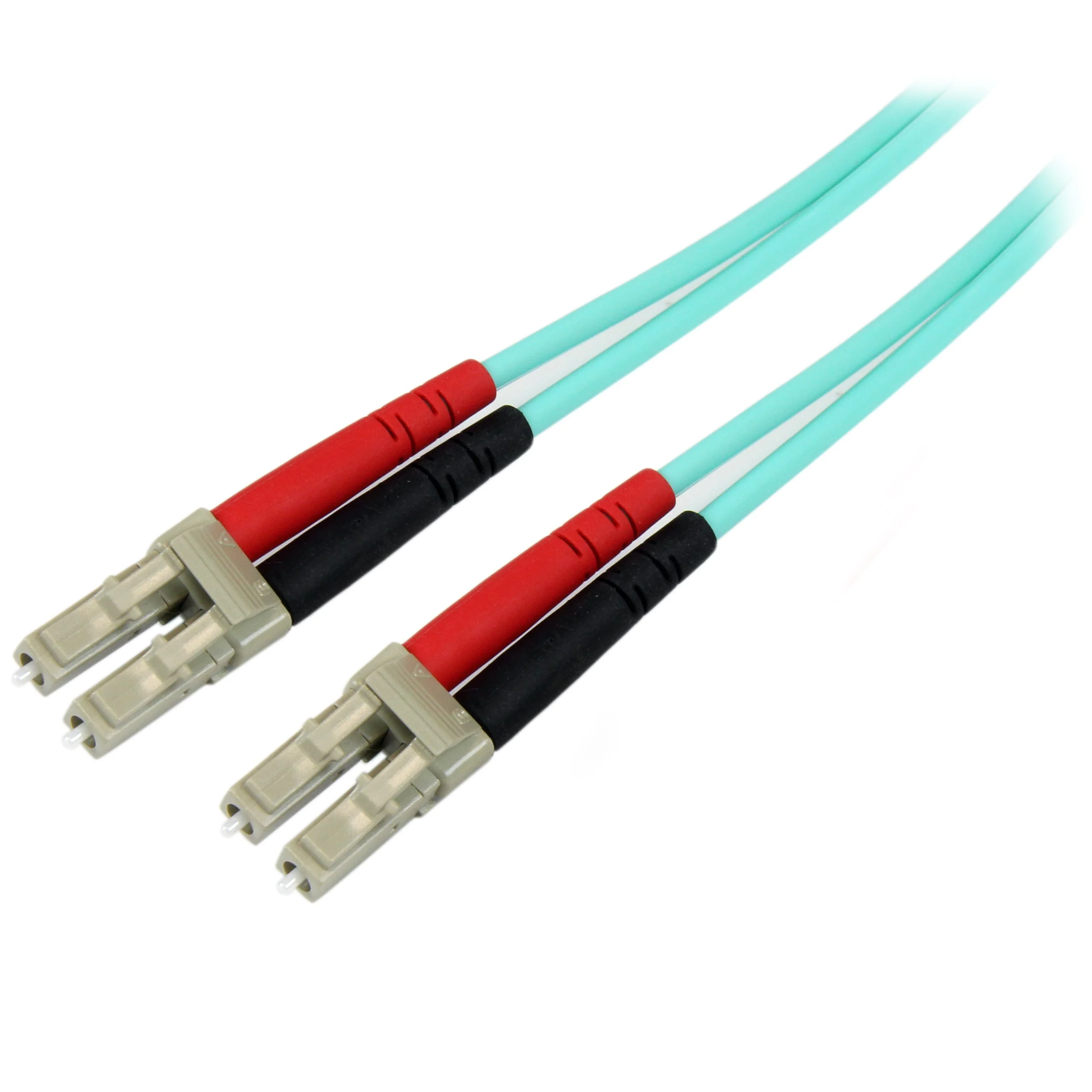

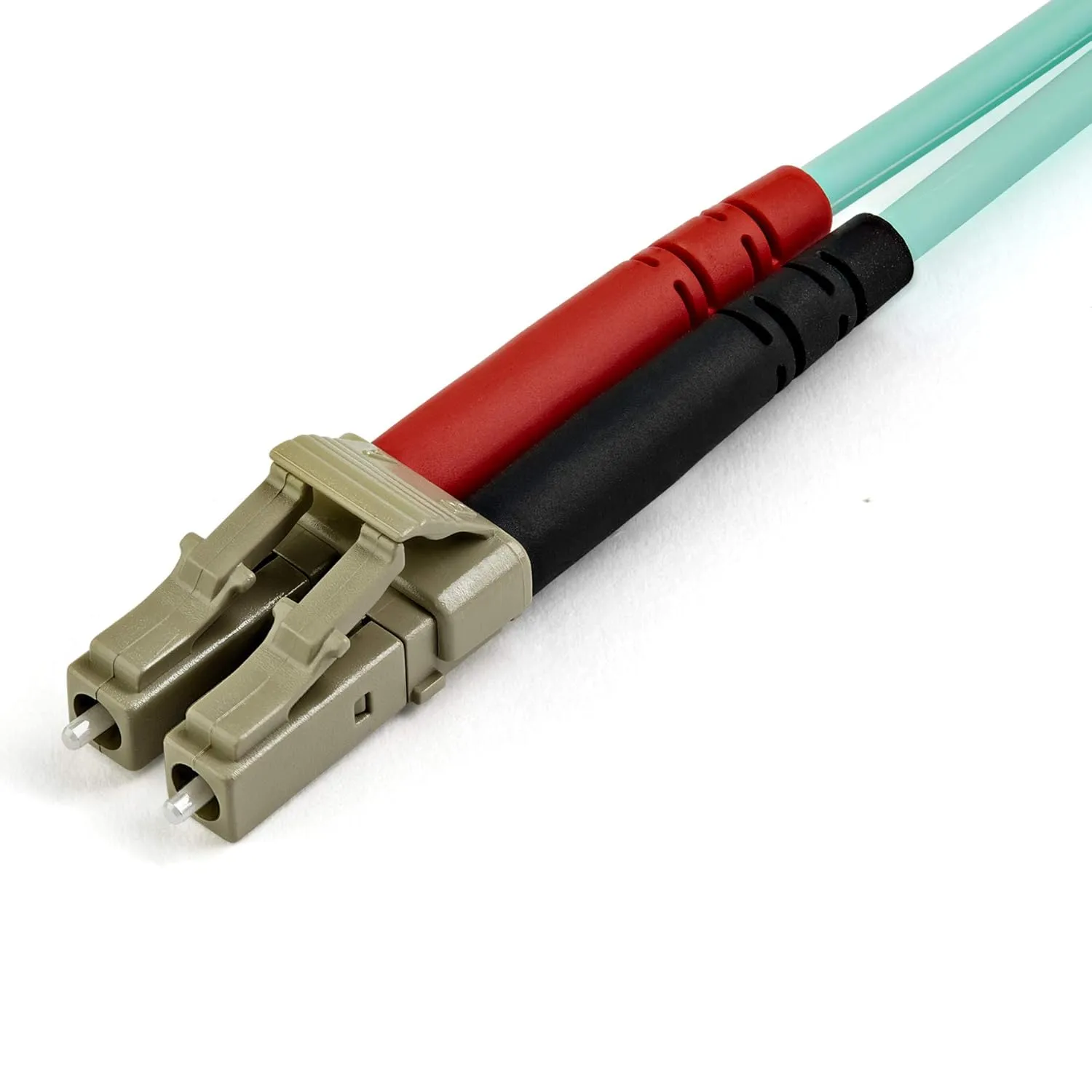

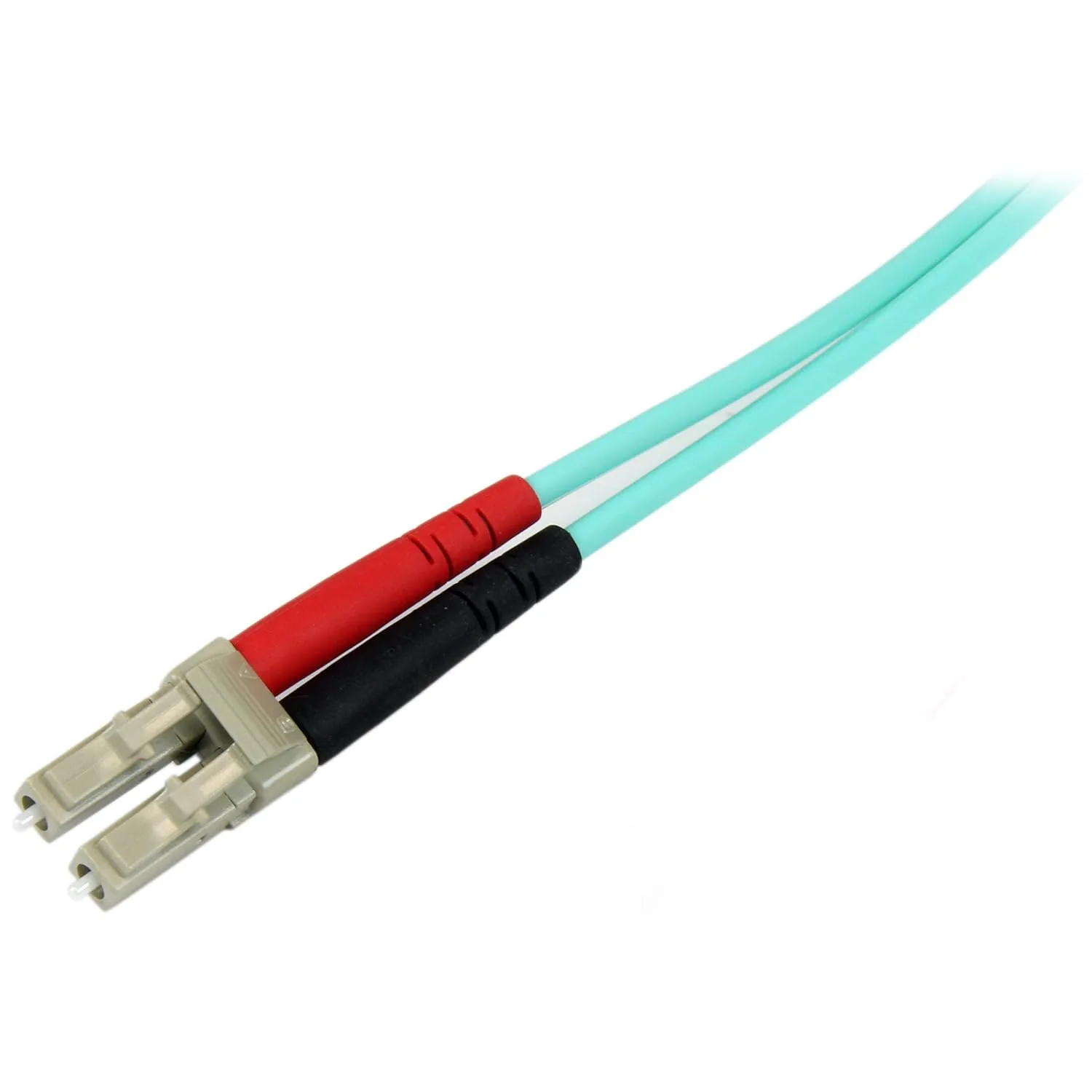

• QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB

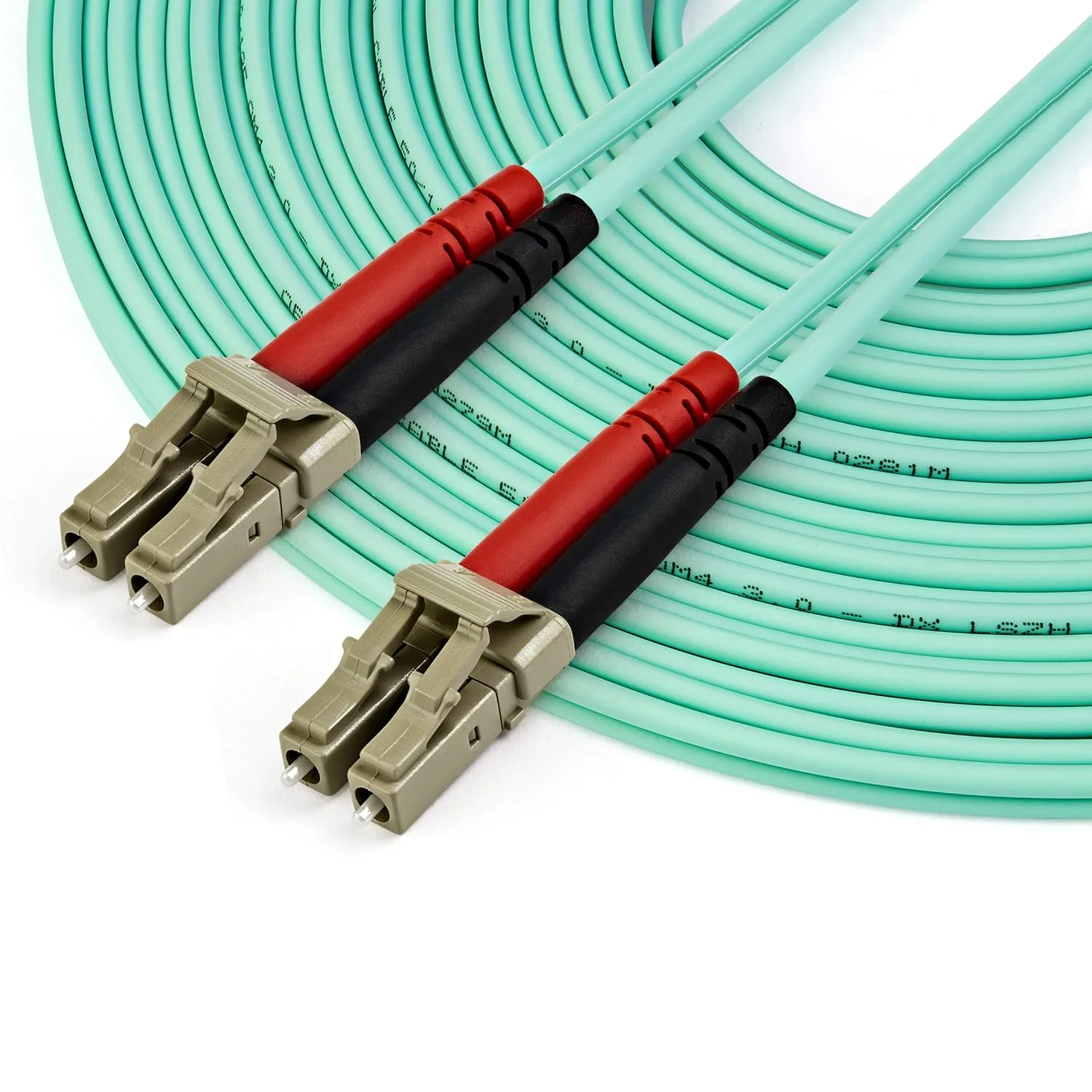

• OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
