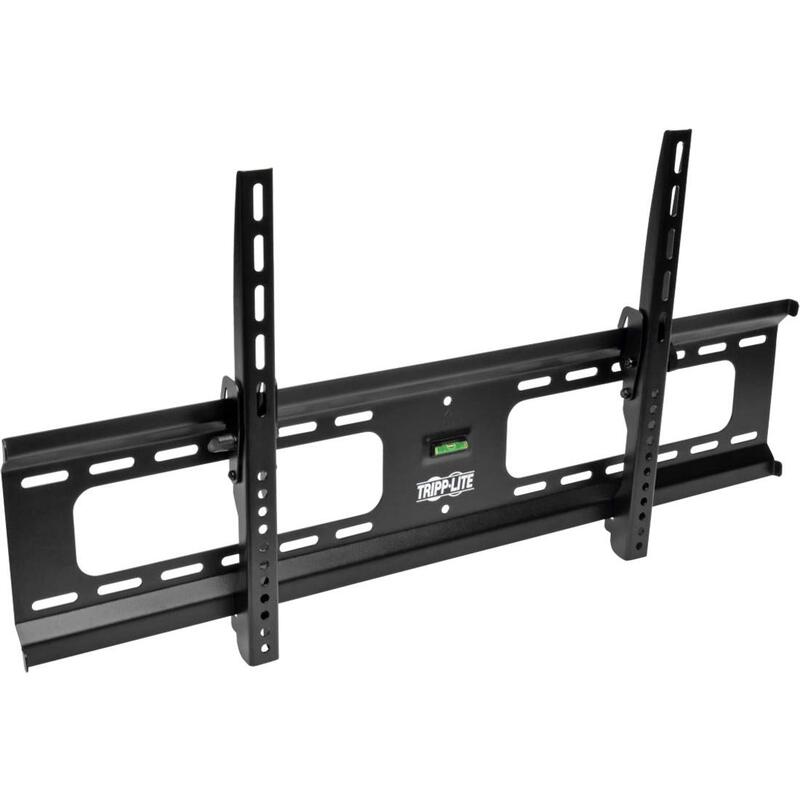

TRIPP LITE TV/Monitor Wall Mounts for Flat-Panel or Curved Screens, VESA-Compliant
Customize
The TRIPP LITE TV and monitor wall mount family delivers VESA-compliant mounting solutions for flat-panel and curved screens across a variety of installation needs. Models range from low-profile fixed brackets to tilt mounts, full-motion articulating arms, swivel/tilt designs and height-adjustable mounts, all sharing heavy-duty steel or alloy construction and a scratch-resistant powder-coated black finish. Common features across the line include support for multiple VESA mounting hole patterns, included mounting hardware, built-in leveling and cable access on many models, and one-touch or easy-adjust mechanisms on adjustable mounts. These mounts are recommended for home theaters, classrooms, conference rooms, boardrooms, hotels, bars, restaurants and outdoor applications (select models), with most products backed by a 5-year limited warranty. Capacity and exact VESA support vary by model; consult the specific variant for size and weight limits.
- 5-year limited warranty
- Tested in accordance with UL standard 2442
- Supports up to 165 lb.
- -10 degree to 0 degree tilt capability provides comfortable viewing from multiple angles
- Fits most flat-panel or curved-screen Televisions, monitors and other displays from 37 to 80 in.
Specifications:
| Materials & Construction | |
| Outer Material | Alloy Steel |
| Product Details | |
| Compatible Devices | Television |
| Global Trade Identification Number | 00037332203991 |
| Maximum Tilt Angle | 10 Degrees |
| Model Number | DWT3780XUL |
| Mounting Type | Wall Mount |
| Style | Dwt3780xul |
| Sizing & Dimensions | |
| Weight | 7.9 pounds |
| Technical Specifications | |
| Mounting Hole Patterns | 200 x 200 mm; 300 x 300 mm; 400 x 200 mm; 400 x 400 mm; 600 x 400 mm; 800 x 400 mm |
| Supports Weight | 165 pounds |
| Warranty | 5-Year limited warranty |
