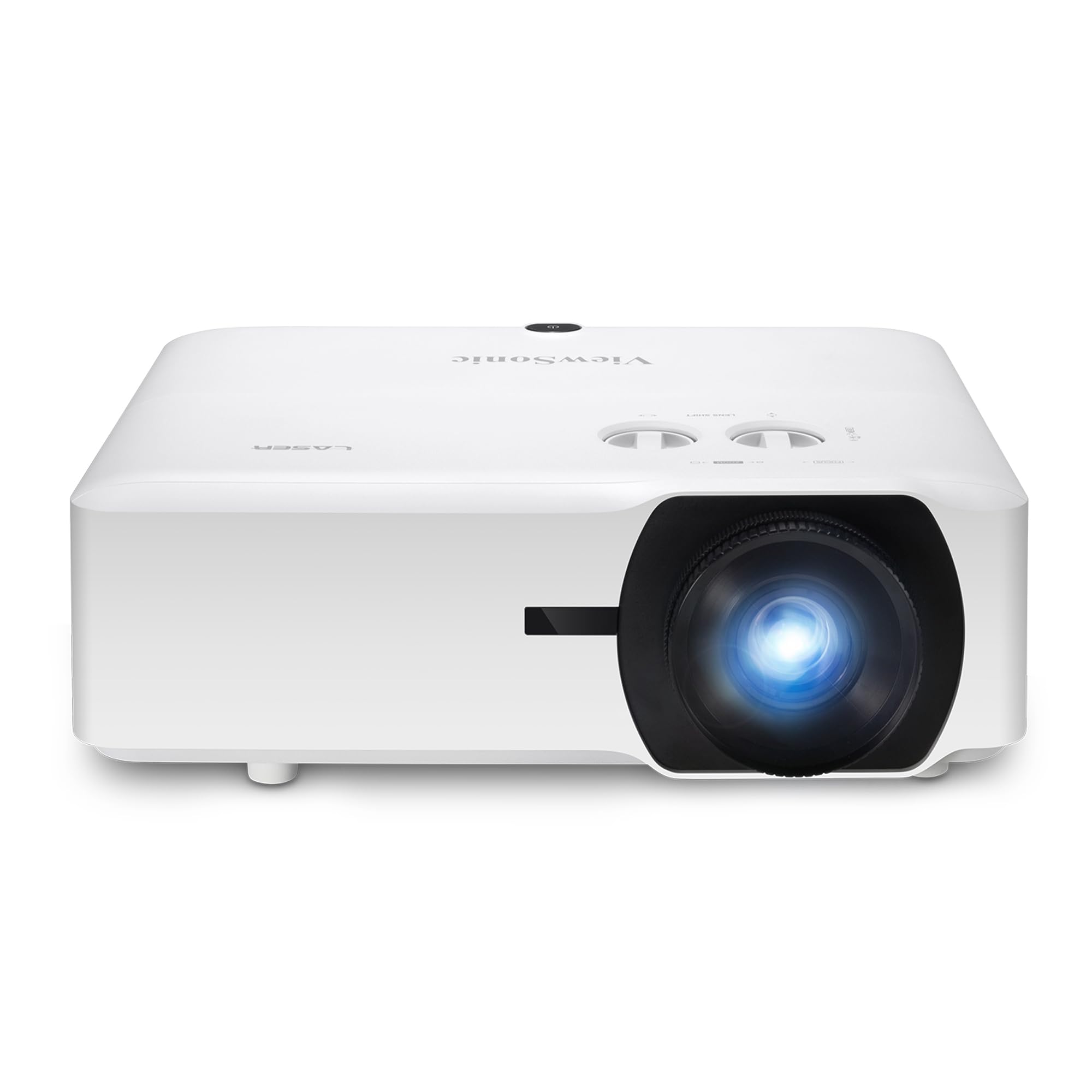

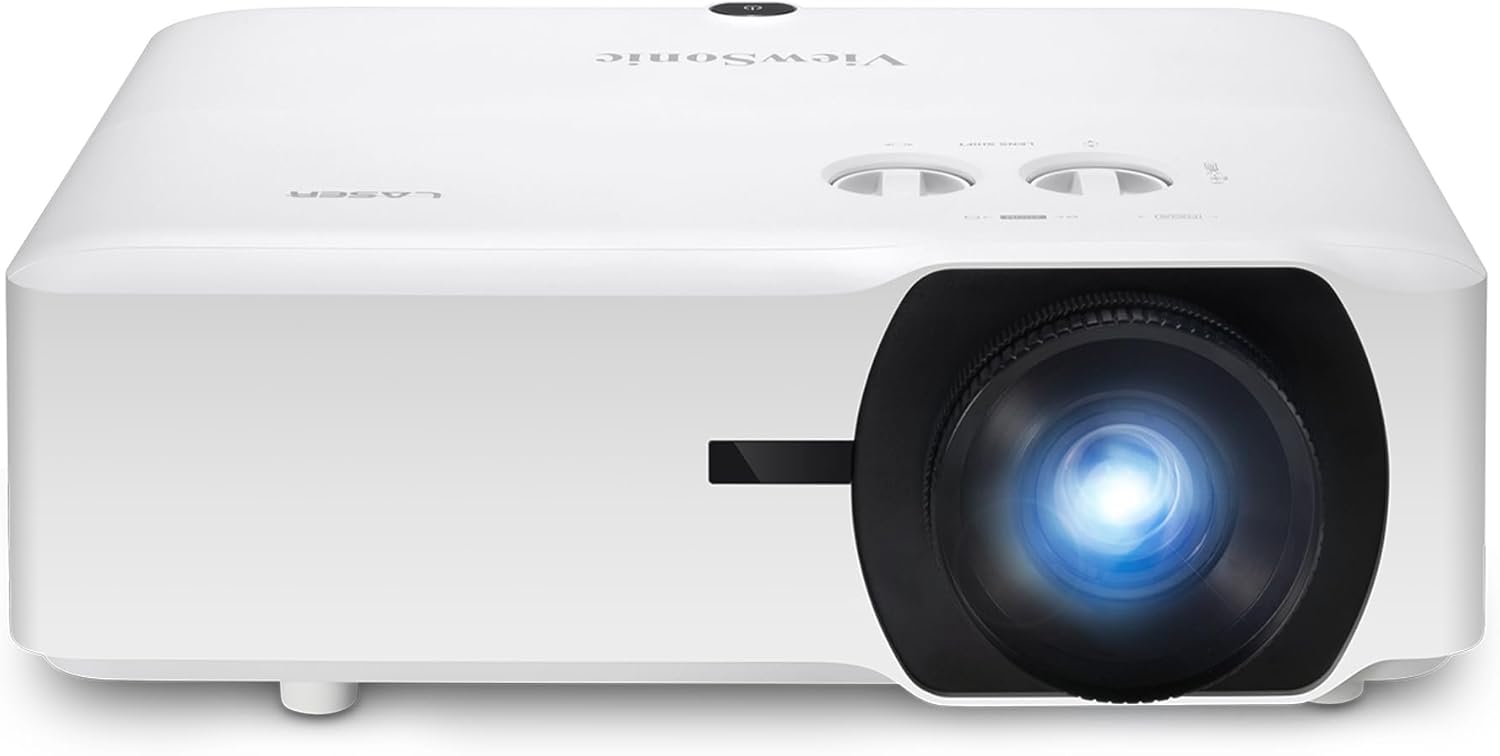

ViewSonic LS740 5000-Lumen Laser Projector
Customize

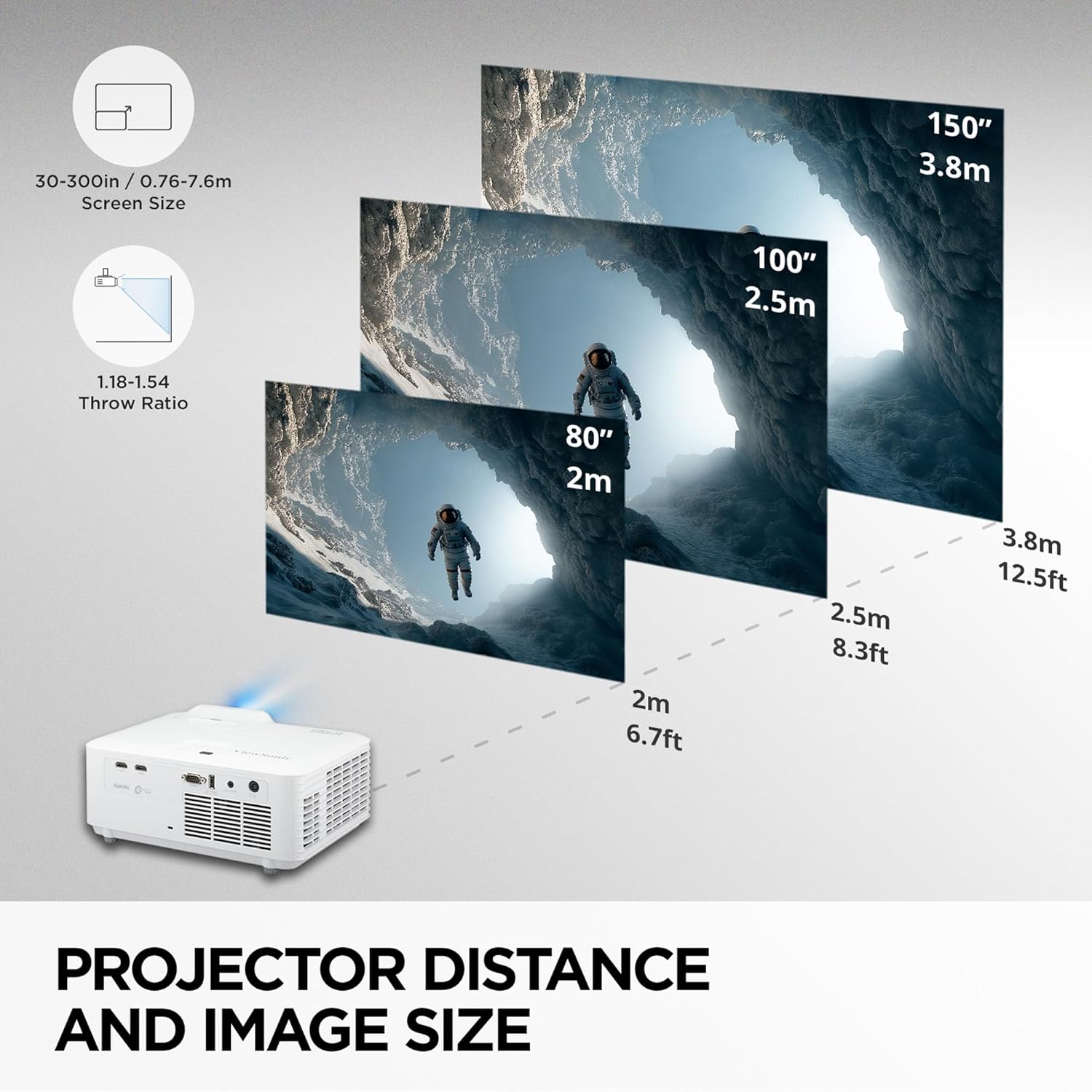

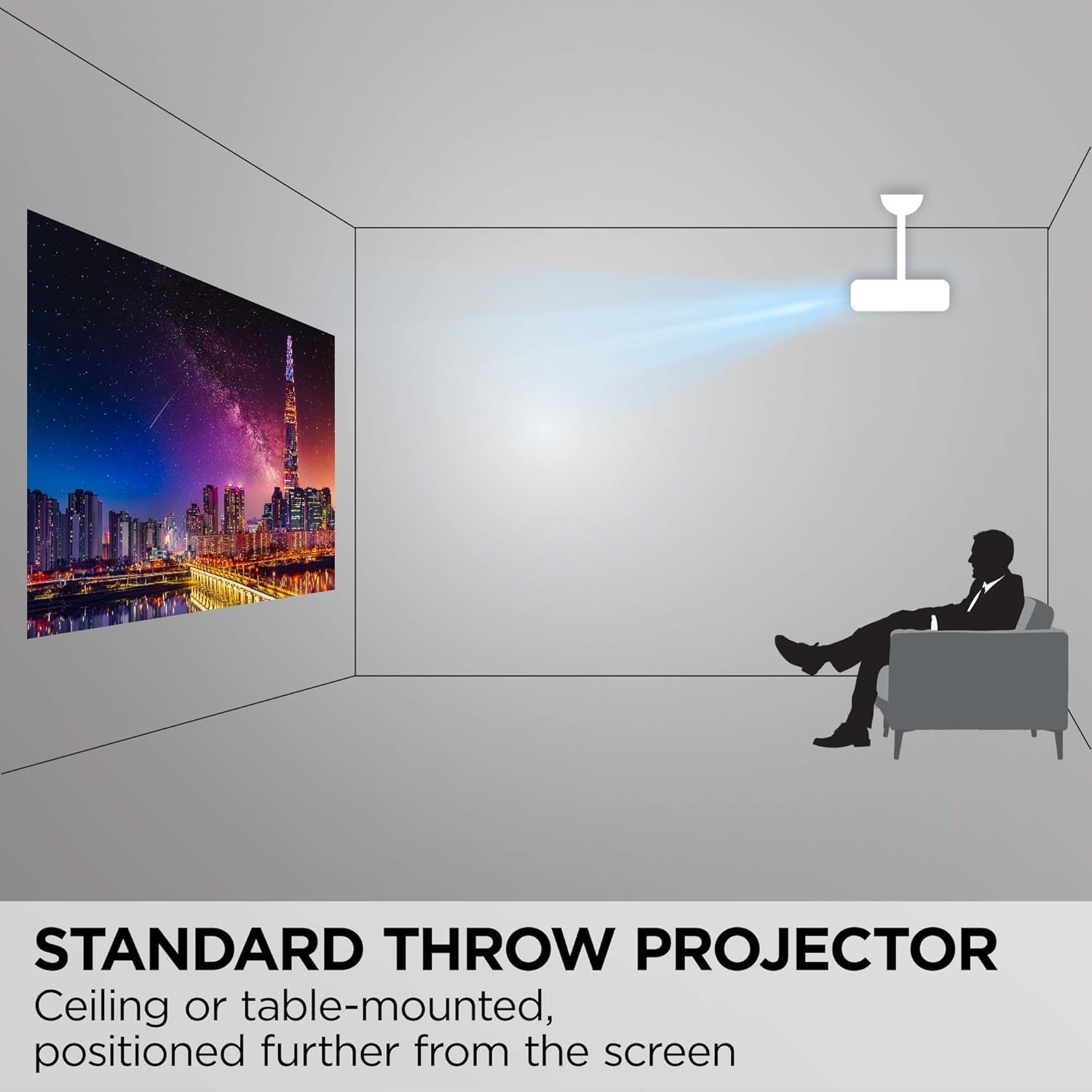

The ViewSonic LS740 product family offers a maintenance-free laser phosphor projection solution delivering 5,000 ANSI lumens and extended light life (~30,000 hours). Designed for installation and flexible setups, the LS740 series features 1.3x optical zoom, H/V keystone, 4-corner adjustment, 360° projection and portrait mode to simplify alignment and mounting (compatible with ViewSonic ceiling mount PJ-WMK-007). Capable of projecting 30"–300" images across a wide throw distance range, the lineup includes HDMI, USB Type-A and LAN control, built-in audio, and support for remote management systems (Crestron, AMX, Extron, PJ Link, vController). Ideal for auditoriums, lecture halls, conference rooms, classrooms and simulation use (Golf Mode support), the LS740 family delivers bright, reliable performance with eco-friendly, low-maintenance operation and a 3-Year Limited warranty.
- LAN CONTROL: Schedule, and manage the projector remotely with Crestron, AMX, Extron, PJ Link, ATEN, and ViewSonic’s vController
- AUTO POWER ON/OFF: This projector can be configured to automatically turn on and off
- EASY SETUP: 1.3x optical zoom, 360 degree projection, H/V keystone, and 4 corner adjustment

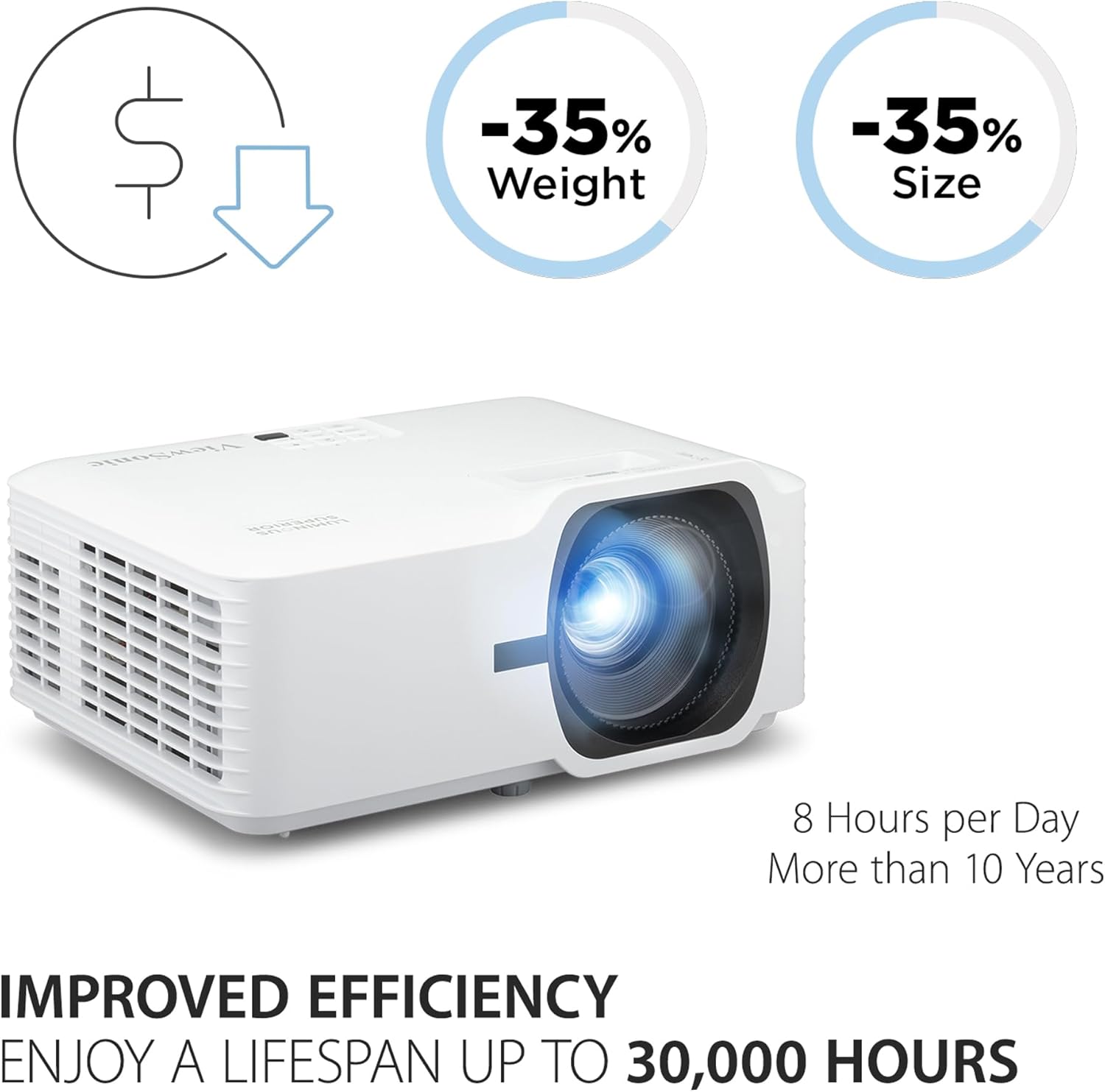

- LONG LAMP LIFE: Long-lasting laser phosphor light source allows the lamp to shine bright for up to 30,000 hours
- VERSATILE PROJECTOR: High brightness 5000 Lumens WXGA laser projector with advanced visual features
Specifications:
| Materials & Construction | |
| Product Color | White |
| Product Details | |
| Aspect Ratio | 16:10 |
| Average Lamp Life | 30000 hr |
| Brightness | 5000 lm |

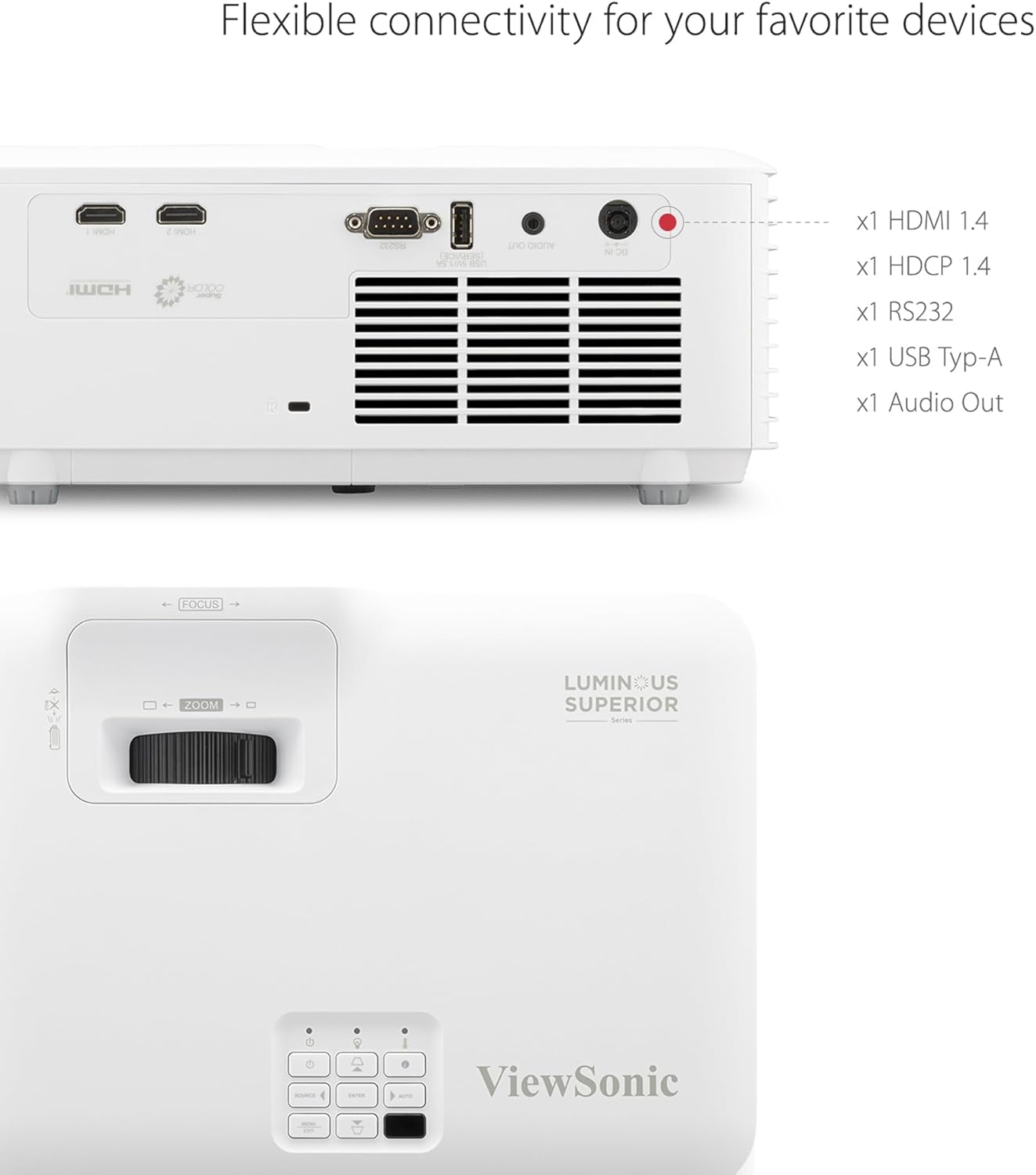

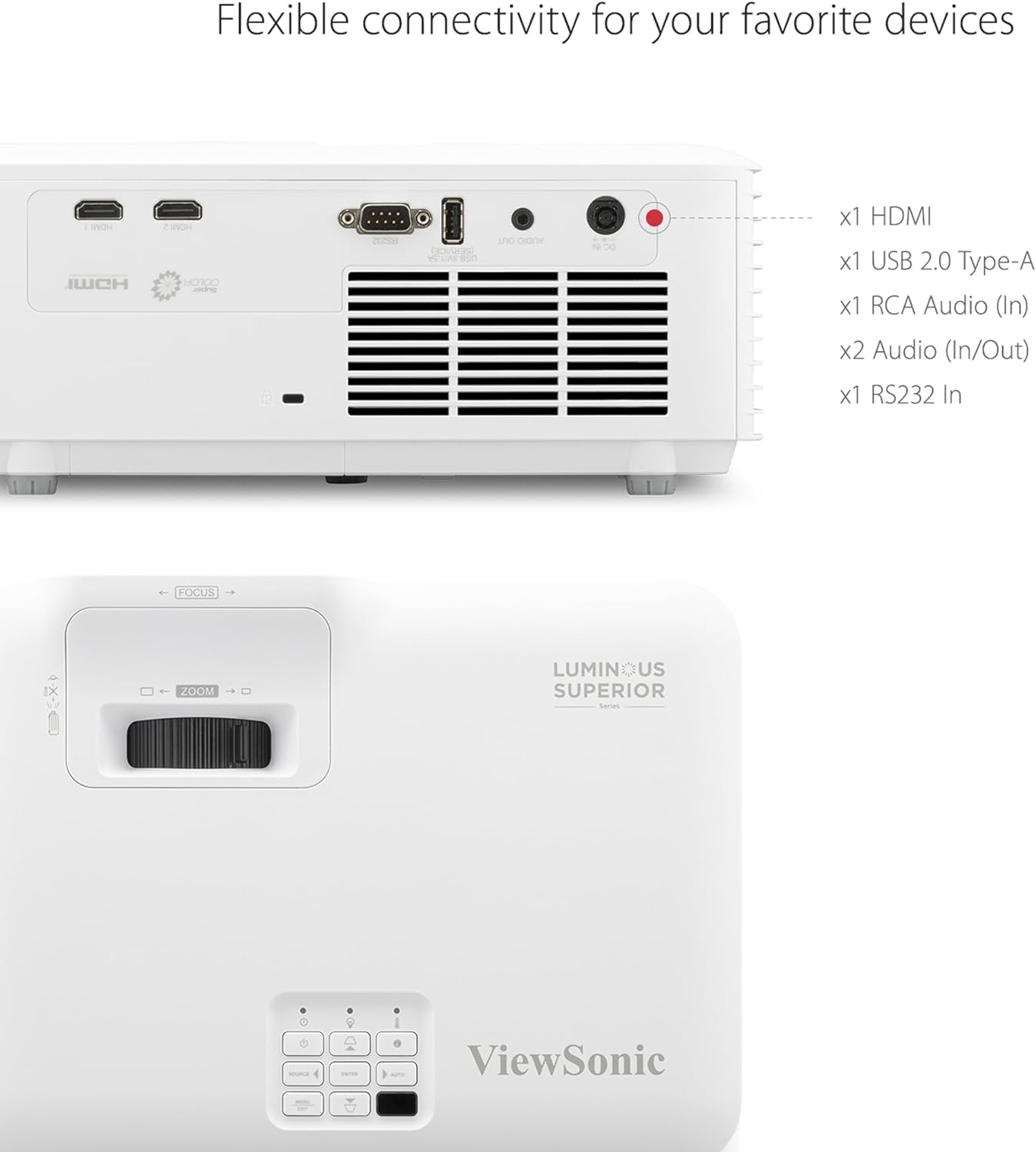

| Connectivity Technology | USB, HDMI, 3.5mm Jack |
| Contrast Ratio | 3,000,000:1 |
| Depth | 8-33/64 In. |
| Display resolution | 1280 x 800 |
| Diverse Supplier | Minority-Owned Business; Disability-Owned Business; Veteran-Owned Business; Service-Disabled Veteran Owned Business; Small Business; Lgbt-Owned Business |
| Hd Capable | Yes |
| Image Technology | Dlp |
| Maximum Image Size (Diagonal) | 300 In. |
| Maximum Projection Distance | 24-15/16 ft |
| Maximum Resolution | 1920 X 1200 |
| Native Resolution | 1280 X 800 |
| Ports | Hdmi |
| Product Color | White |
| Recommended Uses For Product | Education, Home Cinema, Business |
| Speaker Included | Yes |
| Special Feature | eco-friendly, Digital Keystone Correction, Lightweight, high brightness, 3d-Ready |
| Vertical Scan Range | 24 Hz - 120 hz |
| Warranty | 3-Year Limited |
| Sizing & Dimensions | |
| Height | 8.5 inches |
| Length | 11.3 inches |

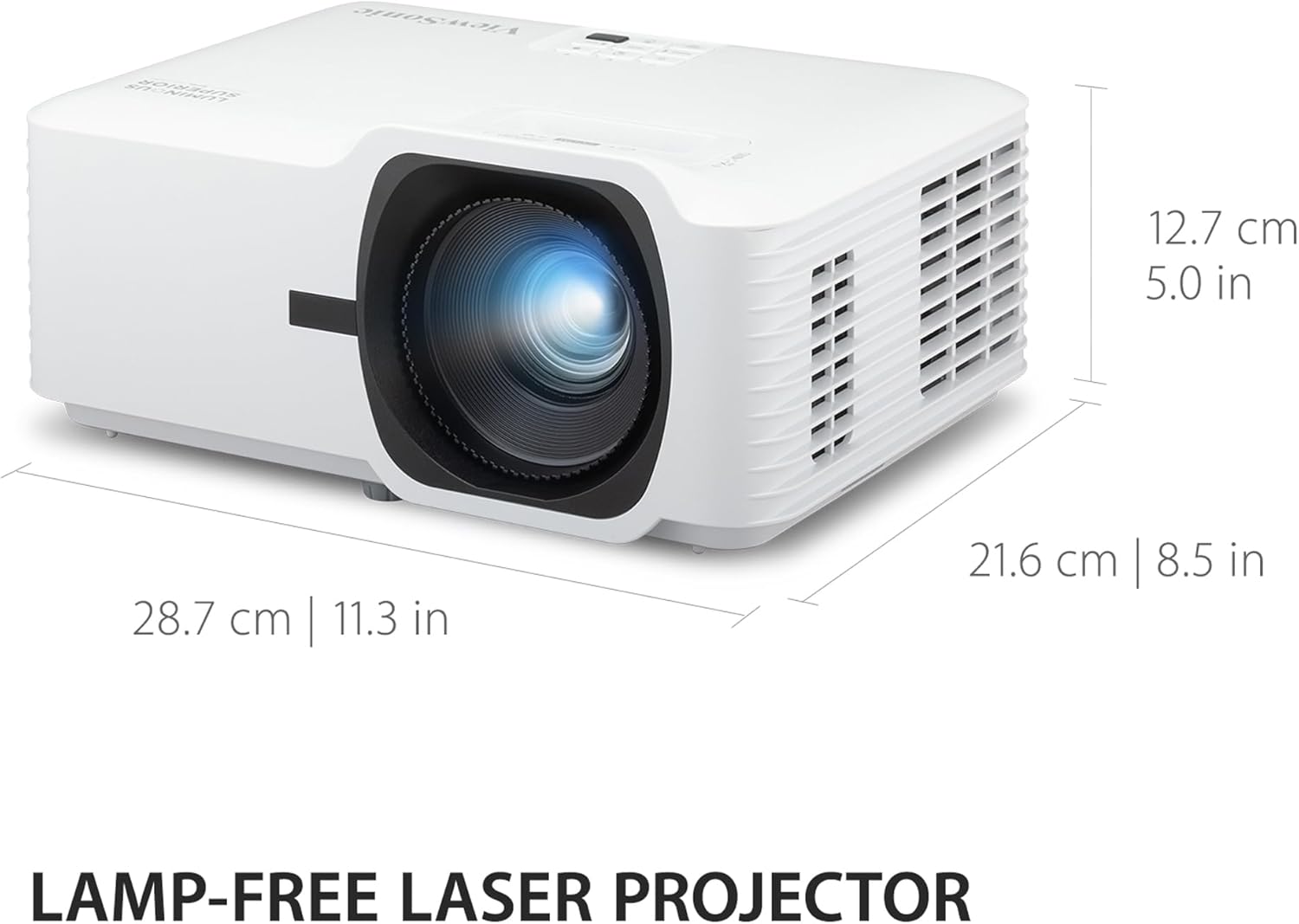

| Product Dimensions | 11.3 x 5 x 8.5 inches |
| Weight | 6.6 pounds |
| Width | 5 inches |
| Technical Specifications | |
| Average Lamp Life | 30000 hr |
| Warranty | 3-Year Limited |
