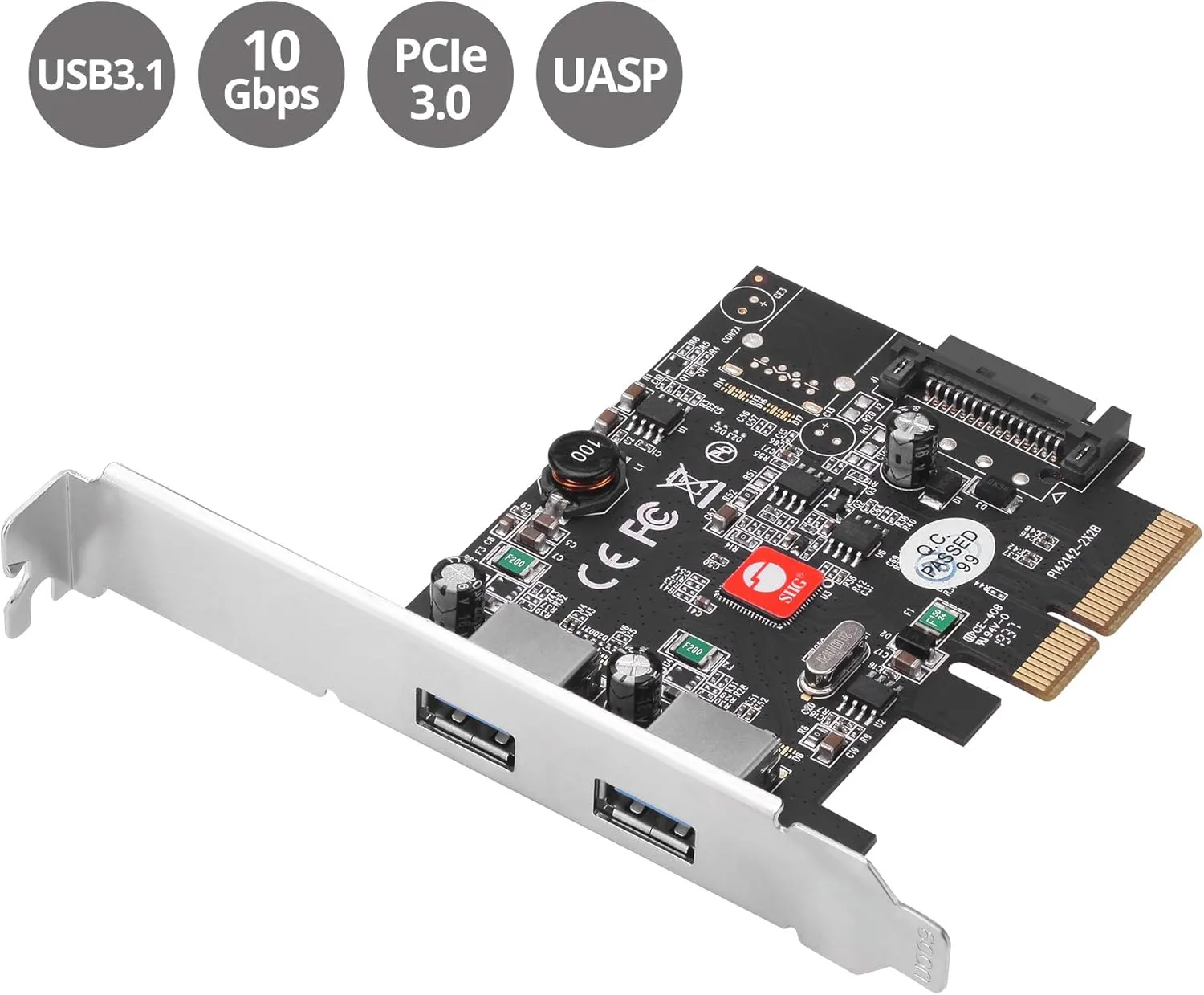

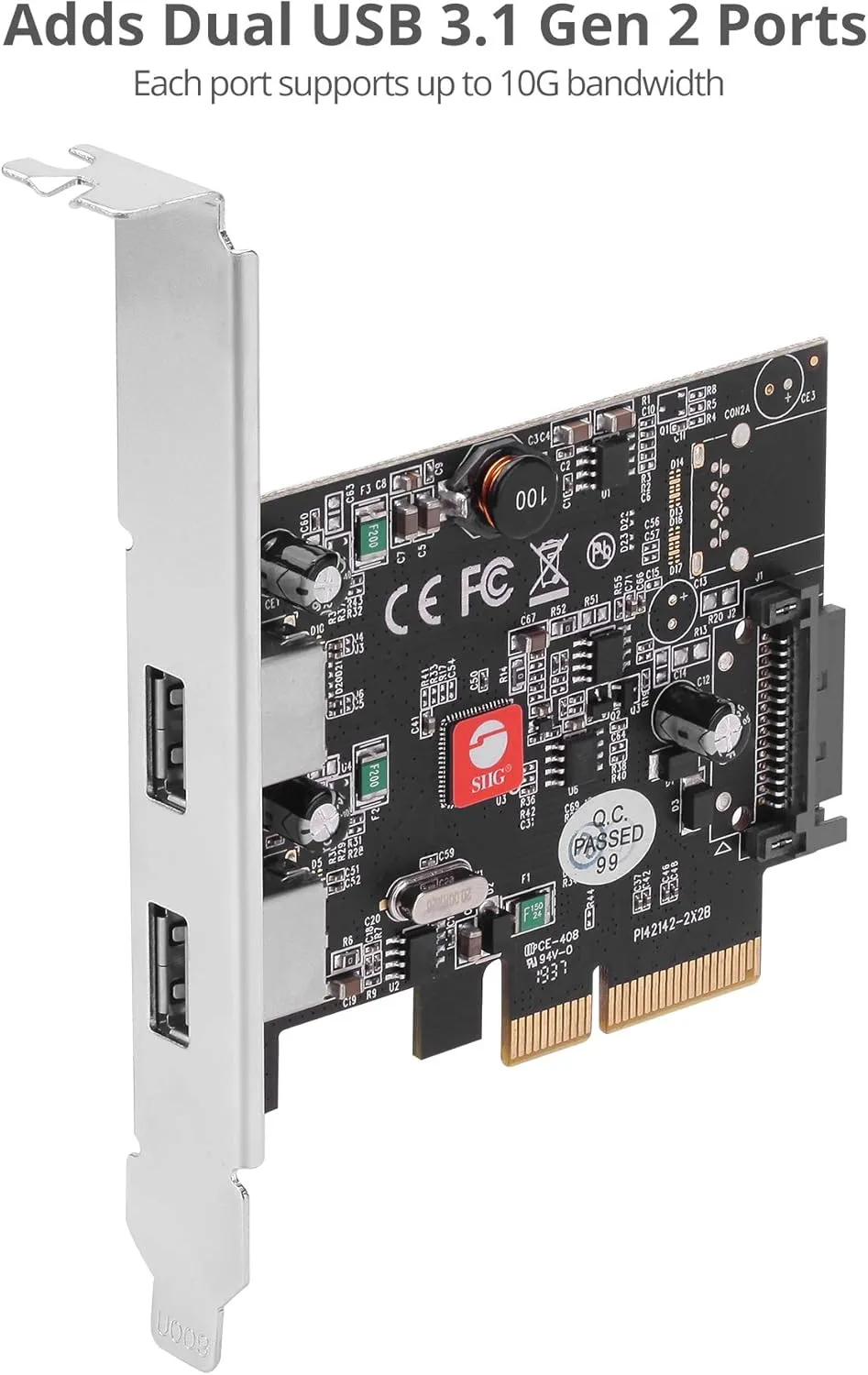

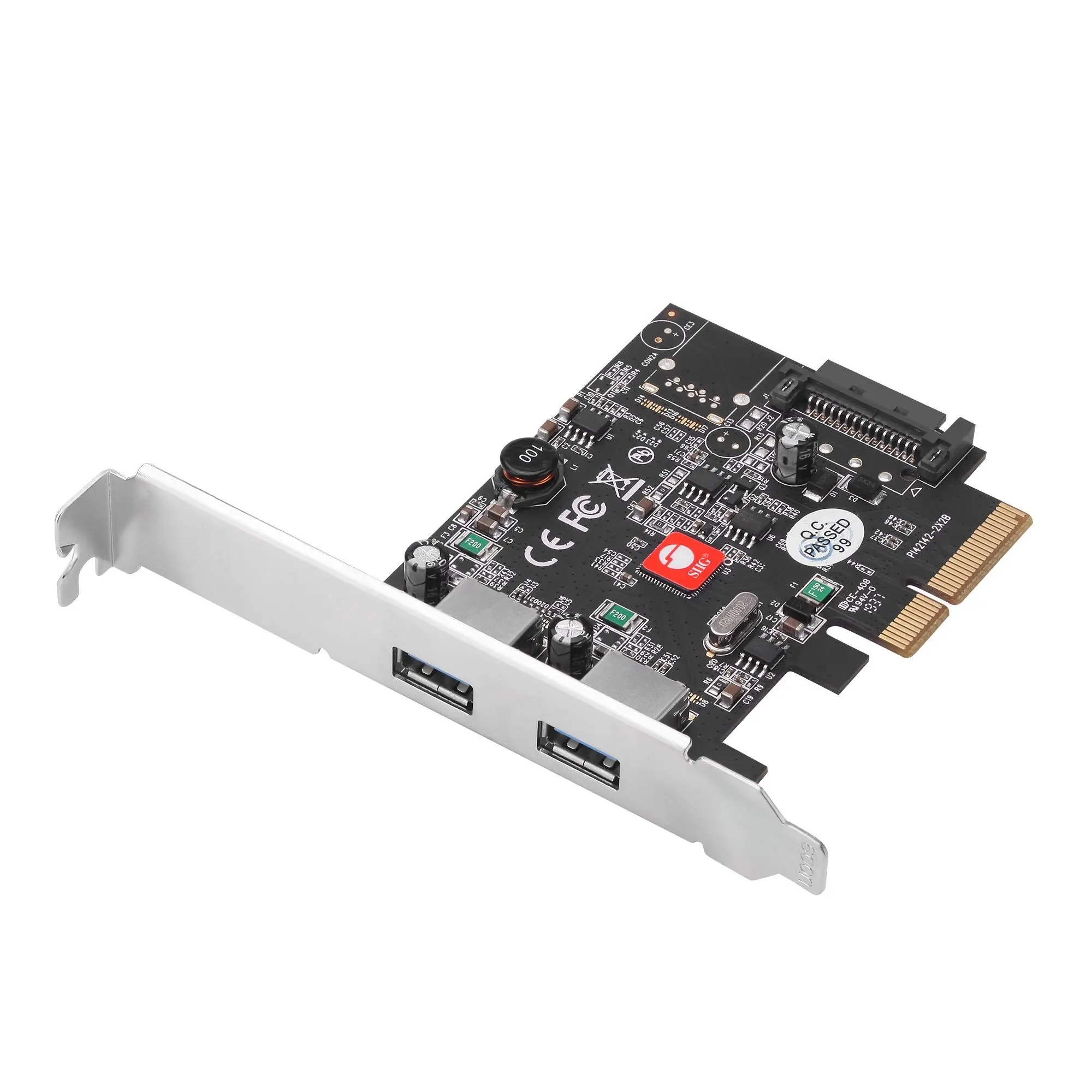

SIIG 2-Port USB 3.1 PCIe Card, PCIe 3.0 x4 to Two USB 3.1 Gen 2 Type-A, 10Gbps & 5V/900mA per Port, UASP, Over-Current Protection, Asmedia ASM3142 Chipset, Dual-Profile Brackets (JU-P20912-S2)
SIIG 2-Port USB 3.1 PCIe host adapter with two Type-A USB 3.1 Gen 2 ports (up to 10Gbps), 900mA per port, UASP support, over-current protection, Asmedia ASM3142 chipset and dual-profile brackets.
Non-returnable
$69.99 $69.99
Customize
Available Quantity
116 GSA Compliant
No Product Details
SIIG 2-Port USB 3.1 PCIe Host Adapter (JU-P20912-S2) provides two high-speed USB 3.1 Gen 2 Type-A ports with up to 10Gb/s transfer rates and up to 5V/900mA per port. Built with the Asmedia ASM3142 chipset, the card supports UASP and includes independent over-current protection per port. The adapter supports hot-plugging and plug-and-play operation, includes full and low profile brackets for different chassis, and has a built-in 15-pin SATA power connector when additional power is needed. Product includes a 2-Year Limited warranty and is RoHS compliant. Internal card dimensions and weights vary by listing; see specifications for exact Item Dimensions and Item Weight.
- Complies with PCI-Express 3.0 standard Supports the latest USB generation 3.1 Gen 2 with data transfer rate up to 10Gb/s
- Supports plug-n-play, hot-swapping, and backwards compatible with USB 1.1 / 2.0 / 3.0
- Each USB port provides up to 900mA power output to better support the power consumption of your connected device
- Each USB port features independent over-current protection to further protect your device

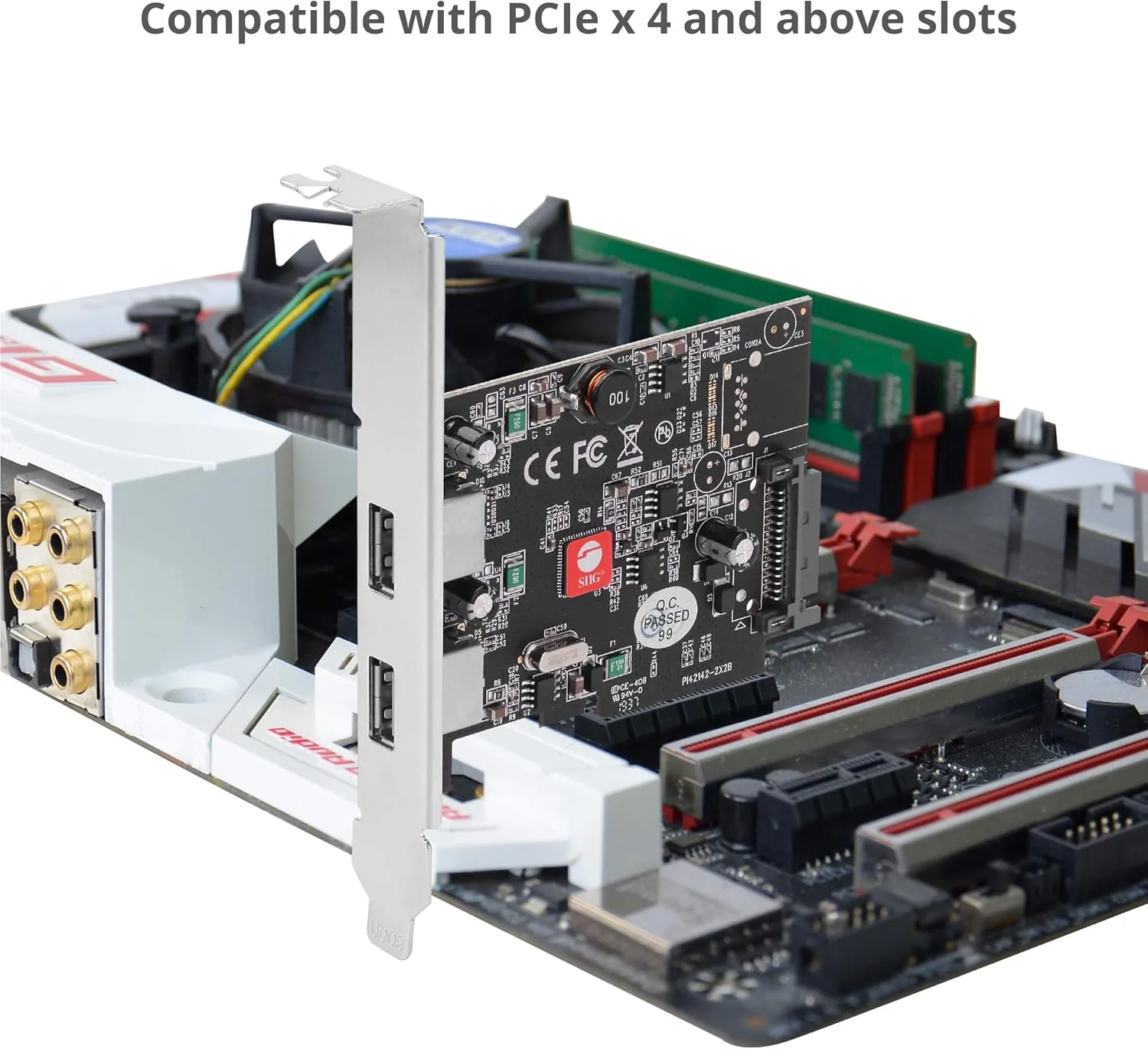

- Built-in 15-pin SATA power connector connects to the system power supply, as needed, to ensure sufficient power is supplied to the USB ports Dual-profile design installs into different form factor system chassis with the included full and low profile brackets
- At SIIG, we are proud of our products and service. Our products are of high quality and built to last. Contact us through Amazon if any issues arise.
Specifications:
| Materials & Construction | |
| Color | Not specified |
| Material | Not specified |
| Outer Material | Not specified |
| Product Details | |
| Compatible Devices | Desktop |
| Cord Length | 4/10 ft |
| Eco Label Standard | Rohs |
| Hardware Interface | PCI, PCI Express 3.0, USB 1.1 |
| Item model number | JU-P20912-S2 |
| Operating System | Linux, Windows 11, Windows 10 |
| Style | Classic |
| Warranty | 2-Year Limited |
| Sizing & Dimensions | |
| Cord Length (inches) | 4.8 inches |
| Height | 0.79 inches |
| Length | 3.94 inches |
| Product Dimensions | 3.94 x 4.72 x 0.79 inches |
| Size | 3.94 x 4.72 x 0.79 inches |
| Weight | 3.84 ounces |
| Width | 4.72 inches |
