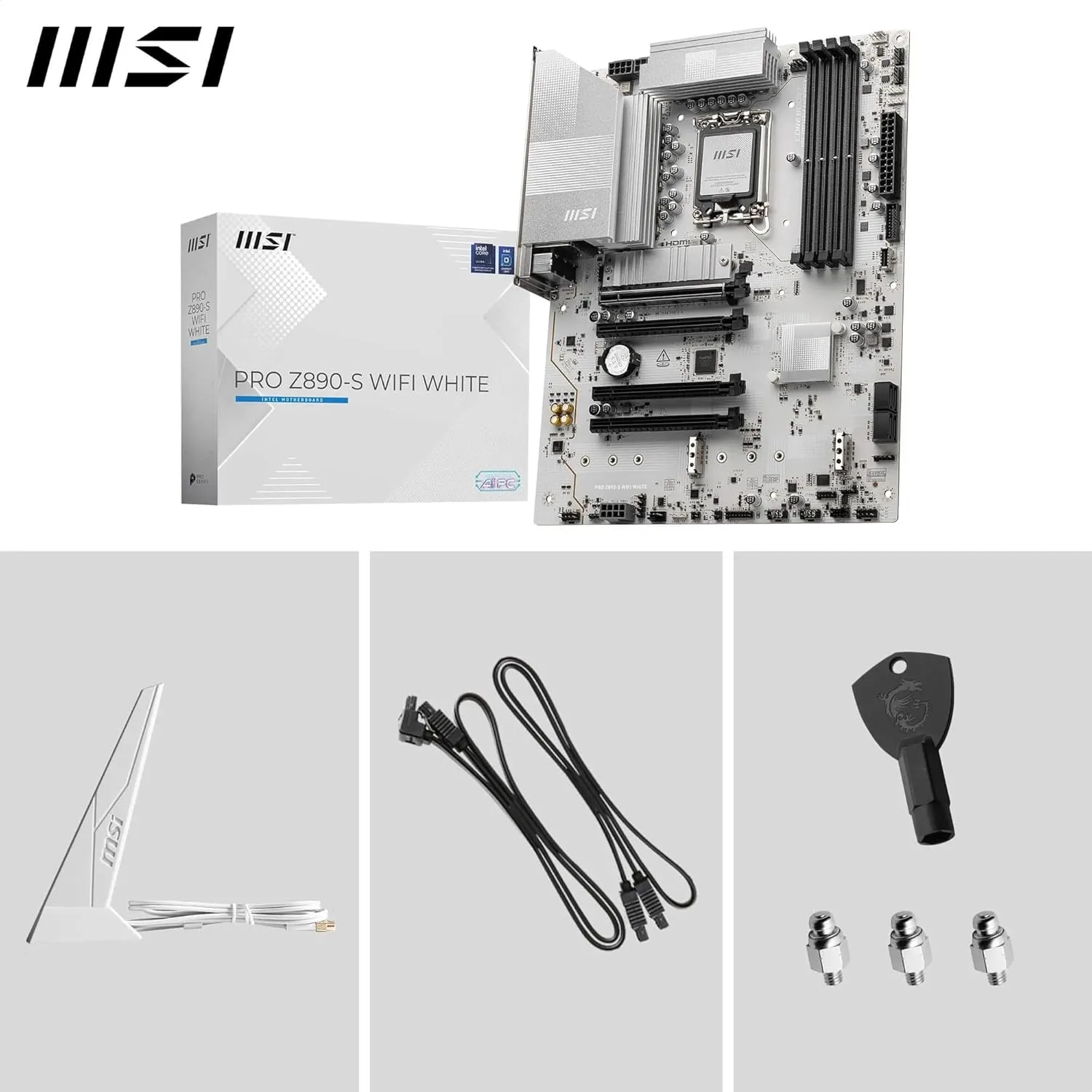

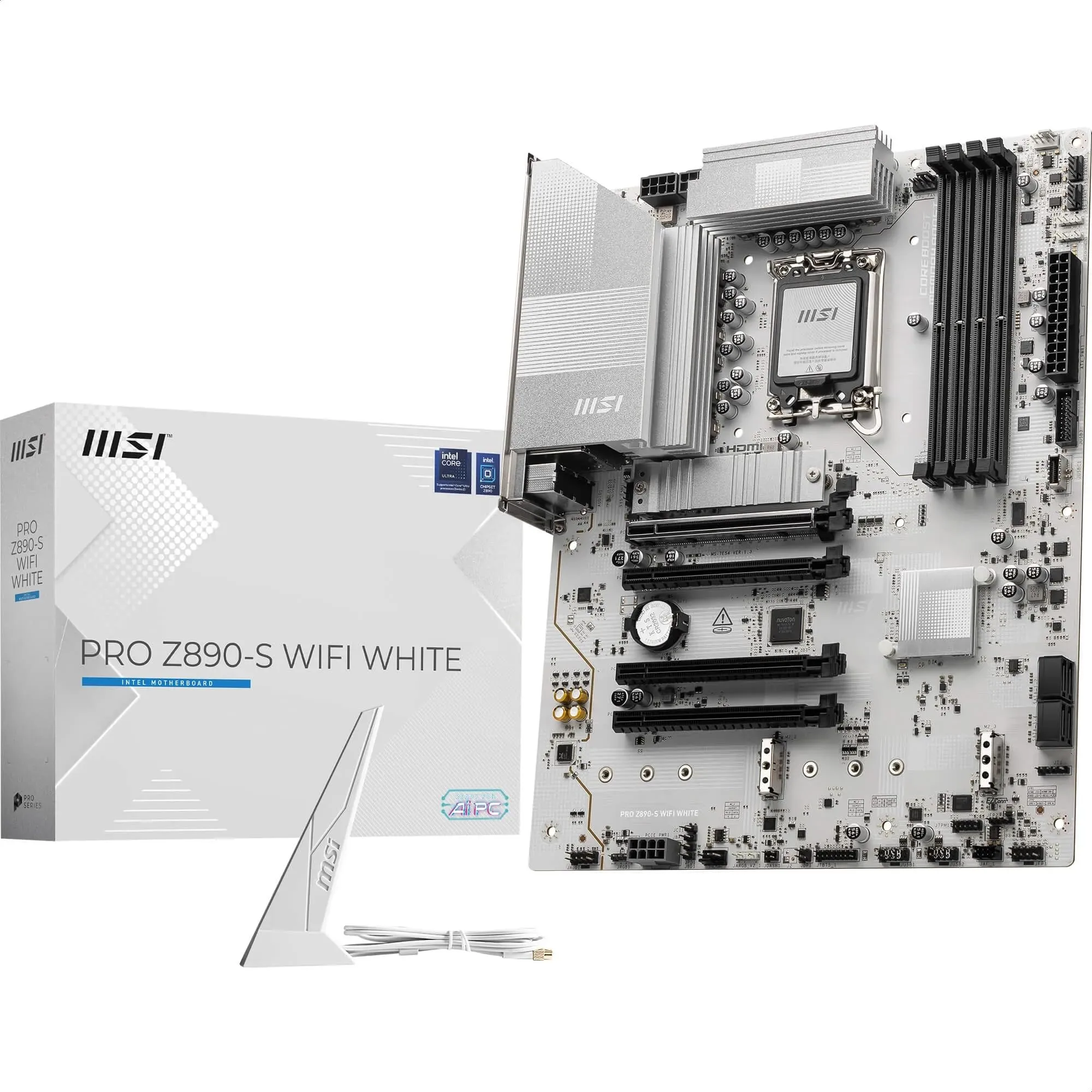

MSI PRO Z890-S WiFi White Motherboard, ATX - Supports Intel Core Ultra Processors (Series 2), LGA 1851 - DDR5 Memory Boost (8600+ MT/s OC), PCIe 5.0 x16 & 4.0 x16, M.2 Gen5, Wi-Fi 7, 2.5G LAN
Customize

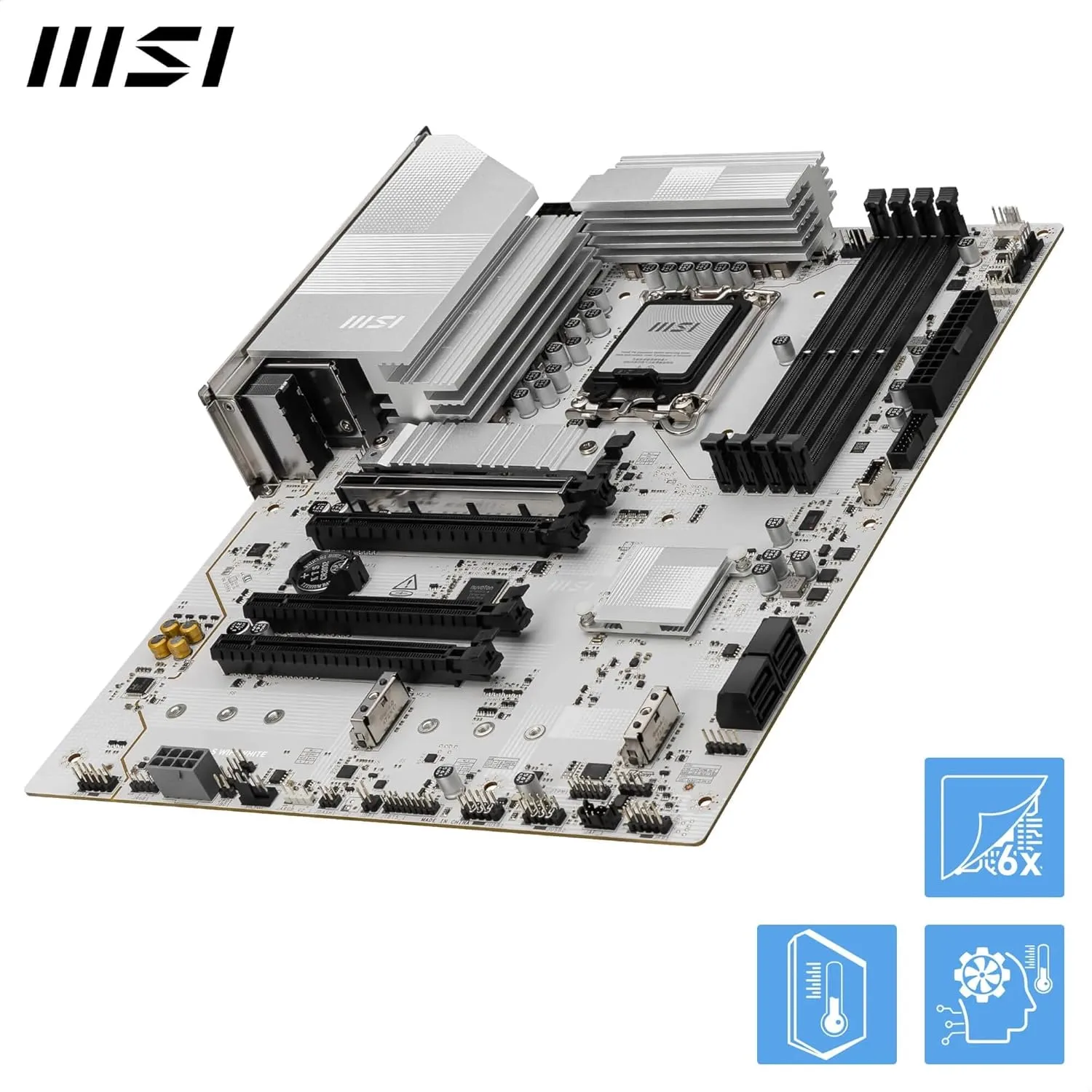

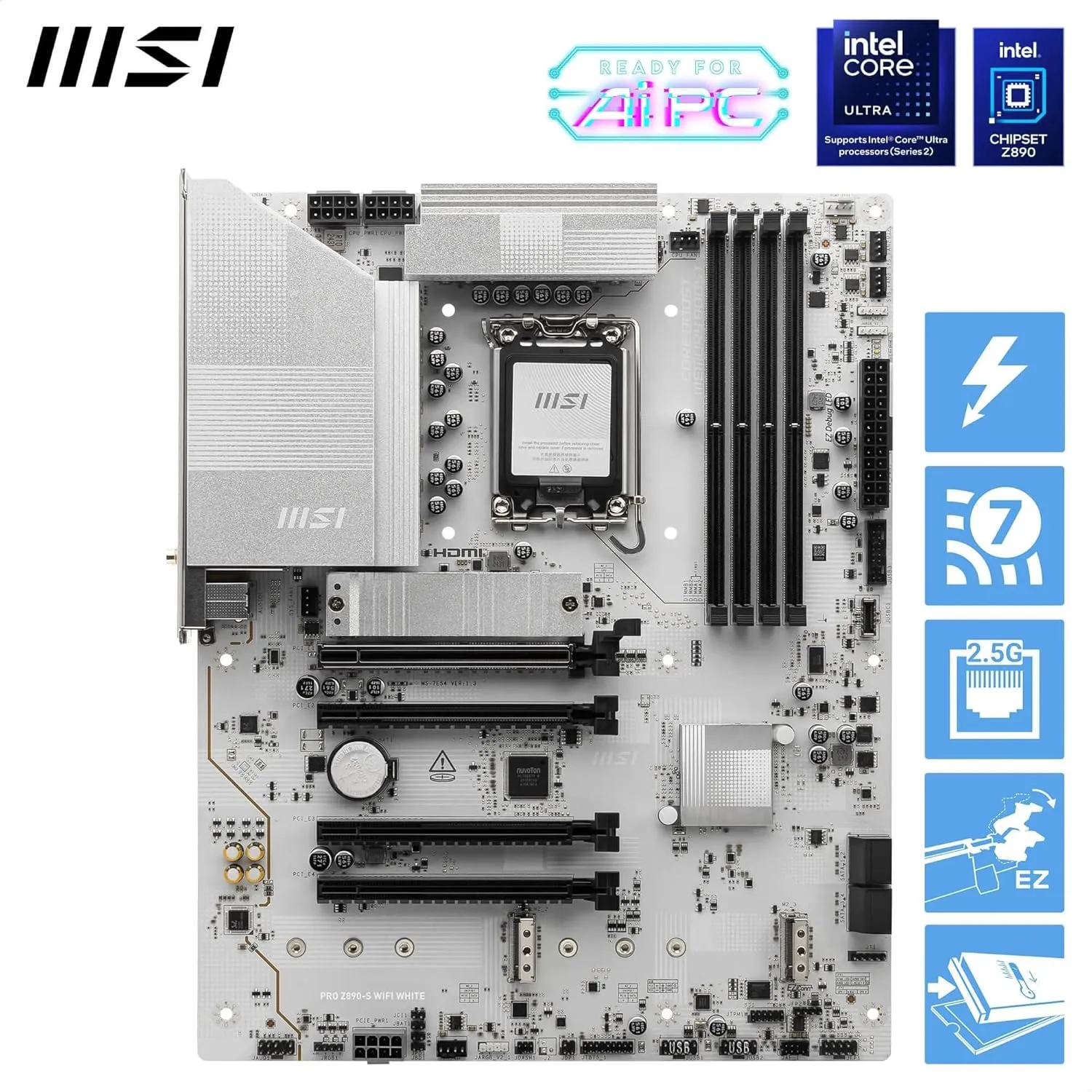

PRO Z890-S WIFI WHITE: Business Elegance Designed for efficient and stable performance on the Intel Z890 chipset (Intel Core Ultra Processors (Series 2), LGA 1851), the MSI PRO Z890-S WIFI WHITE motherboard includes premium GPU support with a PCIe 5.0 x16 slot, improved DDR5 memory support (8600+ MT/s OC), and extensive M.2 Gen5 storage options (with M.2 Shield Frozr). To ensure stable power delivery to the latest Intel Core Ultra Processors (Series 2), the PRO Z890-S WIFI WHITE is equipped with a 12 Duet Rail Power System (P-PAK) VRM for the CPU and dual 8-pin CPU power connectors, augmented with multiple passive cooling features. MSI Z890 PRO motherboards feature durable server-grade PCBs and all-new Surface Mount Technology (SMT) solder welding for improved signal clarity. Connectivity includes full-speed Wi-Fi 7 and Bluetooth 5.4 technology, Realtek 2.5G LAN, Thunderbolt 4 Type-C (40Gbps) with 8K display support, and 7.1 HD audio. For professionals looking for an efficient Intel Z890 platform that unites PCIe 5.0 x16 graphics card architecture, improved DDR5 support, and M.2 Gen5 storage options into one elegant design, the MSI PRO Z890-S WIFI WHITE epitomizes business elegance.
- ULTRA POWER - SUPPORTS THE LATEST INTEL CORE ULTRA PROCESSORS (Series 2) IN HIGH PERFORMANCE - The PRO Z890-S WIFI WHITE employs a 12 Duet Rail Power System (P-PAK) VRM for the Intel Z890 chipset with Core Boost architecture

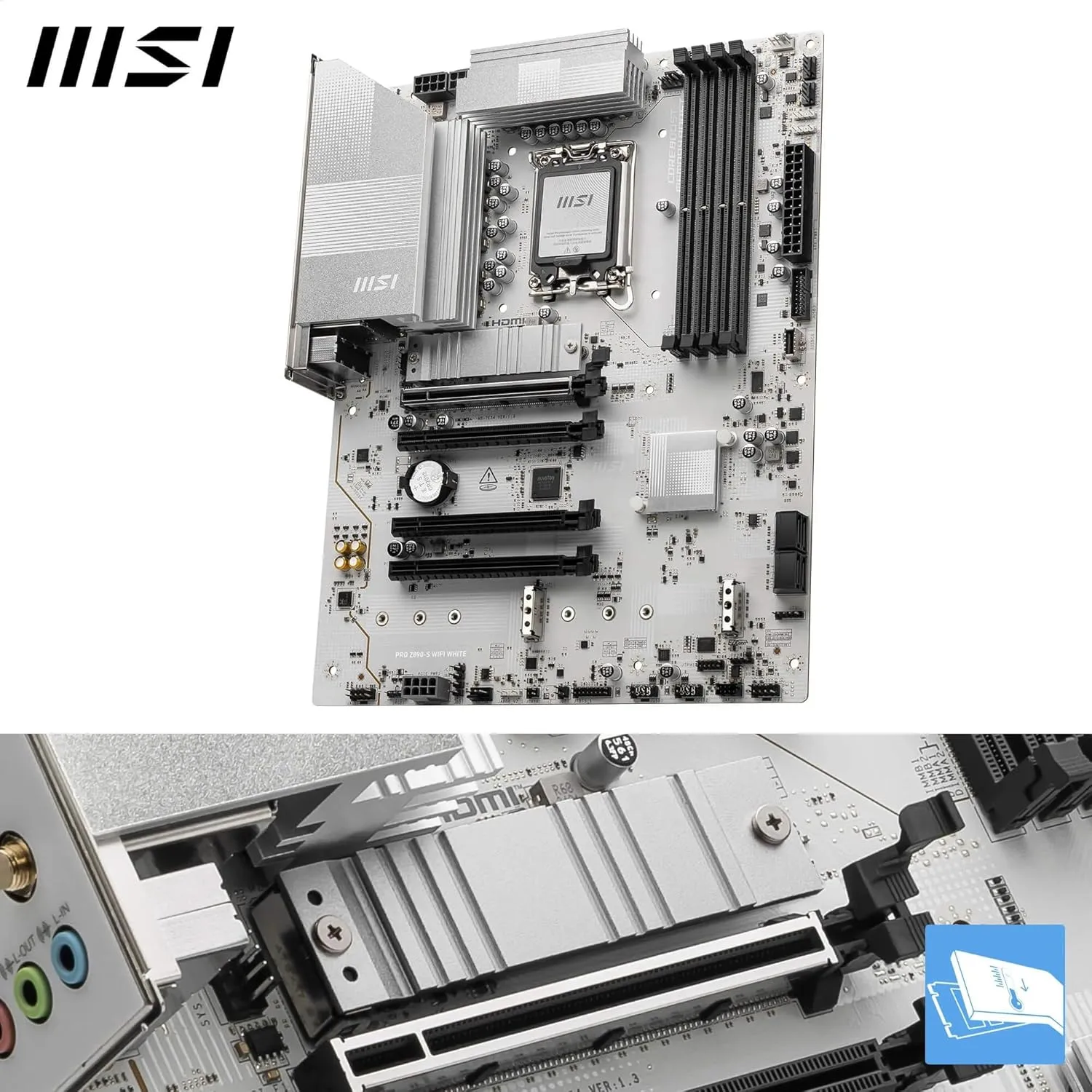

- FROZR GUARD - Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, M.2 Shield Frozr, a Combo-fan (for pump & system) header (3A)
- DDR5 MEMORY, PCIe 5.0 x16 SLOT - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8600+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards

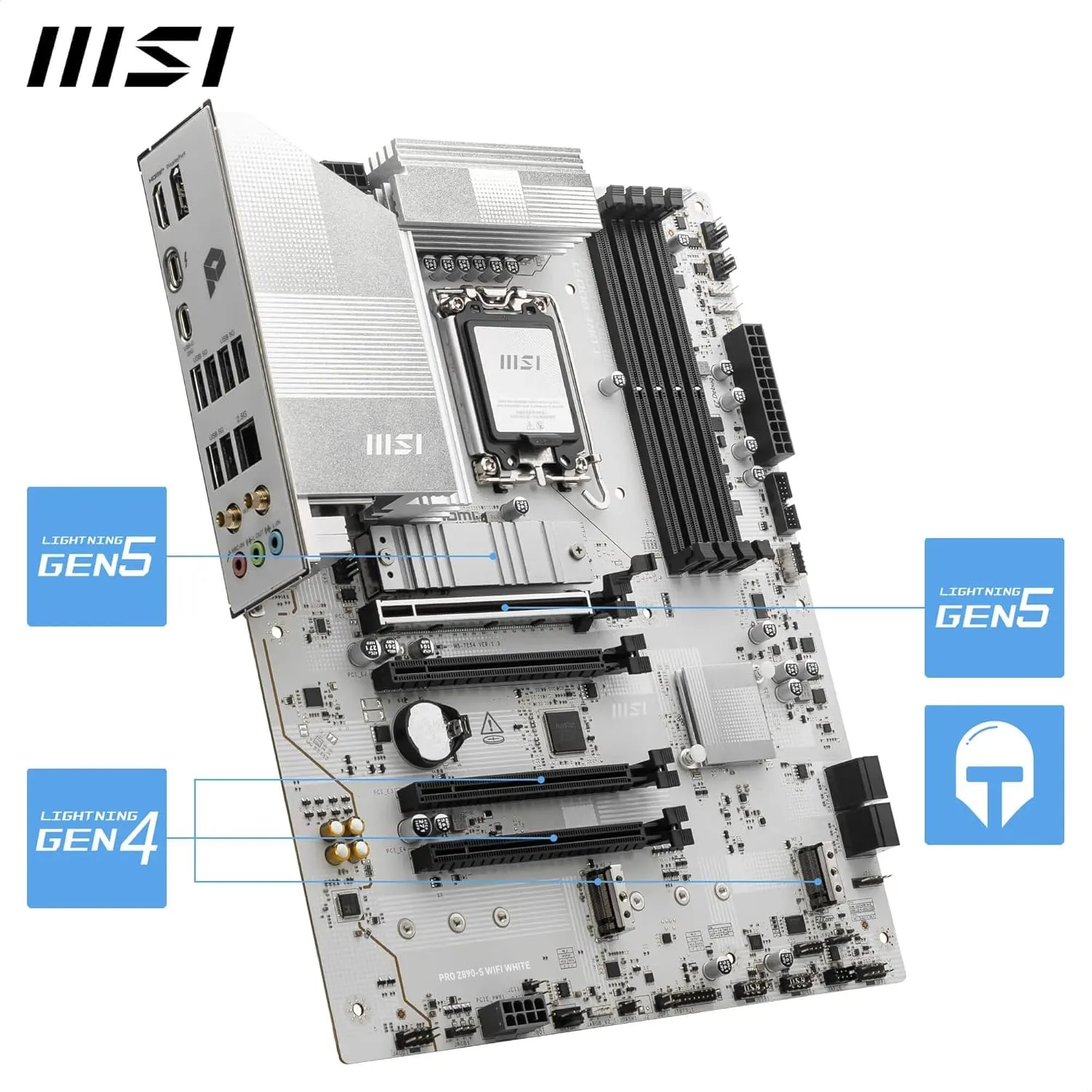

- TRIPLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot with M.2 Shield Frozr to prevent thermal throttling and 2 x M.2 Gen4 x4 64Gbps slots

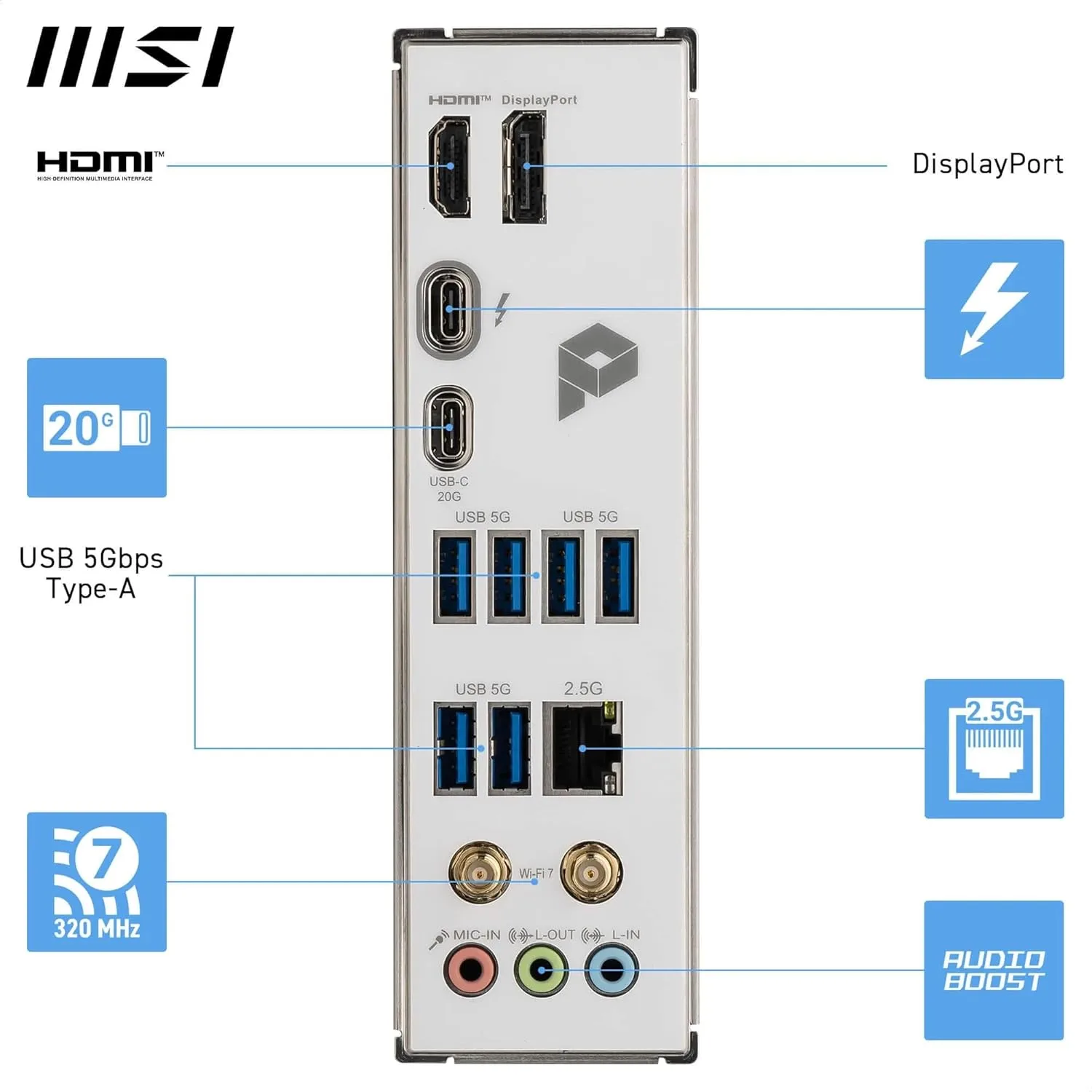

- HIGH-SPEED CONNECTIVITY - Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 2.5Gbps LAN; Rear ports include Thunderbolt 4 Type-C with display output and 7.1 HD Audio with Audio Boost
Specifications:
| Product Details | |
| Chipset Type | Intel Z890 |
| Compatible Devices | Personal Computer |
| Compatible Processors | Supports Intel Core Ultra Processors (Series 2) |
| CPU Socket | LGA 1851 |
| Item model number | Z890SWHITEWIFI |
| Memory Clock Speed | 8600 MHz |
| Memory Speed | 8600 MHz |
| Model Name | MSI PRO Z890-S WiFi |
| Platform | Windows 11 |
| RAM | DDR5 |
| RAM Memory Maximum Size | 256 GB |
| RAM Memory Technology | DDR5 |
| Sizing & Dimensions | |
| Height | 2.76 inches |
| Item Dimensions Lx Wx H | 2.76 x 13.39 x 10.83 inches |
| Length | 13.46 inches |
| Product Dimensions | 2.76 x 13.39 x 10.83 inches |
| Weight | 3.55 pounds |
| Width | 10.55 inches |
| Technical Specifications | |
| Chipset Type | Intel Z890 |
| Compatible Processors | Supports Intel Core Ultra Processors (Series 2) |
| Memory Clock Speed | 8600 MHz |
| Platform | Windows 11 |
