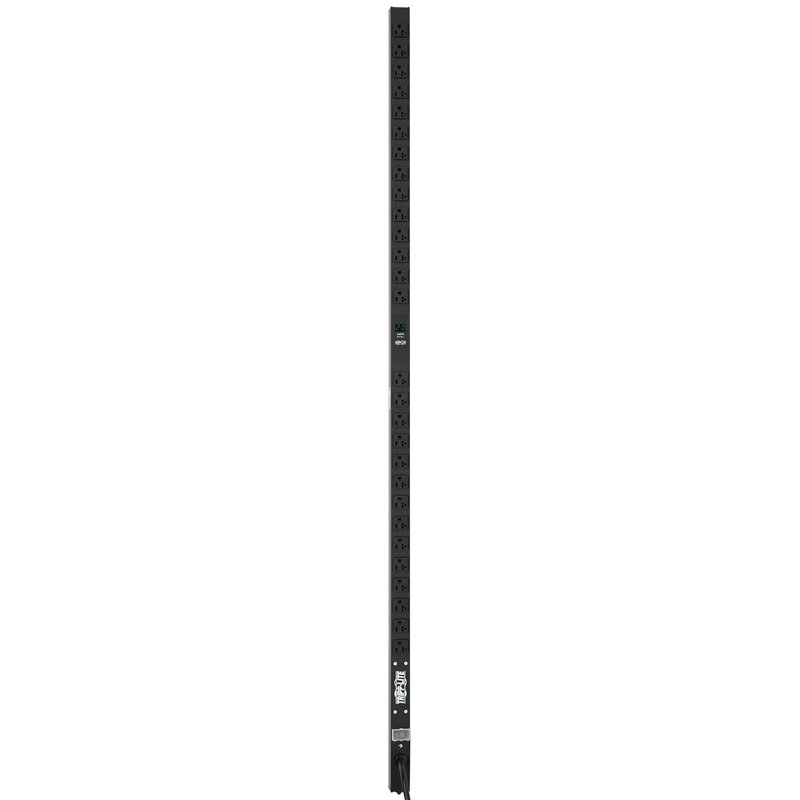

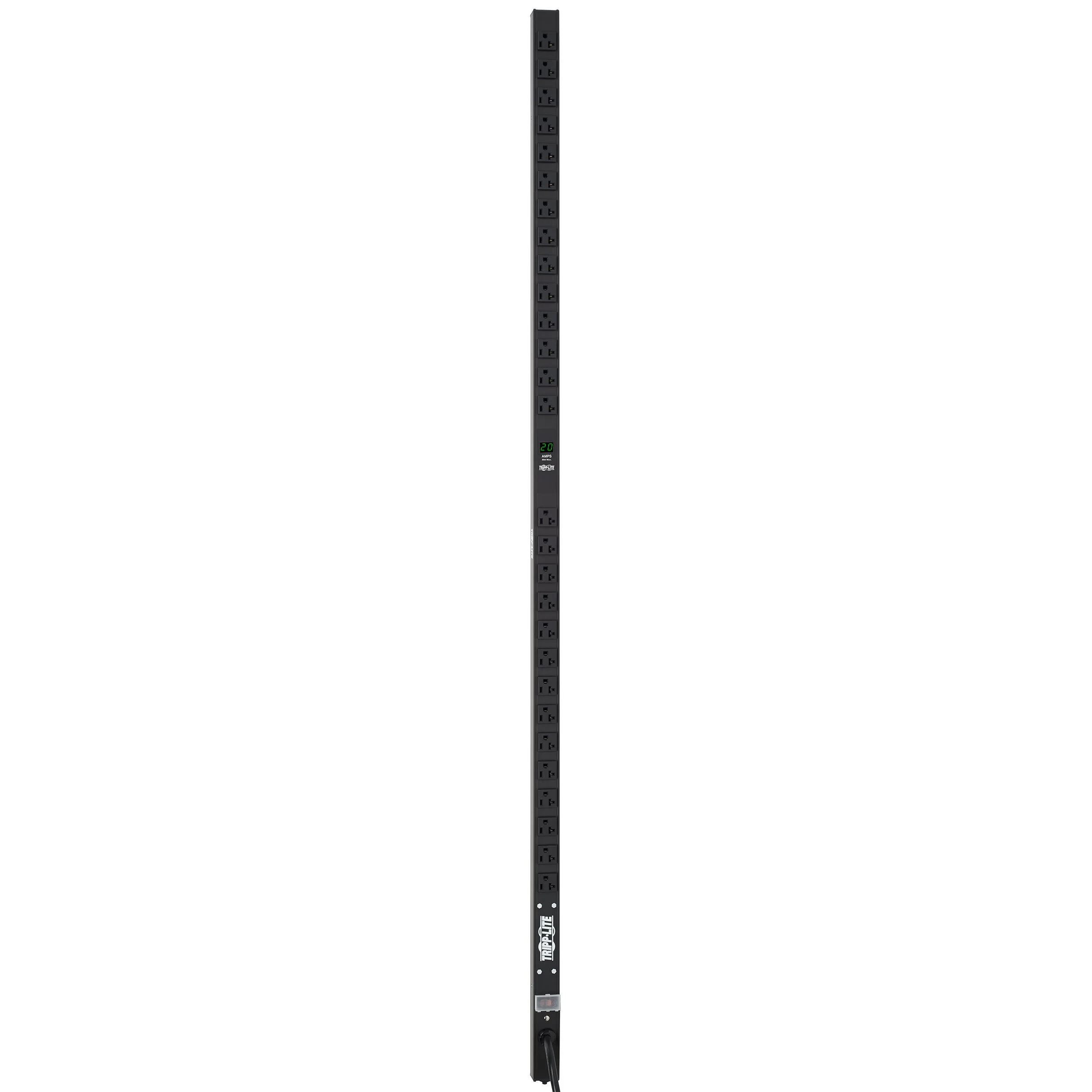

Tripp Lite Metered PDU, 20A, 28 Outlets (5-15/20R), 120V, L5-20P/5-20P Adapter, 15 ft. Cord
Customize
28 Outlets, 120 VAC20 Amps, 10' Cord, Power Outlet Strip Rack Mount, 5-15/20R NEMA Configuration, 19" Strip, Amperage: 20.0 , Voltage: 120V ac , Cord Length: 10ft , Material: Metal , Number Of Outlets: 28 , Strip Length (Decimal Inch): 19.0000 , Strip Length (Inch): 19 , Cord Length (Feet): 10 , Overall Depth (Inch): 1-1/4 , Color: Black , Overall Width: 60in , Overall Width (Inch): 60 , Overall Width (Decimal Inch - 4 Decimals): 60.0000 , Mount Type: Rack , Recommended Environment: Indoor , Nema Configuration: 5-15; 20R. Toolless button mount and bolt-down bracket installation hardware included. 28 NEMA 5-15/20R outlets. Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter. Two-digit current meter reports output current in amps. Metered single phase 120V 20A 0U 60in / 152cm vertical rackmount PDU. PDUMV20 - POWER DISTRIBUTION UNIT - VERTICAL (0U) - 120V - 1.92KW - (28) 5-15/20R - 16A - 2-YEAR LIMITED WARRANTY - LOCAL METERED SINGLE PHASE 120V 16A 0U 60IN/ 152CM VERTICAL RACKMOUNT PDU.
- Toolless button mount and bolt-down bracket installation hardware included
- 28 NEMA 5-15/20R outlets

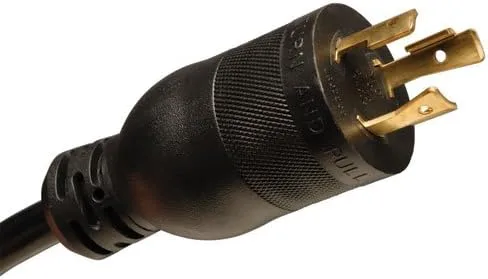

- Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter

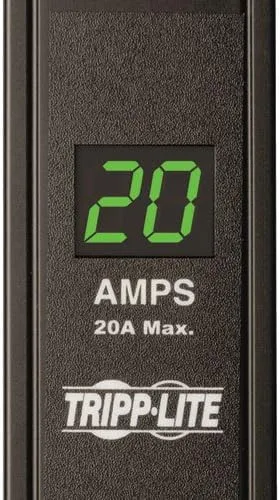

- Two-digit current meter reports output current in amps
- Metered single phase 120V 20A 0U 60in / 152cm vertical rackmount PDU
Specifications:
| Materials & Construction | |
| Material | Metal |
| Outer Material | Aluminum |
| Product Details | |
| Amperage | 20.0 |
| Color | Black |
| Cord Length | 15 Ft. |
| Item model number | PDUMV20 |
| Mount Type | Rack |
| Nema Configuration | 5-15; 20R |
| Recommended Environment | Indoor |
| Shape | Rectangle |
| Total Power Outlets | 20 |
| Voltage | 120 Volts |
| Sizing & Dimensions | |
| Height | 1.75 inches |
| Length | 1.25 inches |
| Product Dimensions | 1.25 x 1.75 x 60 inches |
| Size | 1.25 x 1.75 x 60 inches |
| Weight | 5.4 pounds |
| Width | 60.00 inches |
| Technical Specifications | |
| Amperage | 20.0 |
| Special Features | Digital Current Monitoring Display; Covered On/Off Switch |
| Voltage | 120v ac |
