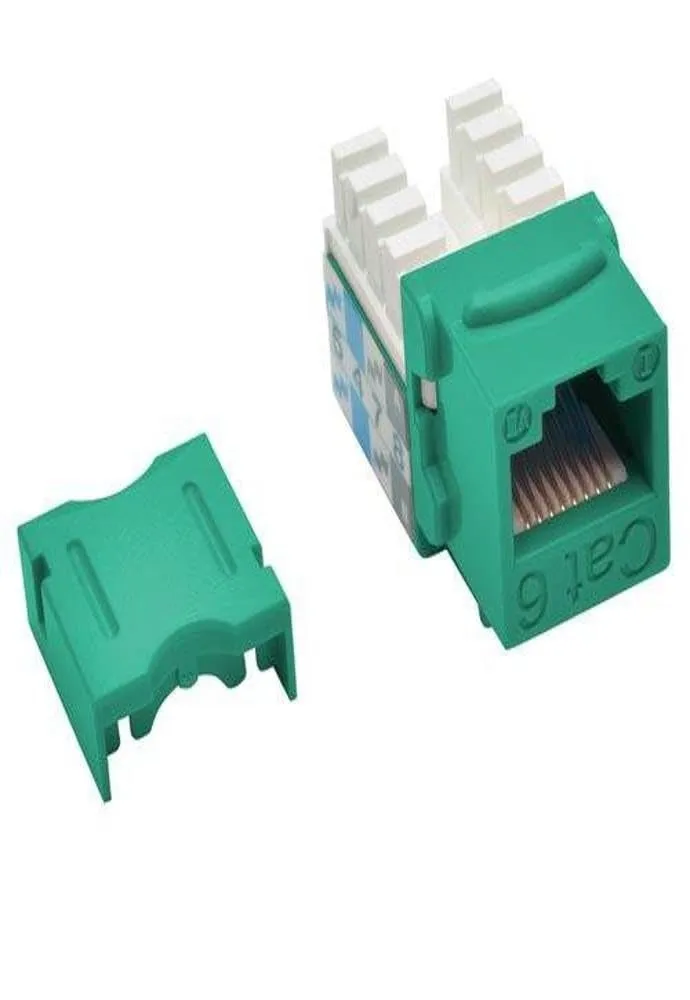

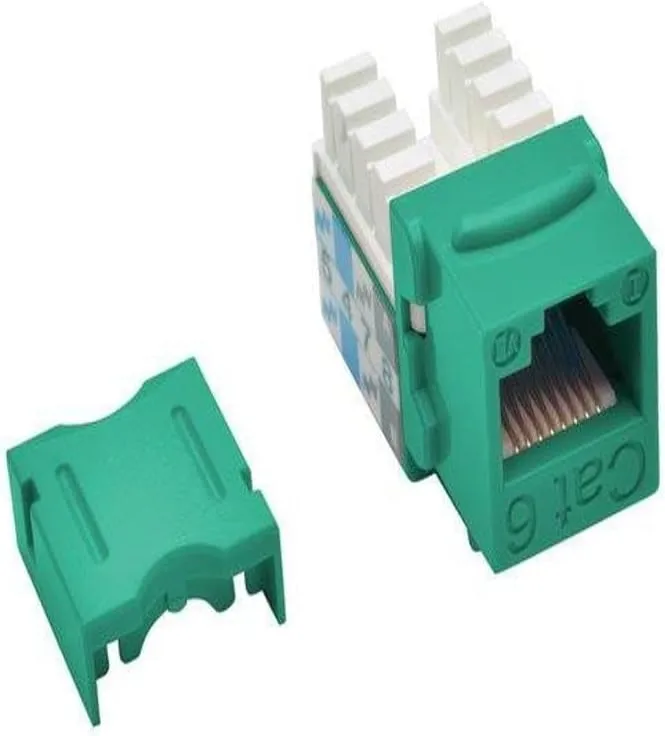

TRIPP LITE Cat6/Cat5e 110 Style Punch Down Keystone Jack Green TAA GSA (N238-001-GN)
Customize
EATON TRIPP LITE SERIES CAT6/CAT5E 110 STYLE PUNCH DOWN KEYSTONE JACK - GREEN, TAA - LIFETIME LIMITED WARRANTY Tripp Lite's Cat6/Cat5e 110 Style Punch Down Keystone Jacks provide maximum flexibility for any UTP Ethernet environment. Ideal for Cat5e cabling environments, the jack also meets UL-certified ANSI/TIA/EIA-568-B.2-1 Permanent Link/Channel Identification Test for Category 6 cabling installations. The uniquely patterned printed circuit board construction is designed to meet CAT6 250Mhz performance, and is fully compliant with EIA/TIA CAT6 connecting hardware specifications. With its compact casing, it fits into any conventional face plate, outlet box, or panel. It also features dual-color coded labeling made for both 568A & 568B (258A) wiring schemes. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Lifetime limited warranty.
- Use in Cat6 or Cat5e installations
- Compliant with EIA/TIA Cat6 connecting hardware specifications
- Dual-color coded labeling made for both 568A & 568B (258A) wiring schemes
- Compact casing fits into any conventional face plate, outlet box, or panel
- UL-certified ANSI/TIA/EIA-568-B.2-1 Permanent Link/Channel Identification Test.Uniquely patterned, printed circuit board designed to meet Cat6 performances.Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications:
| Materials & Construction | |
| Color | Green |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Cable Type | CAT5e, CAT6 |
| Compatible Devices | Computer, Router, Switch, Hub, Networking Device |
| Connector Gender | Male-to-Male |
| Connector Type | RJ45 |
| Global Trade Identification Number | 00037332153562 |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Is Discontinued By Manufacturer | No |
| Item model number | N238-001-GN |
| Number of Items | 1 |
| Number of Pins | 8 |
| Outer Material | Plastic |
| Recommended Uses For Product | Networking and data transfer in Ethernet environments (Cat5e and Cat6) |
| Shape | Round |
| Specification Met | UL |
| Unit Count | 1 Count |
| UPC | 037332153562 655945424314 780411454820 |
| Sizing & Dimensions | |
| Height | 0.59 inches |
| Length | 1.57 inches |
| Product Dimensions | 1.57 x 0.79 x 0.59 inches |
| Weight | 0.32 ounces |
| Width | 0.79 inches |
| Technical Specifications | |
| Number of Items | 1 |
| Number of Pins | 8 |
| Specification Met | UL |
