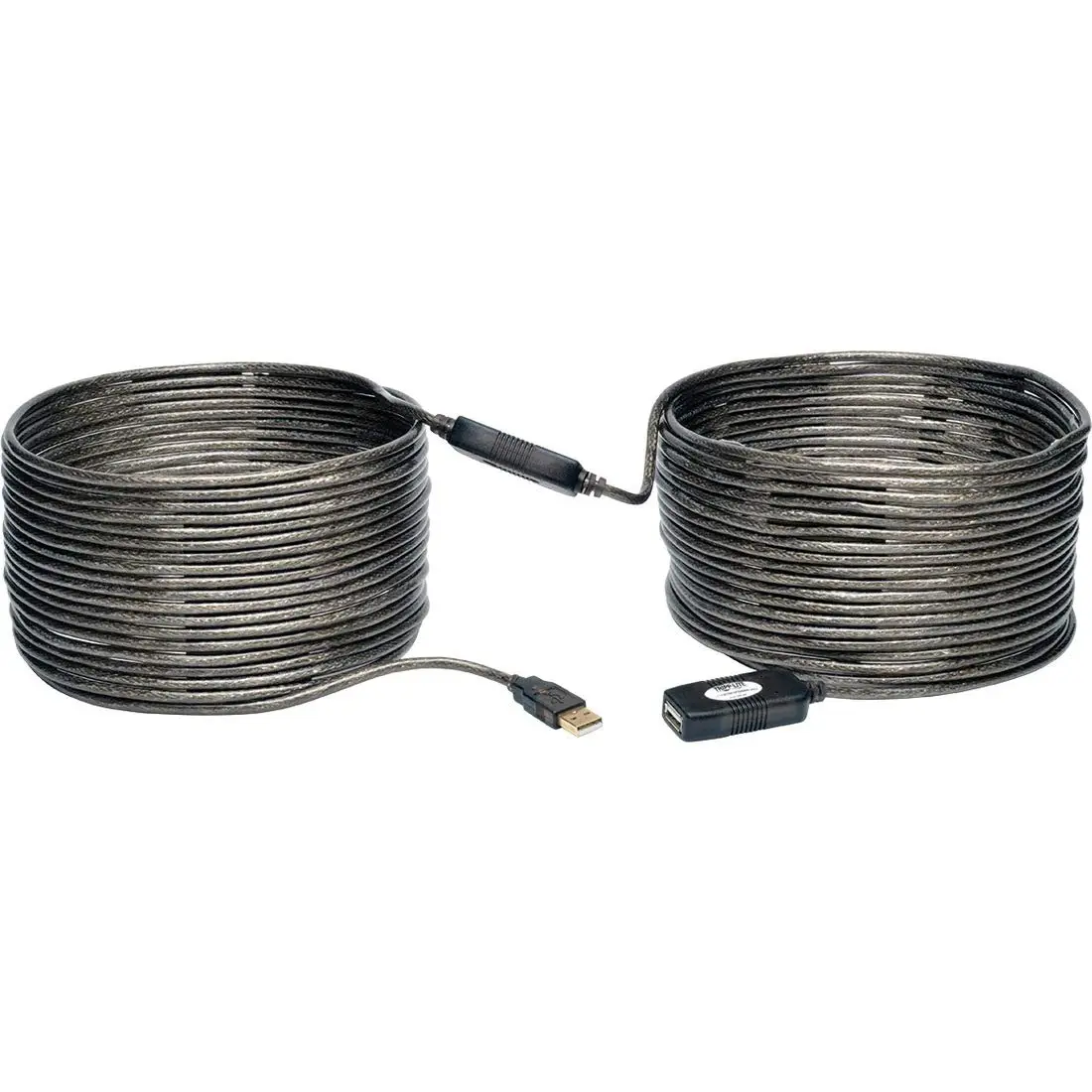

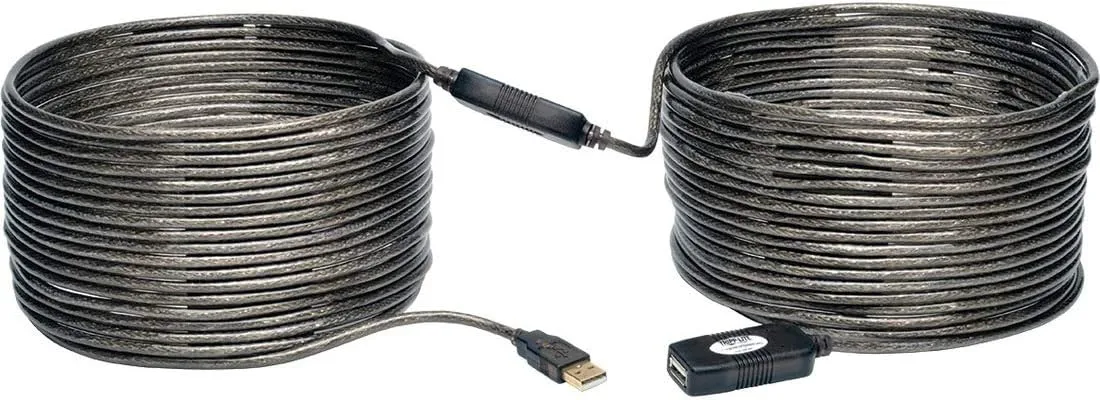

Tripp Lite USB 2.0 Hi-Speed Active Extension Repeater Cable (A M/F) 20 Meter (65-ft.) (U026-20M)
Customize
Tripp Lite's 65-feet USB 2.0 active extension cable is a bus powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16 feet. Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 131 feet by daisy chaining up to 2 of these active cables. USB 2.0 ACTIVE EXTENSION REPEATER CABLE - USB A LEFT CONNECTOR - MALE LEFT GENDER - USB A RIGHT CONNECTOR - FEMALE RIGHT GENDER - LENGTH: 20 METER (65 FT) - BLACK/GRAY - 3-YEAR LIMITED WARRANTY. Provides up to 250mA of power to the connected device. If your device requires more than 250mA of power, it will either need to have its own power supply or be plugged into a powered USB 2.0 hub. Plug and Play; Compatible with all major operating systems. Built-in repeater maintains Hi-Speed USB signal quality and electrical/timing specifications. Supports data transfer rates up to 480 Mbps.
- 20 meter (65 ft.) USB2.0 Hi Speed Active extension/repeater cable
- Supports data transfer rates up to 480 Mbps
- Built in Repeater maintains Hi-Speed USB signal quality, and electrical / timing specifications
- Plug and Play; Compatible with all major operating systems
- Provides up to 250mA of power to the connected device. If your device requires more than 250mA of power, it will either need to have its own power supply or be plugged into a powered USB 2.0 hub (Tripp Lite U222-004-R) that is connected to the U026-20M. Use a standard 6' 10' or 15' USB A-B cable to reach the desired distance.
Specifications:
| Materials & Construction | |
| Color | Gray |
| Product Details | |
| AC Adapter Current | 250 Milliamps |
| Cable Type | USB |
| Connector Gender | Male-to-Female |
| Connector Type | Usb 2.0 |
| Customer Package Type | Standard Packaging |
| Data Transfer Rate | 480 Megabits Per Second |
| Frequency | 480 MHz |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Item model number | U026-20M |
| Number of Items | 1 |
| Number of Pins | 4 |
| Recommended Uses For Product | Extending the reach of USB devices |
| Shape | Round |
| Special Feature | Data Transfer, High Speed |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 3.5 inches |
| Length | 5.5 inches |
| Product Dimensions | 5.5 x 5.9 x 3.5 inches |
| Size | 65 ft (20 m) |
| Weight | 1.4 pounds |
| Width | 5.9 inches |
