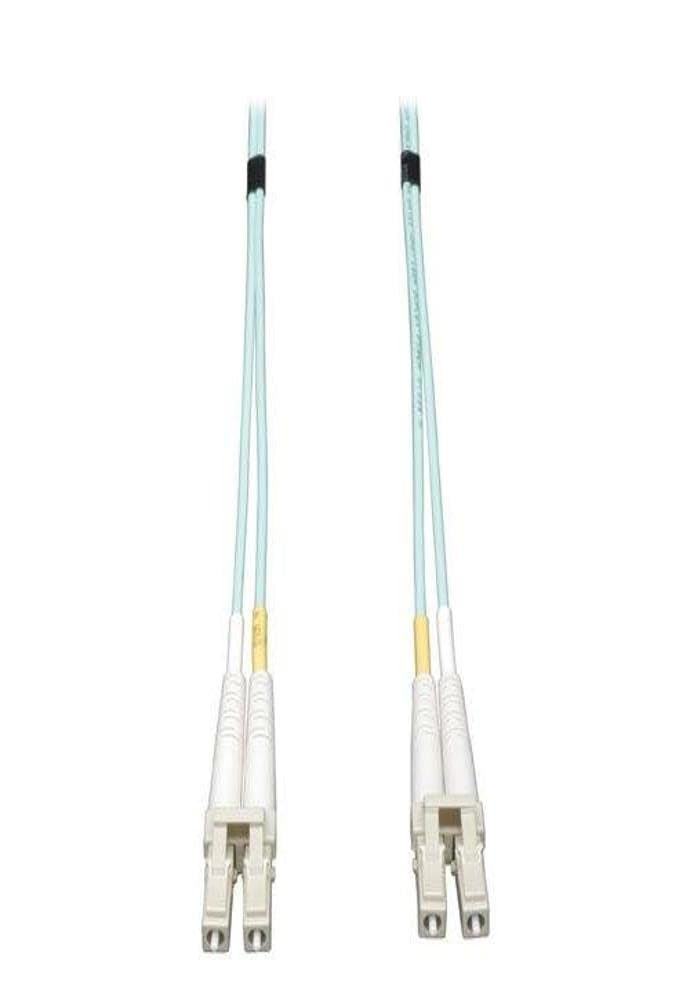

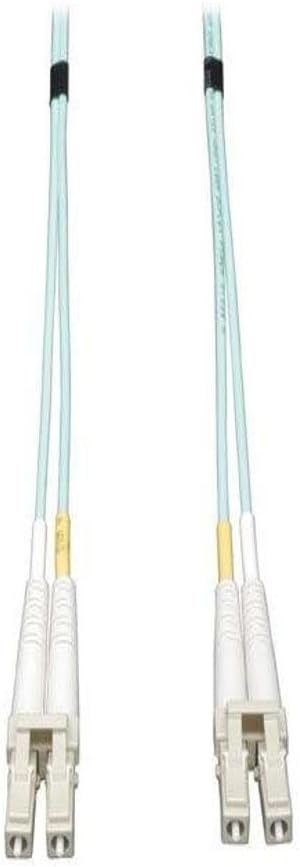

TRIPP LITE 4M 10Gb 13-Feet Duplex Multimode 50/125 OM3 Fiber Cable LC/LC, Aqua (N820-04M)
Customize
FIBER OPTIC CABLE - FIBER OPTIC - MALE LEFT GENDER - MALE RIGHT GENDER - LC RIGHT CONNECTOR - LC LEFT CONNECTOR - LENGTH: 4 LENGTH - AQUA - LSZH - MULTIMODE - LIFETIME LIMITED WARRANTY Tripp Lite's N820-04M is an OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cable, for use with 10Gb Ethernet applications. 50/125um, LC/LC Fiber Optic cables provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Single mode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. Key Features * 4M (13-ft.) LC/LC, OM3 Rated * 10gb Ethernet speed to 300 meters @850nm * Use with VCSEL and LED laser light sources * High-Speed, High-Bandwidth, Low-Cost * Backward compatible with legacy LAN's * Ideal for Fibre Channel (SAN) applications * IEEE 802.3ae and TIA LOMMF compliant
- Designed for 10-Gig Ethernet applications. OM3 Rated
- Backward compatible with existing 50/125 fiber
- Max 10Gb distance of 300 meters at850nm
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
Specifications:
| Compatibility | |
| Compatible Devices | Personal Computer |
| Materials & Construction | |
| Color | Aqua |
| Material | LSZH |
| Outer Material | LSZH |
| Product Details | |
| Cable Type | Ethernet |
| Compatible Devices | Personal Computer |
| Connector Gender | Male-to-Male |
| Connector Type | RJ45 |
| Data Transfer Rate | 10 Gigabits Per Second |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Is Discontinued By Manufacturer | No |
| Number of Items | 1 |
| Recommended Uses For Product | Data |
| Shape | Round |
| Special Feature | High Speed |
| Unit Count | 1 Count |
| Sizing & Dimensions | |
| Height | 9 inches |
| Length | 0.5 inches |
| Product Dimensions | 0.5 x 7 x 9 inches |
| Size | 4M (13-ft) |
| Weight | 1.28 ounces |
| Width | 7 inches |
| Technical Specifications | |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Recommended Uses For Product | Data |
| Warranty | Lifetime Limited Warranty |
