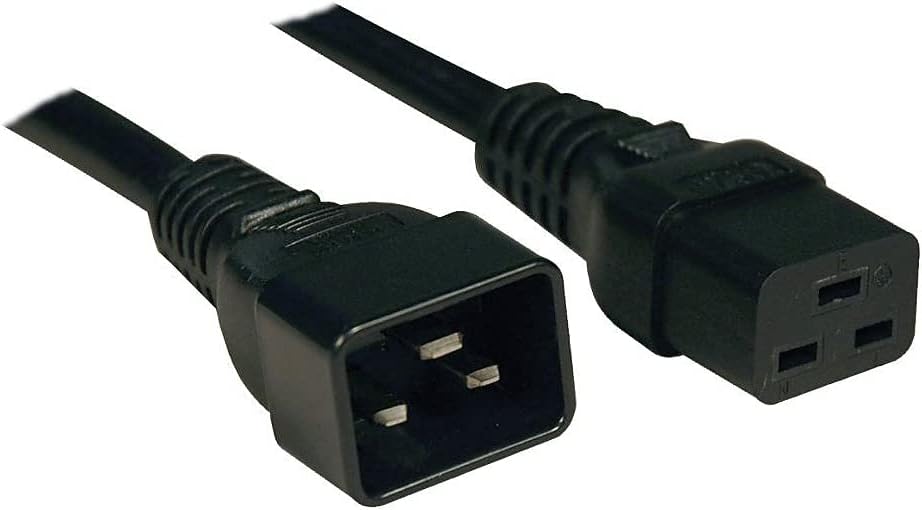

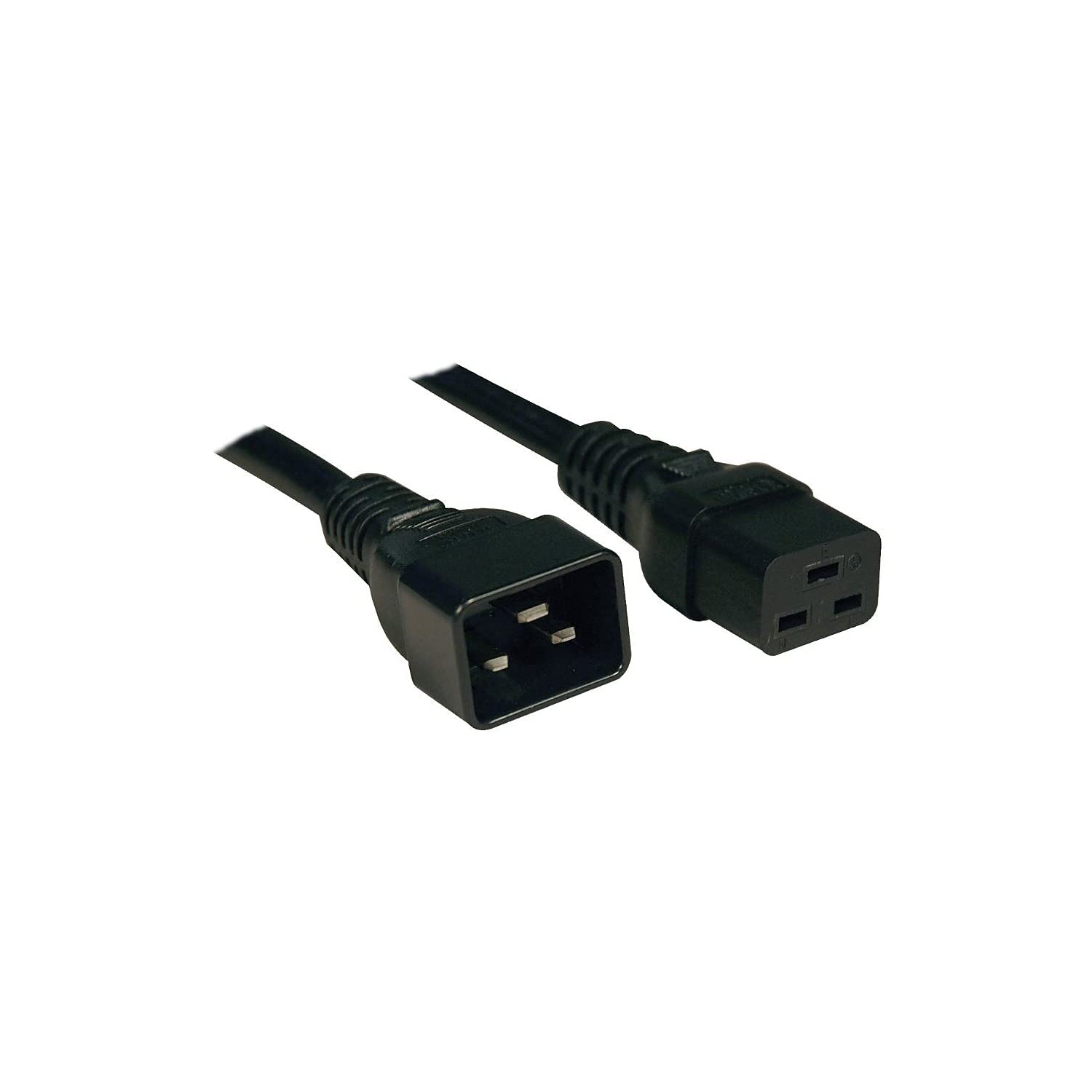

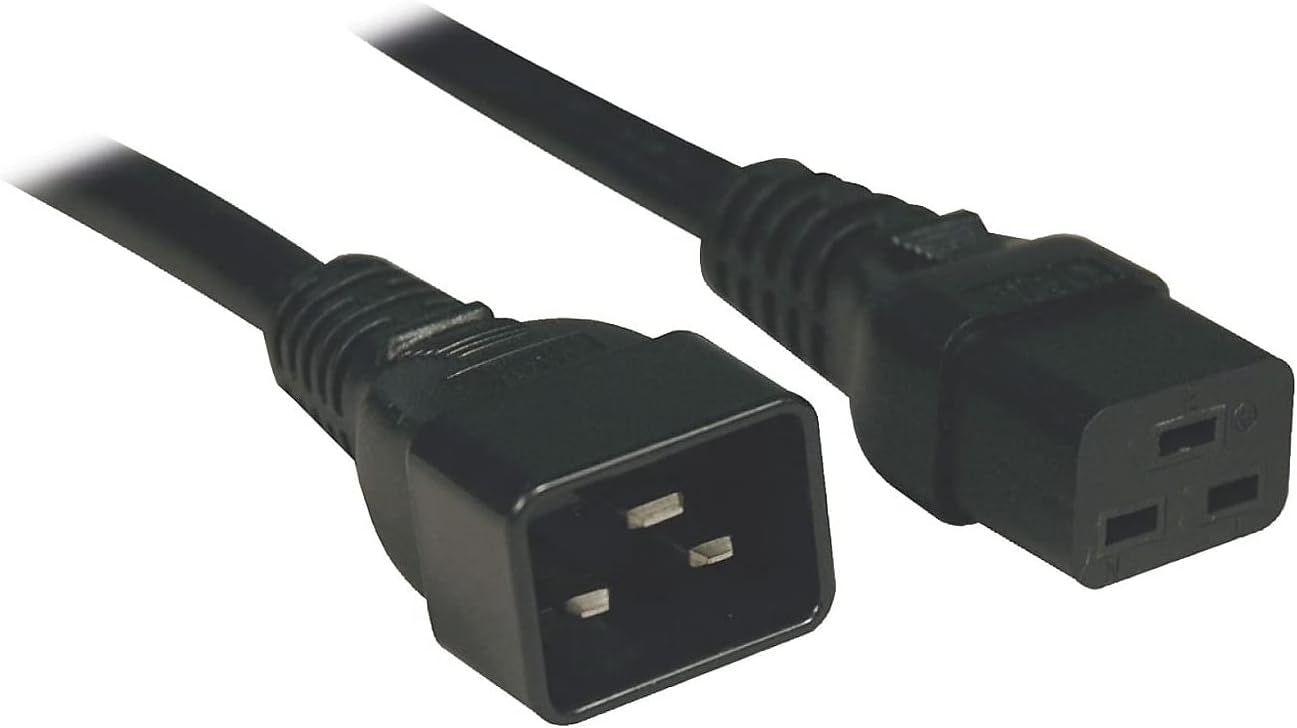

Tripp Lite 6ft Heavy-Duty Power Extension Cord, IEC-320-C19 to IEC-320-C20
Customize
The P036-006-15A Heavy-Duty Power Extension Cord by Tripp Lite is a 6-foot (1.83 m) C19 to C20 power extension cable designed for high-output network devices such as servers, routers, network switches and blade server enclosures. It features molded, high-quality connectors with integral strain relief for a secure connection and a heavy-duty SJTW jacket protecting three 14 AWG conductors. Rated for 15 Amps and 250 Volts (up to 3750 watts), this cord supports demanding applications and a wide temperature range (-10°C to 60°C). The cord is backed by Tripp Lite's Lifetime Limited Warranty and supported by Chicago-based technical support. Common use cases include extending power connections to PDUs and UPS systems, replacing worn or lost power cords, and providing a durable, reliable power connection in datacenter and networking environments.
- RELIABLE PRODUCT FULLY BACKED AND SUPPORTED: This product is covered by a Lifetime Limited Warranty and is supported by Tripp Lite's Chicago-based expert technical support team over phone and email.
- COMMON APPLICATIONS: This cord can be used to connect a server, router, network switch or blade server enclosure to a UPS system or PDU or replace or upgrade the standard power cord provided by the device's manufacturer.
- WIDE TEMPERATURE RANGE: Supports operation and storage temperatures bween 14F to 140F (-10C to 60C). Supports operation and storage humidity ranges between 35% to 85% RH, non-condensing.
- HEAVY DUTY CABLE: Thick 14 AWG wire gauge manages high power levels required for larger equipment. Rated for up to 15 amps, 250 volts (3750 watts) of eletrical power.
- 6 FOOT POWER EXTENSION CORD: C19 to C20 15A heavy-duty extension cable (1.83 meters) connects high-output devices with C19/C20 power connectors, including a PDU or UPS system.
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Connector Gender | Female-to-Male |
| Input Current | 15 Amps |
| Is Discontinued By Manufacturer | No |
| Item model number | P036-006-15A |
| Voltage | 250 Volts |
| Sizing & Dimensions | |
| Height | 0.5 inches |
| Length | 12.8 inches |
| Product Dimensions | 0.5 x 8.9 x 12.8 inches |
| Size | 6ft |
| Weight | 9.6 ounces |
| Width | 8.9 inches |
| Technical Specifications | |
| Warranty | Lifetime Limited Warranty |
