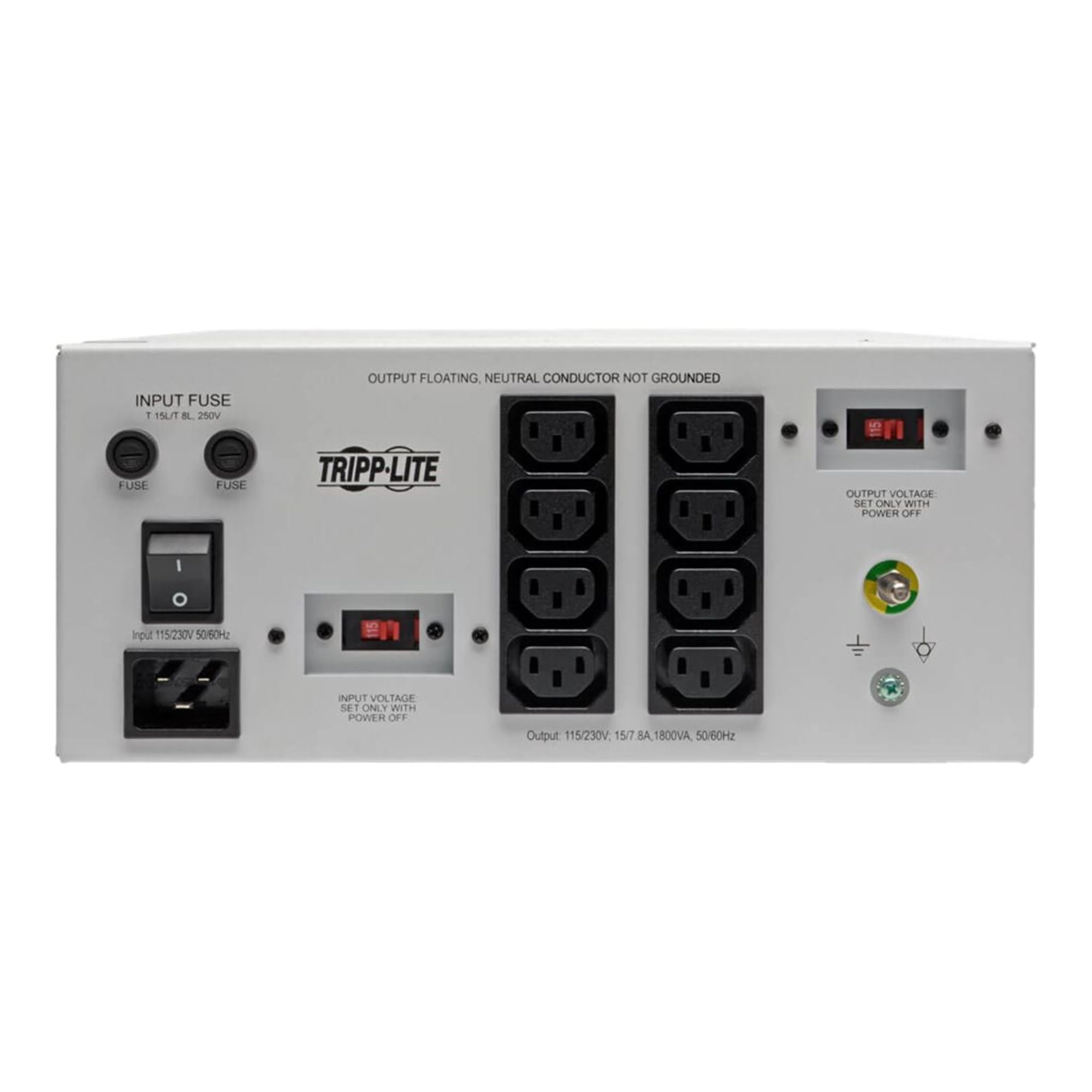

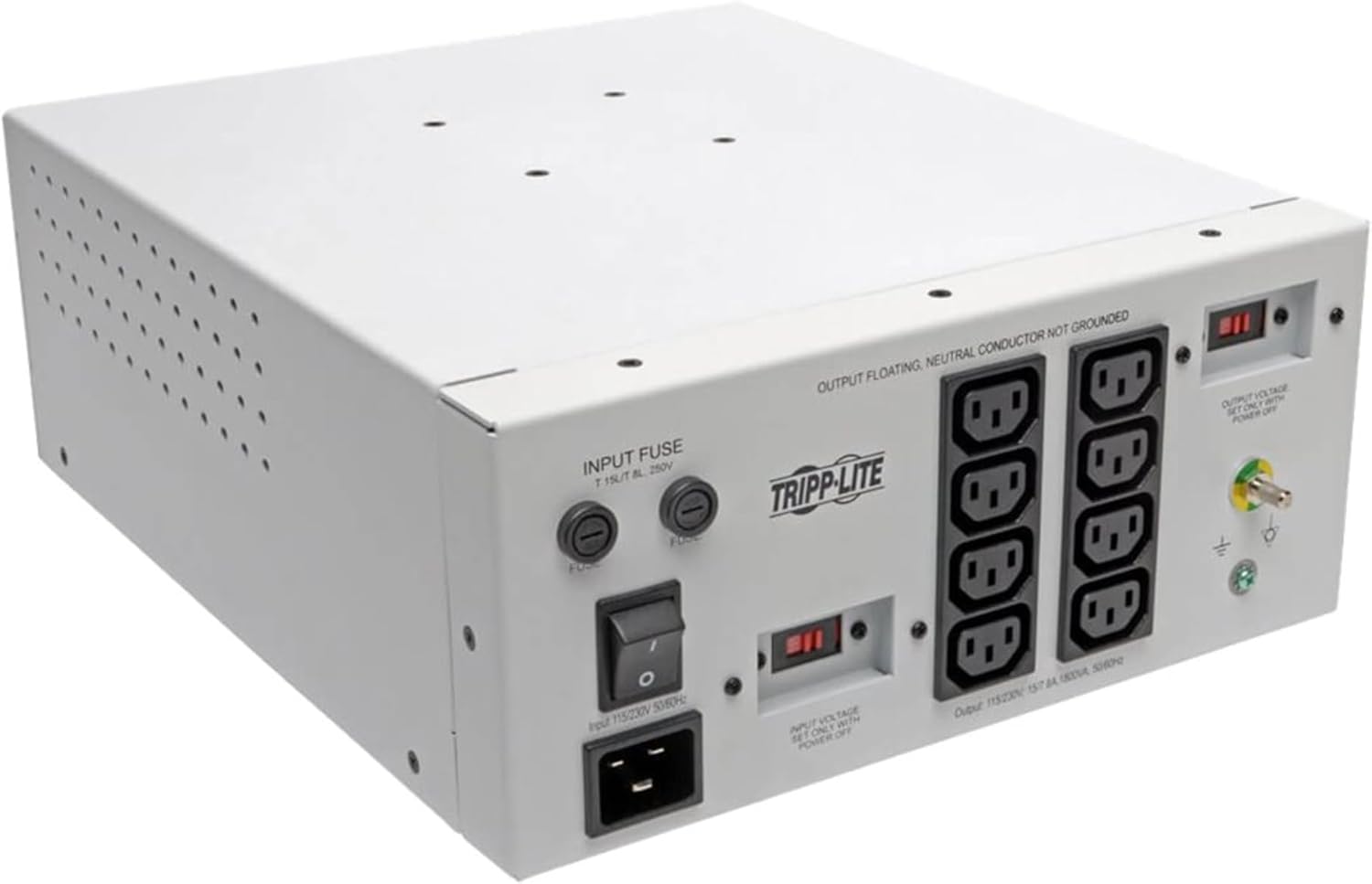

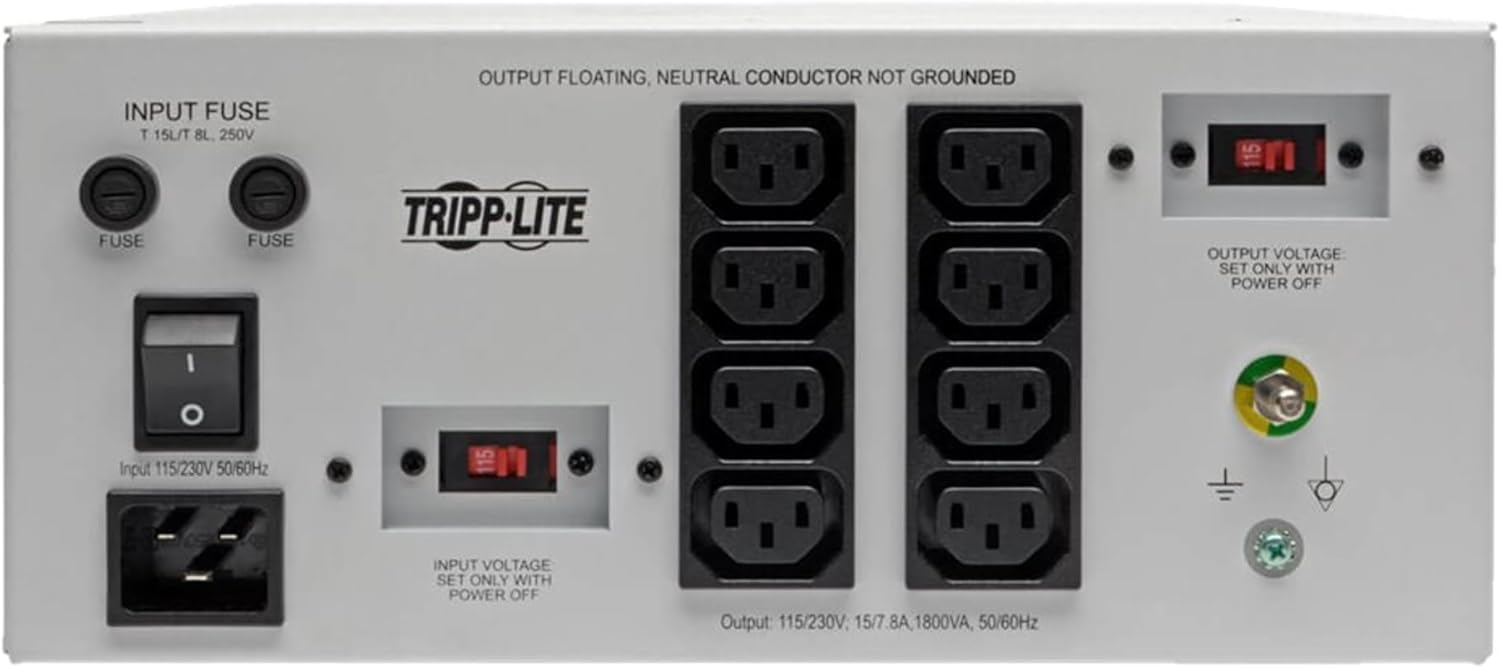

Eaton Tripp Lite Series Isolator Series Dual-Voltage 115/230V 1800W 60601-1 Medical-Grade Isolation Transformer, C20 Inlet

Tripp Lite Isolator Series medical-grade isolation transformer designed for industrial, network and medical environments. Provides complete isolation from input AC mains power to protect sensitive equipment from EMI/RFI line noise and surges. Dual-voltage 115/230V operation with 1800 W/VA power capacity, C20 inlet and eight C13 output connectors. Features include cumulative leakage current less than 100 A, automatic shutdown on overload, 65 dB EMI/RFI noise filtration, 240 Joule surge energy rating, convection cooling, overheat and overcurrent protection (fuse), and compliance with IEC 60601-1 medical safety standards. Ideal for protecting medical devices and critical electronics while helping reduce energy usage. Limited 2-year warranty.

• Device Type: Transformer - external| Color: White| Input Voltage: AC 115/230 V| Input Voltage Range: AC 100 - 125 / 200 - 250 V| Frequency Provided: 50/60 Hz| Frequency Required: 50/60 Hz| Input Connectors: 1 x power IEC 60320 C20| Power Output Connectors Details: 8 x power IEC 60320 C13| Output Voltage: AC 115/230 V 50/60 Hz| Power Capacity: 1800 Watt / 1800 VA| Surge Suppression: Yes| Surge Energy Rating: 240 Joules| EMI/RFI Noise Filtration: 65 dB| Circuit Protection: Fuse
• Total Harmonic Distortion (THD): 1 %| Included Accessories: Fuse (115 V operation), fuse (230 V operation)| Features: Metal cabinet, overheat protection, noise filtering, overcurrent protection, overload protection, output voltage adjustment, convection cooling, input voltage adjustment| Compliant Standards: NOM, RoHS, WEEE, IEC 60601-1:2005 Third Edition, CAN/CSA C22.2 No. 60601-1:14, ANSI/AAMI ES60601-1:2005 + A2 + A1| Service & Support: Limited warranty - 2 years
• Min Operating Temperature: 32 øF| Max Operating Temperature: 104 øF| Humidity Range Operating: 5 - 95% (non-condensing)| Width: 11.8 in| Depth: 13.8 in| Height: 5.5 in| Weight: 51.15 lbs
