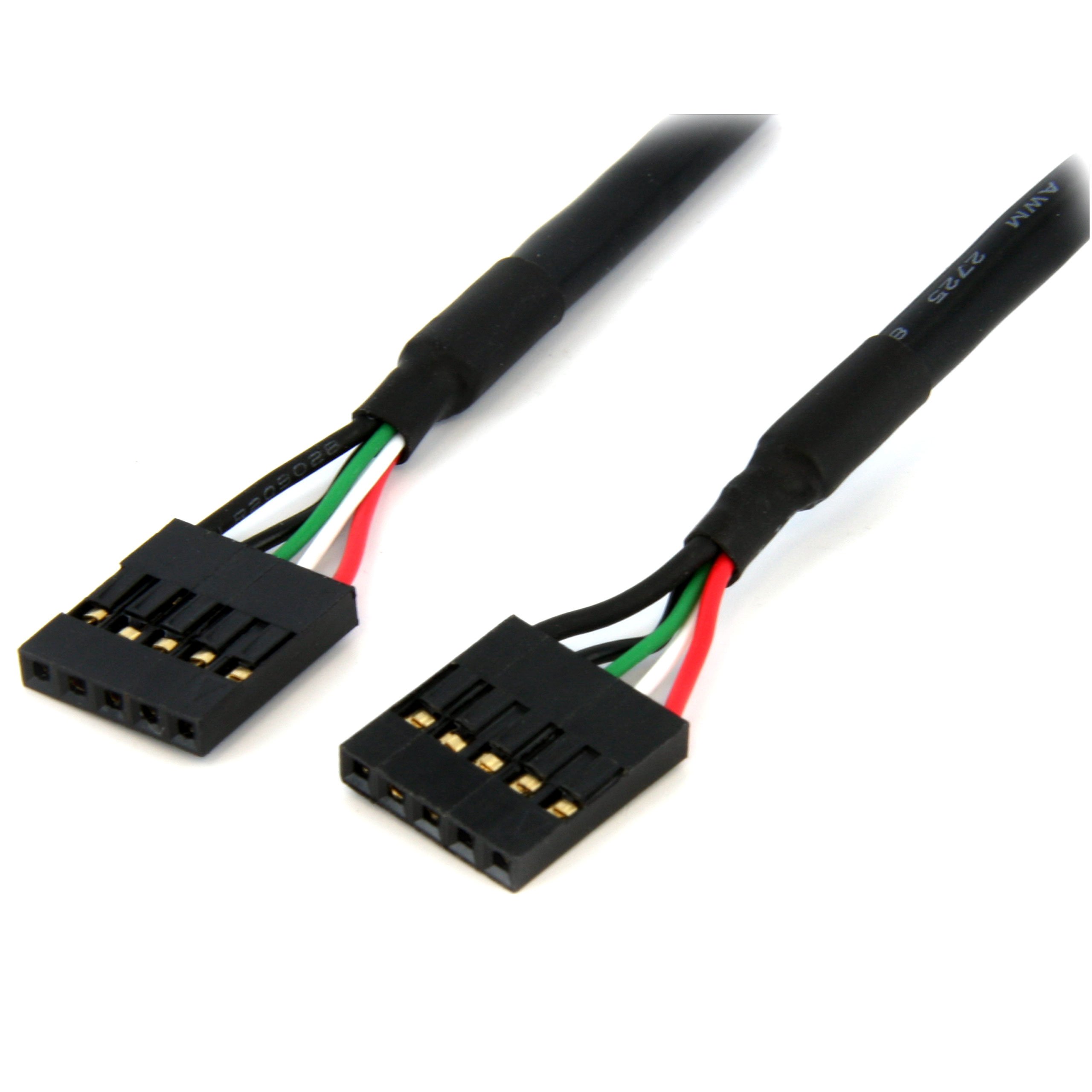

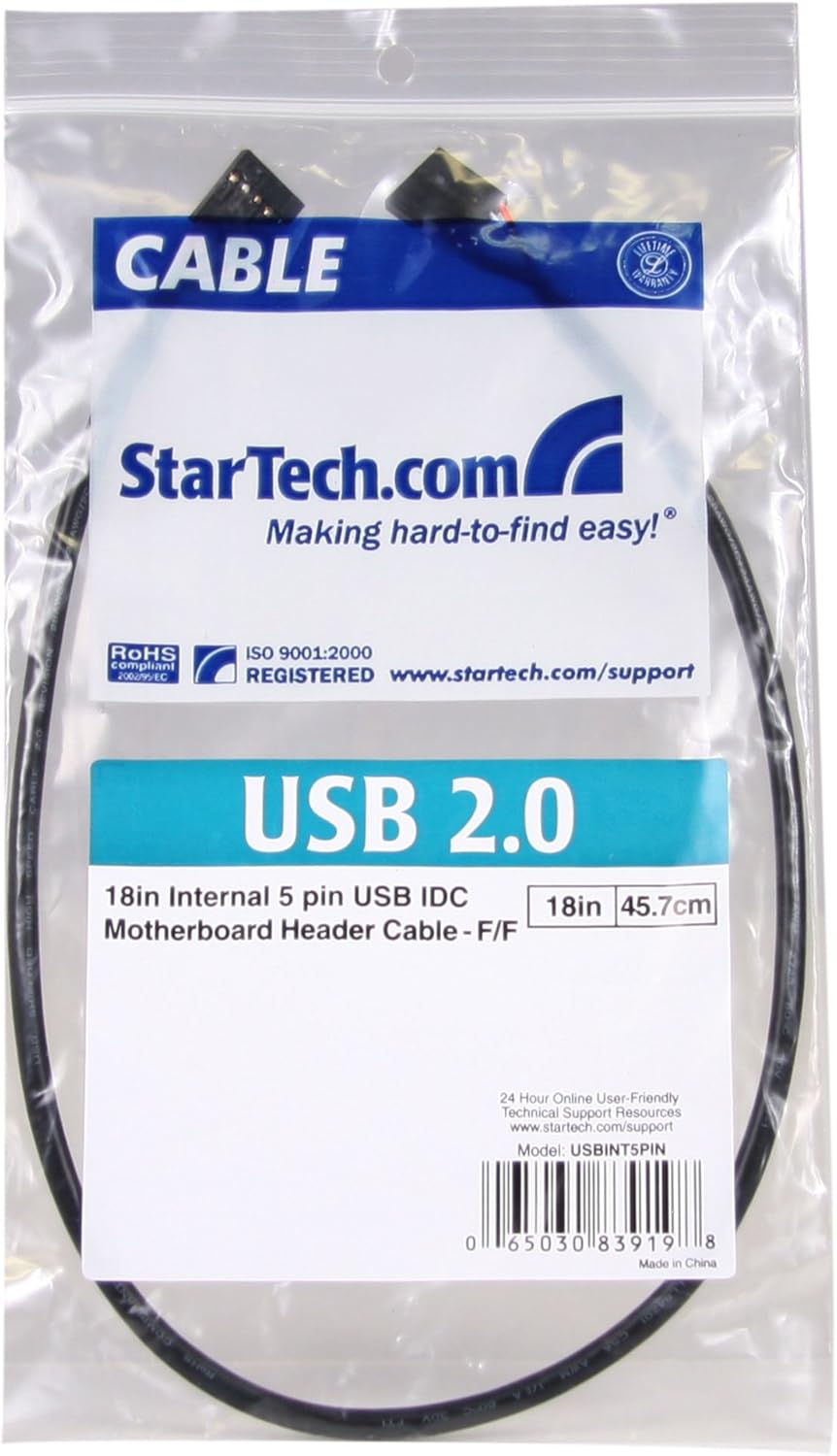

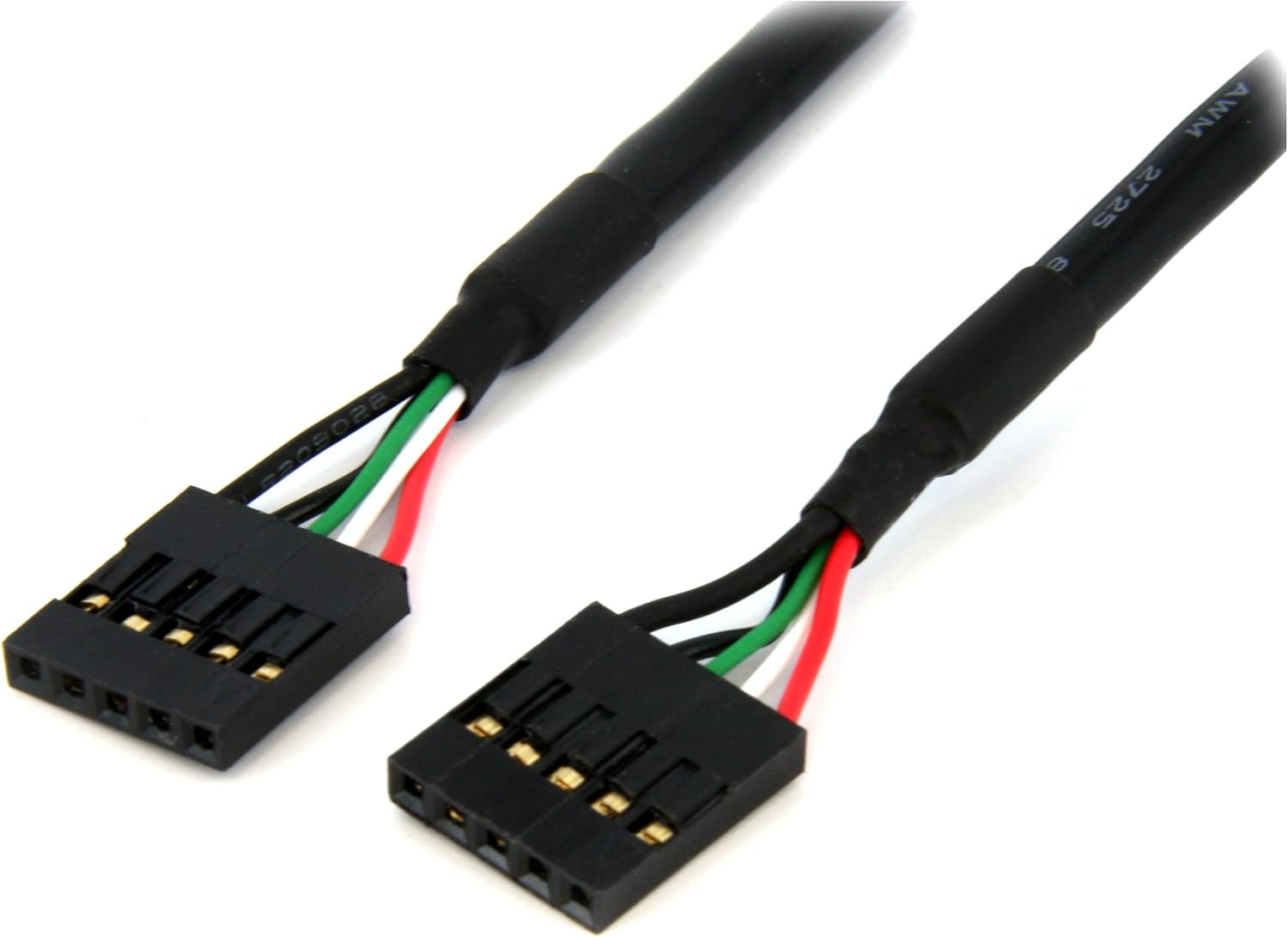

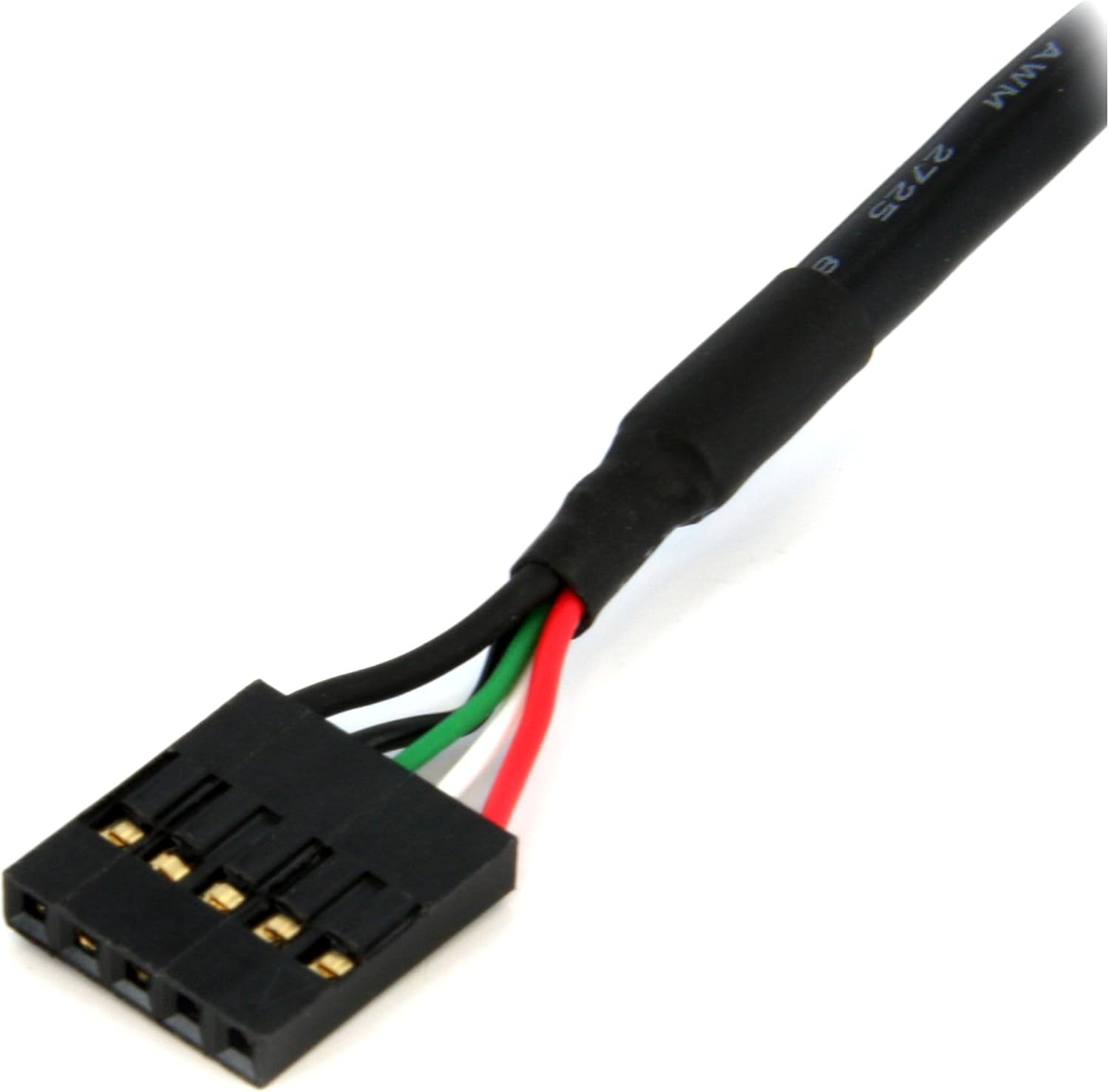

StarTech USBINT5PIN Internal 5 pin USB IDC Motherboard Header Cable (1.5 Feet), Black
Customize
Uses standard USB 2.0 pin out and colors assignments 18in in length This 18in internal USB IDC cable features two 5-pin USB motherboard header connectors, allowing you to connect a front panel USB hub or card reader directly to the motherboard header ports. This cable provides a solution for connecting multi-function front panels, or any device that relies on internal USB ports, directly to the motherboard or expansion card offering USB an IDC (Header) connection without having to install additional cards, or run cables externally to the rear ports. Constructed of high quality materials and expertly constructed for durable performance, the 18in Internal IDC USB 5-pin Motherboard Header Cable is backed by StarTech.com's Lifetime Warranty. Connect front panel USB ports to the motherboard or expansion card Connect Rear USB Expansion boards to the motherboard Easy installation Backed by StarTech.com lifetime warranty Specifications Warranty Information Warranty Lifetime Connector(s) 1 - Connector A IDC (5 pin, Motherboard Header) 1 - Connector B IDC (5 pin, Motherboard Header) Environmental Operating Temperature -20°C to 60°C (-4°F to 140°F) Storage Temperature -10°C to 30°C (14°F to 86°F) Humidity 30%-75% RH Hardware Number of Conductors 5 Packaging Information Package Height 0.0 in [0.1 mm] Package Length 8.9 in [22.5 cm] Shipping (Package) Weight 0.6 oz [17.3 g] Package Width 4.9 in [12.5 cm] Physical Characteristics Weight of Product 0.4 oz [11.3 g] Product Height 0.0 in [0.0 mm] Product Width 0.0 in [0.0 mm] Color Black Wire Gauge 24 AWG Cable Length 1.5 ft [0.5 m] Product Length 18.0 in [45.7 cm] What's in the Box 1 - Included in Package 18in Internal 5 pin USB IDC Motherboard Header Cable – F/F
- 1.5 ft
- USB 2.0
- 5 pin IDC (F) to 5 pin IDC (F)
- USB cable
- F/F
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Cable Type | USB |
| Compatible Devices | Card Reader |
| Connector On First End Details | 1 X 5-Pin Idc - Female |
| Connector On Second End Details | 1 X 5-Pin Idc - Female |
| Connector Type | Eide/Ide |
| Connector Type On First End | Idc - Female |
| Connector Type On Second End | Idc - Female |
| Country of Origin | China |
| Data Transfer Rate | 480 Megabits Per Second |
| Gauge | 24.0 |
| Gender (End 1) | Female |
| Gender (End 2) | Female |
| Indoor/Outdoor Usage | Indoor |
| Maximum Voltage | 5 Volts |
| Number of Items | 1 |
| Number of Pins | 5 |
| Recommended Uses For Product | transferring data |
| Shape | Round |
| Special Feature | Data Transfer |
| Sizing & Dimensions | |
| Height | 9.84 inches |
| Length | 6.3 inches |
| Product Dimensions | 6.3 x 1.57 x 9.84 inches |
| Size | 18 inches |
| Weight | 0.423 ounces |
| Width | 1.57 inches |
| Technical Specifications | |
| Data Transfer Rate | 480 Megabits Per Second |
| Maximum Voltage | 5 Volts |
| Number of Conductors | 5 |
| Packaging Information | Package Length 8.9 in, Package Width 4.9 in, Package Height 0.0 in (as provided) |
| Recommended Uses | Card Reader |
| Specification Met | No |
| Wire Gauge | 24 AWG |
