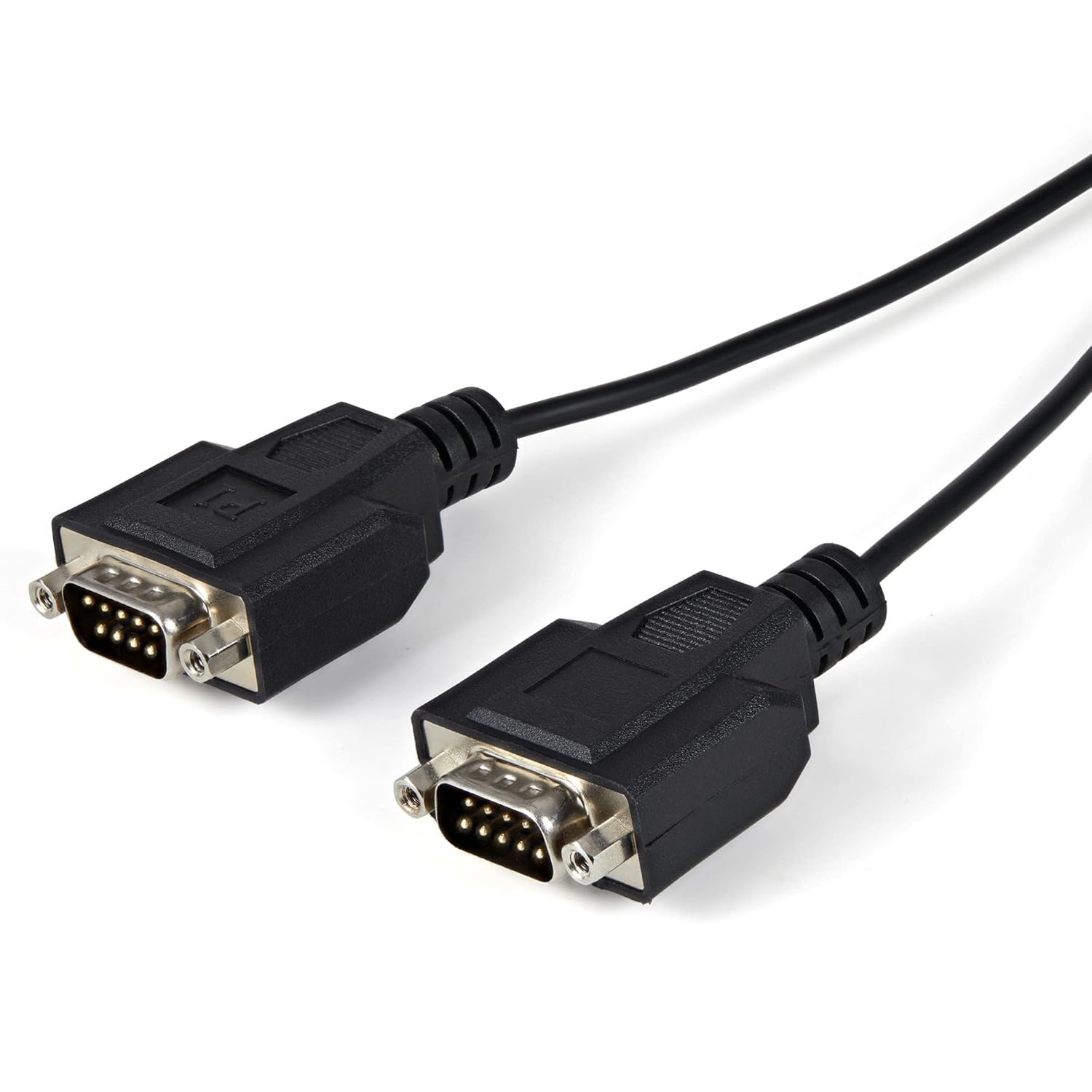

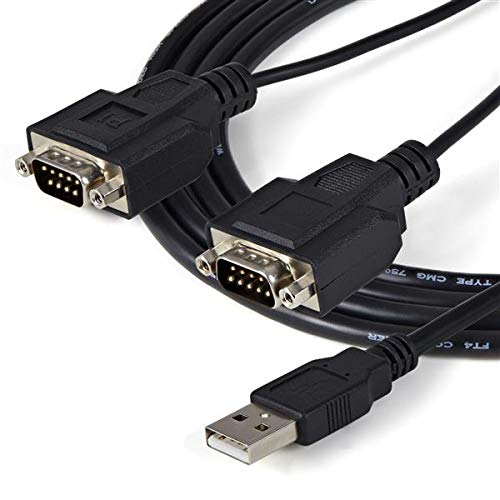

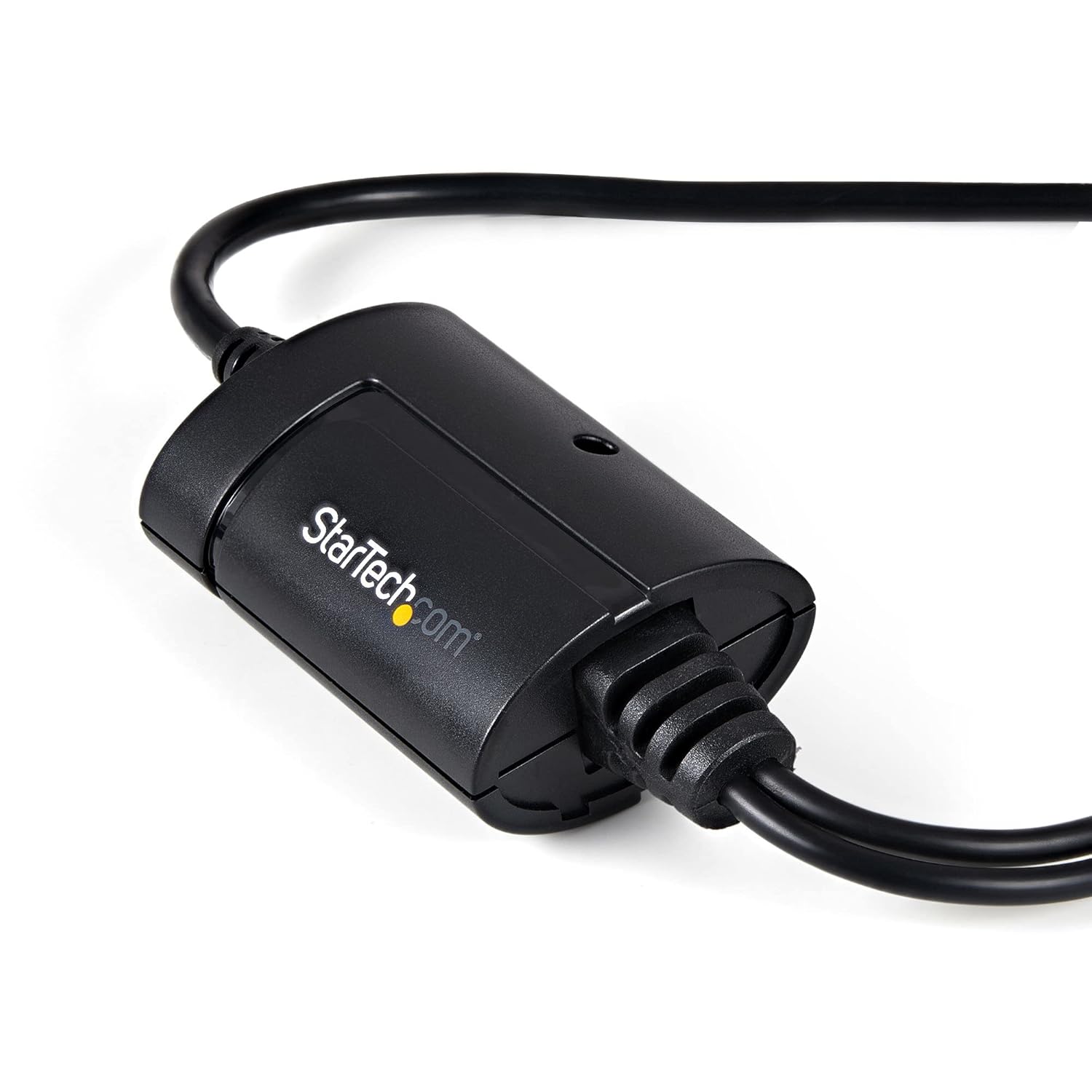

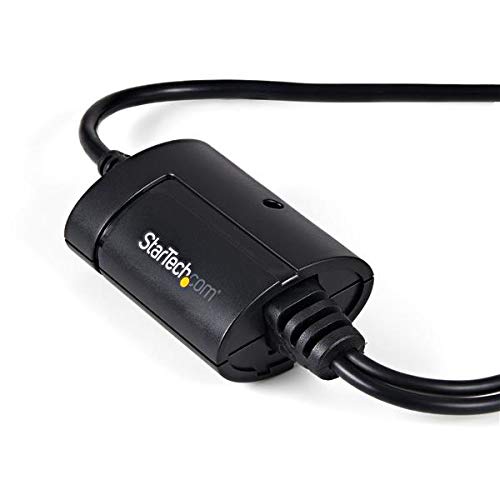

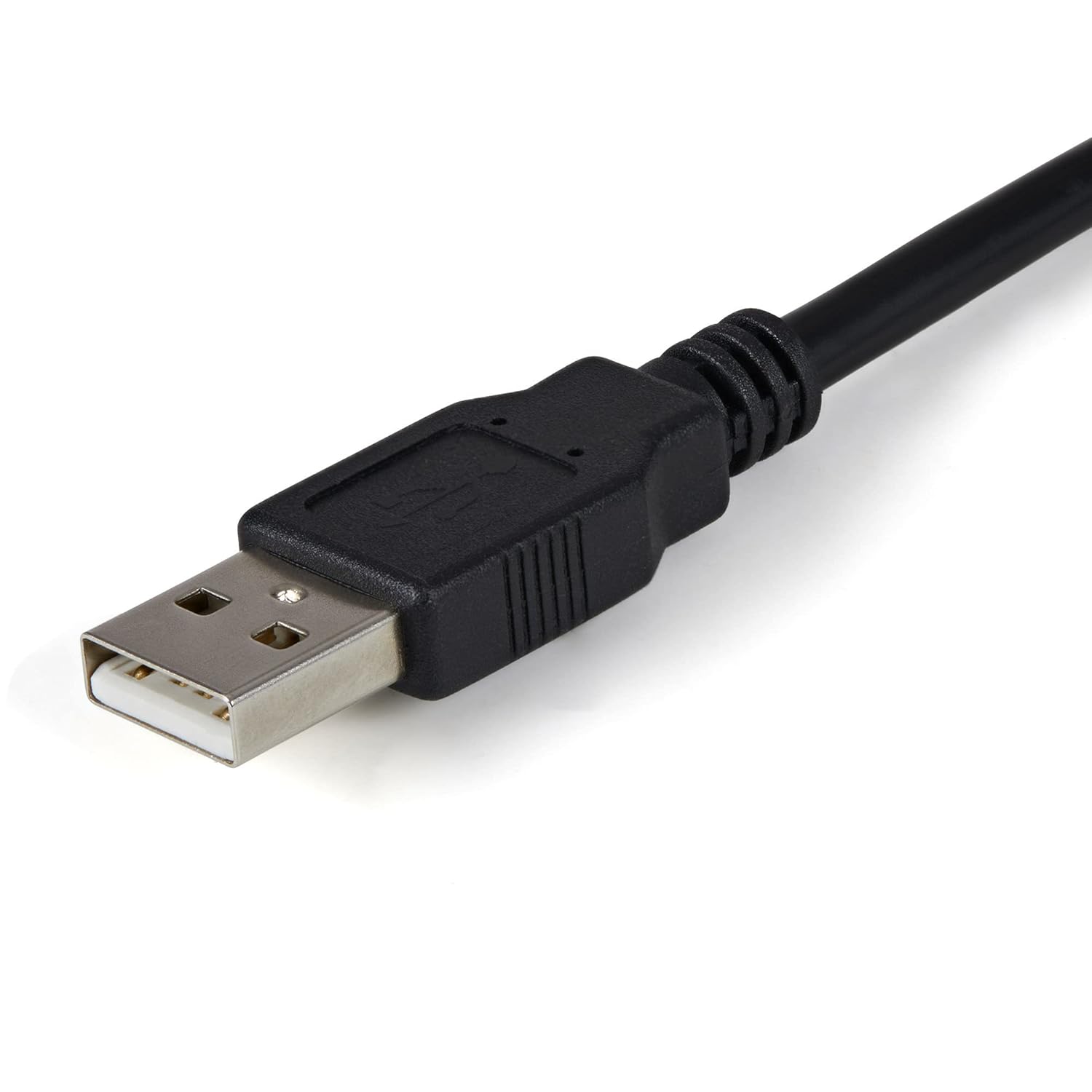

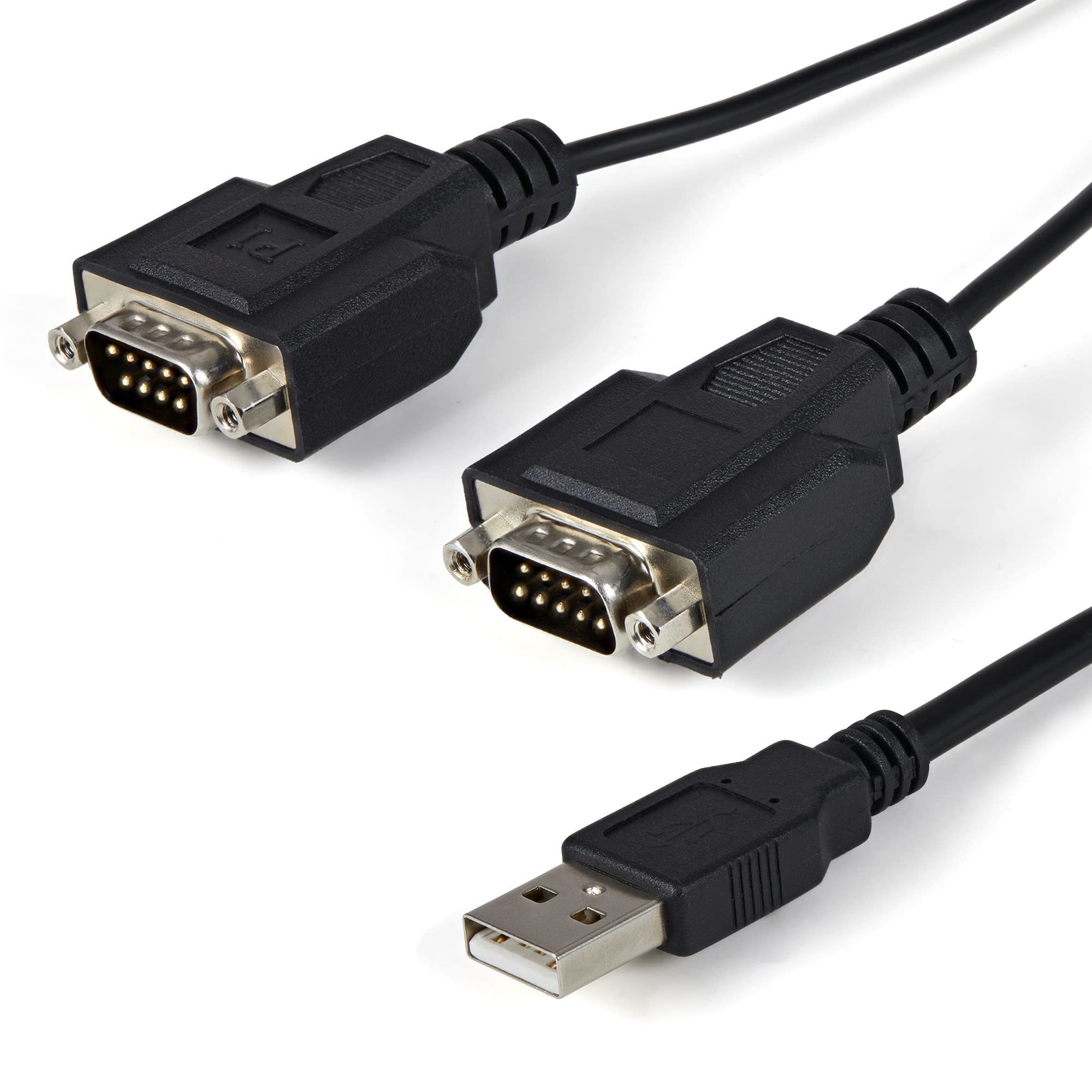

StarTech.com 6ft (1.8m) 2-Port FTDI USB to Serial RS232 Adapter Cable with COM Retention
Customize
StarTech.com 2 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention - 1 x 4-pin USB 2.0 Type A - Male - 2 x 9-pin DB-9 RS-232 Serial - Male - Black - 1 Each, The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices. This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Integrated 2500Vrms optical isolation circuits; small form factor; USB powered; easy installation and operation with COM port retention. Typical uses include digital signage, point-of-sale systems, barcode scanners, industrial equipment and other legacy serial devices requiring reliable USB-to-RS232 connectivity.
- TECH SPECS: 6 feet (1.8 meters); FTDI FT2232D Chipset; Max Baud Rate: 921.6 Kbps; 128 Bytes FIFO; None/Odd/Even/Mark/Space Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant
- EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices
- COMPACT DESIGN: Designed with a small form factor, this serial RS232 converter is USB powered and requires no bulky power adapters or an outlet; Wall mountable design
- MULTI-USE FUNCTIONALITY: This versatile USB to serial RS232 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners
- CUSTOMIZABLE SOLUTION: This USB serial hub features an FTDI chipset, making it highly customizable and compatible, and the ideal solution for any setup; Integrated 2500Vrms Optical Isolation Circuits
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Cable Type | USB |
| Compatible Devices | Laptop, Monitor |
| Connector Type | Serial Adapter |
| Country of Origin | Taiwan |
| Item model number | ICUSB2322F |
| Special Feature | Data Transfer |
| Sizing & Dimensions | |
| Height | 1.18 inches |
| Length | 6.89 inches |
| Product Dimensions | 6.89 x 5.71 x 1.18 inches |
| Size | 6.89 x 5.71 x 1.18 inches |
| Weight | 5.5 ounces |
| Width | 5.71 inches |
| Technical Specifications | |
| Chipset | FTDI FT2232D |
| COM Retention | Yes |
| Isolation | Integrated 2500Vrms Optical Isolation Circuits |
| Max Baud Rate | 921.6 Kbps |
