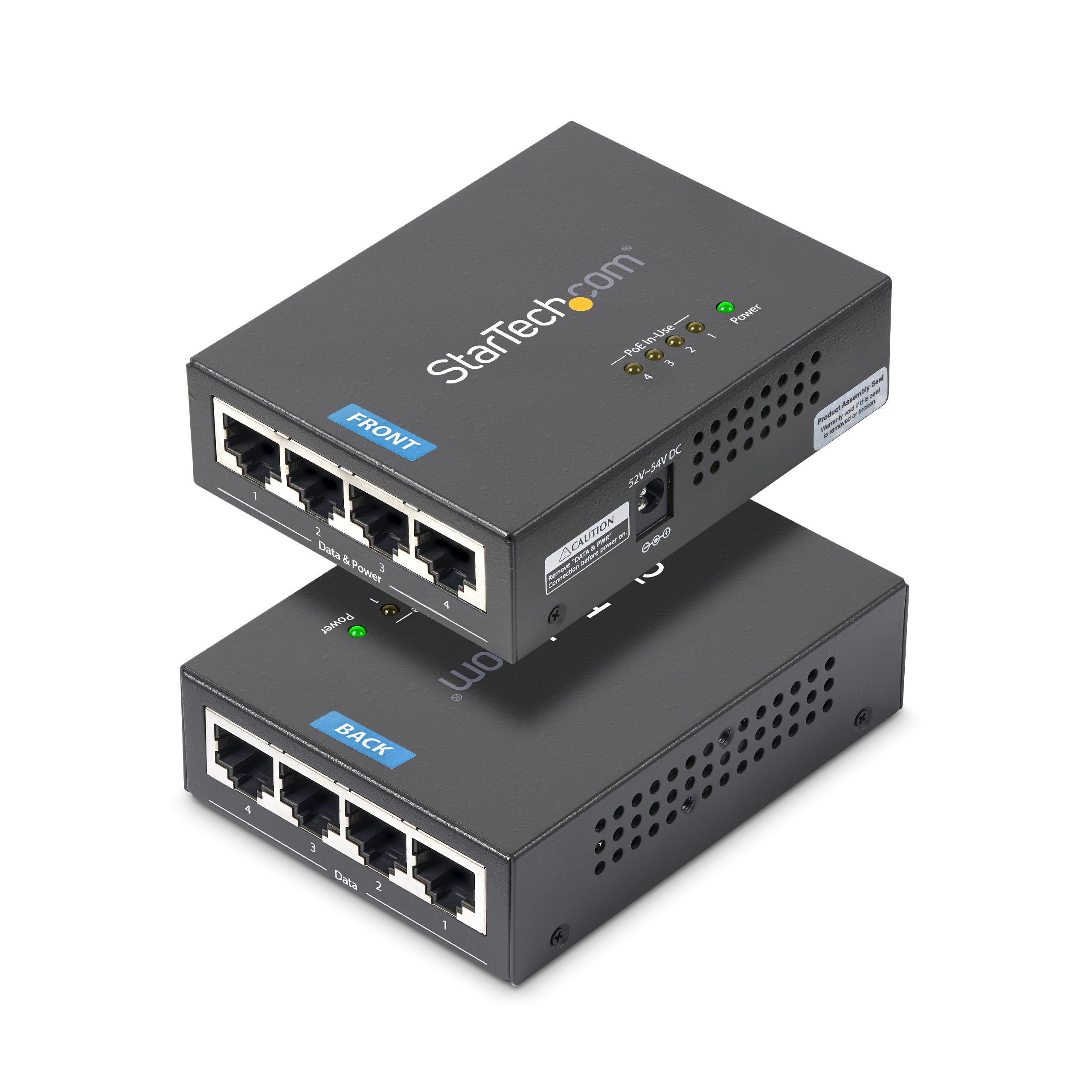

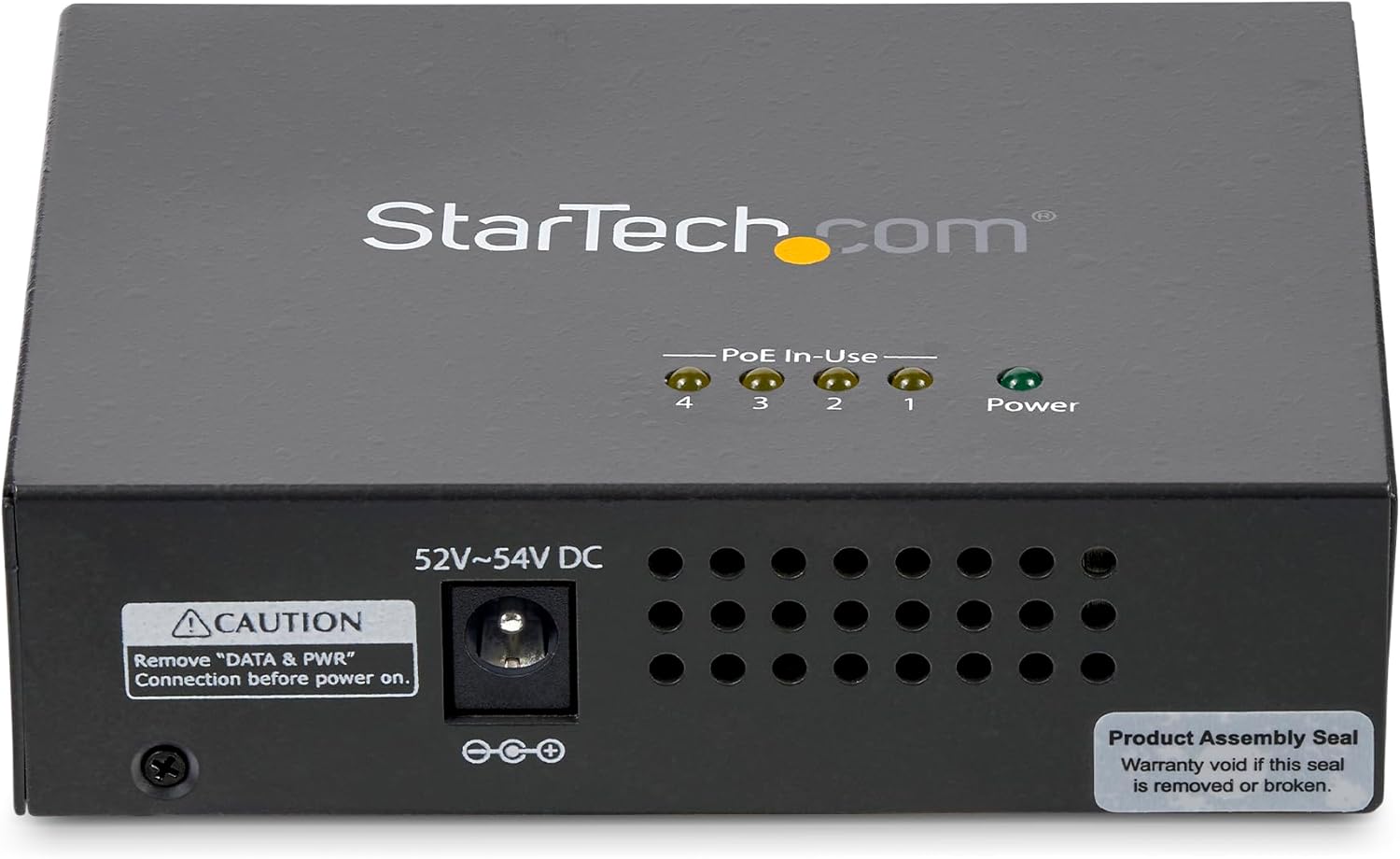

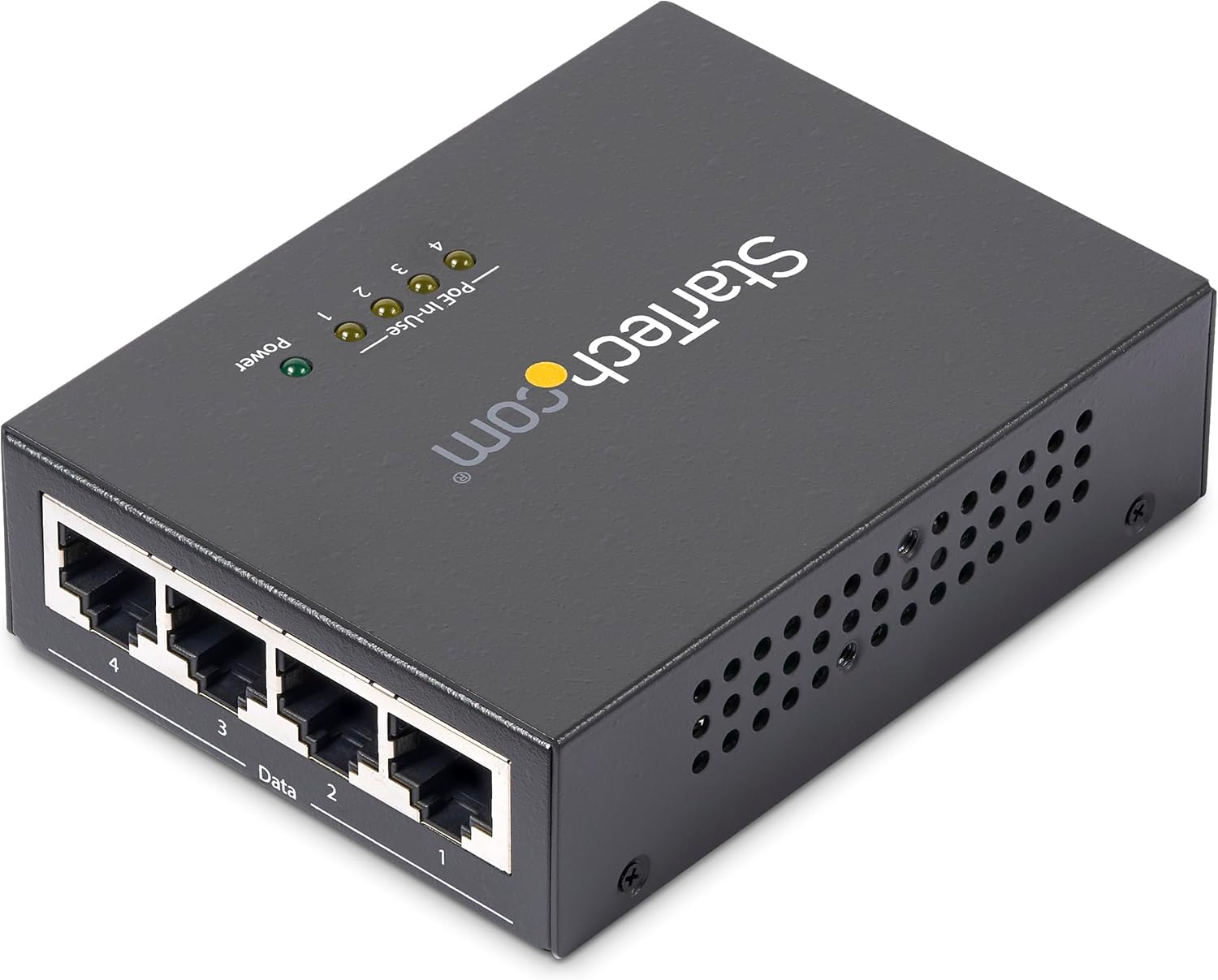

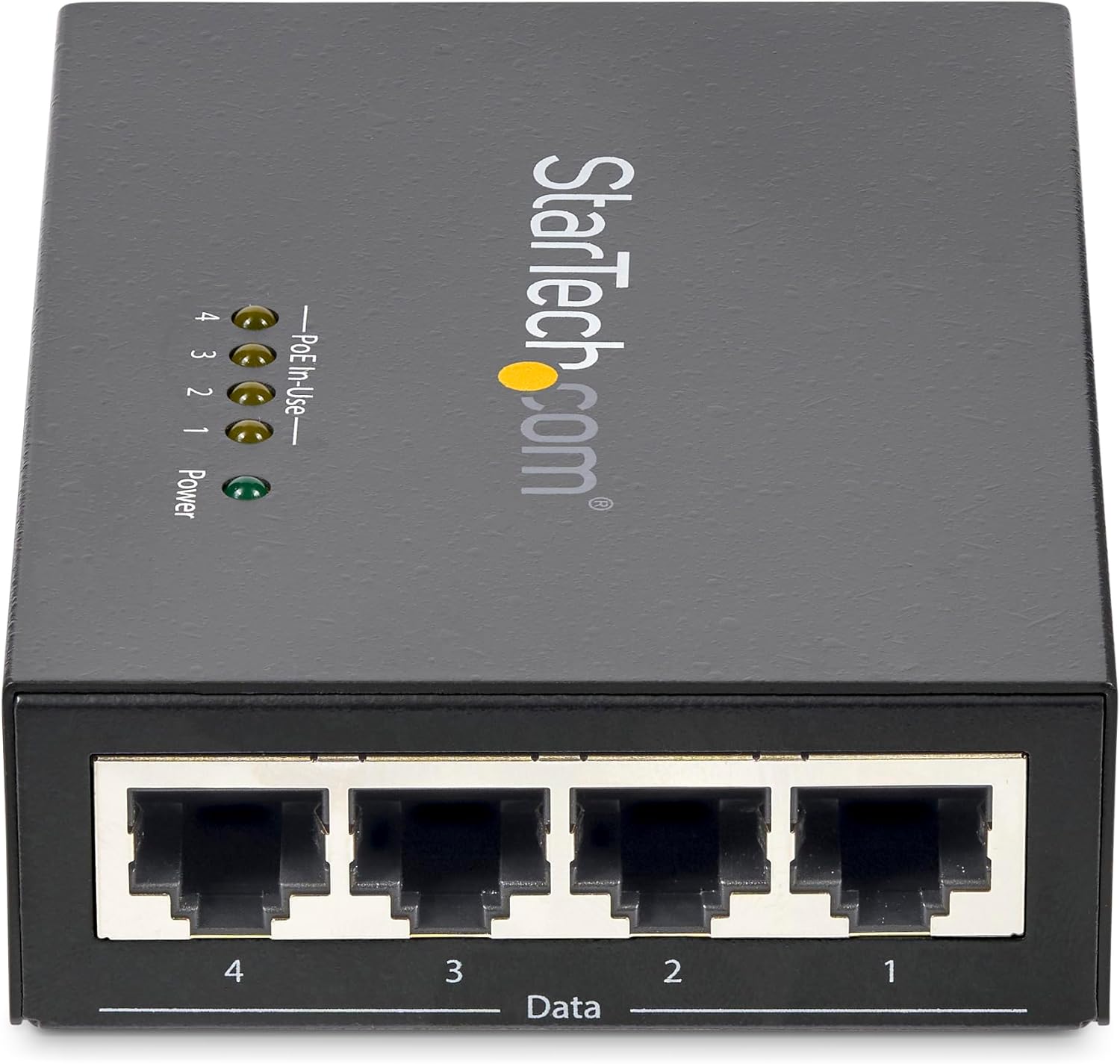

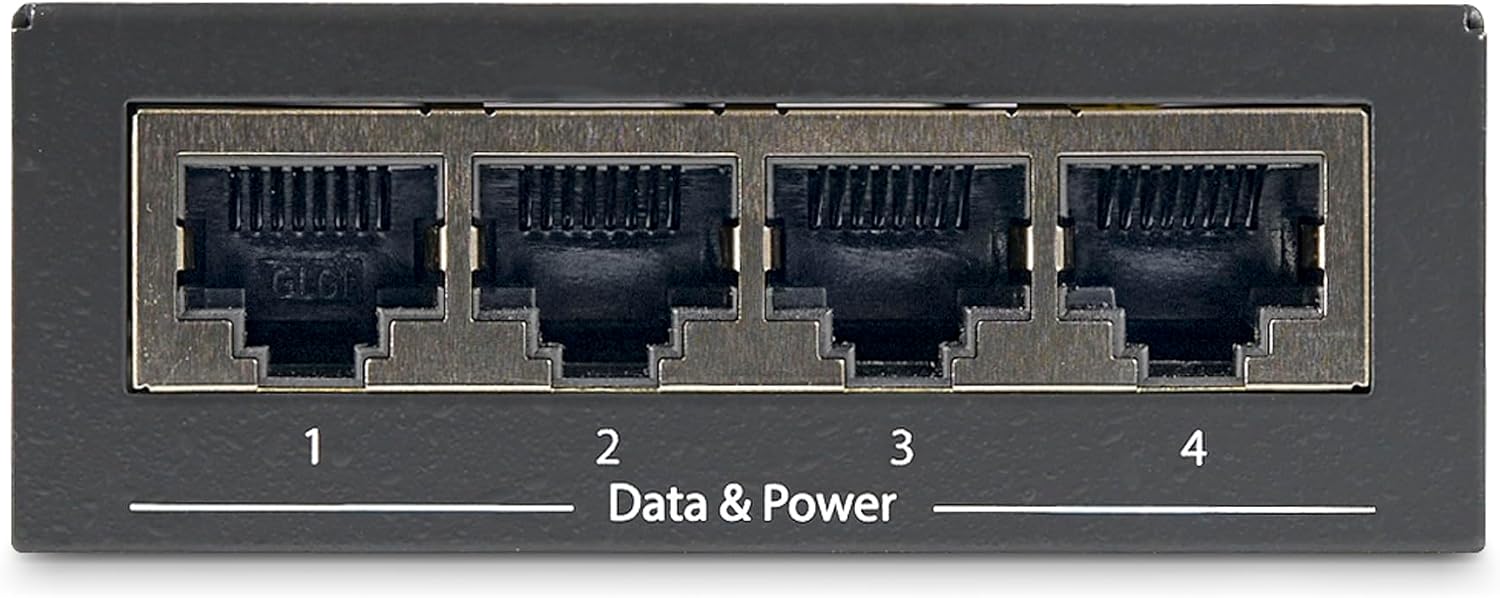

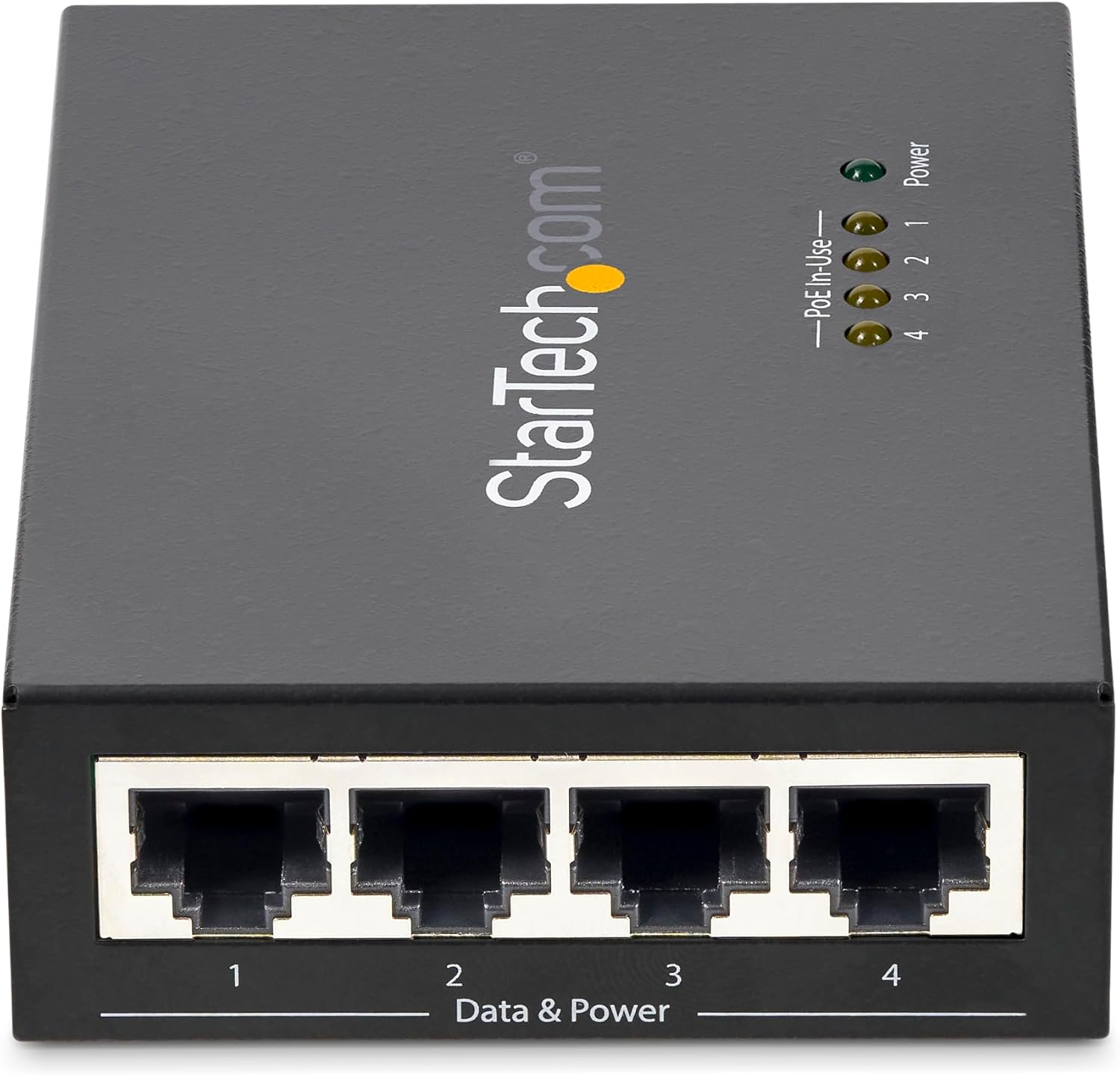

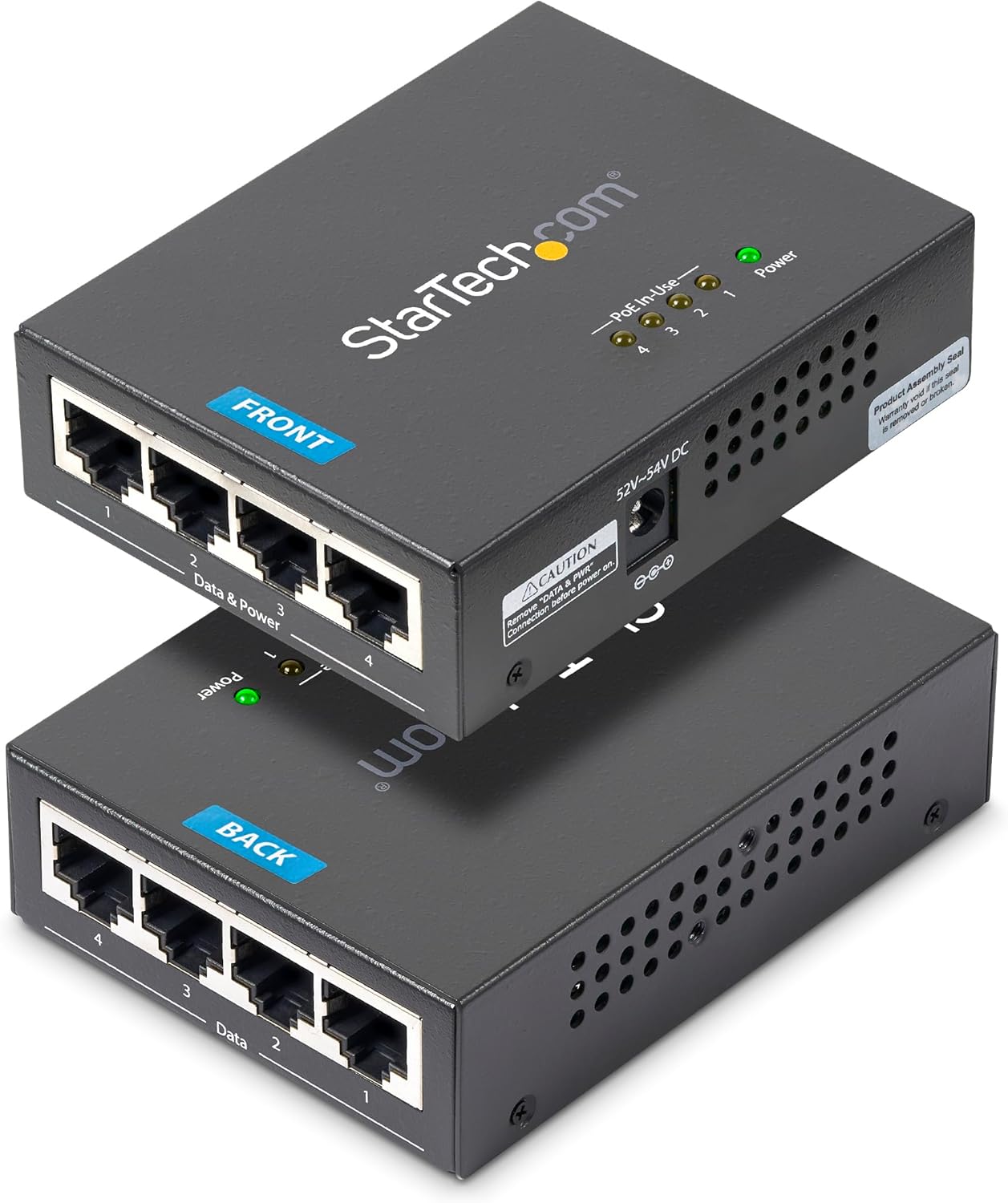

StarTech.com 4 Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-mountable Power over Ethernet Midspan
Customize
Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub. This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model. It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices - such as IP cameras - using standard Ethernet cable. More power, with less cost and hassle. This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power - up to 30.8W - from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable. Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model. Easy to set up in mixed environments, it features a wall-mountable rugged metal casing and is palm-sized for desktop placement. With plug-and-play operation, enjoy fast and hassle-free setup without disrupting your workflow. The injector automatically detects the power requirements of your PoE PDs and delivers the appropriate level of power. Integrated circuit protection between each port protects devices from power interference. Includes 1 - 4 Port Gigabit PoE+ Injector, 1 - Universal Power Adapter, and power cords for multiple regions. POEINJ4G is backed by StarTech.com warranty and support.
- Easily connect, power, and operate up to four Gigabit PoE-powered devices (PD)
- Delivers full power to each port — up to 30.8 watts (802.3at) or 15.4 watts (802.3af) to each connected device
- Flexible setup, with a desktop-sized, or wall-mountable metal housing
- Plug-and-play setup and operation
- Automatically detects the powered device to provide the appropriate level of power output
Specifications:
| Materials & Construction | |
| Case Material | Alloy Steel |
| Color | Black |
| Material | Alloy Steel |
| Outer Material | Alloy Steel |
| Product Details | |

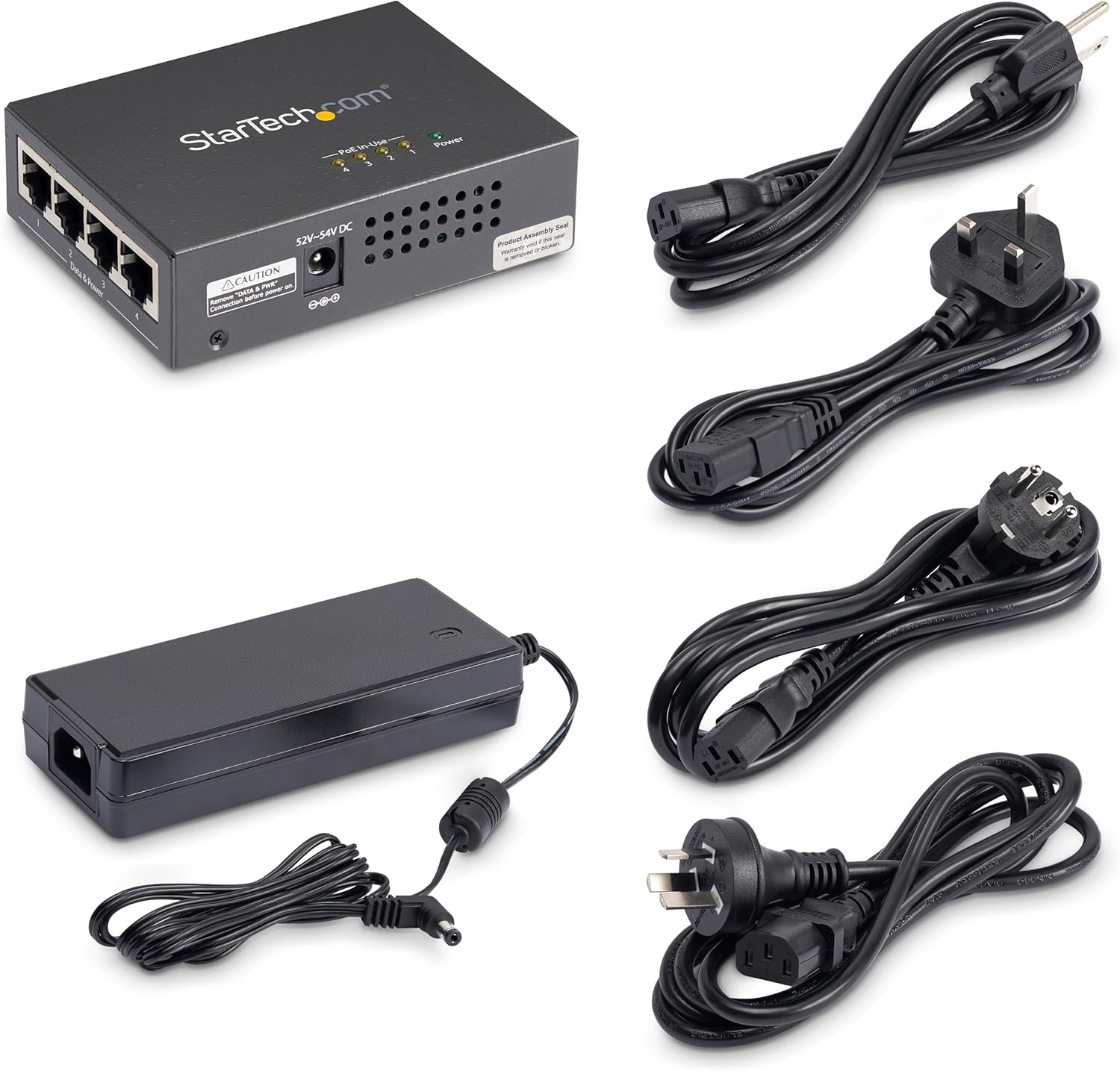

| Included Components | 4 - Power Cords (NA/JP, EU, UK, ANZ), 1 - DIN Rail Mount, 1 - Instruction Manual, 1 - 4 Port Gigabit PoE+ Injector, 1 - Universal Power Adapter |
| Interface Type | PoE |
| Model Number | POEINJ4G |
| Number of Ports | 4 |
| Platform | Not Machine Specific |
| Switch Type | PoE |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 12 inches |
| Product Dimensions | 12"L x 2.8"W x 1"H |
| Weight | 7.1 ounces |
| Width | 2.8 inches |
| Technical Specifications | |
| Current Rating | 2 Amps |
| Data Transfer Rate | 2000 Megabits Per Second |
| Maximum Power | 30.8 Watts |
| Output Voltage | 52 DC |

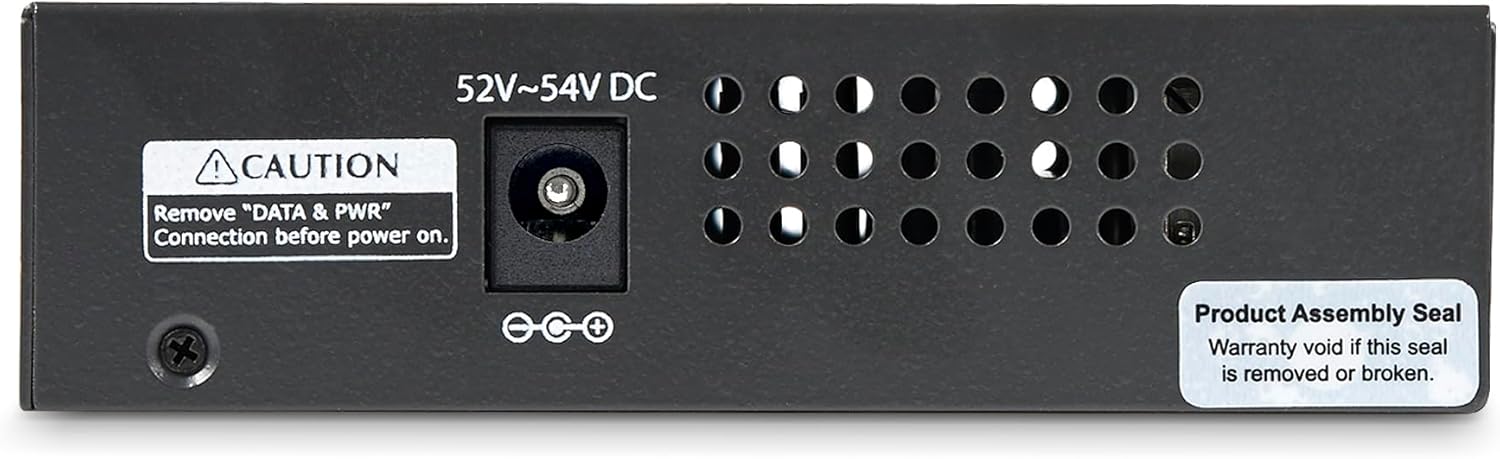

| Power Output | 52V DC at 30.8W (PoE+) |
| Upper Temperature Rating | 50 Degrees Celsius |
| Voltage | 120 Volts |
