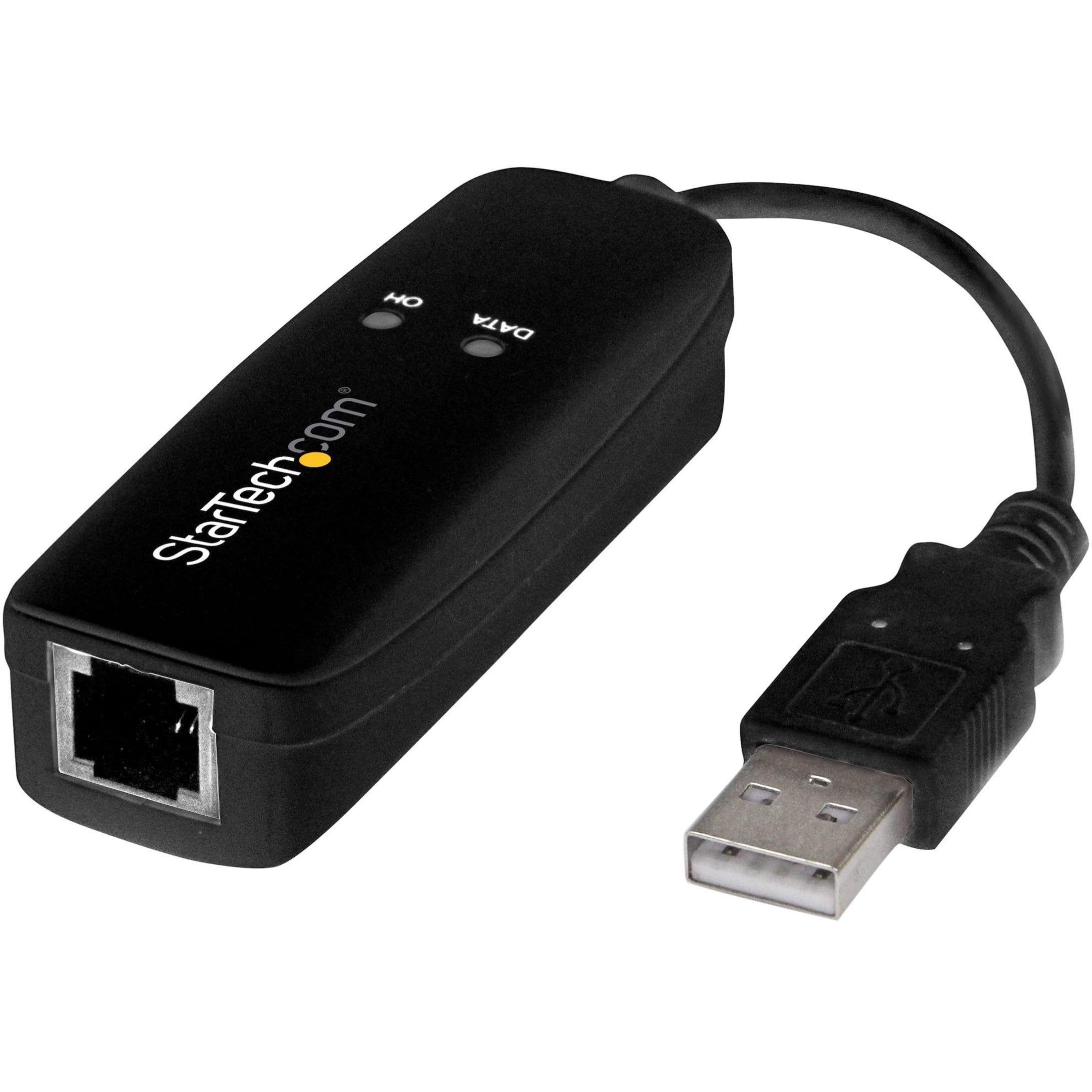

StarTech.com USB 2.0 Fax Modem - 56K External V.92 (USB56KEMH2)
Customize
This hardware-based 56k USB fax modem lets you access the internet through a dial-up service, when broadband connections are not available. The compact 56k modem is powered through USB, making it a perfect accessory to have on hand when you're traveling with your laptop or need to have a backup connection to your desktop. Reliable and versatile internet connectivity: You can use this versatile USB modem as a backup internet connection, for traveling to remote locations, or in rural areas where broadband connections are not available. It supports transfer rates up to 56Kbps (data) and 14.4Kbps (fax) and is compatible with the latest transmission standards (V.92, V.90, and others). The controller-based modem uses on-chip processing to deliver dial-up access without taxing your computer's performance, saving your system's resources and minimizing the load on the CPU. Send and receive faxes from your computer: The USB modem also enables your laptop or desktop computer to function like a fax machine, capable of sending and receiving faxes. It supports the latest fax transmission modes, providing fax transfer rates at 14.4Kbps. Easy portability: With a compact and lightweight design, the USB modem is portable, tucking easily into your laptop bag or travel case. It's powered through the USB host connection, making it fast and easy to connect without requiring an external power adapter. Technical and compliance details from StarTech.com include support for multiple OS platforms, Conexant CX93010-21Z controller, V.44 compression, USB Type A connectivity, 1 x RJ11 telephone jack, and TAA compliance. ProductDatabase details include depth: 3 In.; height: 4/5 In.; width: 1-1/10 In.; Warranty: 2-Year Limited; Quantity: 1; Eco Label Standard: Rohs; Weee; Environmental Compliance: Restriction Of Hazardous Substances (Rohs); Waste Electrical And Electronic Equipment Directive (Weee); Registration, Evaluation, Authorization And Restriction Of Chemicals (Reach); Modem Transmission Data Rate: 7168.
- COMPATIBILITY: Drivers available for Windows, Windows Server, macOS (10.9 to 12.x) and Linux (kernel 3.16 and up); Windows Drivers available for download
- TECH SPECS: External 56K Modem; Data Fax; USB Type A; 1 x RJ11 Telephone Jack; 56 Kbps Down, 33.6 Kbps Up Data; 14.4 Kbps Fax V.92; V.44 Compression; Conexant CX93010-21Z; USB Powered; TAA Compliant
- DATA/FAX MODE SUPPORT: Data: V.92, V.90, V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21 Bell 212A & Bell 103; Fax: V.17, V.29, V.27, V.21 Ch 2, EIA/TIA 578 Class 1 and T.31 Fax Class 1.0; DTMF support
- VOICE AND CALLER ID SUPPORT: Make and receive phone calls through your desktop / laptop computer; This portable USB modem supports Caller ID functionality and is compatible with most dial-up ISP (Internet Service Provider) networks
- DIAL-UP & FAX SUPPORT: Hardware-based USB 2.0 Fax modem adds data and fax functionality to your computer / laptop via USB without putting additional load on your CPU; For faxing, rural internet access, security systems, POS credit authorization
Materials & Construction
- Color:Black
Product Details
- Batteries:1 AAAA batteries required.
- Connectivity Technology:Modem (RJ-11)
- Country of Origin:Taiwan
- Internet service provider:ITU-T V.92 / V.90, V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21 Bell 212A and Bell 103
- Item Dimensions LxWxH:3 x 1.1 x 0.8 inches
- Item model number:USB56KEMH2
- Product Dimensions:3"L x 1.1"W x 0.8"H
- Quantity:1
- Series:56K USB Dial-Up and Fax Modem,V.92,External
- Wireless Type:802.11n
Sizing & Dimensions
- Height:0.8 inches
- Length:3 inches
- Size:3 x 1.1 x 0.8 inches
- Weight:0.986 ounces
- Width:1.1 inches
Technical Specifications
- Chipset:Conexant CX93010-21Z
- Compression:V.44
- Connectivity:USB Type A, 1 x RJ11 Telephone Jack
- Controller:Conexant CX93010-21Z
- Eco Label Standard:Rohs; Weee
- Fax Support:14.4 Kbps Fax V.92; V.17; V.29; V.27; V.21 Ch 2; EIA/TIA 578 Class 1; T.31 Fax Class 1.0
- Item Dimensions LxWxH:3 x 1.1 x 0.8 inches
- Modem Transmission Data Rate:7168
- Power:USB Powered
- Product Dimensions (LxWxH):3 x 1.1 x 0.8 inches
- TAA Compliant:Yes
- V.90 Support:Yes
- V.92 Support:Yes
