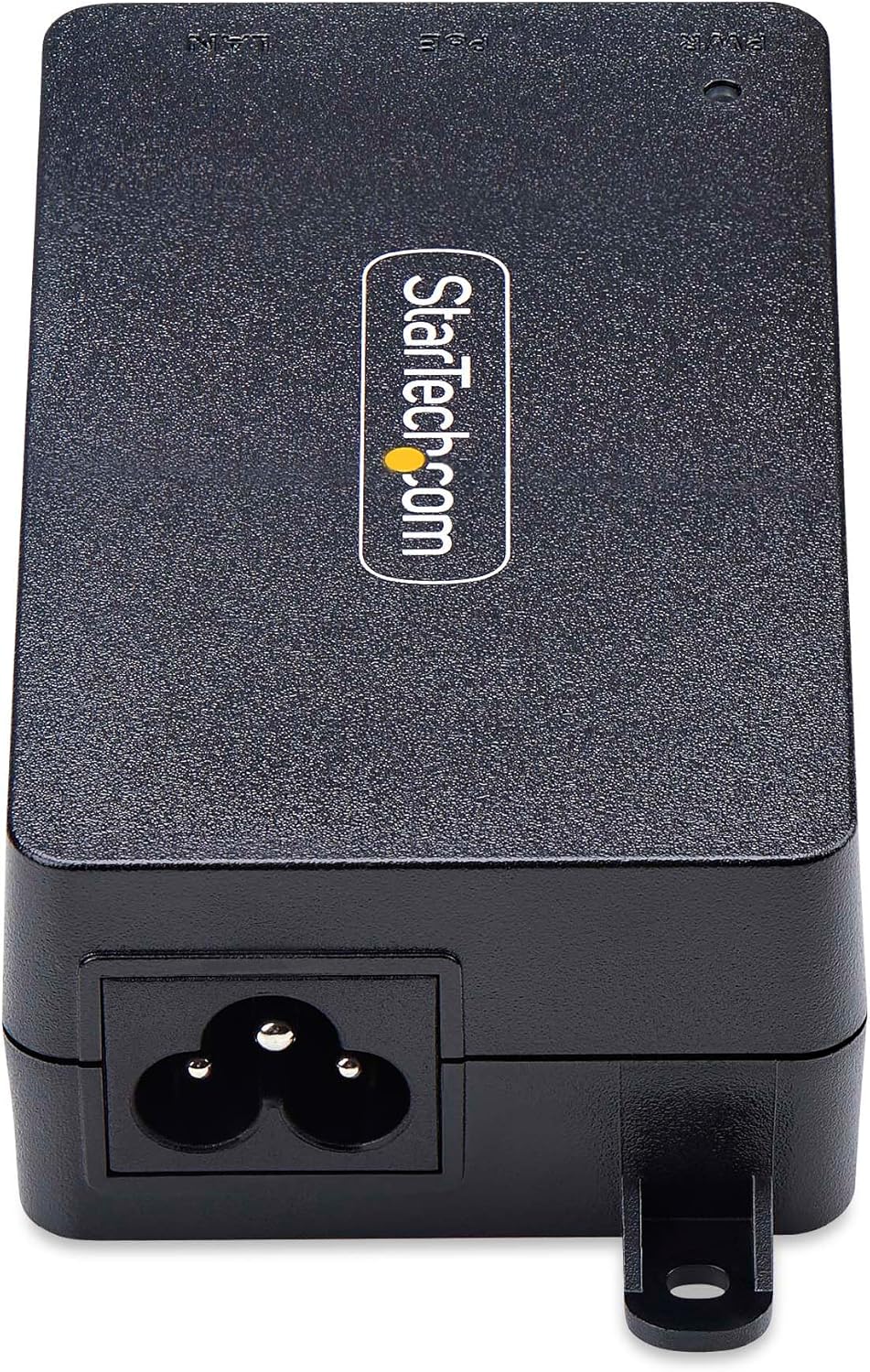

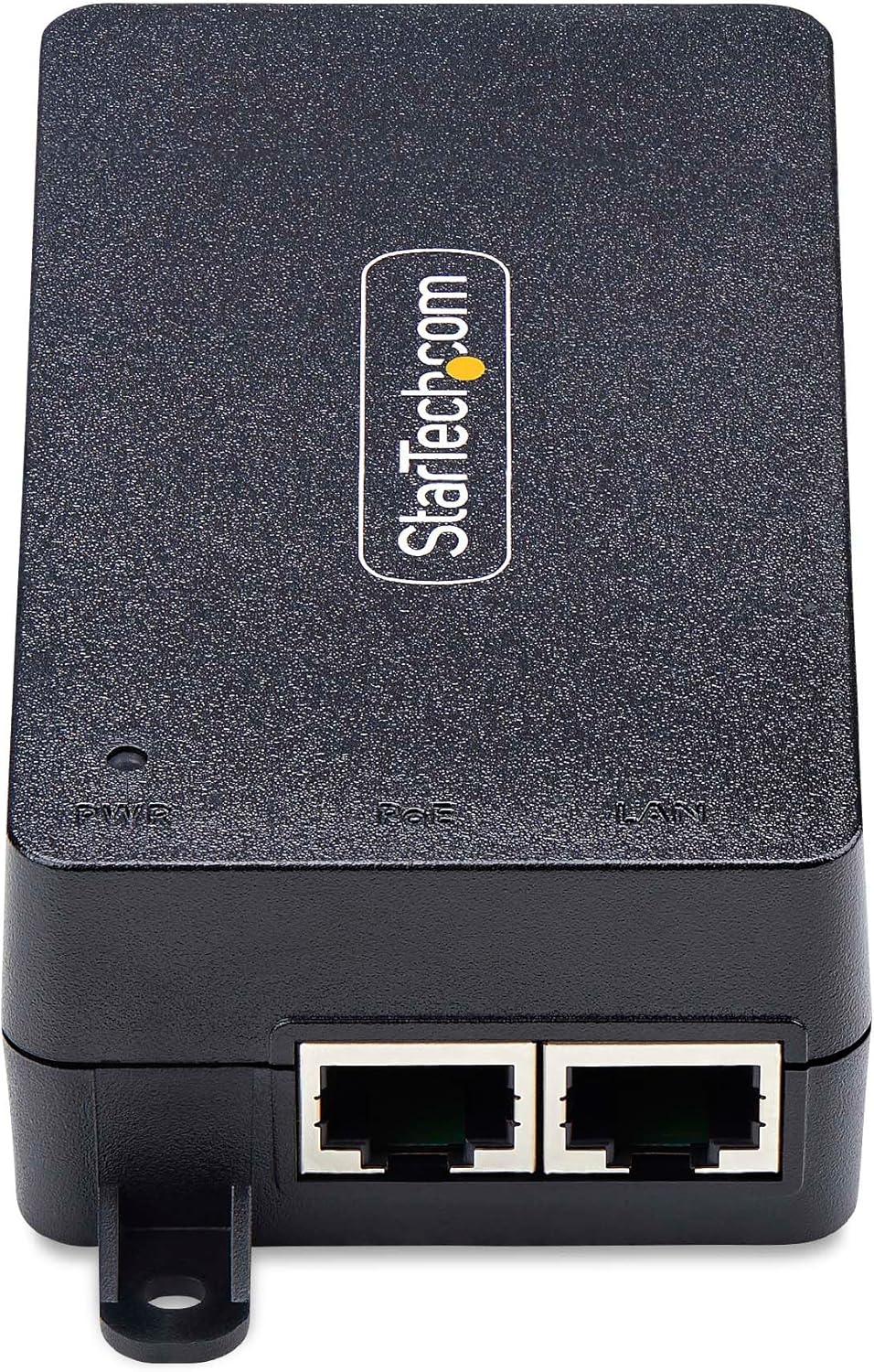

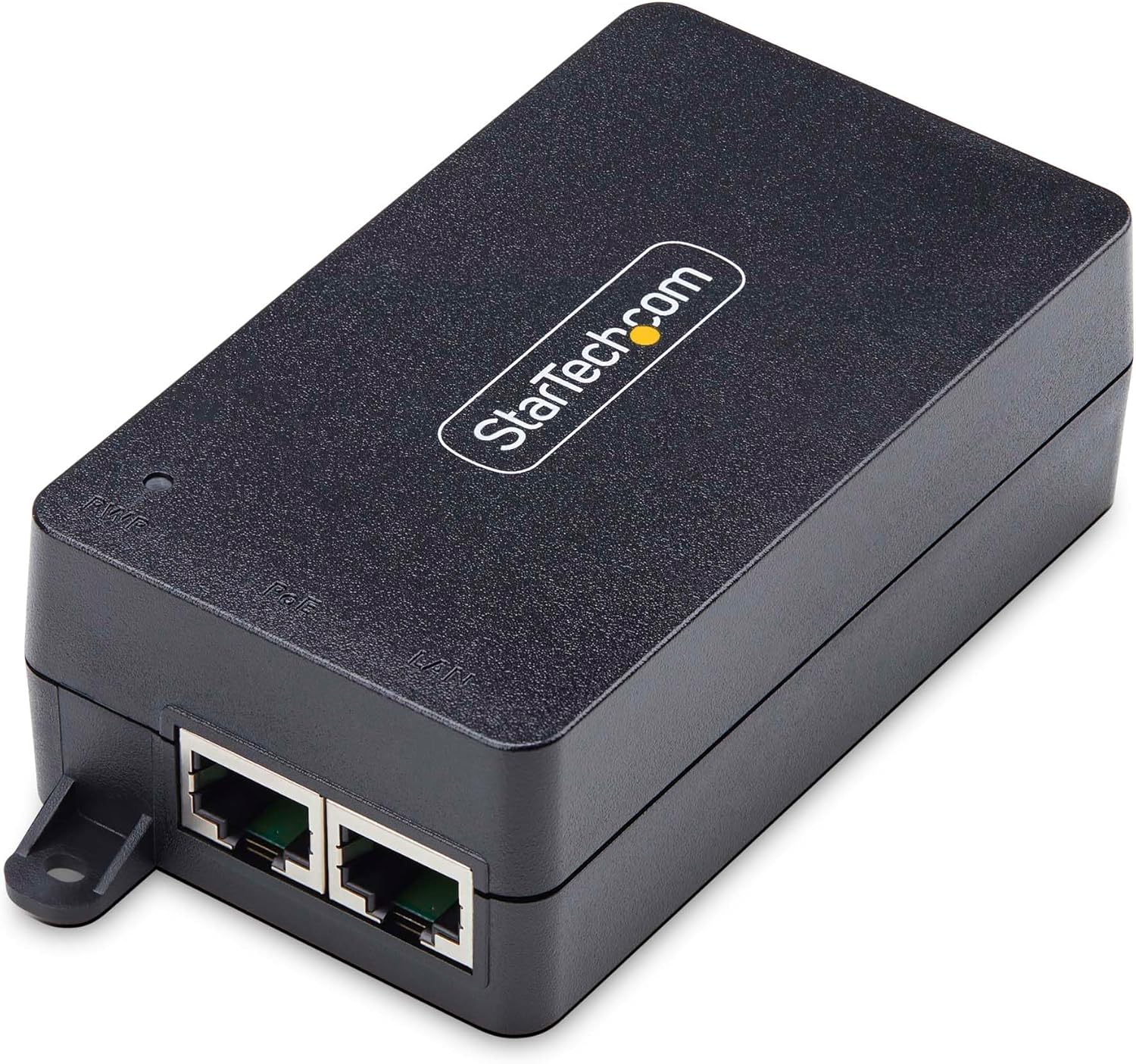

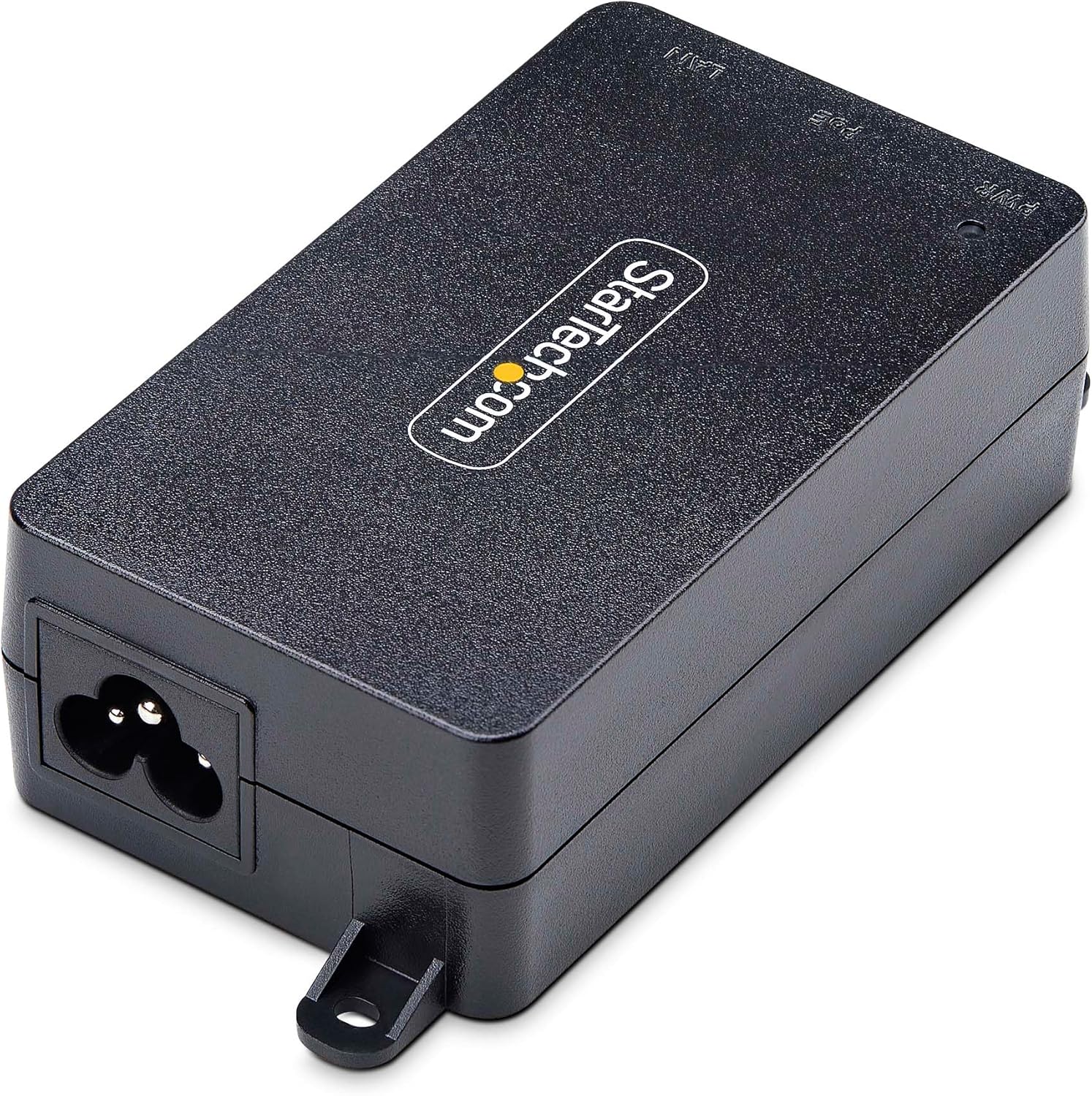

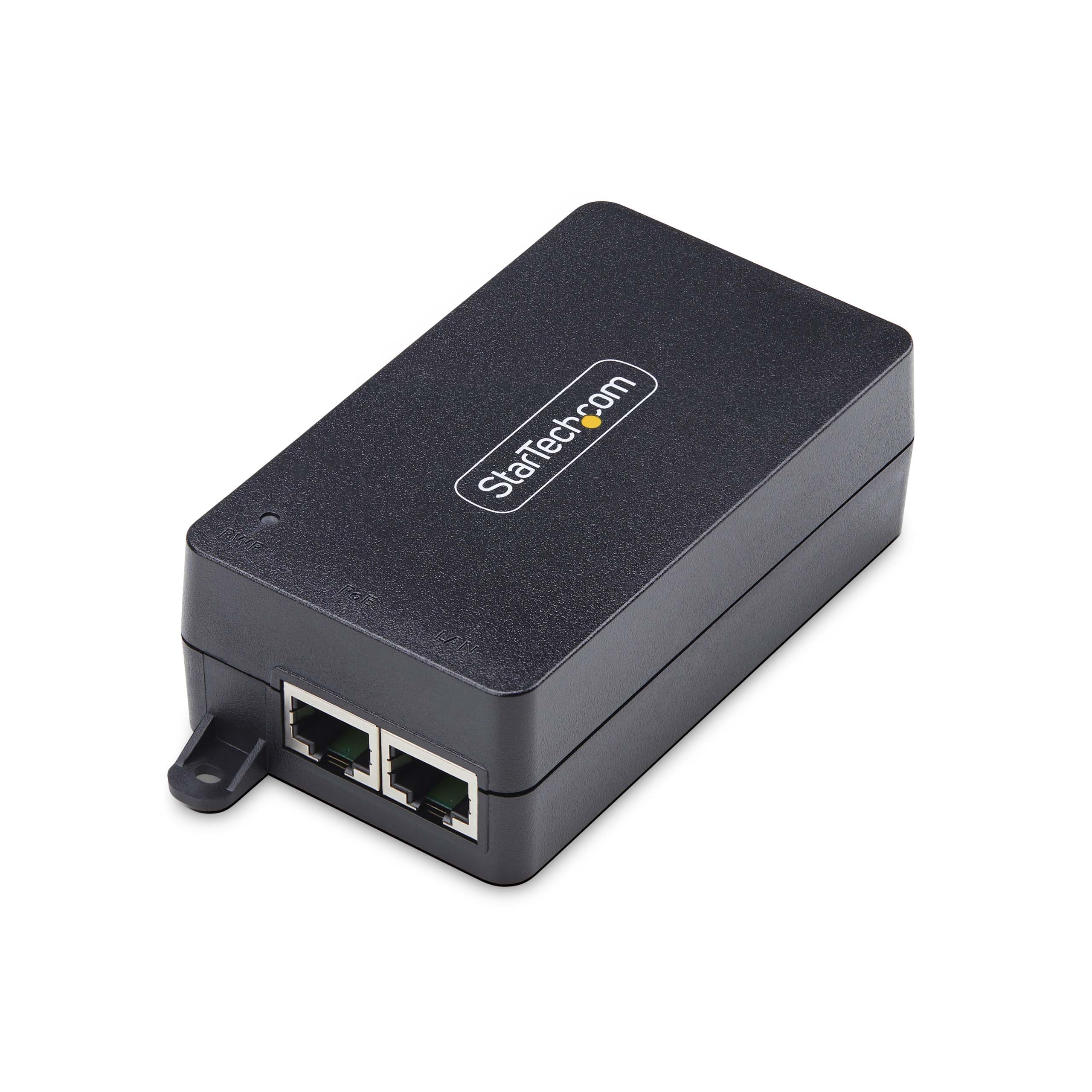

StarTech.com 1-Port Gigabit PoE+ Injector, 10M/100M/1G Ethernet, PoE/PoE+ (802.3af/802.3at), 30W Power Budget
Customize
The Power over Ethernet (PoE) Injector's unmanaged design speeds deployment and provides seamless integration into a network infrastructure, delivering Gigabit speeds using a single Cat5 (or better) cable for network data and power transmission up to 328ft (100m). PoE and PoE+ compatibility and speeds of 10Mbps, 100Mbps, and 1Gbps ensure effortless connectivity to Powered Devices (PD) such as IP cameras, access control devices, POSs, wireless access points, and digital signage. This versatile PoE Injector adheres to IEEE 802.3af and 802.3at, delivering up to 54V DC and 0.6A (30 Watts), eliminating the need for a separate power source. Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI. This TAA-compliant PoE adapter is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
- TECH SPECS: x2 RJ45 ports (data/data+power); 54VDC 0.6A output; 30W max output; Compliant with IEEE 802.3af and IEEE 802.3at; 10/100Mbps & 1Gbps with auto negotiation; WoL/PXE/9K jumbo frames; Wall mountable; Dimensions 4x2.3x1.3-inch (100x58.4x33.4mm)
- APPLICATIONS: Enable data & power over a single RJ45 connection to critical PoE devices such as IP cameras & Access Points (APs); Ideal for remote device installations with limited power sources; Wall-mountable design for convenient installation & access

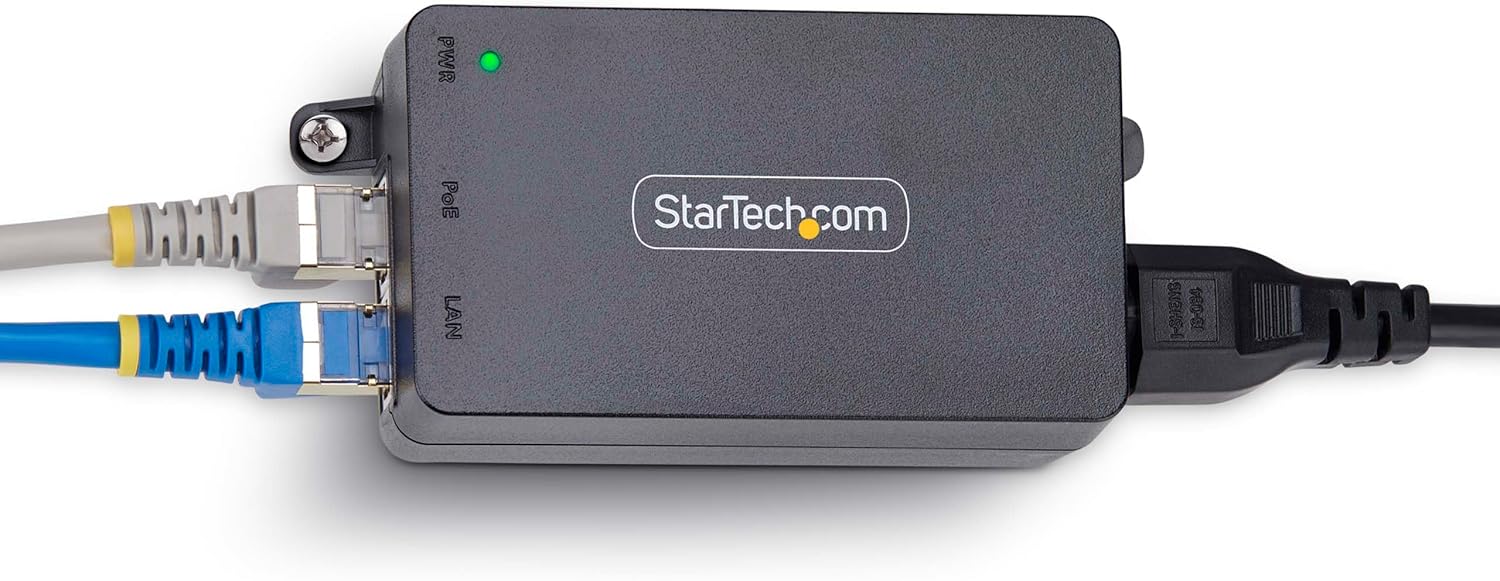

- HASSLE-FREE INSTALLATION: Wall-mountable design with front mounting holes; Streamline deployment without additional software/settings; Connect the PoE injector to the network (e.g., switch or router) & the remote PD via standard Cat5/e or Cat6/6a cabling
- MULTIPLE SPEEDS: Auto-negotiation between 1Gbps & 10/100Mbps Ethernet; Deliver data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat5/5e/6/6a cabling; Unmanaged inline injector w/built-in LAN transformer for electrical isolation reducing EMI
- GIGABIT POE INJECTOR: Single port PoE+ injector supports up to 1Gbps with auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) supports up to 30W PoE/PoE+; Features level-4 ESD protection for reliable performance and durability
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |

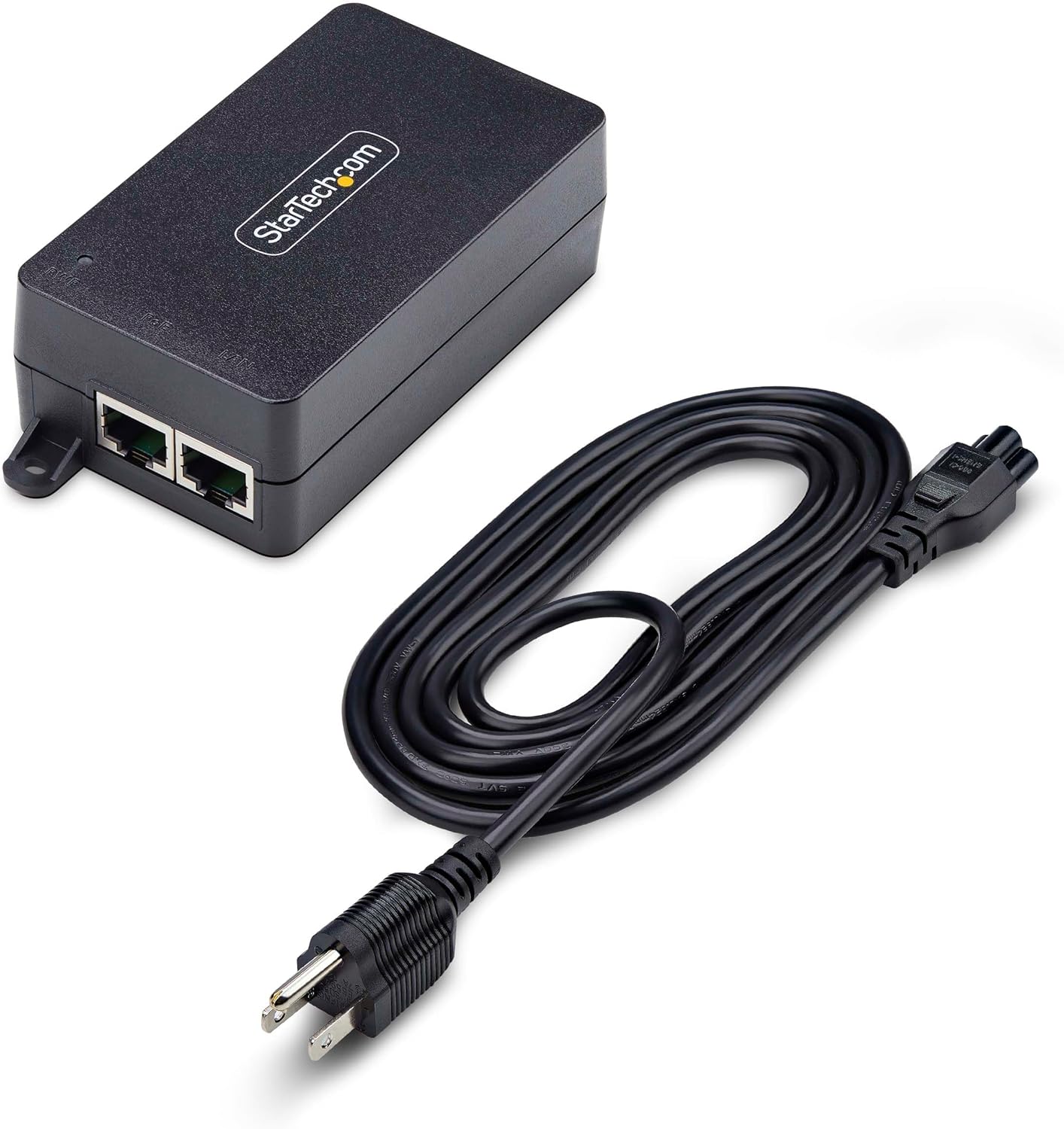

| Included Components | 1 PoE Injector, 1 6ft (1.8m) NA Power Cord, 1 Quick-Start Guide |
| Model | 1-Port Gigabit Poe+ Injector, Poe/Poe+ (802.3af/802.3at) 30w |
| Protection Type | Esd Protection |
| UPC | 065030905169 |
| Sizing & Dimensions | |
| Height | 1.3 inches |
| Length | 3.9 inches |
| Product Dimensions | 3.9 x 2.3 x 1.3 inches |
| Size | 3.9 x 2.3 x 1.3 inches |
| Weight | 3.52 ounces |
| Width | 2.3 inches |
| Technical Specifications | |
| Data Transfer Rate | 1000 Gigabits Per Second |
| Warranty | 2-Year Limited |
