Kensington Triple Display USB-C Docking Station with 100W PD for Dell, HP, Lenovo, Acer, ASUS, Razer
Customize

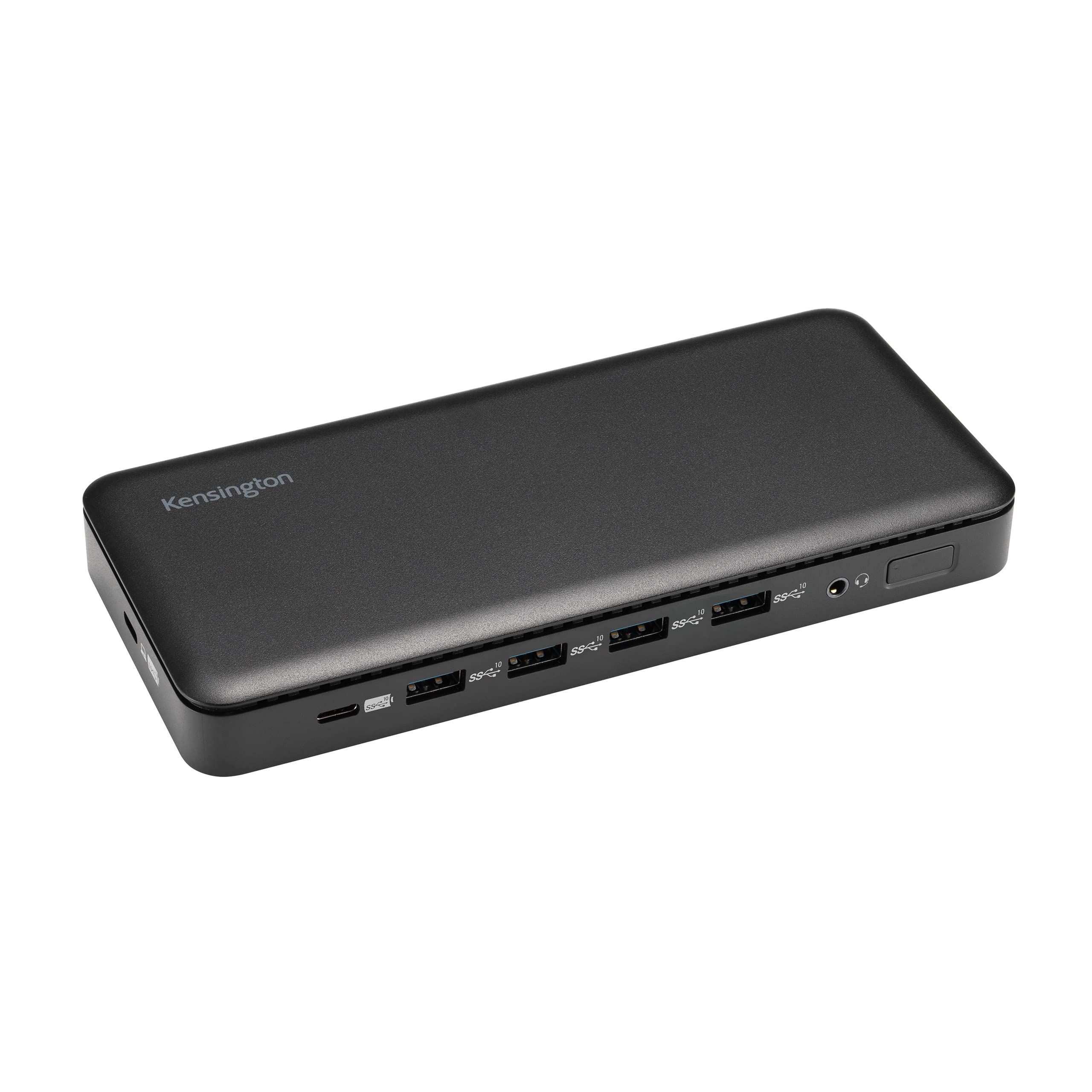

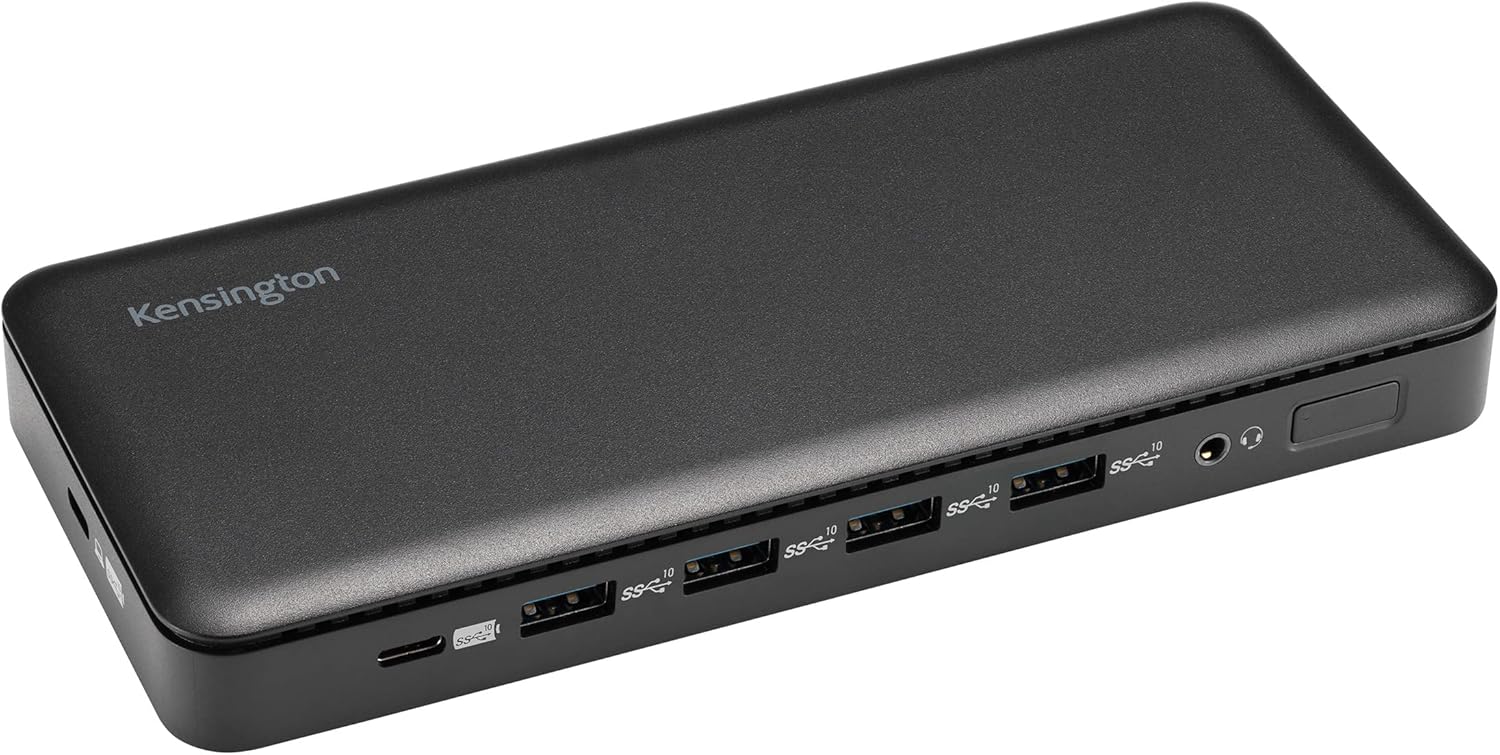

Kensington AD2030U3 Triple Display USB-C Docking Station is a versatile 10-in-1 docking solution that delivers triple video output, up to 100W Power Delivery for compatible laptops, and high-speed data transfer up to 10Gbps. The dock offers two DisplayPort++ and one HDMI 2.0 video outputs supporting HBR3/DP1.3/1.4 for dual 4K@60Hz or triple 1080p@60Hz on supported hosts, and HBR2/DP1.2 compatibility for legacy hosts. Connectivity includes four USB-A 3.2 Gen2 ports, one USB-C 3.2 Gen2 port, gigabit Ethernet, a 3.5mm combo audio jack, and an on-off power switch. The package includes a 1M USB-C connection cable and a 135W power supply delivering up to 100W laptop charging plus power for peripherals. The dock supports VESA mounting, a Kensington lock slot for security (lock sold separately), and is compatible with a wide range of Windows-based laptops (Dell, HP, Lenovo, Acer, ASUS, MSI), Chromebooks, Pixel Slate/Pixelbook, and Thunderbolt 3/4 devices at USB-C speeds. Works with macOS with single-monitor support. Includes free DockWorks software and is backed by a 3-year limited warranty and lifetime technical support.
- TAA compliant; 3 years of coverage and lifetime technical support

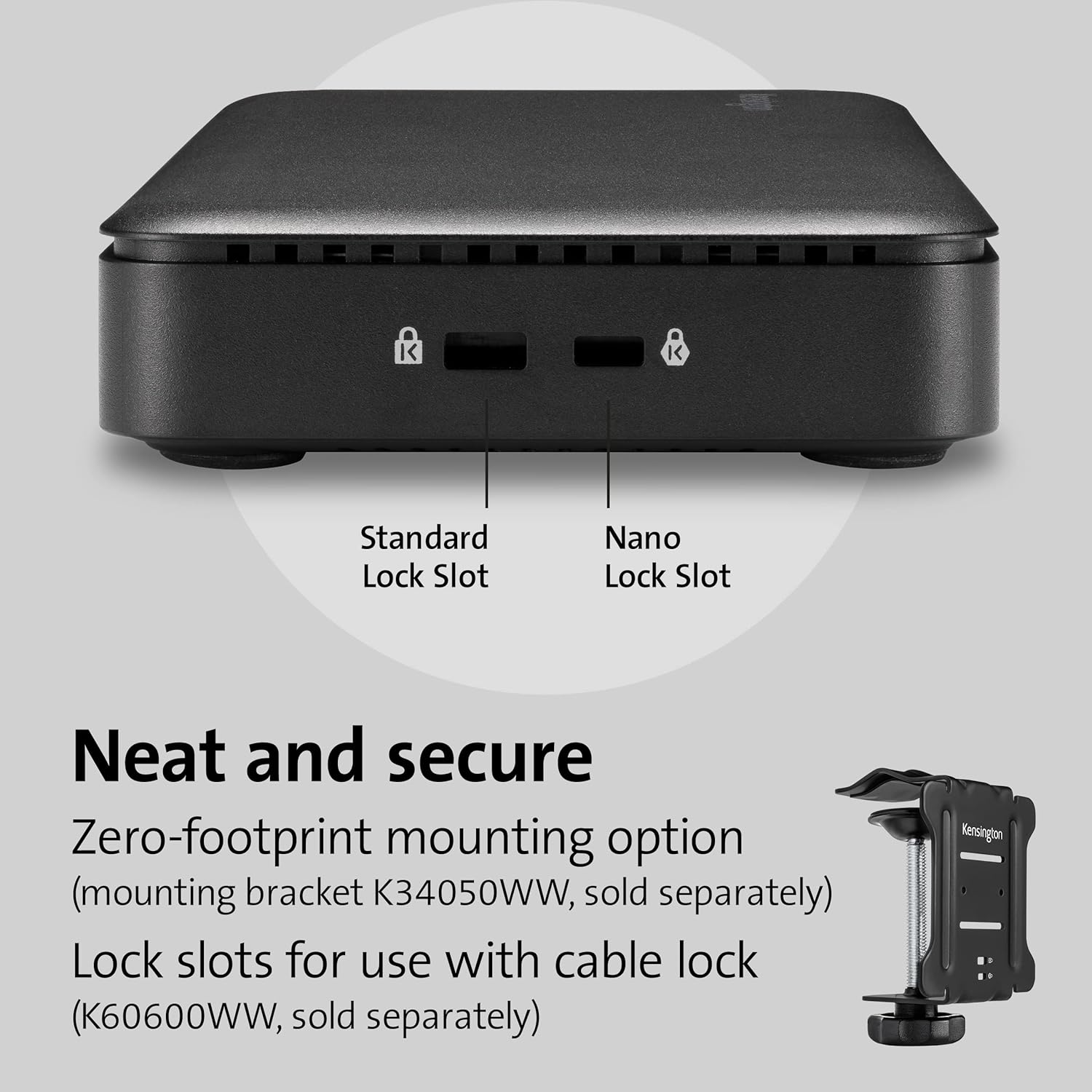

- Kensington lock slot for securing your investment (lock sold separately, see part # K60600WW); Vesa mountable, mount dock out of the way with our Vesa mounting bracket (sold separately), see part #K34050WW

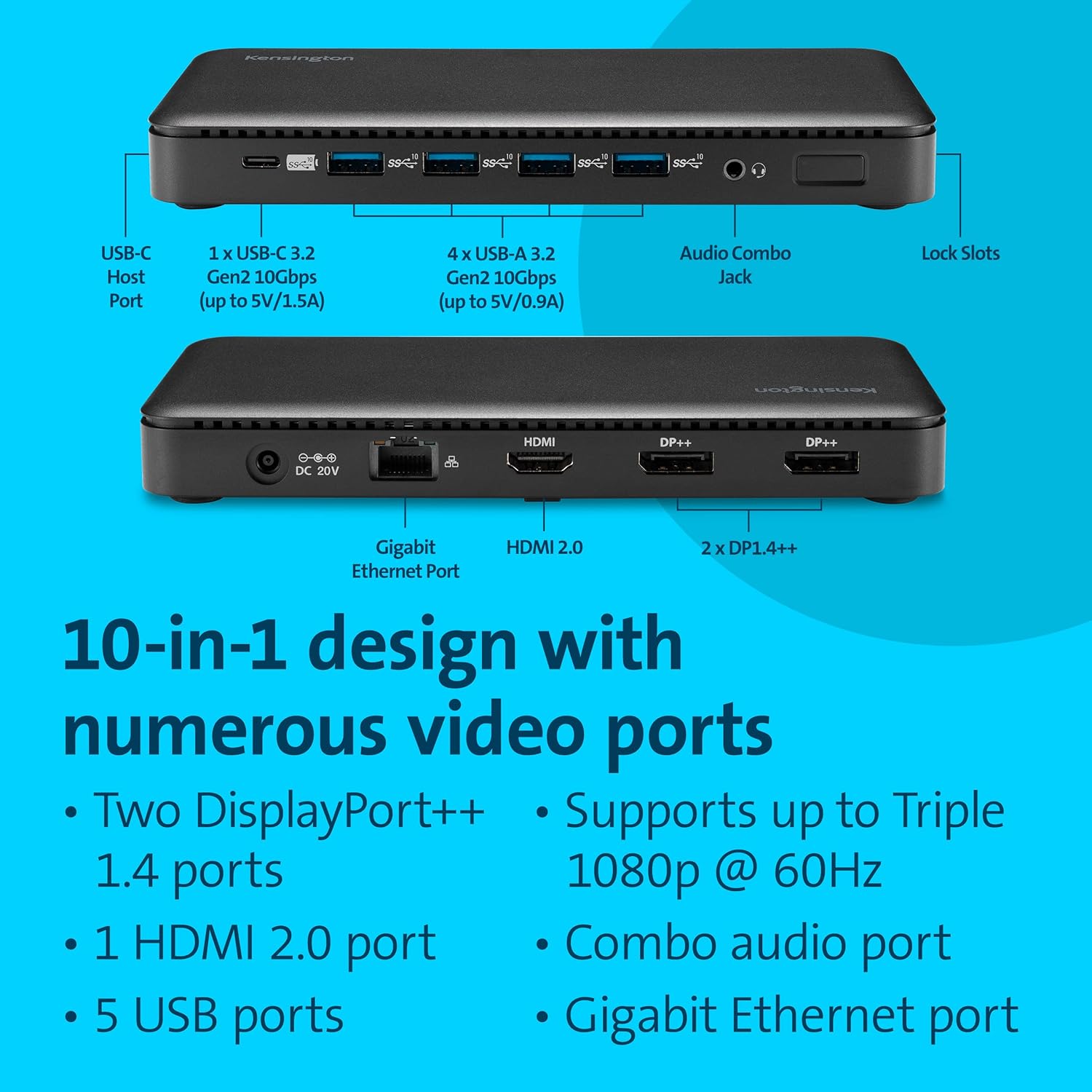

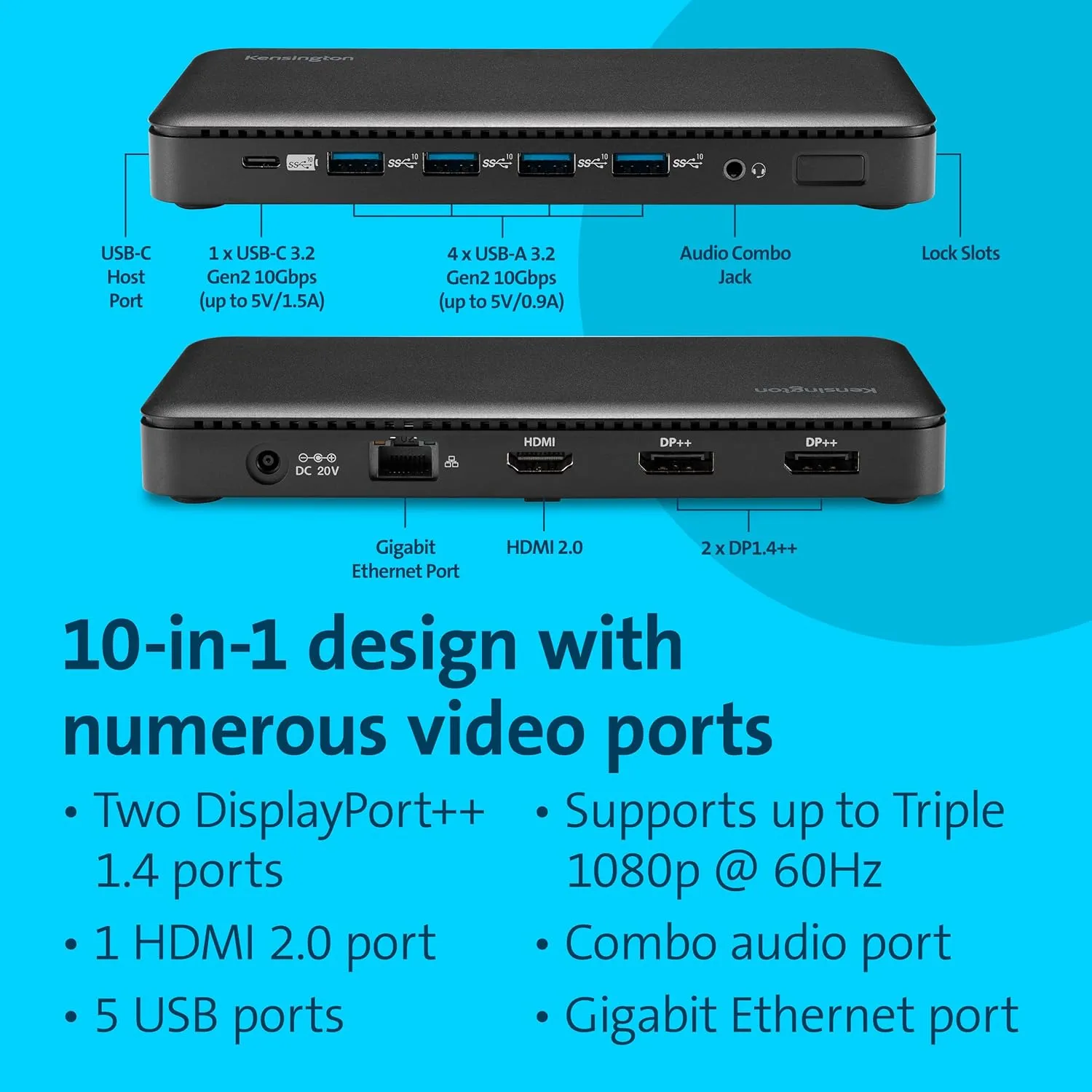

- Four USB-A 3.2 Gen2 ports (up to 5V/0.9A/10Gbps), one USB-C 3.2 Gen2 port (up to 5V/1.5A/10Gbps); 3.5mm combo headphone/speaker/mic jack; gigabit ethernet port; on-off switch

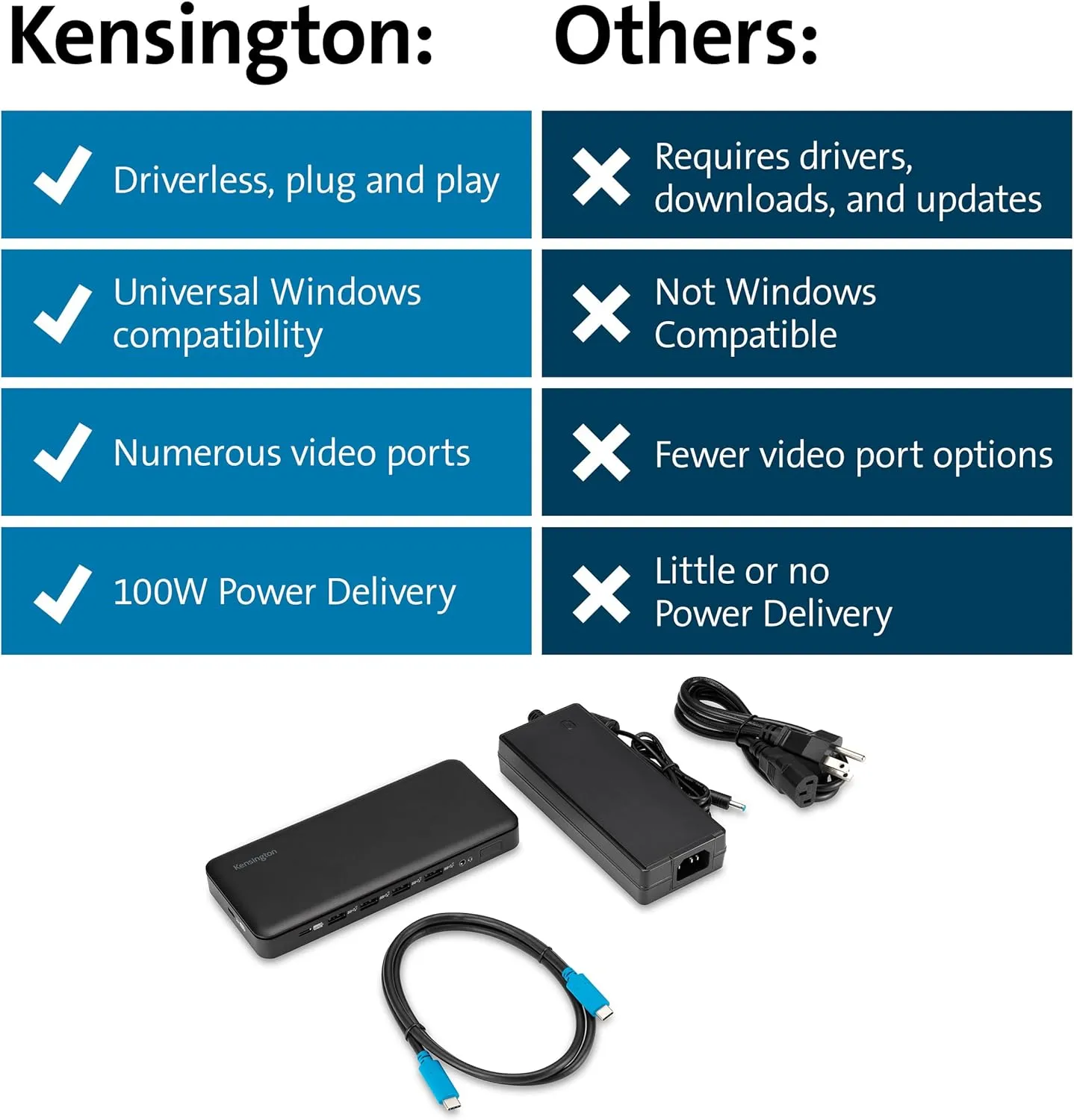

- 1M USB-C cable (included) connects the dock to your device; 135W power supply provides up to 100W laptop charging to laptops that accept Power Delivery plus power for peripherals
- HBR3/DP1.3/1.4 laptops get triple 1080P@60Hz, dual 4K@60Hz, or single 4k@60Hz; HBR2/DP1.2 laptops get triple 1080p@30Hz, dual 1080p@30Hz, or single 4k@30Hz
- Triple Display dock has three video-out ports for flexibility: 2 DisplayPort ++, 1 HDMI 2.0; dock supports HBR2 (DP1.2) and HBR3 (DP1.3/1.4) laptops; see Kensington part #K33021WW for a Displayport Cable (recommend DP 1.4)

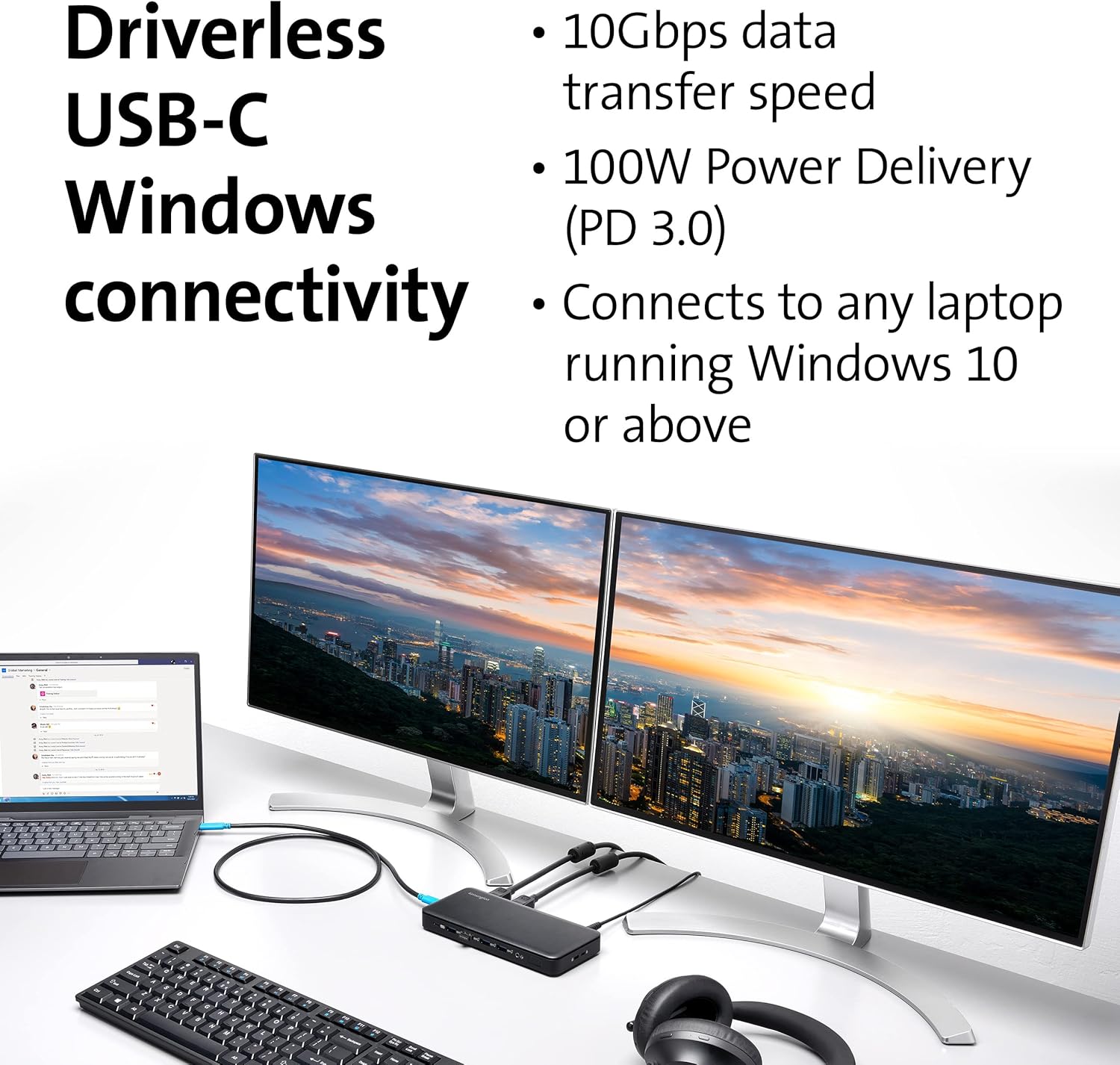

- Triple Display USB-C Docking Station with 100 Watts Power Delivery, compatible with laptops that support DisplayPort Alt Mode and Power Delivery. This includes devices from Dell, HP, Lenovo, Acer, ASUS, MSI, and other Windows-based devices, such as Microsoft Surface. Also compatible with Chromebooks, Pixel Slate, and PixelBook, as well as Thunderbolt 3 and 4 devices at USB-C speeds (10Gbps). Works with macOS but supports only a single monitor
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Compatible Devices | Laptops with USB-C Alt Mode |
| Hardware Interface | DisplayPort, Ethernet, HDMI, USB 3.2 Gen 2, USB Type C |
| Item model number | AD2030U3 |
| Number of Ports | 10 |
| Total HDMI Ports | 1 |
| Total USB Ports | 5 |
| UPC | 085896335580 |
| Sizing & Dimensions | |
| Height | 0.87 inches |
| Length | 7.09 inches |
| Product Dimensions | 7.09 x 3.15 x 0.87 inches |
| Weight | 0.6 pounds |
| Width | 3.15 inches |
| Technical Specifications | |
| Wattage | 100 |
