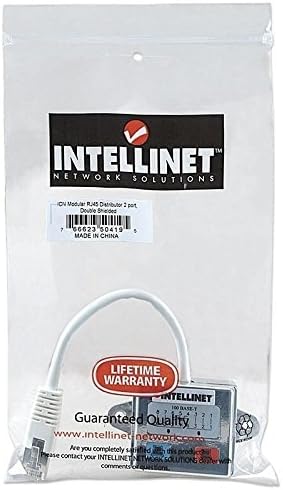

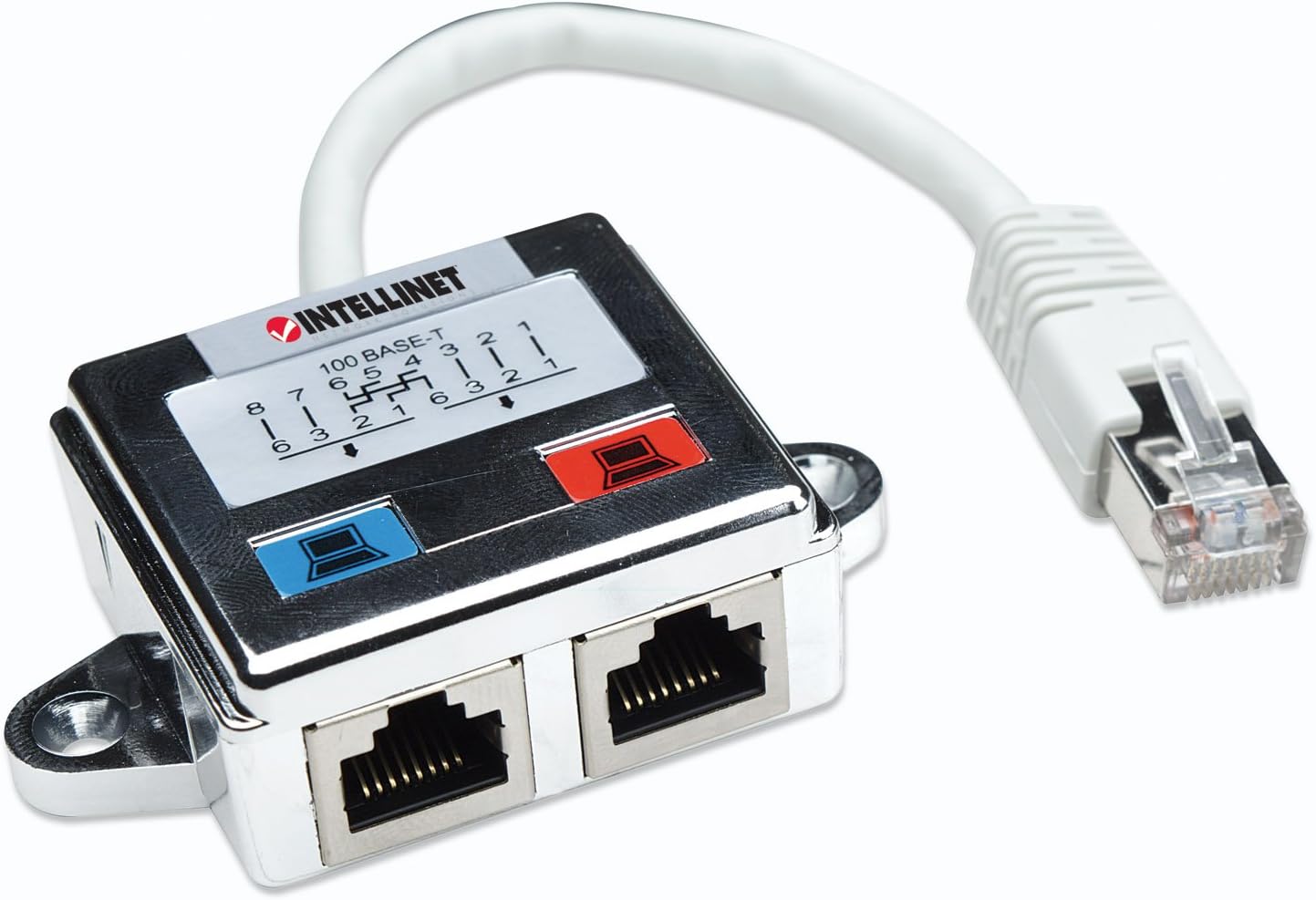

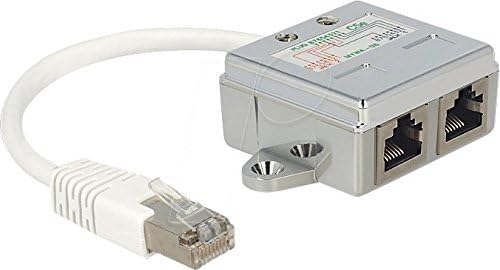

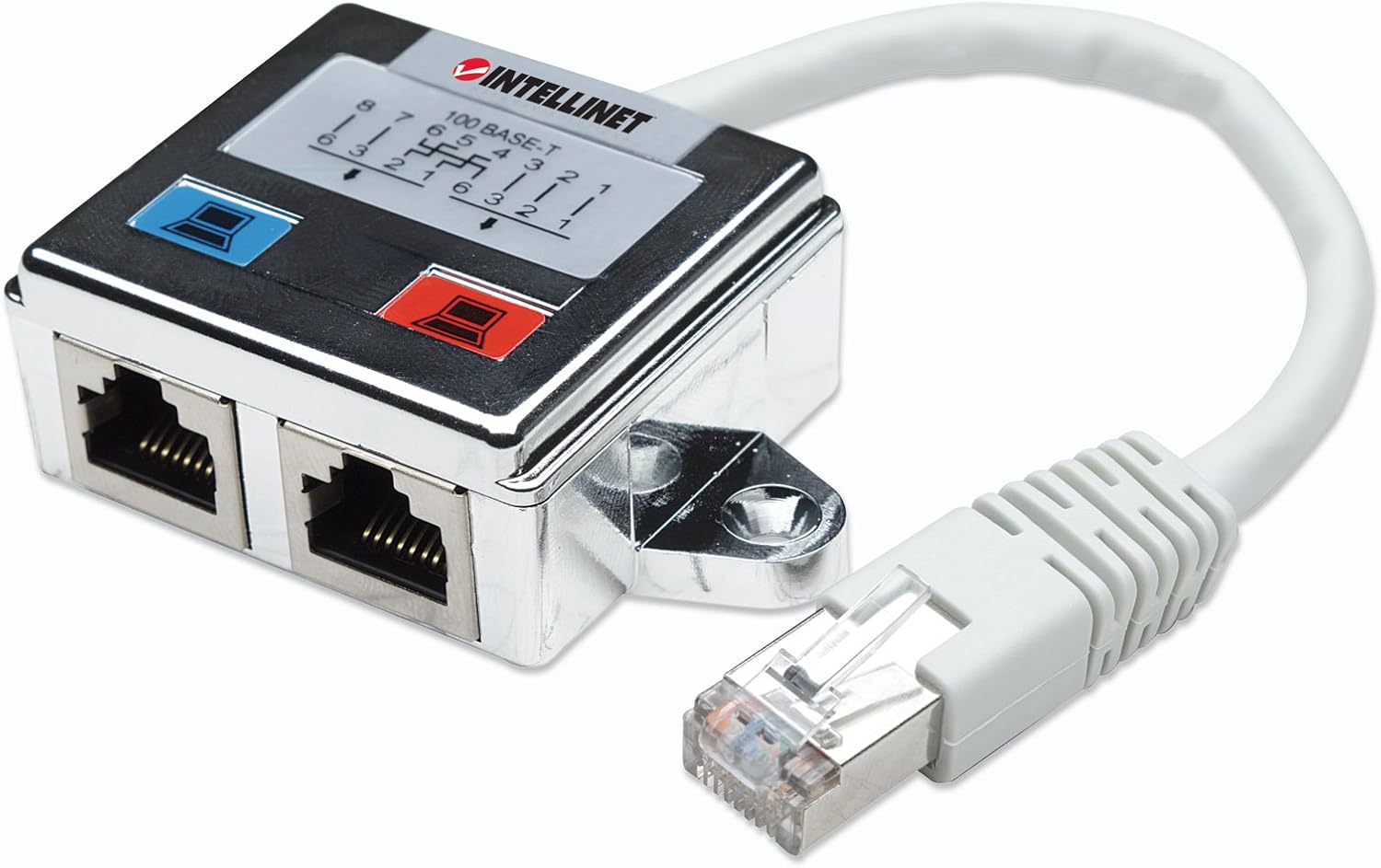

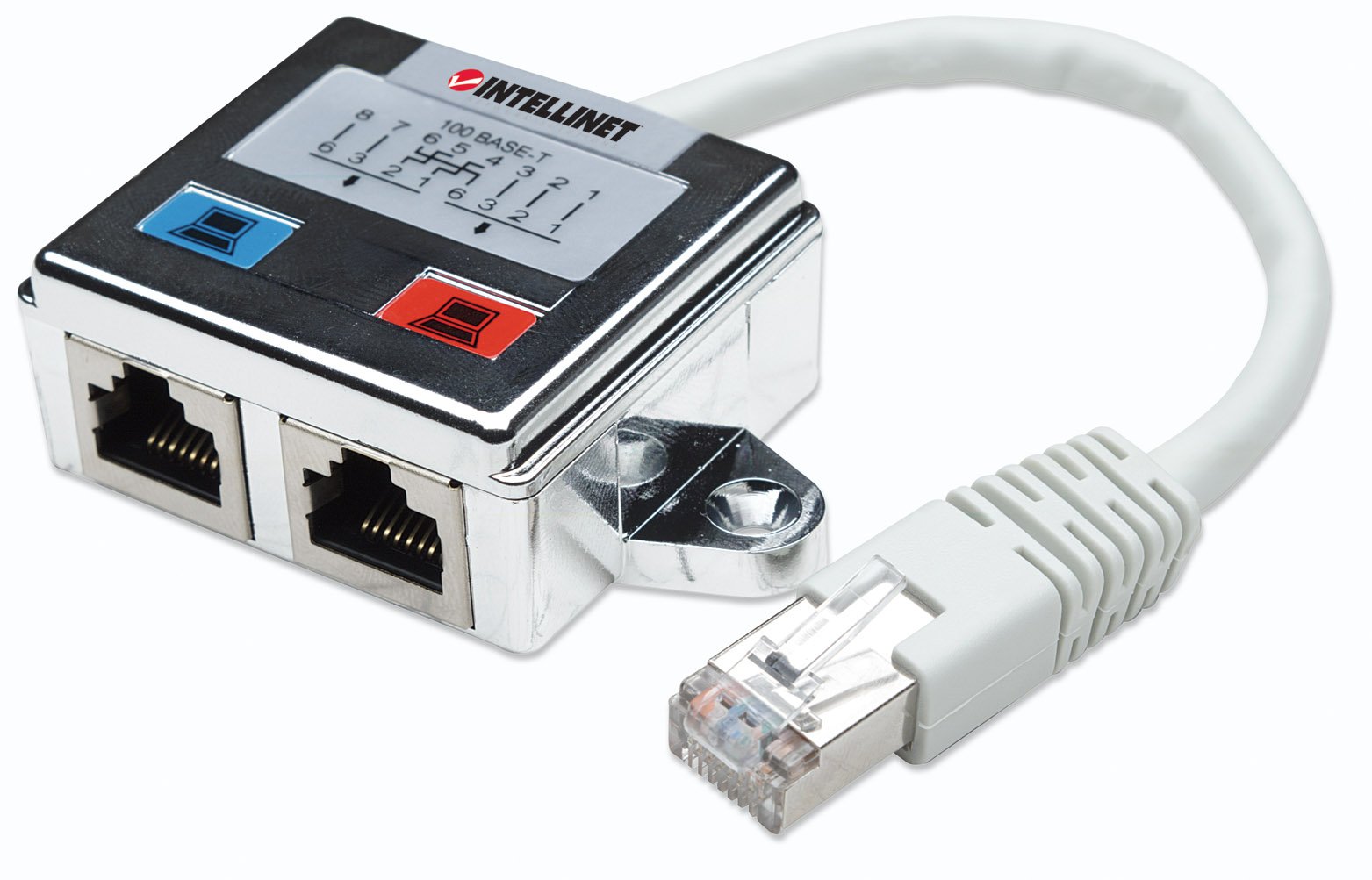

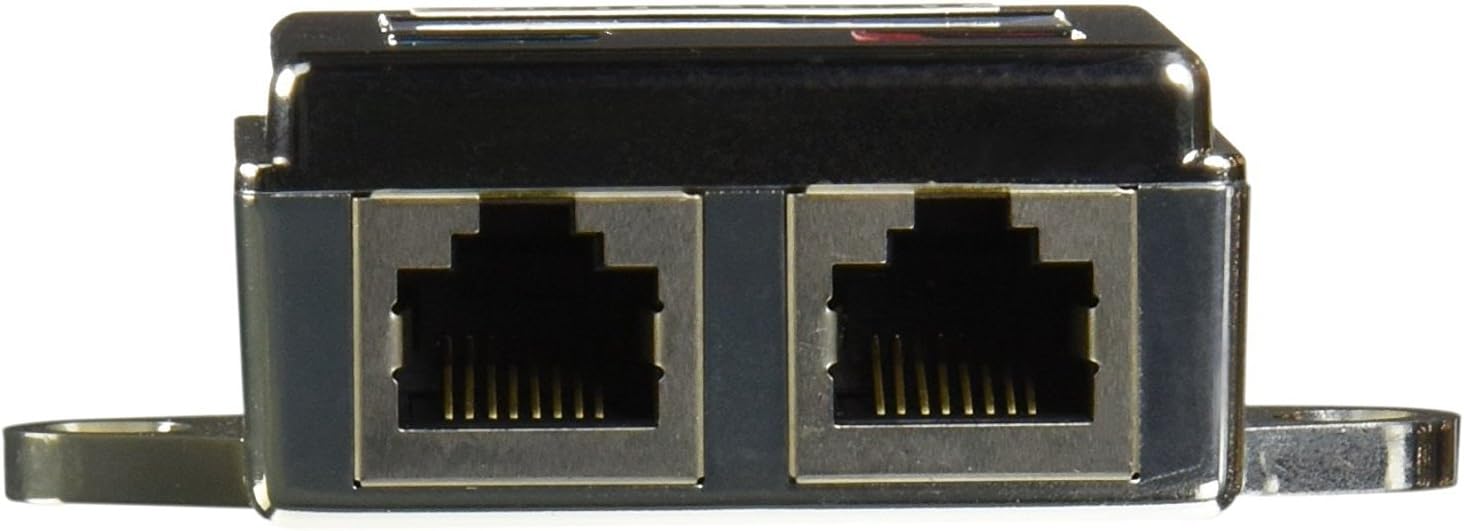

INTELLINET 2-Port Modular Distributor (504195)
INTELLINET 2-Port Modular Distributor (504195). Passive RJ45 female-to-female adapter that lets two RJ45 ports share one Cat5 shielded cable; used in pairs; couplers not included.
$4.79 $5.99
Customize
Available Quantity
387 GSA Compliant
No Product Details
MODULAR DISTRIBUTOR - NETWORKING / PORTS QTY: 2 - ALLOWS YOU TO ONLY LAY ONE CABLE RUN FOR TWO CONNECTIONS. Requires a coupler (female to female) for connection on each end of the network cable; couplers not included. Used in pairs (one modular distributor on each end of the network cable). Allows two RJ45 ports to share one Cat5 shielded network cable. This item is not a 2-port hub or switch, and it cannot be used in this fashion. These must be used in pairs, one at each end of a CAT5 cable. Allows you to run two Ethernet circuits over the same CAT5 cable run. Used to add a second device without the need to run another cable to the same location. It WILL NOT create 2 ports from 1 switch/hub port.
- Requires a coupler (female to female) for connection on each end of the network cable; couplers not included
- Used in pairs (one modular distributor on each end of the network cable)
- Allows you to only lay one cable run for two connections
- Allows two RJ45 ports to share one Cat5 shielded network cable
- This item is not a 2-port hub or switch, and it cannot be used in this fashion. These must be used in pairs, one at each end of a CAT5 cable. Allows you to run two Ethernet circuits over the same CAT5 cable run. Used to add a second device without the need to run another cable to the same location. It WILL NOT create 2 ports from 1 switch/hub port
Specifications:
| Materials & Construction | |
| Color | red |
| Material | Shielding material |
| Outer Material | Shielding material |
| Product Details | |
| Cable Type | Ethernet |
| Compatible Devices | Computer, Server, Router, Switch |
| Compatible Phone Models | Potentially compatible with smartphones, specific models unknown |
| Connector Gender | Female-to-Female |
| Connector Type | RJ45 |
| Data Transfer Rate | 0.1 Gigabits Per Second |
| Ethernet cable category | Cat 5 |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Maximum Voltage | 100 Volts (DC) |
| Model Name | 504195 |
| Number of Items | 1 |
| Number of Pins | 16 |
| Number of USB 2.0 Ports | 1 |
| Outer Material | Shielding material |
| Specification Met | No |
| Sizing & Dimensions | |
| Height | 1.18 inches |
| Length | 2.36 inches |
| Product Dimensions | 2.36 x 3.94 x 1.18 inches |
| Weight | 1.6 ounces |
| Width | 3.94 inches |
| Technical Specifications | |
| Data Transfer Rate | 0.1 Gigabits Per Second |
| Maximum Voltage | 100 Volts (DC) |
| Number of Pins | 16 |
| Number of USB 2.0 Ports | 1 |
