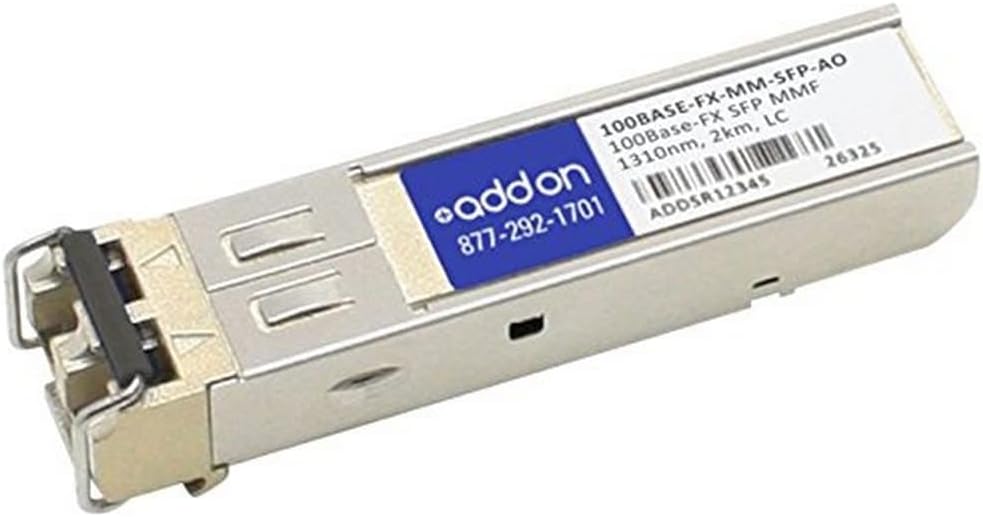

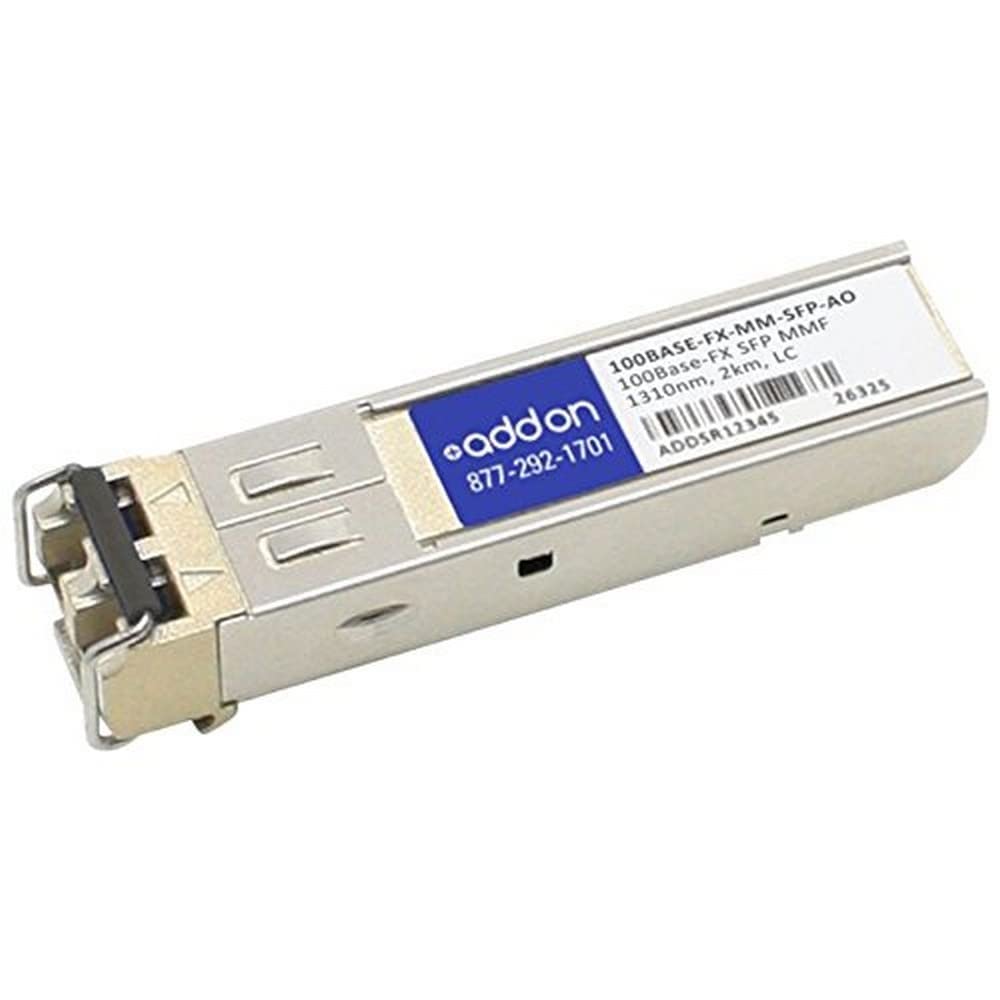

Addon-Networking SFP Mini-GBIC Transceiver Module, LC Multi-Mode (100BASE-FX-MM-SFP-AO)
Customize
ADDON HP 100BASE-FX-MM-SFP COMPATIBLE TAA COMPLIANT 100BASE-FX SFP TRANSCEIVER (MMF, 1310NM, 2KM, LC) HP 100BASE-FX-MM-SFP Compatible 100Base-FX SFP Transceiver (MMF, 1310nm, 2km, LC). A HP SFP transceiver that operates at 1310nm over multi-mode fiber, with a maximum reach of 2km connected via a LC connector. This HP compatible SFP transceiver has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. The SFP transceiver will initialize and perform identically to HP's transceiver and is built to meet or exceed HP's specifications, and comply with MSA (Multi-Source Agreement) standards. The actual part shipped may have a different part number, but will be functionally identical and 100% compatible. Trade Agreements Act (TAA) versions of this part are available.
- Compliant with MSA SFP specification
- Hot pluggable
- Duplex LC connector interface
- Singer 3.3 V power supply and TTL logic interface
- Distance up to 2 km with 50/125 μm MMF
- 1310 nm laser transmitter
- Operating data rate up to 155 Mbps
Specifications:
| Product Details | |
| Is Discontinued By Manufacturer | No |
| Series | 100BASE-FX-MM-SFP-AO |
| Sizing & Dimensions | |
| Height | 1.2 inches |
| Length | 4.75 inches |
| Product Dimensions | 4.75 x 2.75 x 1.2 inches |
| Weight | 5.6 ounces |
| Width | 2.75 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 4.75 x 2.75 x 1.2 inches |
| Operating Data Rate | Up to 155 Mbps |
| Operating System | PC |
| Power | 3.3 V |
| Wavelength | 1310 nm |
