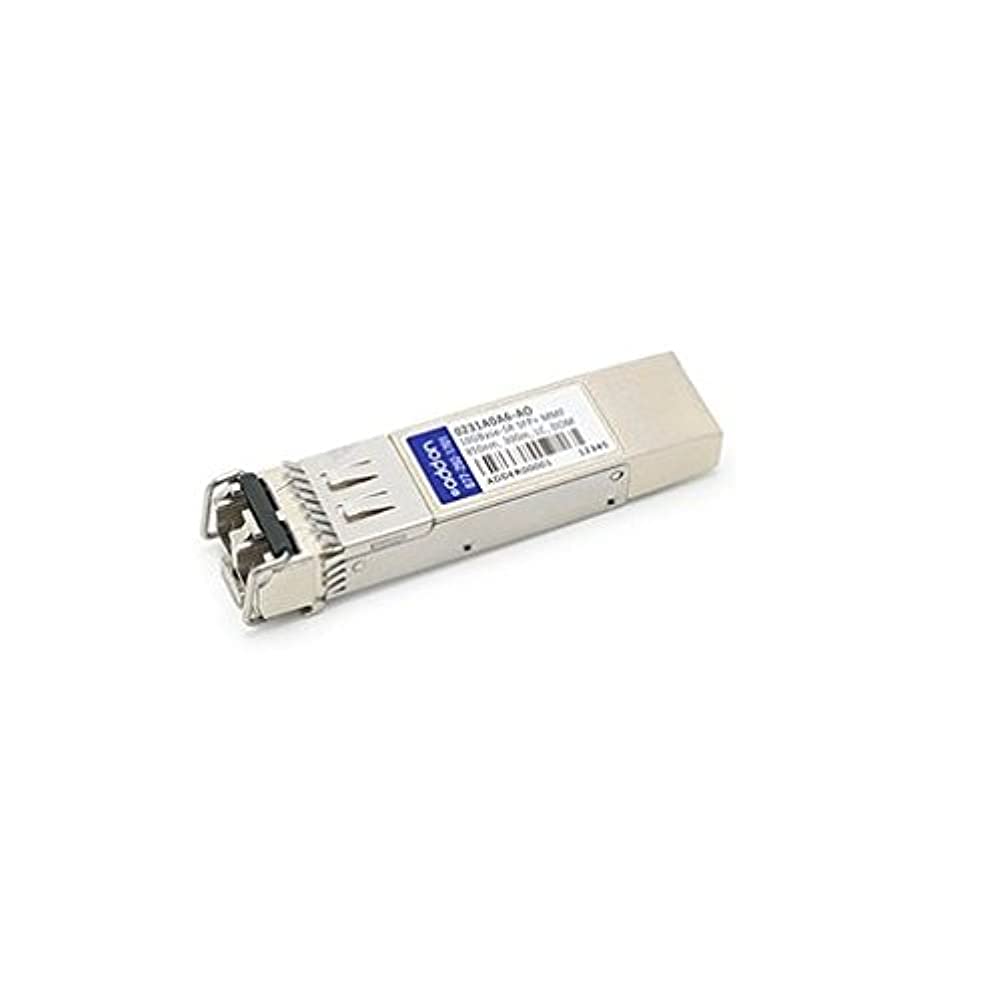

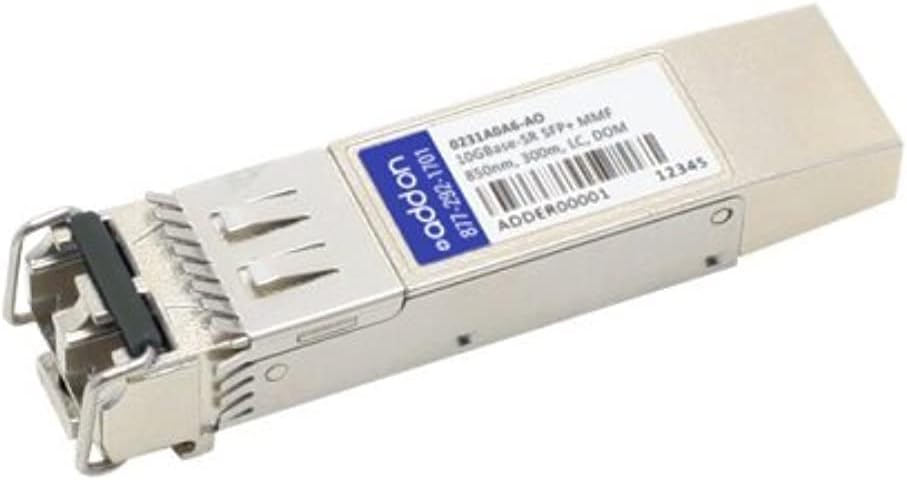

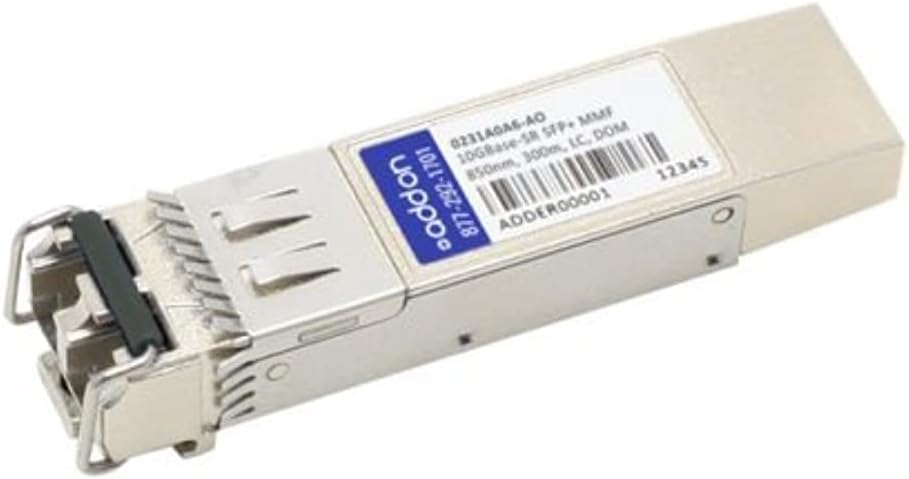

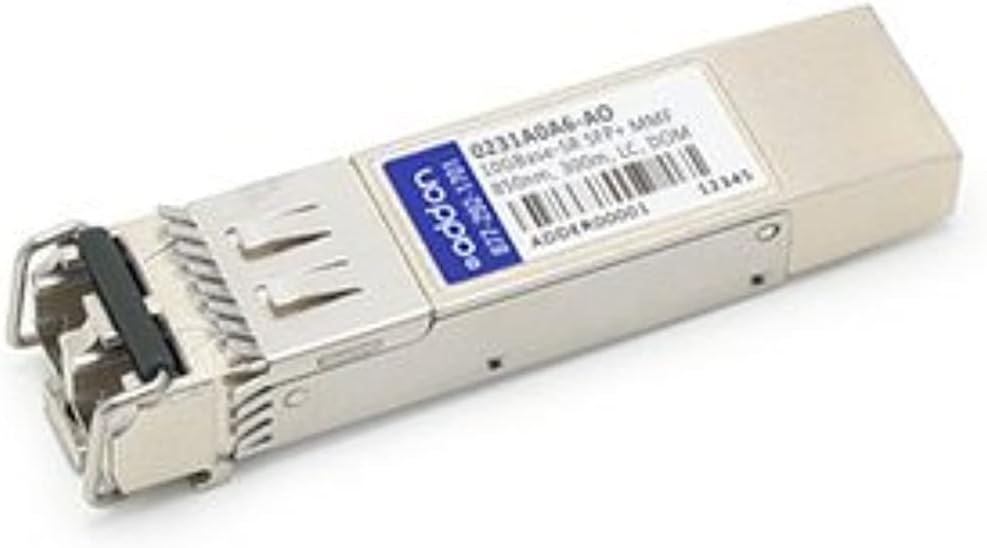

AddOn 0231A0A6 Compatible 10GBASE-SR SFP+ Transceiver (LC, 850nm, 300m)
Customize
Manufacturer: ADDONPart: 0231A0A6-AOUPC: 821455599860Category: Networking - Transceivers & Multiplexers - Tranceivers &Tranceiver ModulesDescription: AddOnAddOn - SFP+ transceiver module (equivalent to: HP 0231A0A6) - 10Gigabit Ethernet - 10GBase-SR - LC multi-mode - up to 984 ft - 850 nm -for 3Com Switch 4500, 4500 PWR, 4500G, 4500G PWR, 4800G, 4800G PWRDescriptionDescription: 0231A0A6 HP COMPAT 10GBASE-SR XCVR TAAAddOn - SFP+ transceiver module (equivalent to: HP 0231A0A6) - 10Gigabit Ethernet - 10GBase-SR - LC multi-mode - up to 984 ft - 850 nm -for 3Com Switch 4500, 4500 PWR, 4500G, 4500G PWR, 4800G, 4800G PWRThis HP 0231A0A6 compatible SFP+ transceiver provides 10GBase-SRthroughput up to 300 m over multi-mode fiber (MMF) at a wavelength of850 nm using a LC connector. It is guaranteed to be 100% compatiblewith the equivalent HP transceiver. This easy to install, hot swappabletransceiver has been programmed, uniquely serialized and data-trafficand application tested to ensure that it will initialize and performidentically. Digital optical monitoring (DOM) support is also presentto allow access to real-time operating parameters.Product Description AddOn - SFP+ transceiver module - 10 GigabitEthernetDevice Type SFP+ transceiver module - LC multi-modeForm Factor Plug-in moduleCabling Type 10GBase-SRData Transfer Rate 10 GbpsOptical Wave Length 850 nmData Link Protocol 10 Gigabit EthernetMax Transfer Distance 984 ftOEM Manufacturer Equivalent Part Number HP 0231A0A6Manufacturer Warranty Limited lifetime warrantyDesigned For 3Com Switch 4500, 4500 PWR, 4500G, 4500G PWR, 4800G, 4800GPWRExtended SpecificationsGeneralDevice Type SFP+ transceiver moduleForm Factor Plug-in module
- Product Type - NETWORKING DEVICE
- Item Package Quantity - 1
- Item Package Weight - 0.4 Pounds
- Item Package Dimension: 8.7L x 6.7W x 5.2H inches
- 10GBase-SR
- 10 Gigabit Ethernet
- Optical Fiber Multi-mode
- 100% compatible and guaranteed to work
Specifications:
| Product Details | |
| Is Discontinued By Manufacturer | No |
| Item Dimensions Lx Wx H | 4.75 x 2.75 x 1.2 inches |
| Item model number | 0231A0A6-AO |
| Product Dimensions | 4.75 x 2.75 x 1.2 inches |
| Voltage | 5 Volts |
| Sizing & Dimensions | |
| Height | 1.2 inches |
| Length | 4.75 inches |
| Product Dimensions | 4.75 x 2.75 x 1.2 inches |
| Weight | 3.2 ounces |
| Width | 2.75 inches |
| Technical Specifications | |
| Data Transfer Rate | 10 Gbps |
| Max Transfer Distance | 984 ft |
| Optical Wave Length | 850 nm |
| Voltage | 5 Volts |
