Monoprice 4K Pro HDBaseT Extender Kit, IR, 70 Meters with PoC, RS232, HDCP 2.2
Customize

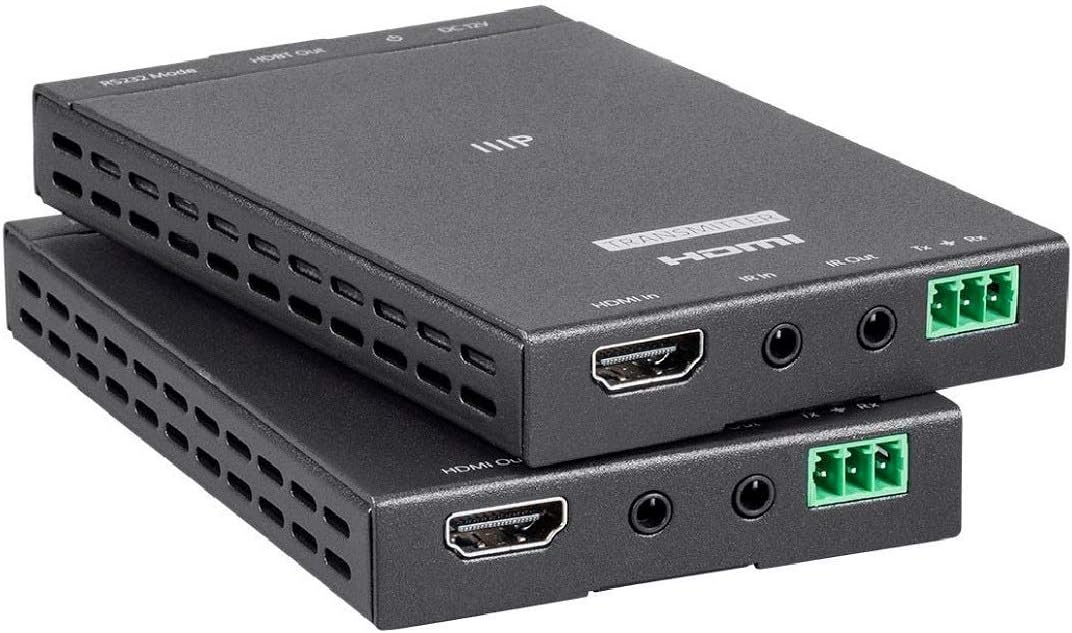

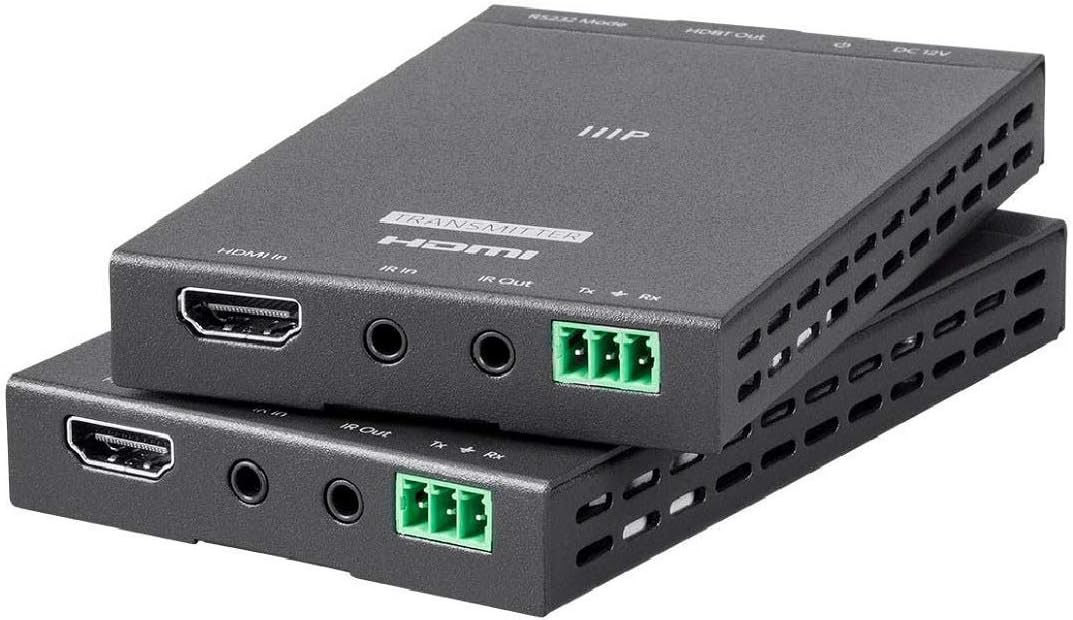

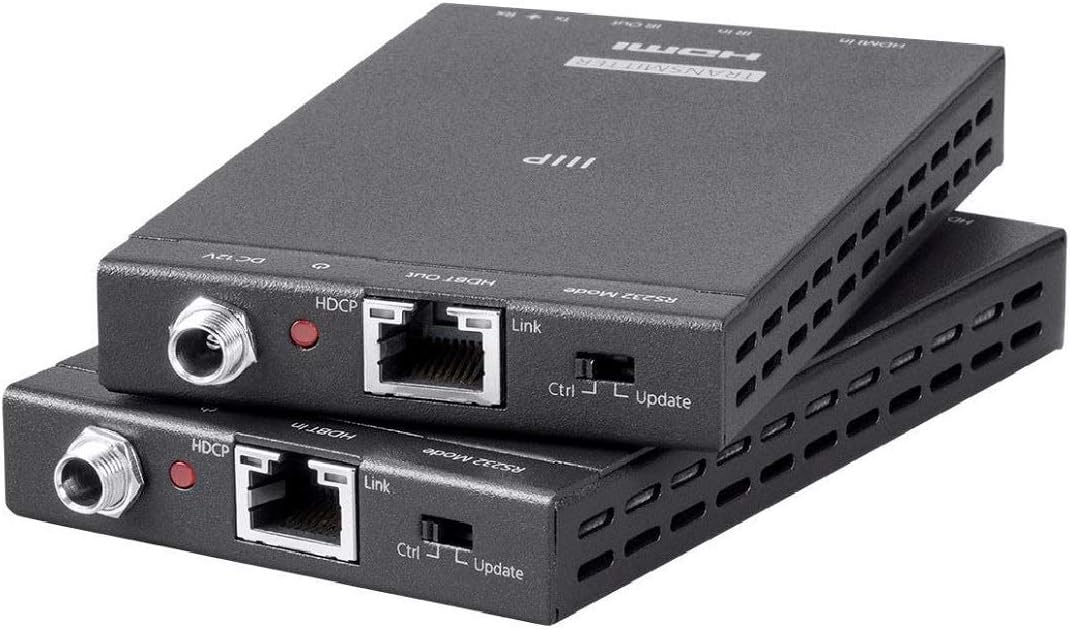

Monoprice Blackbird 4K Pro HD BaseT Extender Kit, IR, 70m with PoC, RS232, HDCP 2.2Blackbird 4K Pro DBase Extender Kit, IR, 70m with Pock, RS232, HDCP 2. 2 The Blackbird trade; 4K Pro HDBaseT Extender distributes HDMI signals over a single Cat6 cable to distances up to 70 meters. It supports the Pock feature, eliminating the need for power adapters on the receiver. Features: • Supports HDCP 2. 2 • Supports resolutions up to 4K@60Hz • Transmits 4K video to distances up to 35 meters • Transmits 1080p video to distances up to 70 meters • Supports the Power over Cable (Pock) feature • Supports IR and RS232 extension • IR accessories not included Full Specs • Transmitter Inputs: 1x HDMI, 1x IR (3. 5mm), 1x RS232 • Transmitter Outputs: 1x HDBT (RJ45), 1x IR (3. 5mm) • Receiver Inputs: 1x HDBT (RJ45), 1x IR (3. 5mm), 1x RS232 • Receiver Outputs: 1x HDMI, 1x IR (3. 5mm) • Transmission Standard: DBase • Maximum Bandwidth: 10. 2 Gbps • Maximum Resolution: 4K@60Hz 4: 2: 0 • HDCP Version: 2. 2 • 4K Transmission Distance: 115 feet (35 meters) • 1080p Transmission Distance: 230 feet (70 meters) • Input Power: 12 VDC, 1A • AC Adapter Input Power: 100 ~ 240 VAC, 50/60 Hz • Maximum Power Consumption: 10 watts • Operating Temperature: +14 ~ +122° F (-10 ~ +50° C) • Operating Humidity: 0 ~ 90% RH, noncondensing • Transmitter Dimensions: 4. 7" x 0. 6" x 2. 9" (120 x 16 x 74 mm) • Receiver Dimensions: 4. 7" x 0. 6" x 2. 9" (120 x 16 x 74 mm) • Transmitter Weight: 8. 5 oz. (240g) • Receiver Weight: 8. 5 oz. (240g)Monoprice High Speed HDMI Cable - 2 Feet - Black| Certified Premium, 4K@60Hz, HDR, 18Gbps, 36AWG, YUV, 4:4:4 - Ultra Slim Series (124183)Monoprice's Certified Premium High Speed HDMI® Cable is designed to meet and exceed the highest standards of HDMI performance. Capable of delivering 18Gbps bandwidth, these are the only cables to be tested and certified by HDMI Authorized Test Centers to ensure they support all features in the latest HDMI specification. the Certified Premium High Speed HDMI Cable is the perfect choice for all your 4K and High Speed HDMI display needs.Premium Certified: These Certified Premium High Speed HDMI® Cables are the only HDMI cables to be tested and certified by HDMI Authorized Test Centers to ensure they support all features in the latest HDMI specification.Comprehensive Testing: Each cable length has been individually tested and certified to deliver the full 18Gbps bandwidth with a high level of EMI resistance.Dual Video Stream: This High Speed HDMI Cable supports the simultaneous delivery of dual video streams to a single display screen. This enables use of the Multi View feature found on newer LG and Samsung televisions, so you can watch football while the kids play video games on the same display.

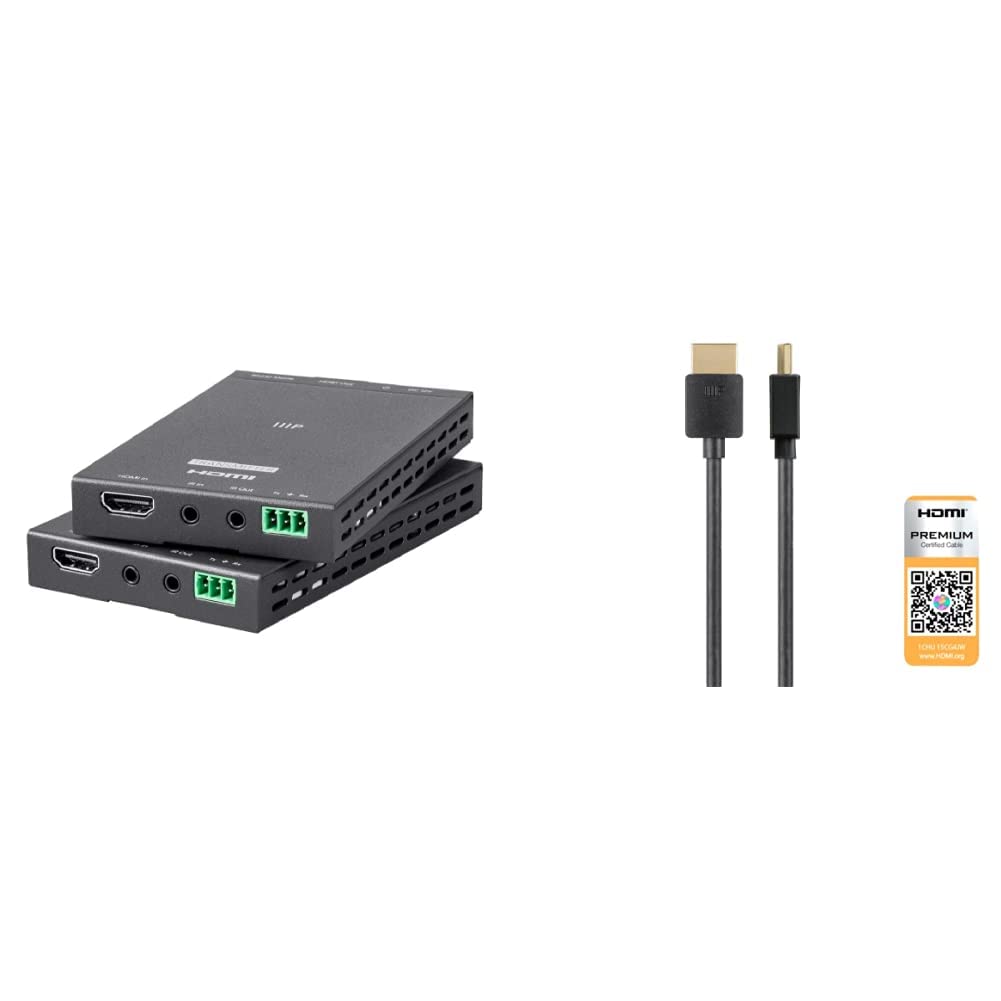

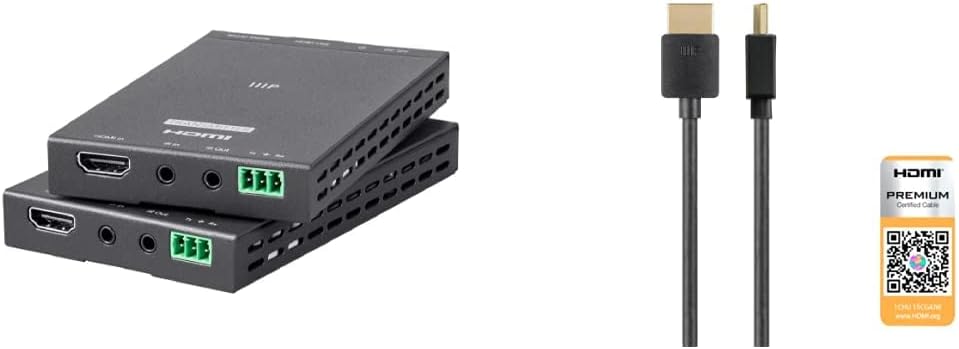

- HDMI cable and extender kit bundle for high performance 4K video transmission.
- HDMI cable supports Dual Video Stream for Multi View on supported TVs.
- Extender kit supports IR and RS232 extension for control signals.

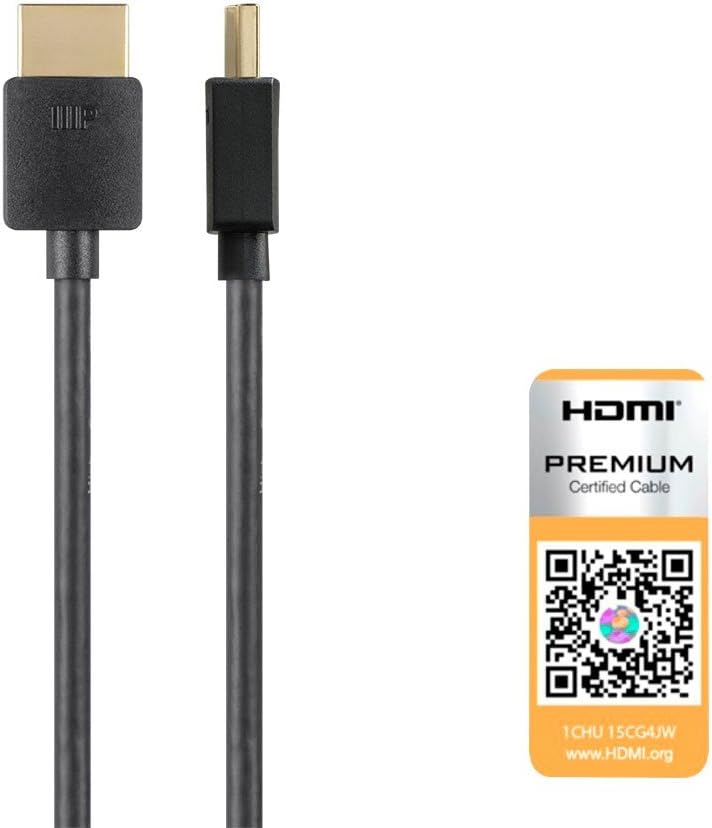

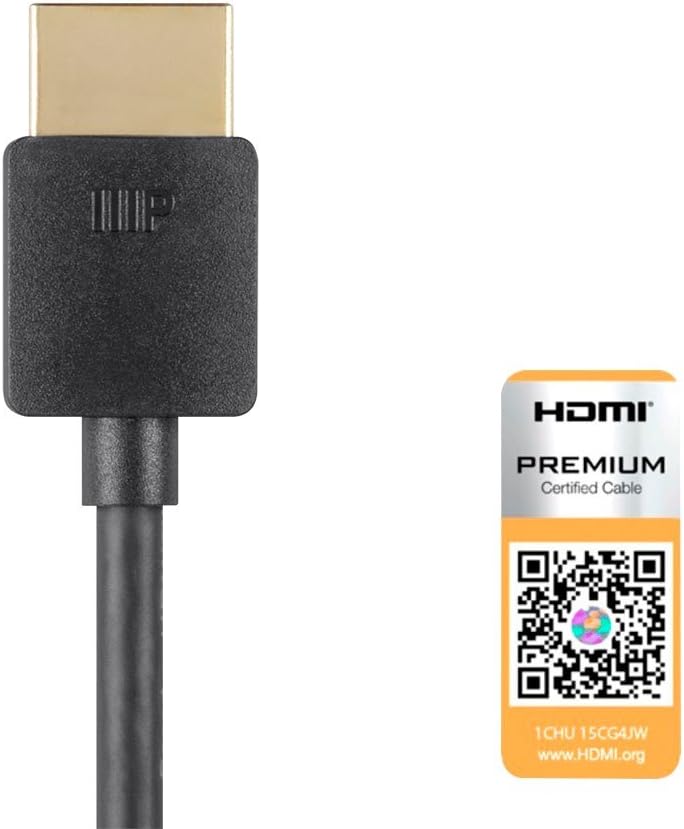

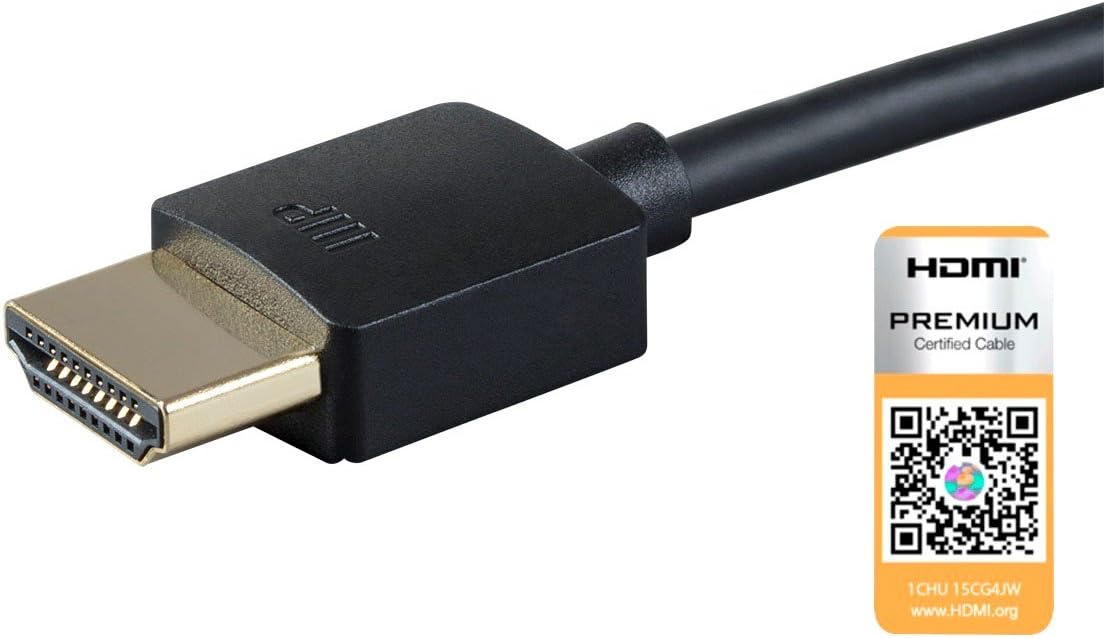

- Certified Premium HDMI cable tested to support 18Gbps bandwidth for all latest HDMI features like 4K@60Hz, HDR.
- Supports HDCP 2.2 to transmit 4K video up to 35 meters and 1080p video up to 70 meters over single Cat6 cable.
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Color | Black |
| Compatible Devices | Television |
| Connectivity Technology | HDMI |
| Connector Type | HDMI |
| Item model number | 4K Pro HDBaseT Extender |
| Output Power | 1E+1 Watts |
| Special Feature | HDCP 2.2, 4K@60Hz, HDR, PoC |
| Total HDMI Ports | 1 |
| Video encoding | H.264, H.265/HEVC |
| Wattage | 10 watts |
| Sizing & Dimensions | |
| Height | 3.2 inches |
| Length | 8.6 inches |
| Product Dimensions | 3.2 x 7.35 x 8.6 inches |
| Weight | 1.84 pounds |
| Width | 7.35 inches |
| Technical Specifications | |
| HDCP Version | 2.2 |
| Input Power | 12 VDC, 1A |
| Maximum Bandwidth | 10.2 Gbps |
| Maximum Power Consumption | 10 watts |
| Maximum Resolution | 4K@60Hz 4:2:0 |
| Operating Humidity | 0 ~ 90% RH, noncondensing |
| Operating Temperature | +14 ~ +122° F (-10 ~ +50° C) |
| Transmission Standard | DBase |
