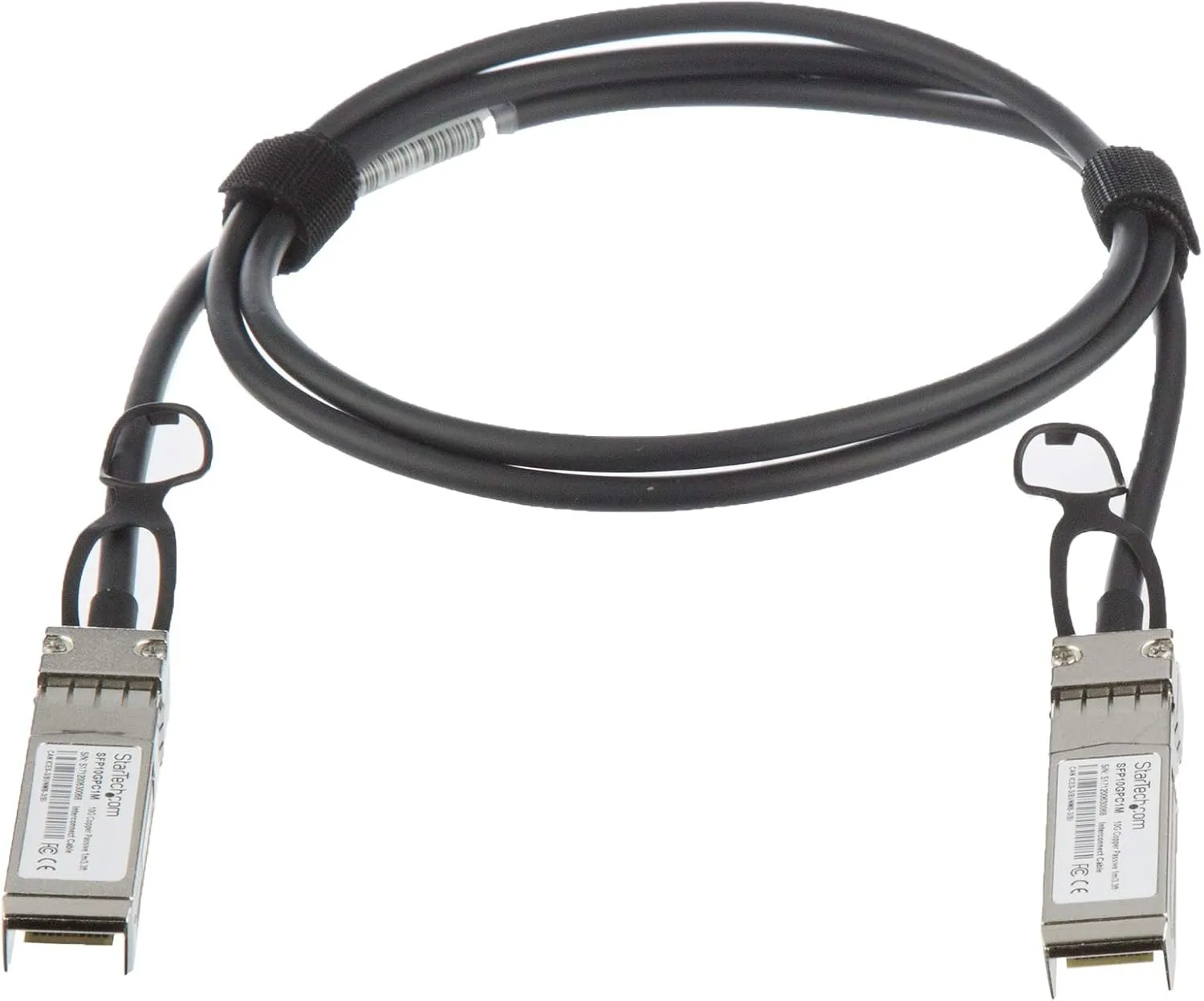

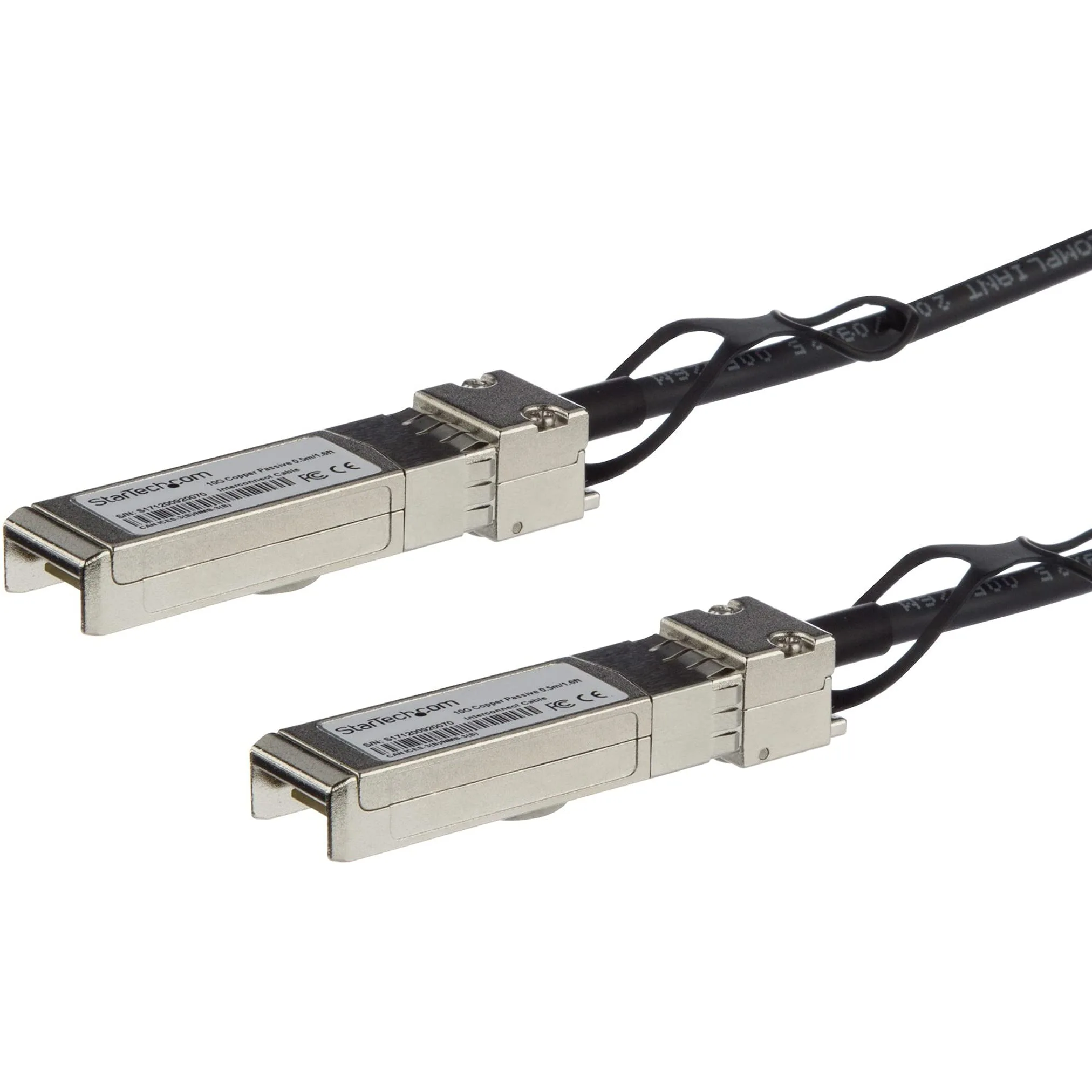

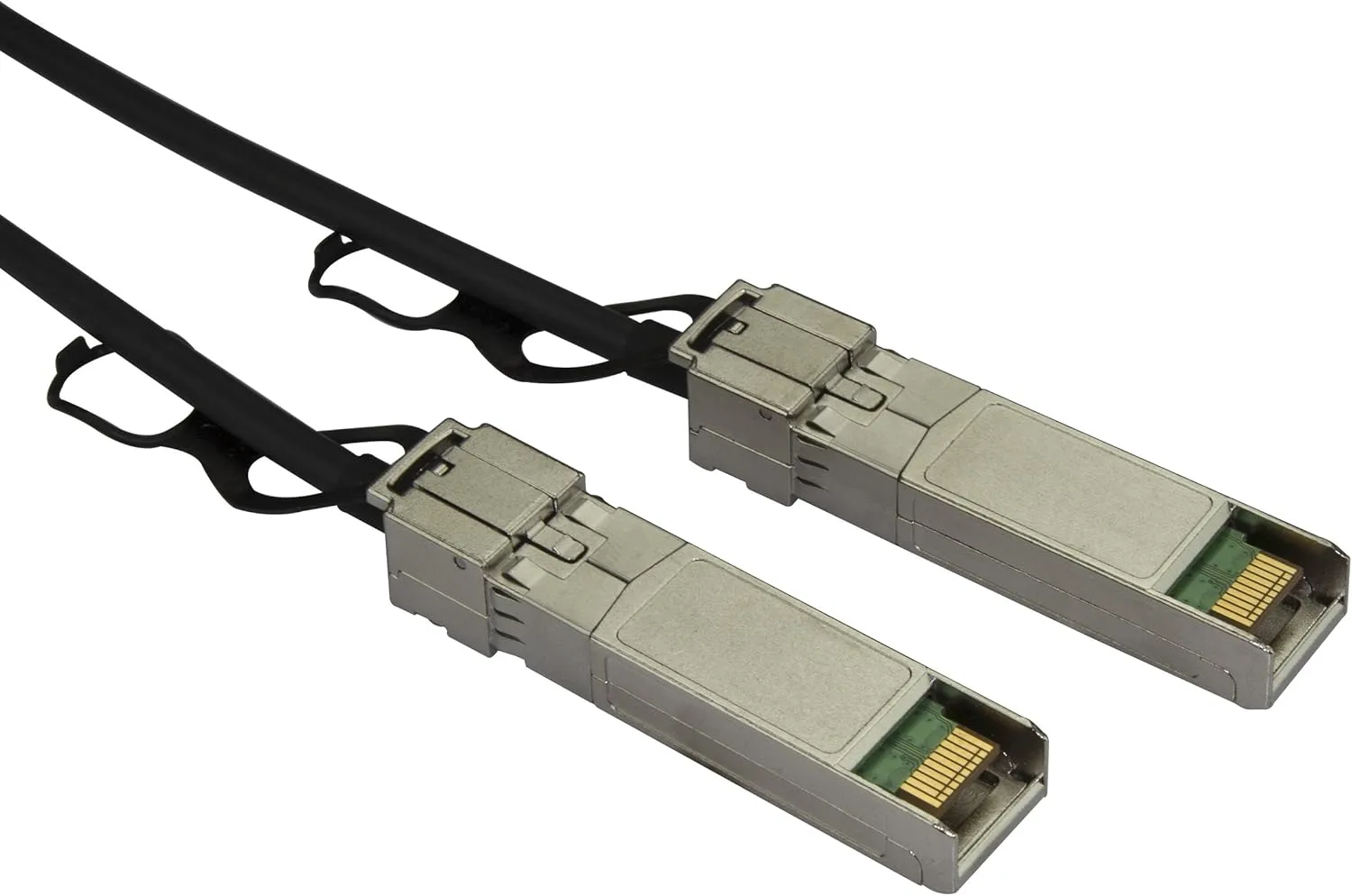

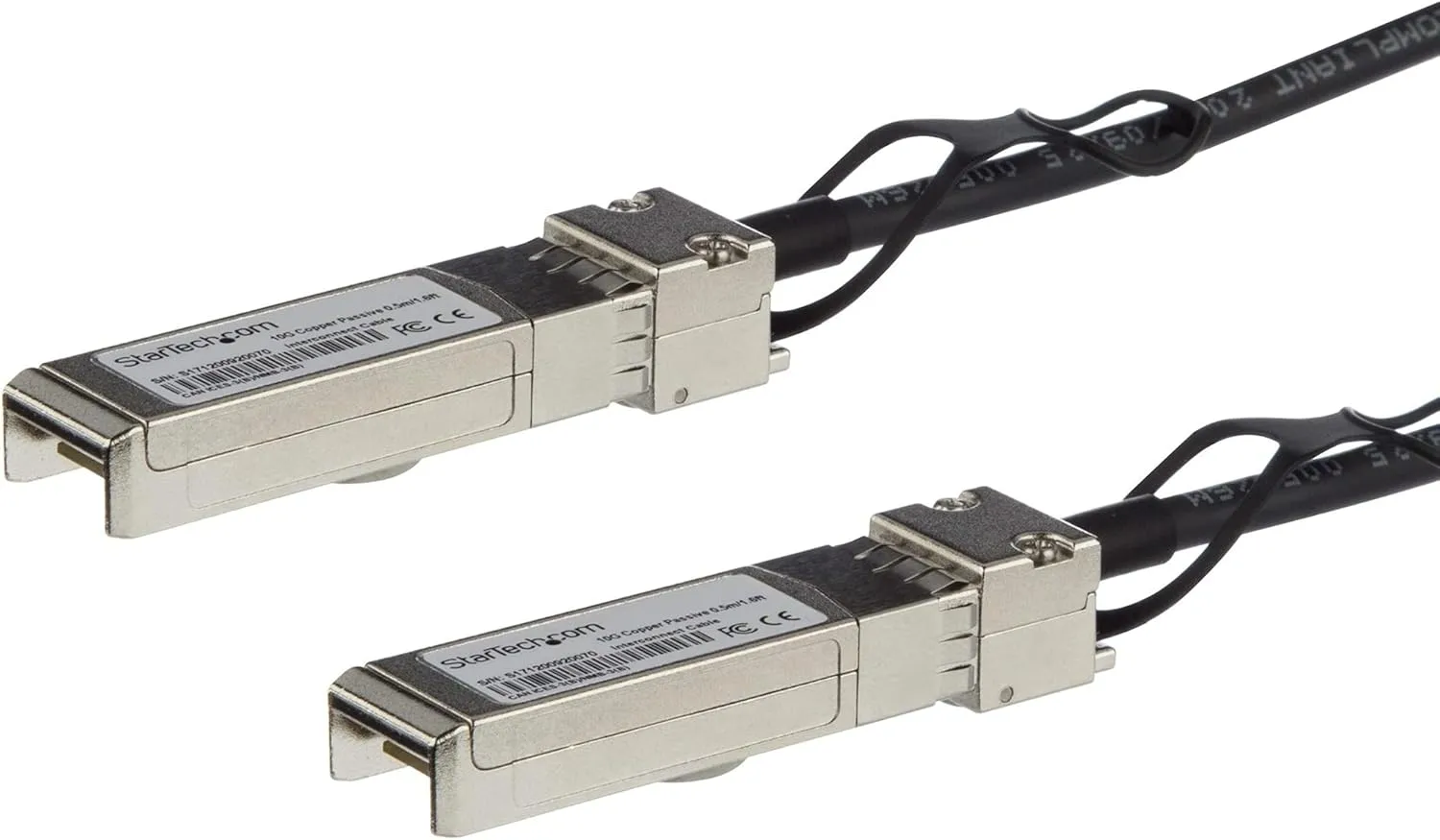

StarTech.com MSA Uncoded Compatible 1m 10G SFP+ to SFP+ Direct Attach Cable
Customize
Hot-swappable. WORKS WITH MSA COMPLIANT SWITCHES: Low power 10 GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers. TECHNICAL SPECS: 1 m (3.3 ft) | 10 Gbps | Passive Twinax (Copper) | 2x SFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG Wire Gauge | PVC Cable Jacket | Hot swappable | MSA Compliant. DESIGNED FOR SERVER ROOMS: Mini GBIC DAC is a cost-effective copper alternative to fiber cable inside & between racks. Factory termination means high performance & reliability with less maintenance. OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself; our cables won't void your OEM support and include access to Tech Advisors 5/24. FEATURES: Works with MSA-compliant switches that accept uncoded transceivers, Passive Twinax copper construction, SFP+ male-to-male connectors, low power (<0.1 W), 30 AWG, PVC jacket, Black finish, Packaged Quantity: 1, Lifetime warranty.
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 10 GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
- DESIGNED FOR SERVER ROOMS: Mini GBIC DAC is a cost-effective copper alternative to fiber cable inside & between racks; factory termination means high performance & reliability with less maintenance
- TECHNICAL SPECS: 1m (3.3ft) | 10 Gbps | Passive Twinax (Copper) | 2x SFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG Wire Gauge | PVC Cable Jacket | Hot swappable | MSA Compliant
- MSA UNCODED SFP+ CABLE (DAC): 10G direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Copper |
| Outer Material | Steel |
| Product Details | |
| Cable Type | Twinaxial |
| Compatible Devices | Network Device, Switch, Server, Transceiver |
| Connector On First End Details | 1 X Sfp+ Network - Male |
| Connector On Second End Details | 1 X Sfp+ Network - Male |
| Connector Type | SFP+ Network - Male |
| Cord Length | 3-19/64 ft |
| Data Transfer Rate | 10 Gigabits Per Second |
| Device Supported | Network Device; Switch; Server; Transceiver |
| Ethernet cable category | Cat 5e |
| Gauge | 30.0 |
| Gender (End 1) | Male |
| Gender (End 2) | Male |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Material (Jacket) | Polyvinyl Chloride (Pvc, #3) |
| Number of Items | 1 |
| Packaged Quantity | 1 |
| Product Material | Copper |
| Shape | Round |
| Special Feature | High Speed |
| Specification Met | Msa,msa Compliant |
| Warranty | Full Lifetime |
| Sizing & Dimensions | |
| Height | 0.5 inches |
| Length | 39.4 inches |
| Product Dimensions | 39.4 x 0.6 x 0.5 inches |
| Size | 1 m (3.3 ft) |
| Weight | 2.6 ounces |
| Width | 0.6 inches |
| Technical Specifications | |
| Connector Gender | Male-to-Male |
| Frequency | 1E+10 Hz |
