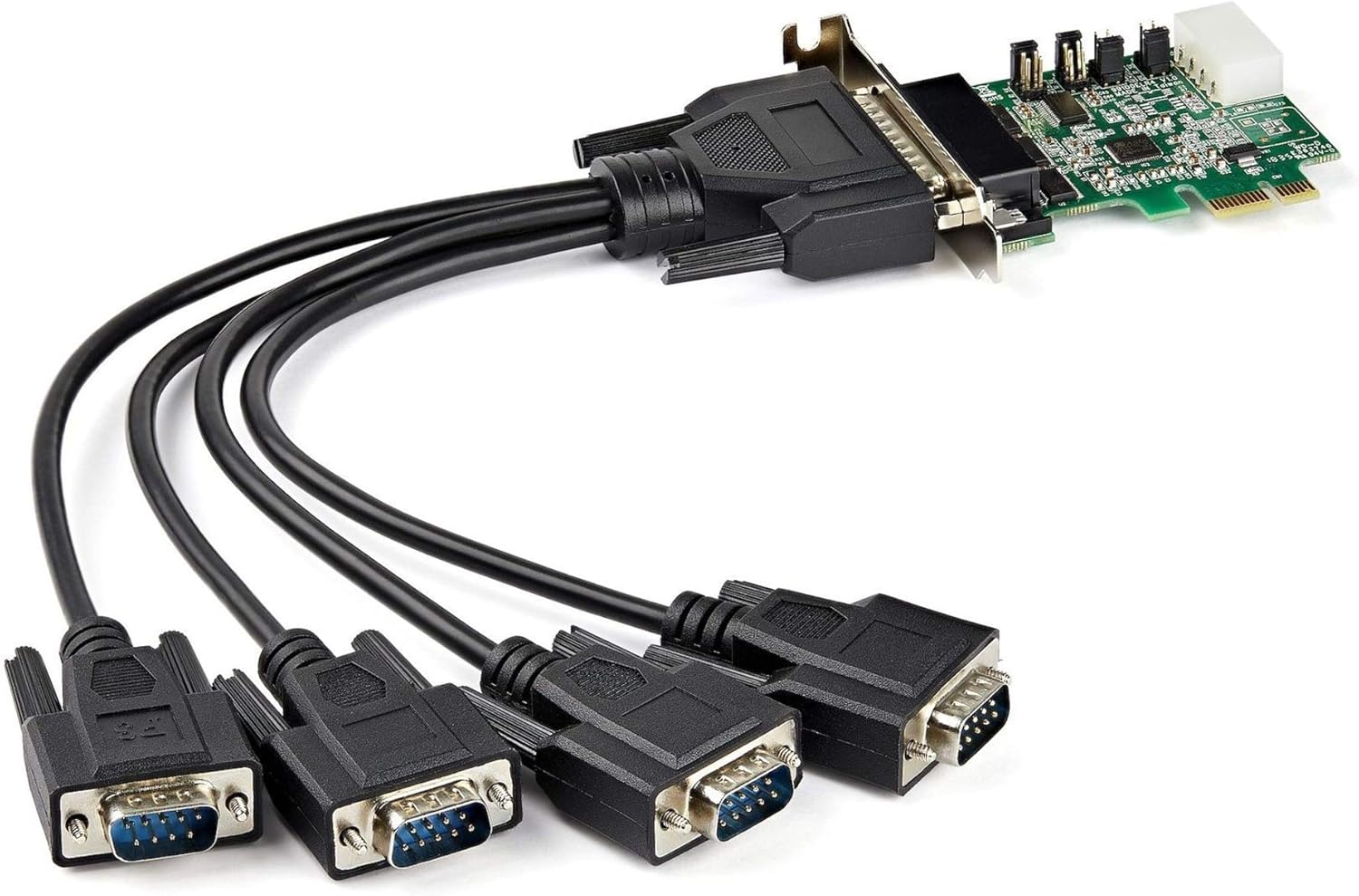

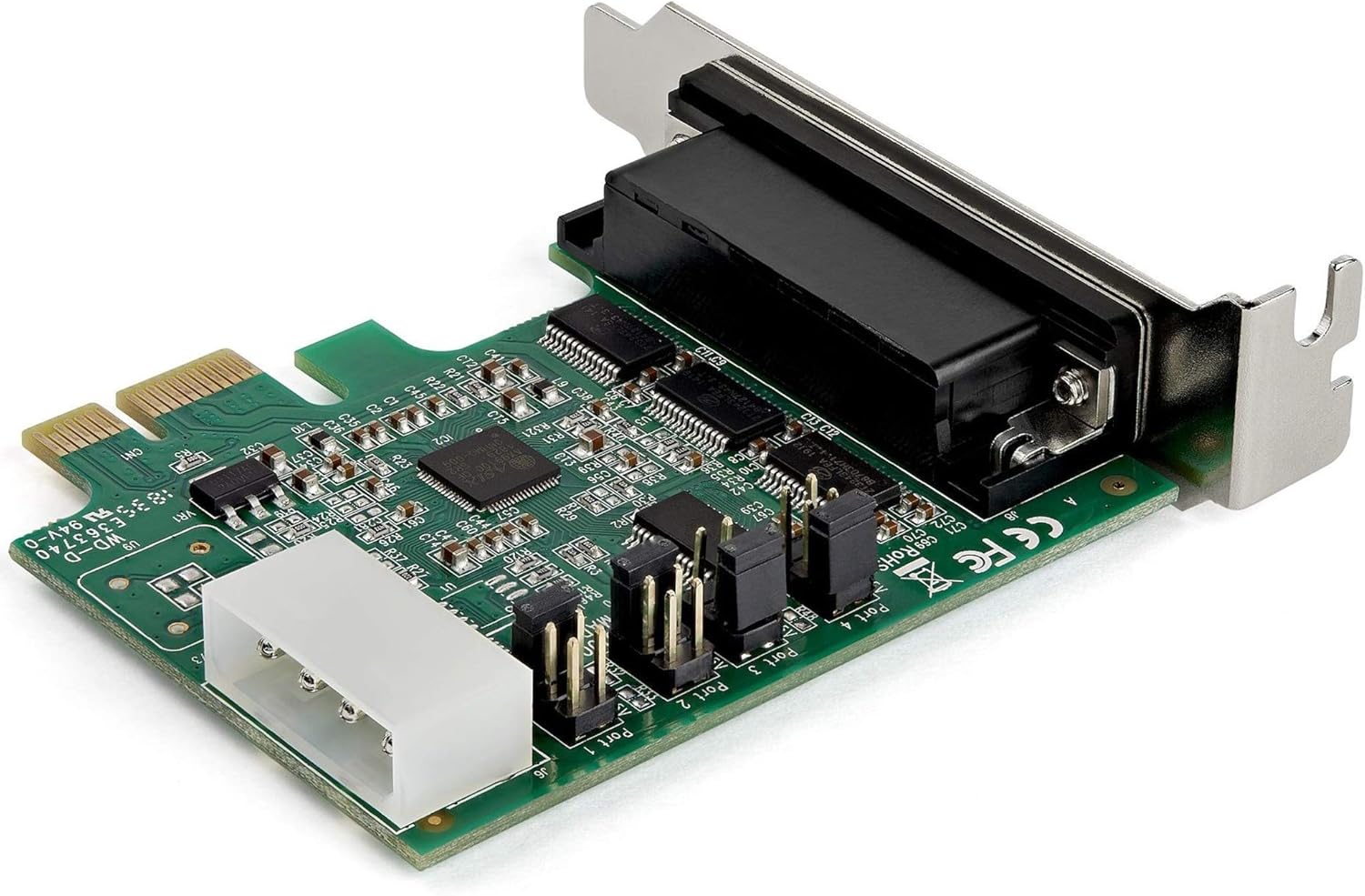

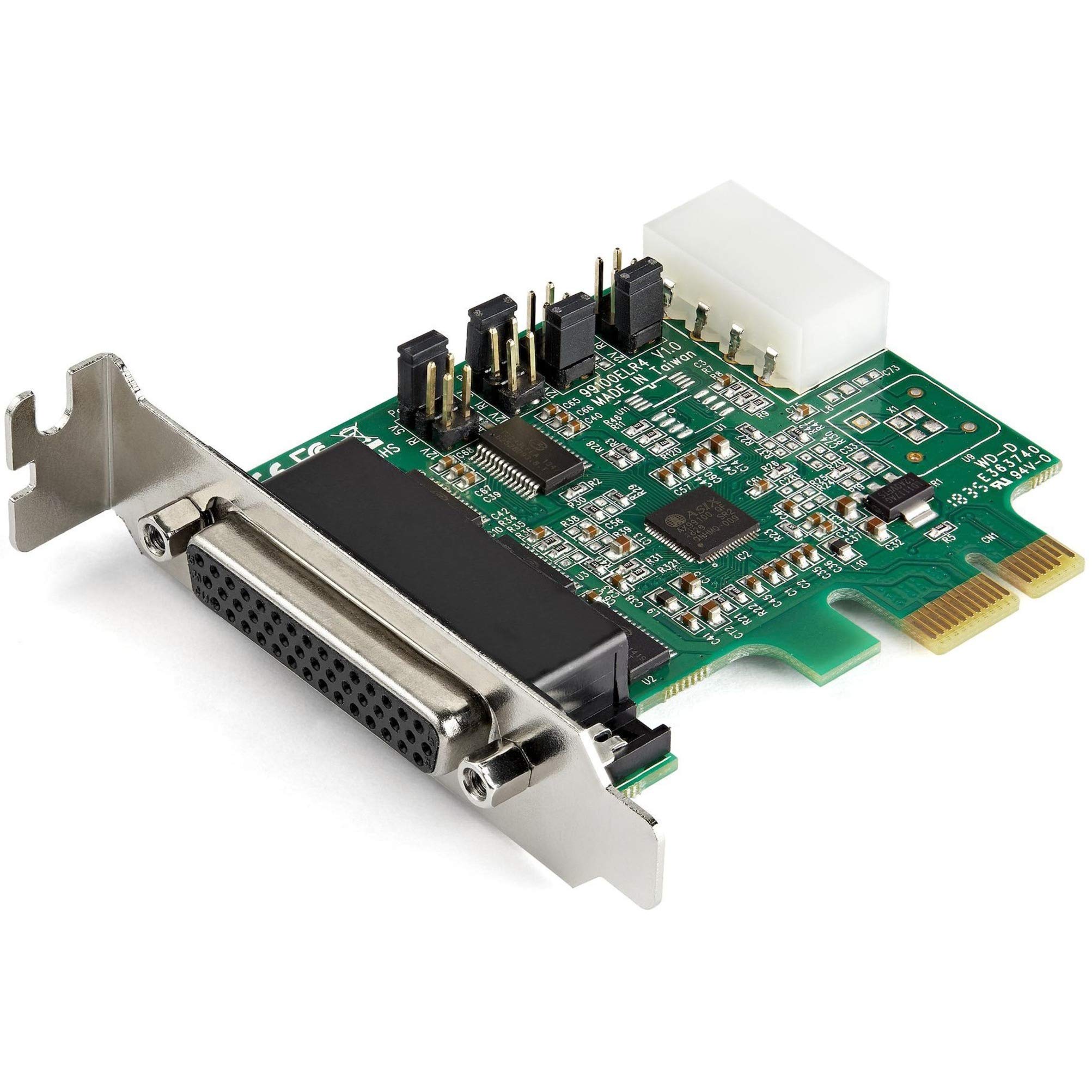

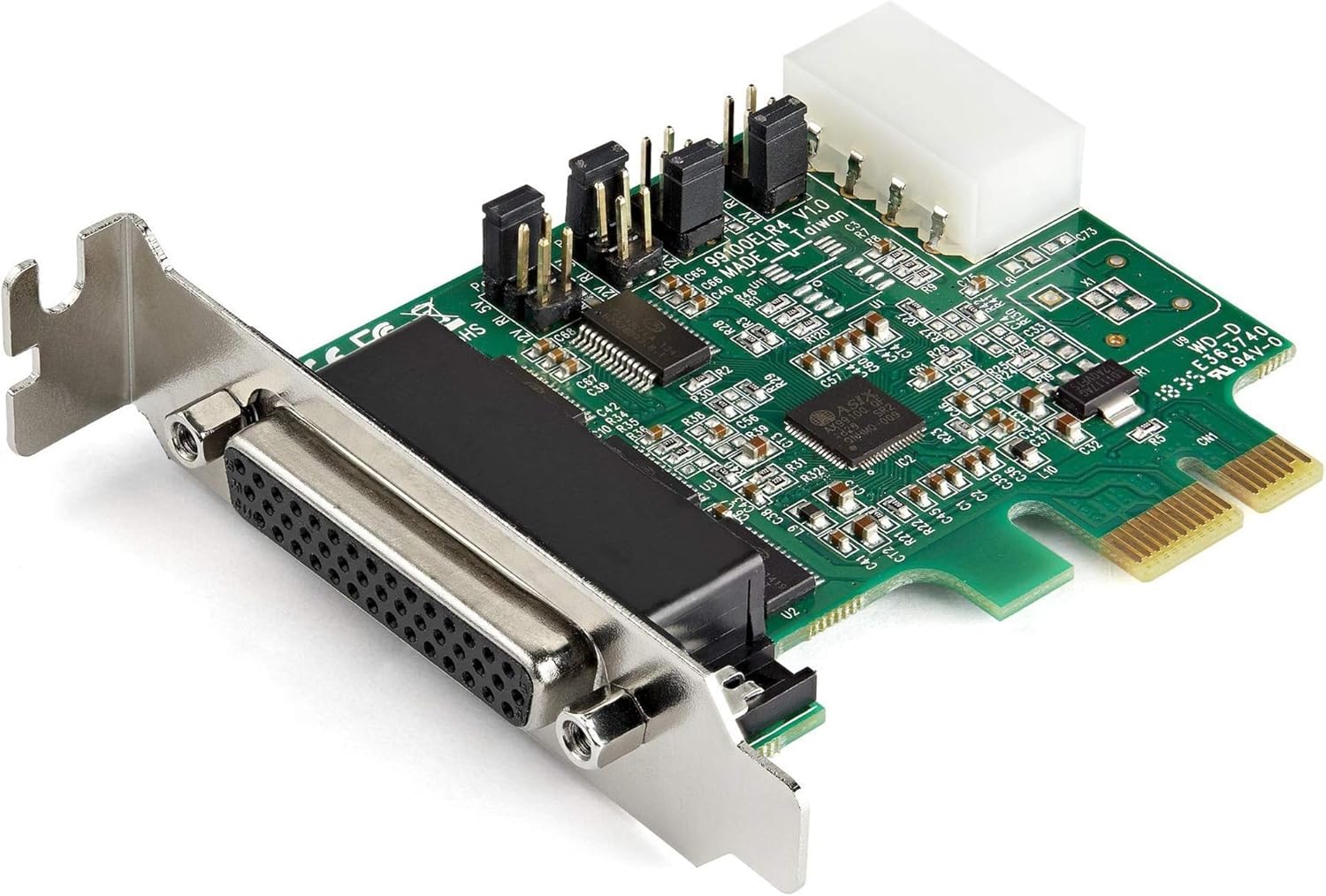

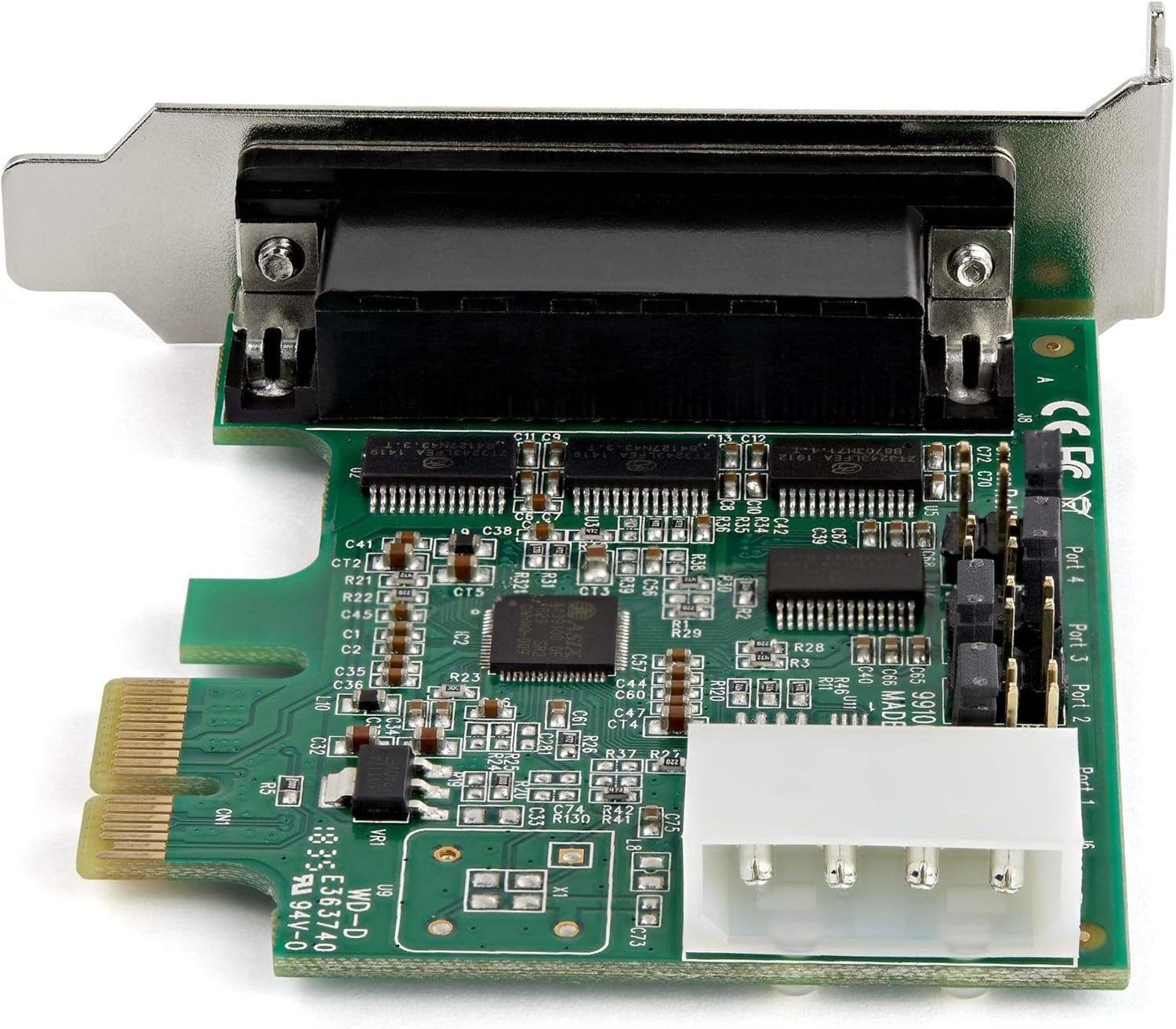

StarTech.com 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9

4 PORT PCI EXPRESS RS232 SERIAL CONTROLLER CARD W/16950 UART/ASIX AX99100 - BI-DIRECTIONAL SPEEDS 921.6KBPS/PORT / 256 BYTE FIFO / 9TH DATA BIT - PIN 9 PWR OUT5V/12V/NONE W/UP TO 2A TOTAL - STD BRACKET (LOW PROFILE INCL); BREAKOUT CABLE - StarTech.com 4-Port PCI Express RS232 Serial Adapter Card - 16950 UART - Low Profile - PCI Express 1.1 x1 - 4 x DB-9 RS-232 - Serial, Via Cable - Plug-in Card. This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with low-profile brackets and includes optional full-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX4S952LP. Experience Optimal Technology This PCIe to serial adapter supports the following features: Compatible with industry-standard 16950 UART Supports max baud rate of up-to 921.6Kbps Provides 5/12V power output on Pin 9 when external power is connected 256-byte depth FIFO cache per transmitter and receiver Supports 9, 8, 7, 6, 5 data bits (one per port) Asix AX99100 chipset PCI Express 1.1 compliant The Choice of IT Pros Since 1985. PEX4S03LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

• VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
• STANDARD PROFILE & LOW PROFILE BRACKET: PCI Express RS232 serial adapter card has low profile bracket pre-installed & 1x standard bracket incl for versatile install; Supports Windows XP and up & Linux

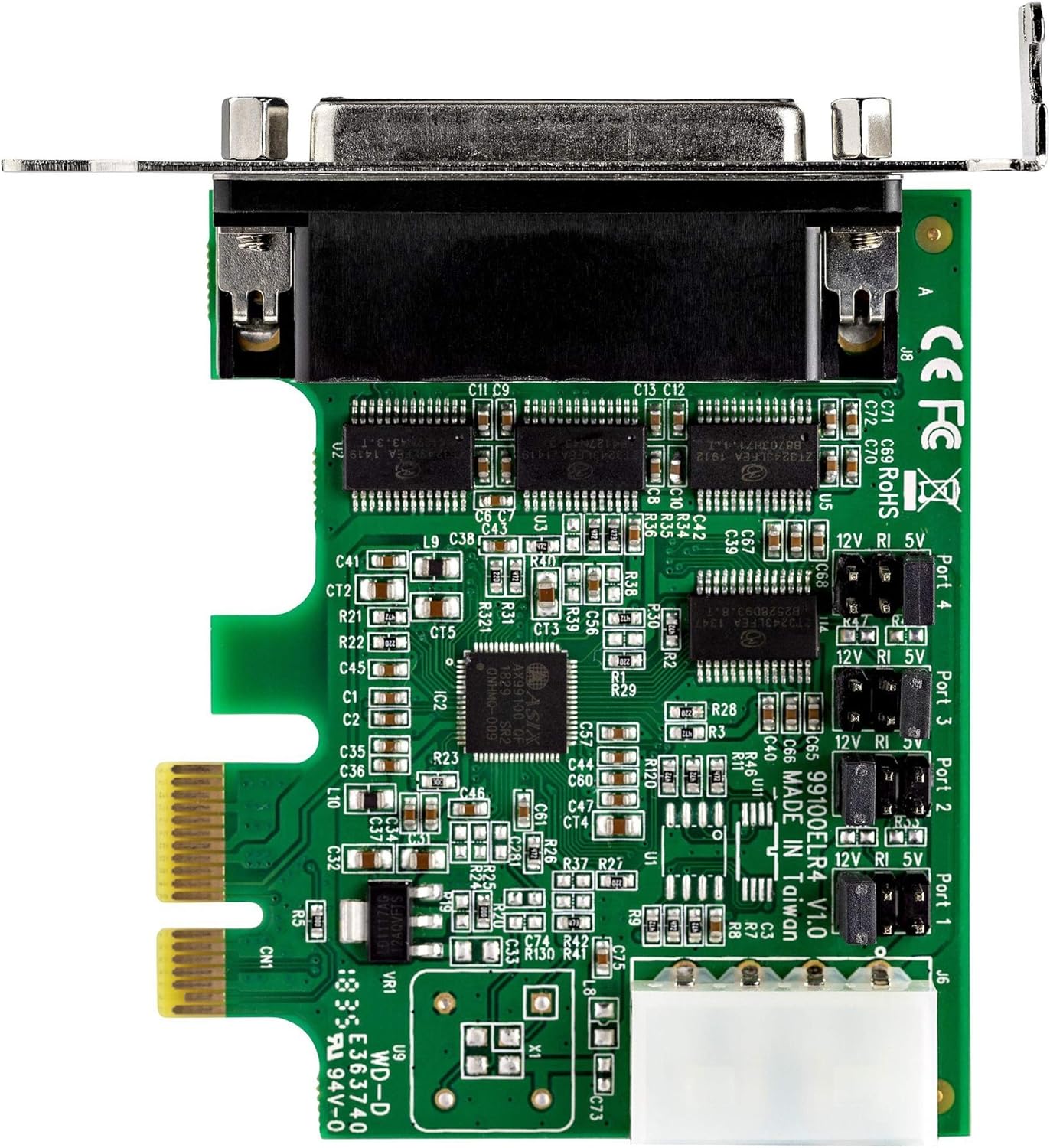

• OPTIONAL CONFIGURABLE POWER: PCIe multiport serial card provides 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 4 ports are individually configurable; DB44 to 4x DB9 breakout cable incl
• 4 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 4x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer; Upgraded version of our popular card PEX4S952LP
