Panduit CBX4IW-AY 4-Port Surface Mounting Box for LD3/LDPH3/LD5/LDPH5, Off White
Customize

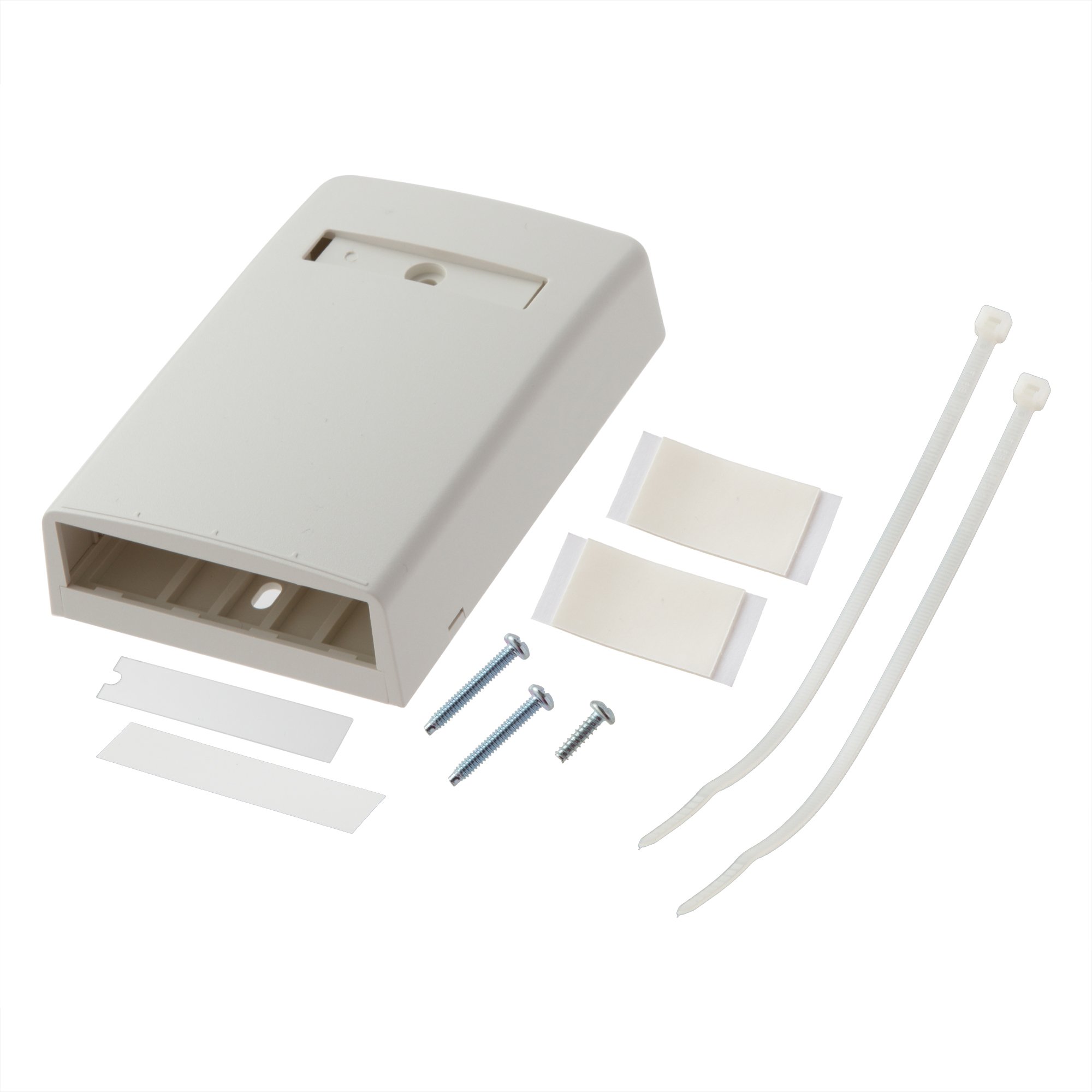

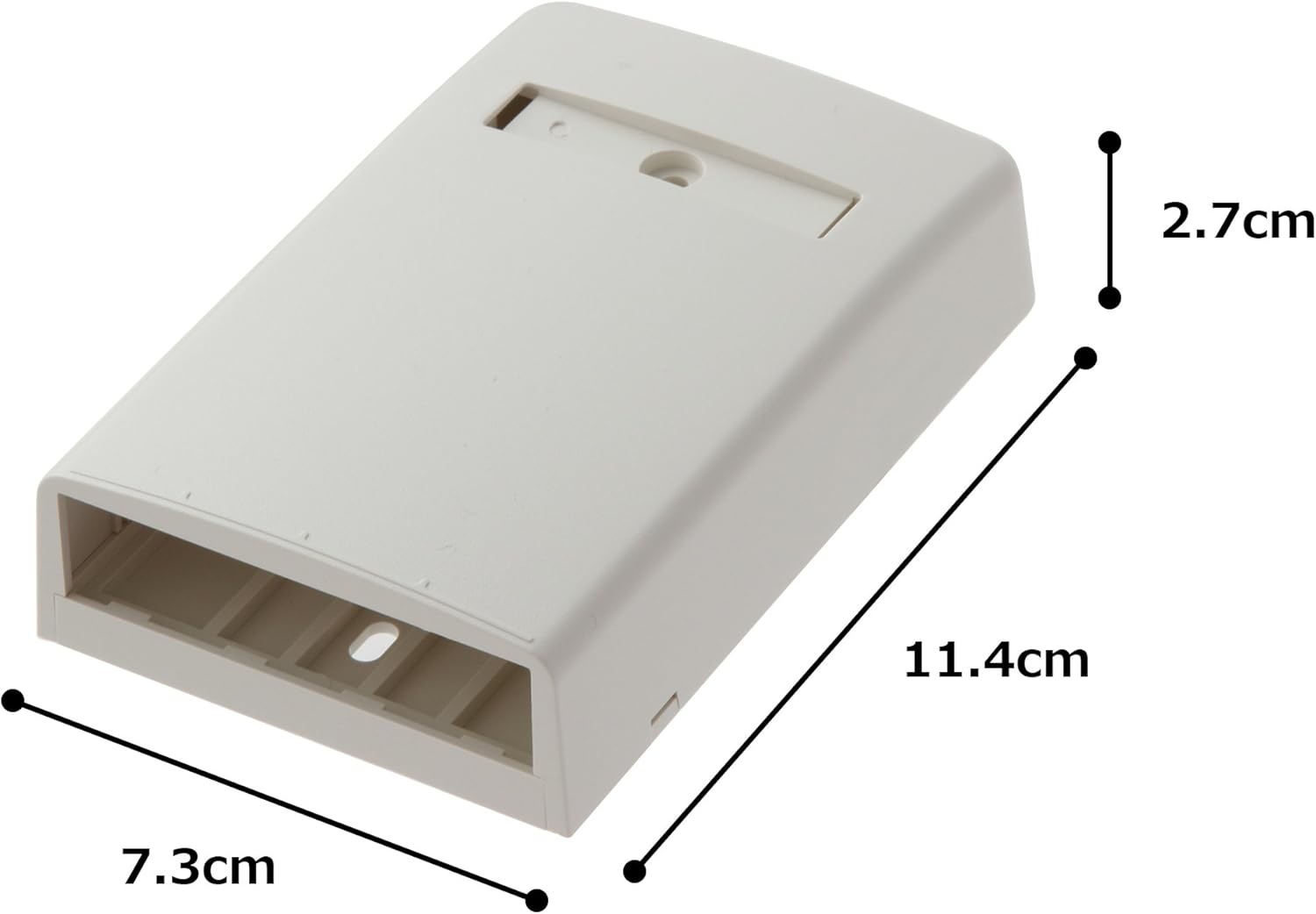

Mini-Com surface mount box accepts four Mini-Com Modules. Provides slots that Accepts cable ties for strain relief. Supplied with label holder/screw cover. Dimensions: 1.06-Inch Height x 2.90-Inch Width x 4.50-Inch L (27.0mm x 73.6mm x 114.3mm). Accepts Mini-Com and Keystone Modules for STP and UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes. Mount easily with supplied mounting screws, adhesive tape or optional magnet. Cable entry from side, rear, and base knockouts. Compatible with Panduit Surface Raceway. Select boxes include fiber spool for fiber cable management. Panduit is a world-class manufacturer committed to innovation and excellence. Today, Panduit is recognized as a leading manufacturer of high-quality products for wiring and communications applications. This reputation gives the company a powerful advantage in today's competitive worldwide marketplace.
- Optional adhesive labels available
- CBXJ2 and CBX2 include built-in removable blank to add a second module
- Cable entry from side and rear knockouts and from opening in center of base
- Mount easily with supplied mounting screws, adhesive tape, or optional magnet
- Accepts Mini-Com modules for STP and UTP, fiber optic and audio/video, which snap in and out for easy moves, adds and changes
Specifications:
| Materials & Construction | |
| Color | Off White |
| Material | Acrylonitrile Butadiene Styrene |
| Outer Material | Acrylonitrile Butadiene Styrene |
| Product Details | |
| Finish Type | Painted |
| Global Trade Identification Number | 00074983032082 |
| Installation Type | Screw-In |
| Item model number | CBX4IW-AY |
| Style | Stp |
| UPC | 074983032082 |
| Sizing & Dimensions | |
| Height | 1.06 inches |
| Length | 4.50 inches |
| Product Dimensions | 4.50 x 2.90 x 1.06 inches |
| Weight | 1.6 ounces |
| Width | 2.90 inches |
| Technical Specifications | |
| Is Discontinued By Manufacturer | No |
