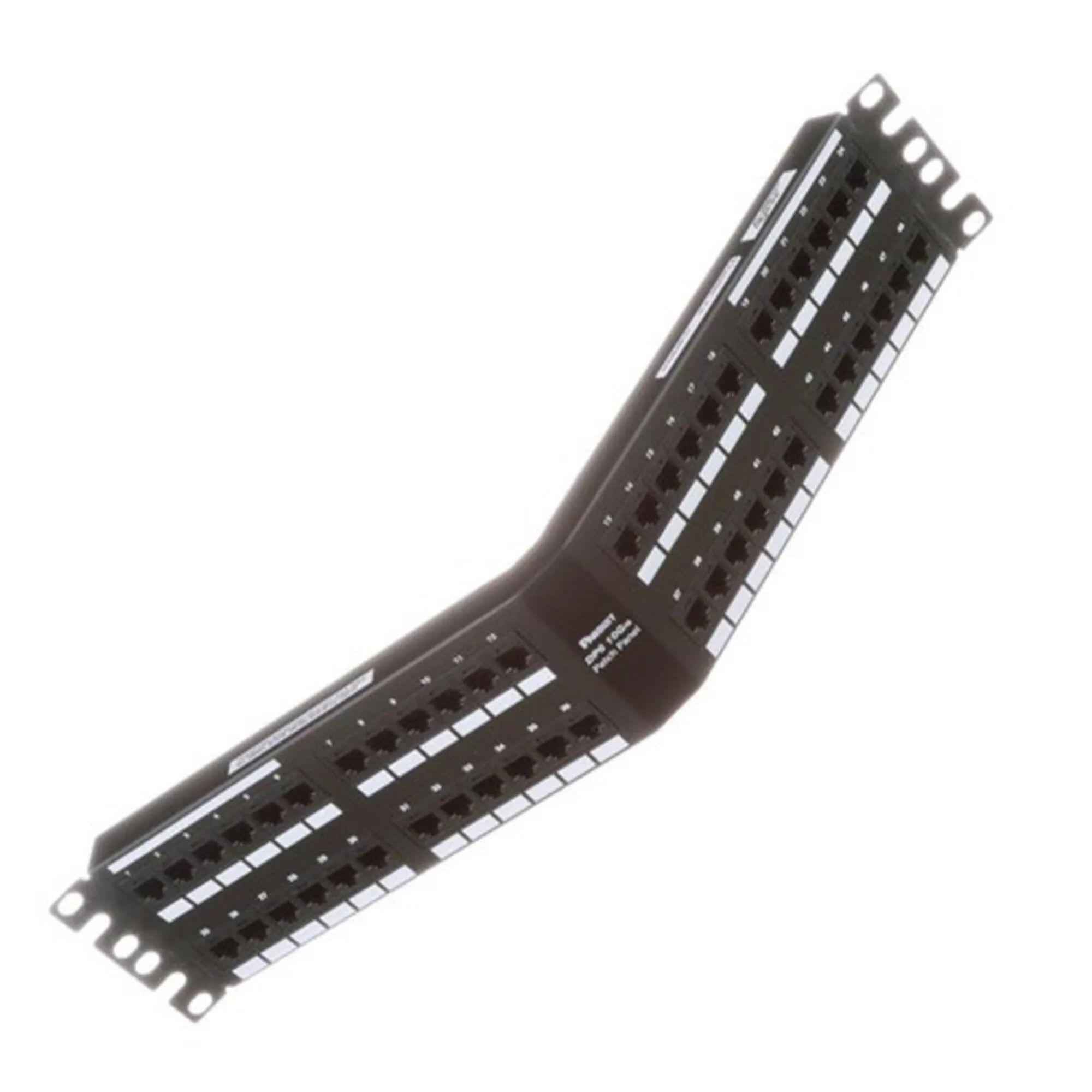

Panduit DPA486X88TGY Category-6A 48-Port Angled Punchdown Patch Panel

48-Port, angled, Category 6A, 10 Gb/s patch panel with 48 RJ45 8-Position, 8-wire ports. Exceed requirements of ANSI/TIA-568-C.2 Category 6A, IEEE 802.3an-2006 and ISO 11801 Class EA channel standards. Exceed requirements of ANSI/TIA-568-C.2 Category 6A and IEC 61156-5 Category 6A component standards. Meet requirements of IEEE 802.3af and IEEE 802.3at for Poe applications. Each port is 100% tested to ensure NEXT and RL performance and is individually serialized to support traceability. Utilize 110 punch down termination on back panel and include retention cap for each port. Each port contains a universal label that is color-coded for T568A and T568B wiring schemes. Contacts plated with 50 micro inches of gold for superior performance. Angled versions allow for higher density applications by easily routing the patch cords to each side of the panel eliminating the need for horizontal cable management. Terminate 4-Pair, 22 - 26 AWG, 100 ohm, solid or stranded twisted pair cable. Mount to standard EIA 19-Inch rack or 23-Inch racks with optional extender bracket. Write-on areas for port and panel identification. Can be clearly identified with labels and icons. Optional label kits (DPLK24 and DPLK48) contain adhesive label holder and labels for easy port and panel identification. Panduit is a world-class manufacturer committed to innovation and excellence. Today, Panduit is recognized as a leading manufacturer of high-quality products for wiring and communications applications. This reputation gives the company a powerful advantage in today's competitive worldwide marketplace.

• Exceed requirements of ANSI/TIA-568-C.2 category 6A, IEEE 802.3an-2006 and ISO 11801 class EA channel standards
• Exceed requirements of ANSI/TIA-568-C.2 category 6A and IEC 61156-5 category 6A component standards
• Meet requirements of IEEE 802.3af and IEEE 802.3at for Poe applications
• Each port is 100 percent tested to ensure NEXT and RL performance and is individually serialized to support traceability
• Utilize 110 punch down termination on back panel and include retention cap for each port
