Panduit CJ6X88TGGR UTP Jack Module
Customize

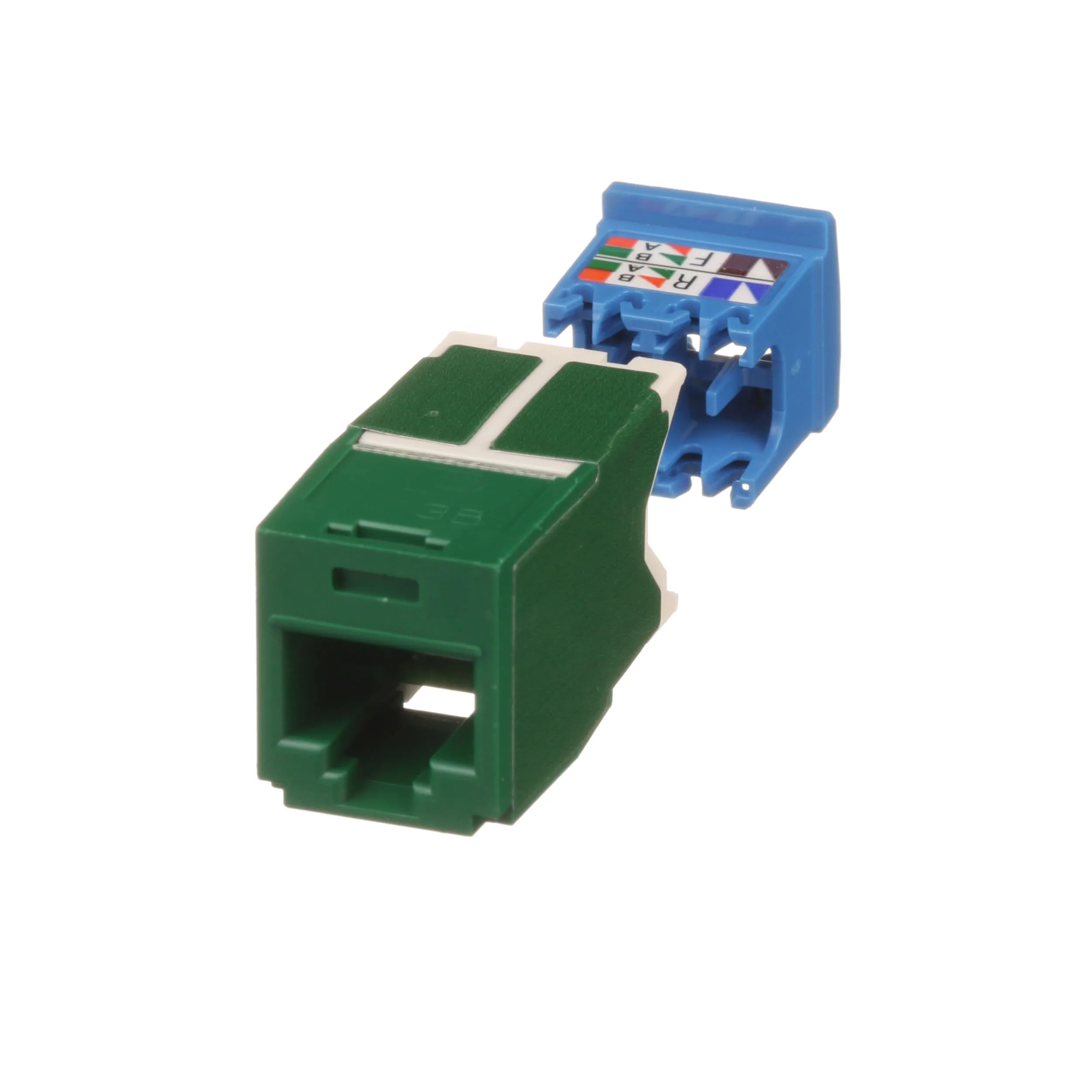

Panduit CJ6X88TGGR Cat6A UTP RJ45 jack module (green) is a single-port modular jack designed for high-performance Ethernet connectivity. It supports Category 6A, 10 Gb/s networks, and features an 8-position, 8-wire universal module with panel-mount capability. Manufacturer: Panduit Corp. Part number CJ6X88TGGR. UPC 074983636211. Dimensions (packaging): 3.6 L x 0.5 H x 3 W inches; package weight approximately 0.03 pounds. Product dimensions (approx.): 3.6 x 3 x 3 inches; product weight about 0.71 ounces. Electrical ratings include 400 Volts and a 6 Amp current rating; rated to an upper temperature of 75 Degrees Celsius and meets IEC specification. Ideal for enterprise and industrial network installations requiring reliable, high-speed RJ45 connections.
- Package Dimensions: 3.6 L x 0.5 H x 3 W (inches)
- Package Weight : 0.03 pounds
- Country of Origin : United States
- Part Number: CJ6X88TGGR
Materials & Construction
- Color:Green
Product Details
- Connector Type:RJ-45
- Current Rating:6 Amps
- Item model number:CJ6X88TGGR
- Mounting Type:Panel Mount
- Number Of Contacts:8
- Number Of Poles:8
- Specification Met:IEC
- Upper Temperature Rating:75 Degrees Celsius
- Voltage:400 Volts
Sizing & Dimensions
- Height:3 inches
- Length:3.6 inches
- Product Dimensions:3.6 x 3 x 3 inches; 0.71 ounces
- Weight:0.71 ounces
- Width:3 inches
