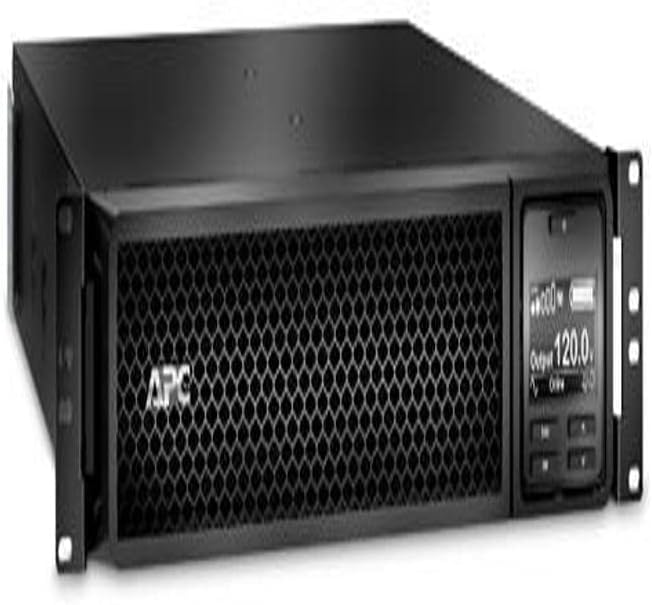

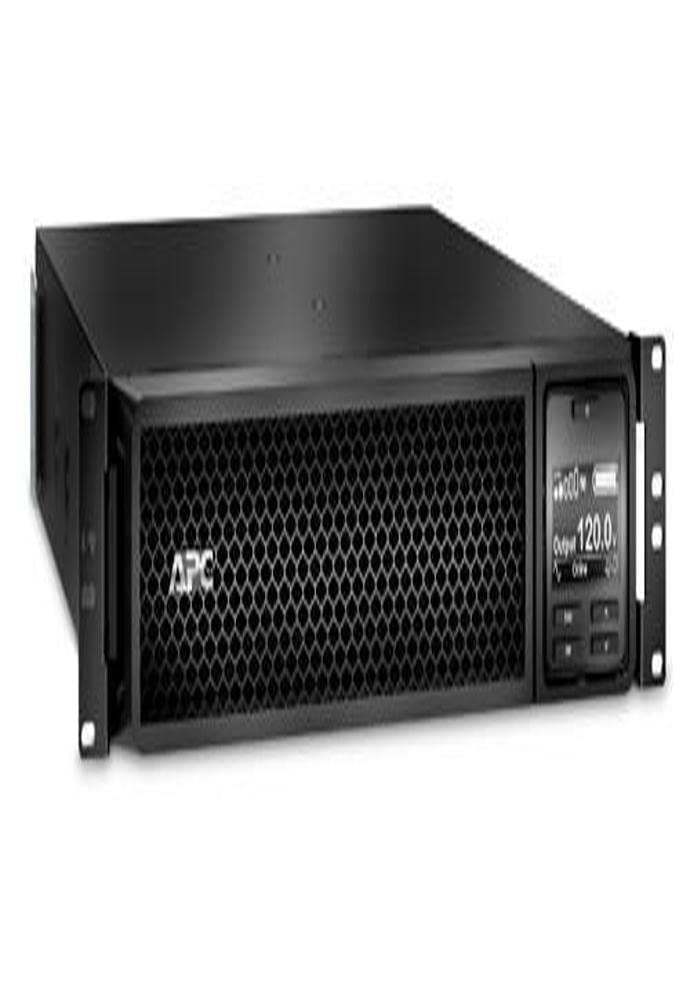

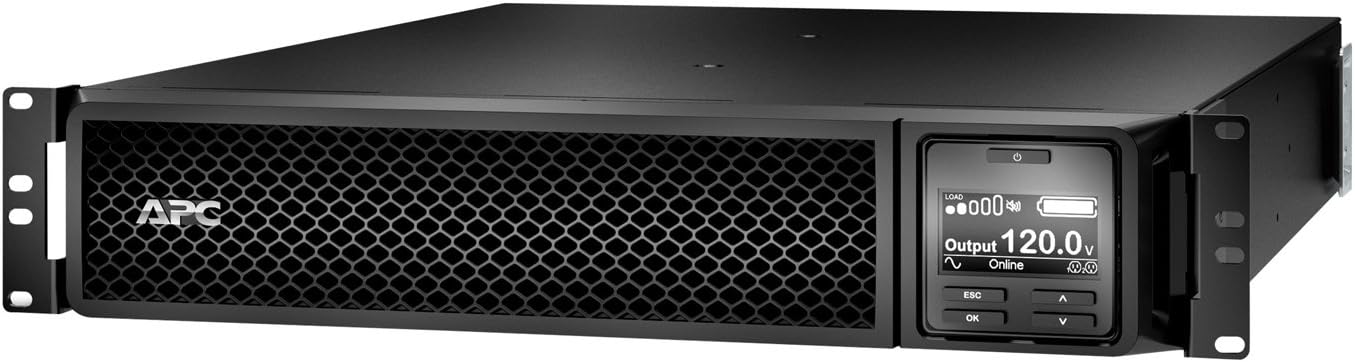

APC 2200VA Smart-UPS Single Phase Online Uninterruptible Power Supply SRT2200RMXLA-NC, Rack Mount UPS with Network Card
Customize
The next generation APC Smart-UPS On-Line SRT2200RMXLA-NC delivers high-density, double-conversion on-line power protection with scalable runtime and smart management options. Features include ECO Mode to increase operating efficiency by bypassing unused components in good power conditions, a graphical LCD interface that displays modes, system parameters and alarms, rack/tower convertible design to protect investment when migrating from tower to rack environments, and battery-failure notification for early-warning maintenance. Designed for servers, storage, network closets and industrial applications, the UPS provides 2200 VA / 1800 W capacity, sealed lead-acid battery technology, (6) NEMA 5-20R and (1) NEMA L5-20R outputs (battery backup), 120V input, 15A input, 6' cord, 7 surge-only outlets, 3-hour recharge time and a 3-year limited warranty. Energy-efficient and RoHS/REACH/Energy Star aligned, the product supports remote management via network card and includes mounting hardware for 2U rack installation. Dimensions and weight: 17.01 x 22.99 x 3.35 inches; 55.1 pounds.
- Input: NEMA 5-20P. Cord Length: 6'

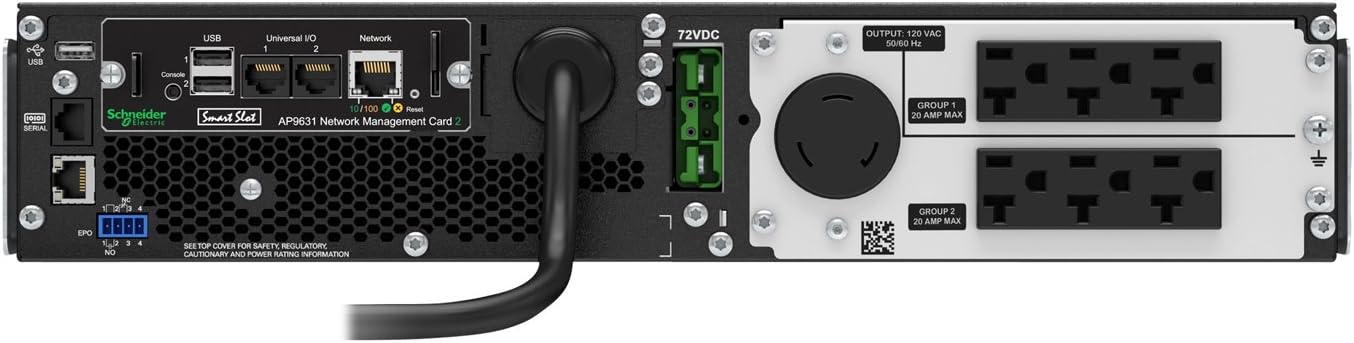

- Output: (6) NEMA 5-20R (Battery Backup), and (1) NEMA L5-20R (Battery Backup)
- 120V
- High density, double-conversion on-line power protection with scalable runtime: allows additional run time to be quickly added as needed.
- 2200VA / 1800W
Specifications:
| Materials & Construction | |
| Battery Type | Lead-Acid |
| Color | Black |
| Product Details | |
| Battery Cell Composition | Sealed Lead Acid |
| Load Capacity (VA) | 2200 |
| Load Capacity (Watt) | 1800 |
| Model | 2200va rm |
| Mounting Hardware Included | Yes |
| Rack Mountable | Yes |
| Surge Rating | 340 Joule |
| UPS Battery Type | Lead-Acid |
| UPS Type | Online |
| Sizing & Dimensions | |
| Height | 3.35 inches |
| Length | 17.01 inches |
| Product Dimensions | 17.01 x 22.99 x 3.35 inches |
| Size | 2U |
| Weight | 55.1 pounds |
| Width | 22.99 inches |
| Technical Specifications | |
| Amperage | 15 Amps |
| Battery Run Time | 3 Min |
| Charge Time (Approx) | 3 hr |
| Frequency Response | 50Hz To 20kHz |
| Number Of Surge Only Outlets | 7 |
| Voltage | 120 Volts |
| Warranty | 3-Year Limited |
